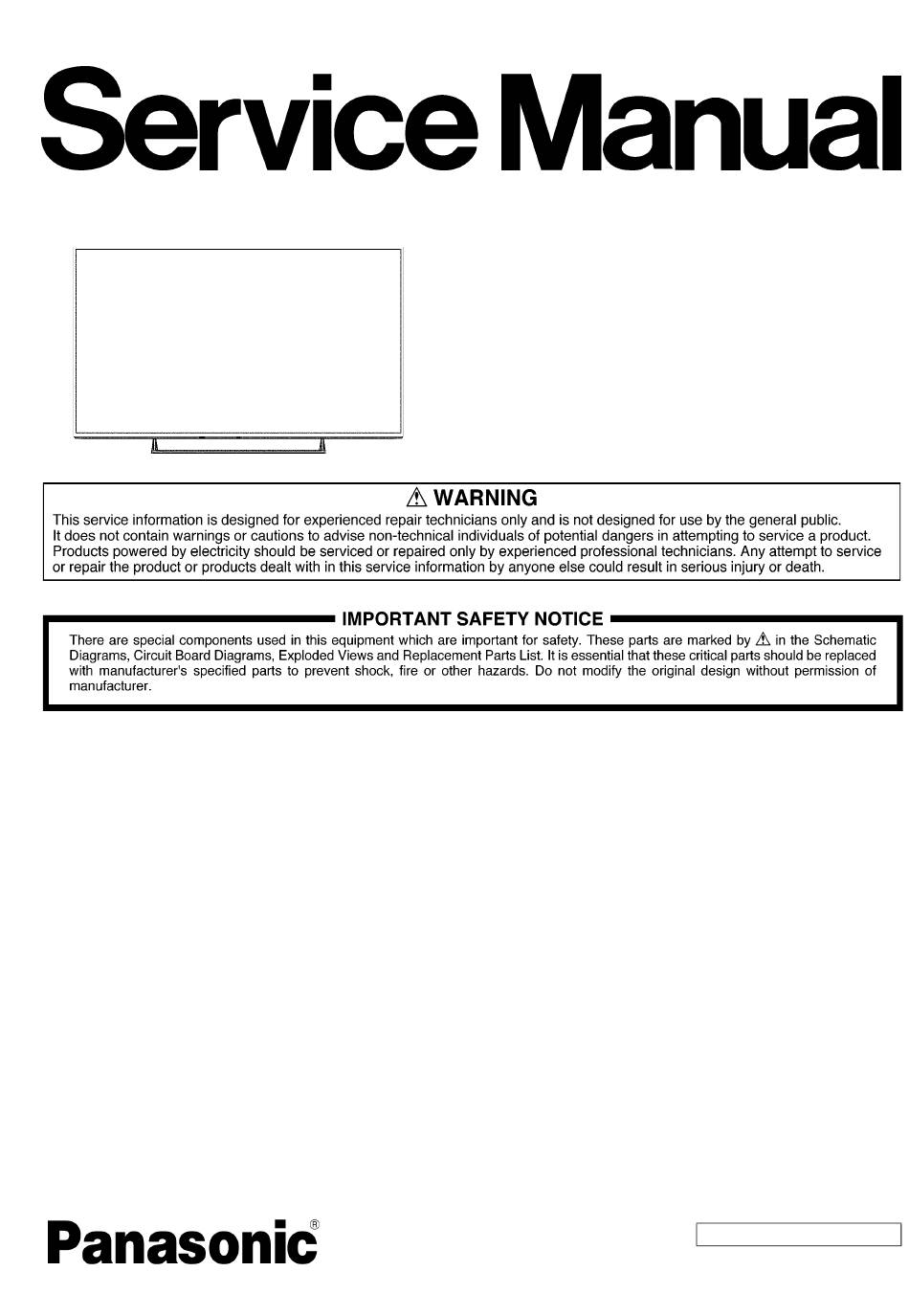

Panasonic TH-40CX600S Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.1.1. Leakage Current Cold Check---------------------- 3
1.) --------------------------------------------------------- 3
2 Warning -------------------------------------------------------------- 4
2.2. About lead free solder (PbF)---------------------------- 5
3 Service Navigation ----------------------------------------------- 6
3.1. Service Hint ------------------------------------------------- 6
4 Specifications ----------------------------------------------------- 7
5 CS Maintenance Menu ------------------------------------------ 9
5.1.1. Purpose ------------------------------------------------- 9
5.1.2. Key command ----------------------------------------- 9
5.1.3. How to exit---------------------------------------------- 9
5.2. Repack ------------------------------------------------------- 9
5.3. EDID Clock-------------------------------------------------10
5.4. USB HDD Drive Check----------------------------------10
Model No.
Chassis:
Destination:
PAGE
5.5. System Information -------------------------------------- 11
5.5.1. How to access --------------------------------------- 11
5.5.2. How to exit -------------------------------------------- 11
5.6. Hotel mode ------------------------------------------------ 12
5.6.1. Purpose ------------------------------------------------ 12
menu --------------------------------------------------- 12
5.7. Data Copy by USB Memory --------------------------- 13
5.7.1. Purpose ------------------------------------------------ 13
5.7.2. Preparation-------------------------------------------- 13
6 Troubleshooting Guide --------------------------------------- 16
6.1. Check of the IIC bus lines------------------------------ 16
6.1.1. How to access --------------------------------------- 16
6.1.2. Self-check indication only ------------------------- 16
shipment setting ------------------------------------- 16
ORDER NO. MTV1505402CE
TH-40CX600S
TH-50CX600S
LA59
SINGAPORE
© Panasonic Corporation 2015.
LED TV
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-40CX600S

Summary of Contents for Panasonic TH-40CX600S

  • Page 1: Table Of Contents

    5.1.3. How to exit---------------------------------------------- 9 6.1.1. How to access --------------------------------------- 16 5.2. Repack ------------------------------------------------------- 9 6.1.2. Self-check indication only ------------------------- 16 6.1.3. Self-check indication and forced to factory 5.3. EDID Clock-------------------------------------------------10 5.4. USB HDD Drive Check----------------------------------10 shipment setting ------------------------------------- 16 © Panasonic Corporation 2015.
  • Page 2 (TH-50CX600S) ------------------------------------------ 20 7.3. Fan Bag Assembly (TH-40CX600S) ---------------- 21 7.4. Fan Bag Assembly (TH-50CX600S) ---------------- 22 7.5. Back Cover - Screw (TH-40CX600S) --------------- 23 7.6. Back Cover - Screw (TH-50CX600S) --------------- 24 8 Measurements and Adjustments -------------------------- 25 8.1. Voltage chart of A-board-------------------------------- 25 8.2.

  • Page 3: Safety Precautions

    TH-40CX600S TH-50CX600S 1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Warning

    TH-40CX600S TH-50CX600S 2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    TH-40CX600S TH-50CX600S 2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

  • Page 6: Service Navigation

    TH-40CX600S TH-50CX600S 3 Service Navigation 3.1. Service Hint Board Name Main Device Remarks A BOARD Main(MTK IC) Repairable P BOARD Power Supply / Switch Repairable K BOARD LED/ RM/ CATS Repairable LDP BOARD DC/DC+LED Driver Repairable...

  • Page 7: Specifications

    TH-40CX600S TH-50CX600S 4 Specifications Dimensions (W  H  D) [40-inch model] 904 mm  567 mm  235 mm (With Pedestal) 904 mm  518 mm  63 mm (TV only) [50-inch model] 1 126 mm  701 mm  235 mm (With Pedestal) 1 126 mm ...
  • Page 8 TH-40CX600S TH-50CX600S Receiving channels (Analogue TV) VHF BAND 2 - 12 (PAL / SECAM B, K1) 0 - 12 (PAL B AUST.) 1 - 9 (PAL B N.Z.) 1 - 12 (PAL / SECAM D) 1 - 12 (NTSC M Japan)

  • Page 9: Cs Maintenance Menu

    TH-40CX600S TH-50CX600S 5 CS Maintenance Menu 5.1. How to enter into CS Maintenance Menu 5.1.1. Purpose After exchange parts, check and adjust the contents of adjustment mode. While pressing [VOLUME ( - )] button of the main unit, press [ RED ] button of the remote control three times within 2 seconds.

  • Page 10: Edid Clock

    TH-40CX600S TH-50CX600S 5.3. EDID Clock 1. Select [EDID CLK] in CS Maintenance Menu. 2. Press [OK] button or Cursor key [Right] on the remote control. Exit: Press the [Exit] button or the [Return] button on the remote control. 5.4. USB HDD Drive Check 1.

  • Page 11: System Information

    TH-40CX600S TH-50CX600S 5.5. System Information 5.5.1. How to access 1. While pressing [MENU] button on the remote control. 2. To select [? Help] and then to select [System Information]. System Information SW version 3001-10000-abcde 3001 Peaks SW 10000 GenX Main...

  • Page 12: Hotel Mode

    TH-40CX600S TH-50CX600S 5.6. Hotel mode 5.6.1. Purpose 5.6.4. Explain the Hotel mode setup menu Restrict a function for hotels. 5.6.2. Access command to the Hotel Item Function Hotel Mode Select hotel mode On/Off mode setup menu Initial INPUT Select input signal modes.

  • Page 13: Data Copy By Usb Memory

    TH-40CX600S TH-50CX600S 5.7. Data Copy by USB Memory Note: SD card can not be used for Data Copy. 5.7.1. Purpose (a) Board replacement (Copy the date when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to USB Memory and then copy to new A-board.

  • Page 14: Data Copy From Tv Set To Usb Memory

    TH-40CX600S TH-50CX600S 5.7.3. Data copy from TV set to USB Memory 1. Turn on the TV set. 2. Insert USB Memory with a startup file (pwd file) to USB terminal. On-screen Display will be appeared according to the startup file automatically.

  • Page 15: Data Copy From Usb Memory To Tv Set

    TH-40CX600S TH-50CX600S 5.7.4. Data copy from USB Memory to TV set 1. Turn on the TV set. 2. Insert USB Memory with Data to USB terminal. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control.

  • Page 16: Troubleshooting Guide

    TH-40CX600S TH-50CX600S 6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access 6.1.2. Self-check indication only Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 17: Power Led Blinking Timing Chart

    TH-40CX600S TH-50CX600S 6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

  • Page 18: Lcd Panel Test Mode

    TH-40CX600S TH-50CX600S 6.4. LCD Panel test mode Purpose: To find the possible failure point where in LCD Panel or Printed Circuit Board when the abnormal picture is displayed. How to Enter: While pressing [VOLUME ( - )] button of the main unit, press [OPTION] button of the remote control three times within 2 seconds.

  • Page 19: Disassembly And Assembly Instructions

    TH-40CX600S TH-50CX600S 7 Disassembly and Assembly Instructions 7.1. Speaker Fixing and Assembly (TH-40CX600S) 1. Fix speaker bracket at panel and screw. 2. Fix speaker at bracket and screw. PART NO DESCRIPTION REMARK L0EYAA000068 SPEAKER_L/R THEJ036J SC (A3/P7/VESA4/SP4/M4/WIFI2/BTC2) 06 ± 1 Kgf.cm...

  • Page 20: Speaker Fixing And Assembly (Th-50Cx600S)

    TH-40CX600S TH-50CX600S 7.2. Speaker Fixing and Assembly (TH-50CX600S) 1. Fix speaker bracket at panel and screw. 2. Fix speaker at bracket and screw. PART NO DESCRIPTION REMARK L0EYAA000068 SPEAKER_L/R THEJ036J SC (A3/P7/VESA4/SP4/M4/WIFI2/BTC2) 06 ± 1 Kgf.cm TKP5ZA56501 SP_BRACKET_LOWER_R TKP5ZA53701 SP_BRACKET_LOWER_L...

  • Page 21: Fan Bag Assembly (Th-40Cx600S)

    TH-40CX600S TH-50CX600S 7.3. Fan Bag Assembly (TH-40CX600S) (Accessories) 1. Insert screw into bag and ensure bag fully seal (lock). (Fan Bag Assembly) 1. Insert all part into cover for fan bag. 2. Direction and sequence (depend by model - Refer part list for detail).

  • Page 22: Fan Bag Assembly (Th-50Cx600S)

    TH-40CX600S TH-50CX600S 7.4. Fan Bag Assembly (TH-50CX600S) (Accessories) 1. Insert screw into bag and ensure bag fully seal (lock). (Fan Bag Assembly) 1. Insert all part into cover for fan bag. 2. Direction and sequence (depend by model - Refer part list for detail).

  • Page 23: Back Cover - Screw (Th-40Cx600S)

    TH-40CX600S TH-50CX600S 7.5. Back Cover - Screw (TH-40CX600S) Fix back cover and screw. PART NO DESCRIPTION REMARK THTD037J SCREW (SP4/KEY1/AV3/BTMCVR2) 06 ± 1 Kgf.cm THEC1509 SCREW (VESA4/BC12/BTMCVR2) 06 ± 1 Kgf.cm...

  • Page 24: Back Cover - Screw (Th-50Cx600S)

    TH-40CX600S TH-50CX600S 7.6. Back Cover - Screw (TH-50CX600S) Fix back cover and screw. PART NO DESCRIPTION REMARK THTD037J SCREW (BC10) 06 ± 1 Kgf.cm THEC2489 SCREW (BC24) 06 ± 1 Kgf.cm...

  • Page 25: Measurements And Adjustments

    TH-40CX600S TH-50CX600S 8 Measurements and Adjustments 8.1. Voltage chart of A-board Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table. Checked Name Test Point Specification In/Out Target Board Suffix PNL12V TP5013 12V ± 1.2V...

  • Page 26: Block Diagram

    TH-40CX600S TH-50CX600S 9 Block Diagram 9.1. Main Block Diagram S3.3/S1.8 TUNER S3.3 S5/ S3.3 TU-IIC1 EXT_IFAGC1 Debug eMMC S3.3/ S1.2 Connector 32Gbit < FE_XRST IFAGC0 IFAGC0 SCLK BE-IIC MMCCLK DVB-T2/T/C TU-IIC1 MMCCMD DVB-S/S2 TU_Serial_TS1 CE#1 TU_Serial_TS1 / TU_Serial_TS1_JP XERST DEMOD S1.05...

  • Page 27: Wiring Connection Diagram

    TH-40CX600S TH-50CX600S 10 Wiring Connection Diagram 10.1. Wire Dressing 1 (TH-40CX600S) 1. Fix all wire connector and LVDS wire to PCB. 2. Dressing wire follow picture. 3. Stick felt at bottom back cover.
  • Page 28 TH-40CX600S TH-50CX600S PART NO DESCRIPTION TSCKF0630044 LVDS FFC (51PIN) TKP5ZA51601 BOTTOM_BACK_COVER TXJA02RHVE WIRE (A02-P2/LDP4) TXJA12WPUZ WIRE (A12-SPL/SPR) TXJLLBWPUZ WIRE (LDP1-LLB) TXJRLBWPUZ WIRE (LDP2-RLB) TXJA10WPUZ WIRE (A10-K10) FELT (T0.35  W10  L210) TMK4GA375 FELT (T0.35  W10  L180) TMK4GA376...

  • Page 29: Wire Dressing 2 (Th-40Cx600S)

    TH-40CX600S TH-50CX600S 10.2. Wire Dressing 2 (TH-40CX600S) Stick pet tape for wire dressing. PART NO DESCRIPTION REMARK 60 mm  14 pc T4FP10050 1.39 T4FP1005J PET TAPE (0.06*8/0.11*8) 110 mm  5 pc T4FP10050 1.39 T4FP1005J PET TAPE (0.06*8/0.11*8)

  • Page 30: Wire Dressing 3 (Th-50Cx600S)

    TH-40CX600S TH-50CX600S 10.3. Wire Dressing 3 (TH-50CX600S) 1. Fix all wire connector and LVDS wire to PCB. 2. Dressing wire follow picture. 3. Stick felt at bottom back cover. PART NO DESCRIPTION FELT (T0.45  W8  L260) TMK4GA225 FELT (T0.35  W10  L240)

  • Page 31: Wire Dressing 4 (Th-50Cx600S)

    TH-40CX600S TH-50CX600S 10.4. Wire Dressing 4 (TH-50CX600S) Stick pet tape for wire dressing. PART NO DESCRIPTION REMARK 60 mm  17 pc T4FP10050 1.57 T4FP1005J PET TAPE (0.06*17/0.11*5) 110 mm  5 pc T4FP10050 1.57 T4FP1005J PET TAPE (0.06*17/0.11*5)

  • Page 32: Schematic Diagram

    TH-40CX600S TH-50CX600S 11 Schematic Diagram Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (1/42)
  • Page 33 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (2/42)
  • Page 34 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (3/42)
  • Page 35 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (4/42)
  • Page 36 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (5/42)
  • Page 37 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (6/42)
  • Page 38 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (7/42)
  • Page 39 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (8/42)
  • Page 40 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (9/42)
  • Page 41 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (10/42)
  • Page 42 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (11/42)
  • Page 43 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (12/42)
  • Page 44 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (13/42)
  • Page 45 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (14/42)
  • Page 46 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (15/42)
  • Page 47 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (16/42)
  • Page 48 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (17/42)
  • Page 49 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (18/42)
  • Page 50 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (19/42)
  • Page 51 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (20/42)
  • Page 52 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-40CX600S (21/42)
  • Page 53 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (22/42)
  • Page 54 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (23/42)
  • Page 55 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (24/42)
  • Page 56 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (25/42)
  • Page 57 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (26/42)
  • Page 58 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (27/42)
  • Page 59 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (28/42)
  • Page 60 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (29/42)
  • Page 61 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (30/42)
  • Page 62 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (31/42)
  • Page 63 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (32/42)
  • Page 64 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (33/42)
  • Page 65 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (34/42)
  • Page 66 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (35/42)
  • Page 67 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (36/42)
  • Page 68 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (37/42)
  • Page 69 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (38/42)
  • Page 70 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (39/42)
  • Page 71 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (40/42)
  • Page 72 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (41/42)
  • Page 73 Model No. : TH-40CX600S TH-50CX600S A-Board - TH-50CX600S (42/42)
  • Page 74 Model No. : TH-40CX600S TH-50CX600S K-Board...
  • Page 75 Model No. : TH-40CX600S TH-50CX600S LDP-Board (1/2)
  • Page 76 Model No. : TH-40CX600S TH-50CX600S LDP-Board (2/2)
  • Page 77 Model No. : TH-40CX600S TH-50CX600S P-Board - TH-40CX600S (1/4)
  • Page 78 Model No. : TH-40CX600S TH-50CX600S P-Board - TH-40CX600S (2/4)
  • Page 79 Model No. : TH-40CX600S TH-50CX600S P-Board - TH-50CX600S (3/4)
  • Page 80 Model No. : TH-40CX600S TH-50CX600S P-Board - TH-50CX600S (4/4)

  • Page 81: Printed Circuit Board

    TH-40CX600S TH-50CX600S 12 Printed Circuit Board TH-40CX600S TH-50CX600S A-Board (Top Component Side) Model No. :...
  • Page 82 TH-40CX600S TH-50CX600S A-Board (Bottom Component Side) Model No. :...
  • Page 83 Model No. : TH-40CX600S TH-50CX600S K-Board...
  • Page 84 Model No. : TH-40CX600S TH-50CX600S LDP-Board (Top Component Side)
  • Page 85 Model No. : TH-40CX600S TH-50CX600S LDP-Board (Bottom Component Side)
  • Page 86 Model No. : TH-40CX600S TH-50CX600S P-Board (Top Component Side)
  • Page 87 Model No. : TH-40CX600S TH-50CX600S P-Board (Bottom Component Side)

  • Page 88: Exploded View And Replacement Parts List

    TH-40CX600S TH-50CX600S 13 Exploded View and Replacement Parts List Model No. : TH-40CX600S TH-50CX600S Parts Location 1 (TH-40CX600S)
  • Page 89 Model No. : TH-40CX600S TH-50CX600S Parts Location 2 (TH-50CX600S)
  • Page 90 Model No. : TH-40CX600S TH-50CX600S Packing Exploded View 1 (TH-40CX600S)
  • Page 91 Model No. : TH-40CX600S TH-50CX600S Packing Exploded View 2 (TH-40CX600S)
  • Page 92 Model No. : TH-40CX600S TH-50CX600S Packing Exploded View 3 (TH-50CX600S)
  • Page 93 Model No. : TH-40CX600S TH-50CX600S Packing Exploded View 4 (TH-50CX600S)
  • Page 94 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks CAPACITOR C2000 F1G1H102A946 C 1000PF, 50V C2001 F1G1E103A144 C 0.01UF, 25V C2002 F1G1E103A144 C 0.01UF, 25V C2003 F1K1V106A010 C 10UF, 35V C2004...
  • Page 95 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C4042 F1G1C104A146 C 0.1UF, 16V C4043 F1G1C104A146 C 0.1UF, 16V C4044 F1G1C104A146 C 0.1UF, 16V C4045 F1G1C104A146 C 0.1UF, 16V C4050 F1G1C104A146 C 0.1UF, 16V...
  • Page 96 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C4530 F1J1A106A043 C 10UF, 10V C4531 F1J1A106A043 C 10UF, 10V C4532 F1G1C104A146 C 0.1UF, 16V C4533 F1G1C104A146 C 0.1UF, 16V C4534 F1G1C104A146 C 0.1UF, 16V...
  • Page 97 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C5017 F1G1A473A079 C 0.047UF, 10V C5020 F1G1A105A107 C 1UF, 10V C5022 F1G1A105A107 C 1UF, 10V C5024 F1G1A105A107 C 1UF, 10V C5025 F1H1E105A153...
  • Page 98 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C6822 F1G1C104A146 C 0.1UF, 16V C6823 F1G1C104A146 C 0.1UF, 16V C6825 F1G1C104A146 C 0.1UF, 16V C6826 F1G1C104A146 C 0.1UF, 16V C6836 F1J1A106A043...
  • Page 99 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C7315 F1A3A221A060 C 220PF, 1KV C7316 F1A3A221A060 C 220PF, 1KV C7317 ECWH8333HAC C 0.033UF, 800V C7318 F1B2G101A029 C 100PF, 400V For TH-40CX600S Only...
  • Page 100 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C7844 F1J1H103A900 C 0.01UF, 50V C7845 F1J1H103A900 C 0.01UF, 50V C7846 F1J1H103A900 C 0.01UF, 50V C7847 F1J1H103A900 C 0.01UF, 50V C7848 F1J1H103A900 C 0.01UF, 50V...
  • Page 101 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C8047 F1H0J4750004 C 4.7UF, 6.3V C8048 F1H0J4750004 C 4.7UF, 6.3V C8049 F1H0J4750004 C 4.7UF, 6.3V C8050 F1G1A105A107 C 1UF, 10V C8051 F1G1C104A146 C 0.1UF, 16V...
  • Page 102 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C8226 F1G1C104A146 C 0.1UF, 16V C8227 F1G1C104A146 C 0.1UF, 16V C8228 F1G1C104A146 C 0.1UF, 16V C8229 F1G1C104A146 C 0.1UF, 16V C8230 F1G1C104A146 C 0.1UF, 16V...
  • Page 103 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C8300 F1G1H100A963 C 10PF, 50V C8301 F1G1H8R0A963 C 8PF, 50V C8359 F1G1C104A146 C 0.1UF, 16V C8601 F1J1A106A043 C 10UF, 10V C8607 F1G1C103A173 C 0.01UF, 16V...
  • Page 104 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C9031 F1G1C104A146 C 0.1UF, 16V C9032 F1G1C104A146 C 0.1UF, 16V C9033 F1G1C104A146 C 0.1UF, 16V C9034 F1G1C104A146 C 0.1UF, 16V C9035 F1G1C104A146 C 0.1UF, 16V...
  • Page 105 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C9098 F1G1C104A146 C 0.1UF, 16V C9099 F1G1C104A146 C 0.1UF, 16V C9100 F1J1A106A043 C 10UF, 10V C9101 F1G1C104A146 C 0.1UF, 16V C9102 F1G1C104A146 C 0.1UF, 16V...
  • Page 106 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks C9181 F1G1H101A948 C 100PF, 50V C9182 F1G1H101A948 C 100PF, 50V C9183 F1G1H101A948 C 100PF, 50V C9200 F1G1H102A459 C 1000PF, 50V C9201 F1G1C104A146 C 0.1UF, 16V...
  • Page 107 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks D7404 DA2J10100L DIODE D7405 DA2J10100L DIODE D7407 B0JBSL000081 DIODE D7409 B0ACCD000008 DIODE D7411 B0ACCD000008 DIODE D7416 B0JBSL000086 DIODE D7417 B0JBSL000086 DIODE D7418...
  • Page 108 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks IC8101 C0DBAYY02431 IC8102 C0DBEYY00226 IC8200 C3ABVY000025 IC8201 C3ABVY000025 IC8202 C3ABVY000025 IC8203 C3ABVY000025 IC8204 C3ABVY000025 IC8600 C0DBZYY00723 IC8601 C0DBZYY00723 IC8605 C0DBGYY00887 IC8607 C0DBZYY00764...
  • Page 109 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks L7205 J0JYA0000035 BEAD CORE L7206 J0JYA0000035 BEAD CORE L7207 J0JYC0000729 COIL L7208 J0JYC0000729 COIL L7303 J0JYA0000035 BEAD CORE L7304 J0JYA0000035 BEAD CORE...
  • Page 110 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks Q7802 B1ACRL000015 TRANSISTOR Q7803 B1ACRL000015 TRANSISTOR Q7804 B1ACRL000015 TRANSISTOR Q7805 B1ACRL000015 TRANSISTOR Q7806 B1ACRL000015 TRANSISTOR Q7807 B1ACRL000015 TRANSISTOR Q7808 B1ACRL000015 TRANSISTOR Q7810...
  • Page 111 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R2262 D0GAR00J0005 M 0 OHM, 1/16W R2263 D0GA223JA023 M 22K OHM, J, 1/16W R2264 D0GA473JA023 M 47K OHM, J, 1/16W R2265 D0GAR00J0005...
  • Page 112 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R4516 D0GA473JA023 M 47K OHM, J, 1/16W R4517 D0GA102JA023 M 1K OHM, J, 1/16W R4519 D0GA104JA023 M 100K OHM, J, 1/16W R4520...
  • Page 113 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R4637 D1H4R0020006 RESISTOR R4638 D1H4R0020006 RESISTOR R4639 D1H4R0020006 RESISTOR R4640 D1H4R0020006 RESISTOR R4641 D1H4R0020006 RESISTOR R4642 D1H4R0020006 RESISTOR R4900 D0GA103JA023 M 10K OHM, J, 1/16W...
  • Page 114 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R5098 D0GA103JA023 M 10K OHM, J, 1/16W R5109 D0GB101JA065 M 100 OHM, J, 1/10W R5110 D0GA681JA023 M 680 OHM, J, 1/16W R5111...
  • Page 115 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R6970 D0GAR00J0005 M 0 OHM, 1/16W R7101 D0GF474JA048 M 470K OHM, J, 1/4W R7102 D0GF474JA048 M 470K OHM, J, 1/4W R7103 D0GF474JA048...
  • Page 116 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R7351 D1BD6801A066 M 6.8K OHM, F, 1/8W R7353 D0GDR00J0004 M 0 OHM, J, 1/8W R7387 D0GF4R7JA048 M 4.7 OHM, J, 1/4W R7397...
  • Page 117 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R7807 D1BD5R10A066 M 5.1 OHM, F, 1/8W For TH-40CX600S Only R7808 D1BD3R30A066 M 3.3 OHM, F, 1/8W For TH-50CX600S Only R7808 D1BD5R10A066 M 5.1 OHM, F, 1/8W...
  • Page 118 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R7904 D1BD5R10A066 M 5.1 OHM, F, 1/8W For TH-40CX600S Only R7905 D1BD3R30A066 M 3.3 OHM, F, 1/8W For TH-50CX600S Only R7905 D1BD5R10A066 M 5.1 OHM, F, 1/8W...
  • Page 119 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R8200 D1BA47R0A023 M 47 OHM, F, 1/16W R8201 D1BA47R0A023 M 47 OHM, F, 1/16W R8203 D0GA470JA023 M 47 OHM, J, 1/16W R8204...
  • Page 120 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R8625 D0GA272JA023 M 2.7K OHM, J, 1/16W R8626 D0GA272JA023 M 2.7K OHM, J, 1/16W R8630 D0GA680JA023 M 68 OHM, J, 1/16W R8631...
  • Page 121 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R8986 D1H81034A042 M 10K OHM, J, 1/16W R8987 D1H81034A042 M 10K OHM, J, 1/16W R8988 D0GA473JA023 M 47K OHM, J, 1/16W R8989...
  • Page 122 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks R9222 D1BA1000A023 M 100 OHM, F, 1/16W R9224 D1BA2400A023 M 240 OHM, F, 1/16W R9225 D1BA1001A023 M 1K OHM, F, 1/16 W...
  • Page 123 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks TRANSFORMER T7202 G4DYA0000697 TRANSFORMER T7204 G4DYA0000697 TRANSFORMER T7302 G4DYA0000699 TRANSFORMER T7303 G4DYA0000699 TRANSFORMER T8600 G5BYC0000040 TRANSFORMER OTHERS A02A K1KY26BA0484 CONNECTOR A10B K1KY07BA0483...
  • Page 124 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks LF7106 G0B153H00015 LINE FILTER LF7107 G0B153H00015 LINE FILTER K1KY14BA0491 CONNECTOR K1KY08BA0402 CONNECTOR PA2000 K5H4022A0031 FUSE PA5001 K5H4022A0031 FUSE PA7406 K5H1022A0031 FUSE PC7301...
  • Page 125 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks ZA228 K4AD01D00022 TERMINAL ZA229 K4AD01D00022 TERMINAL ZA230 K4AD01D00022 TERMINAL ZA300 K4AD01D00022 TERMINAL ZA301 K4AD01D00022 TERMINAL ZA302 K4AD01D00022 TERMINAL ZA303 K4AD01D00022 TERMINAL ZA304...
  • Page 126 Model No. : TH-40CX600S TH-50CX600S Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks Exploded View K2CQ2YY00131 AC CORD L0EYAA000086 SPEAKER_L/R L5EDDYY00787 LCD PANEL For TH-40CX600S Only L5EDDYY00790 LCD PANEL For TH-50CX600S Only N2QAYB000934 REMOTE TRANSMITTER...

This manual is also suitable for:

Th-50cx600s

Table of Contents
