Sealey 800GTA Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT! ENSURE YOU READ AND UNDERSTAND THESE INSTRUCTIONS FULLY BEFORE ATTEMPTING TO USE THE TRANSMISSION
JACK. NOTE THE SAFE OPERATIONAL REQUIREMENTS, DANGERS, WARNINGS & CAUTIONS. USE THE JACK CORRECTLY AND WITH
CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
F WARNING! FAILURE TO APPLY THESE INSTRUCTIONS MAY CAUSE DAMAGE, SERIOUS PERSONAL OR FATAL INJURY.
FAILING TO FOLLOW INSTRUCTIONS WILL ALSO INVALIDATE YOUR WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
NOTE: The use of symbols in this document is to attract your attention to possible danger. The symbols and warnings themselves do not eliminate any danger, nor
are they substitutes for proper accident prevention measures.
1. SAFETY INSTRUCTIONS
F WARNING! Ensure all preliminary checks are carefully carried out before use of jack. Immediately repair or replace damaged parts
(use authorised service agent). Ensure use of genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
F WARNING! Use
I
DANGER! DO NOT use on tarmacadam, or any other soft surface as jack may sink or topple. Serious personal or fatal injury may result.
s
Use jack in a suitable working area, keep area clean and tidy and free from unrelated materials. Ensure there is adequate lighting.
Before use ensure the gearbox weight and size does not exceed the capacity of the jack.
Ensure the vehicle is raised and stabilised at the correct height before attempting to move the jack under the vehicle.
Keep all unauthorised persons away from the jack during lifting, lowering and when transporting the gearbox on the saddle.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Remove ill fitting cloths. Remove ties, watches, rings, and other loose jewellery, and contain and/or tie back long hair.
F WARNING! Ensure load is placed level and centrally on jack saddle and load is fixed in place before attempting to lift, lower, or transport.
Lowering speed will vary according to the weight of the load and the release valve setting.
F WARNING! Always use load restraint chains, corner support bracket, and attachments to
stabilise and secure the load to saddle.
Ensure the chain is tight and correctly positioned to effectively harness the load.
Always transport the jack with the saddle fully down in lowest position.
Diligence is required in ensuring that you continually monitor the operation until completed.
If jack emits any abnormal sounds during use, STOP! and contact your local service agent.
I
DANGER! If jack tips or leans STOP WHAT YOUR ARE DOING. MOVE QUICKLY TO A SAFE
s
DISTANCE. DO NOT TRY TO HOLD OR STEADY JACK. Serious personal or fatal
injury may result.
F WARNING! DO NOT operate
DO NOT exceed the rated capacity of the jack.
DO NOT place any part of your body within or under the jack during use.
DO NOT raise or lower the vehicle lifting platform whilst the transmission jack is being used.
DO NOT transport the jack, with or without a load, with the saddle in the raised position.
DO NOT get jack wet or use in damp or wet locations or areas where there is condensation.
DO NOT make any modifications to jack. DO NOT adjust or tamper with the safety valve.
DO NOT operate jack
DO NOT lift or support vehicles with jack, and do not use jack as a load sustaining device.
DO NOT use the jack
DO NOT use jack without restraint chains and DO NOT replace chains with an inferior form of restraint.
DO NOT use brake fluid to top up hydraulic unit. Use Sealey hydraulic oil only.
DO NOT remove any labels from the jack. If labels are damaged or unclear replace them.
Use qualified person to lubricate and maintain the jack.
Before storing ensure jack is clean, free of grease and oil and saddle is fully lowered.
2. INTRODUCTION & SPECIFICATION

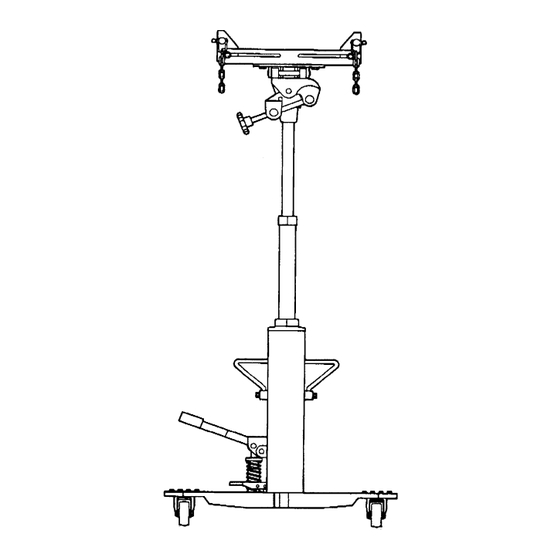

the 800GTA Telescopic Transmission Jack has been manufactured to a high specification and is equipped with telescopic two-stage hydraulic
ram for greater range, precise load control and rapid lift. A foot operated pump system for raising and lowering allows you to use both hands to
position the saddle under the gearbox. It is equipped with a wide base and with swivel ball bearing caster wheels, for stability and
manoeuvrability.
The saddle tilts 12
O
SPECIFICATION:
Rated capacity . . . . . . . . . . . . .800kg
Saddle height (min.) . . . . . . . .917mm
Saddle height (max) . . . . . . .1842mm
Hydraulic lift . . . . . . . . . . . . . .925mm
Saddle forward tilt . . . . . . . . . . . .42
s s
jack on level and solid ground, preferably concrete. Ensure the floor over which the jack will be wheeled is swept clean.
jack if any parts are damaged or missing.
when you are tired, under the influence of alcohol, drugs or intoxicating medication.
for any purpose other than for vehicle transmissions.
left, 12 right and 40+ forward and backward for precise alignment.
O O
Saddle backward tilt . . . . . . . . . . .46
Saddle right/left tilt . . . . . . . . . . . .12
Base length/width . . . . . .760/630mm
Saddle length . . . . . . . . . . . .450mm
Saddle width max/min . . .330/225mm
O
INSTRUCTIONS FOR:
TELESCOPIC TRANSMISSION JACK
800GTA
Model:
O
O
800GTA - 0016 - (1) - 150799
