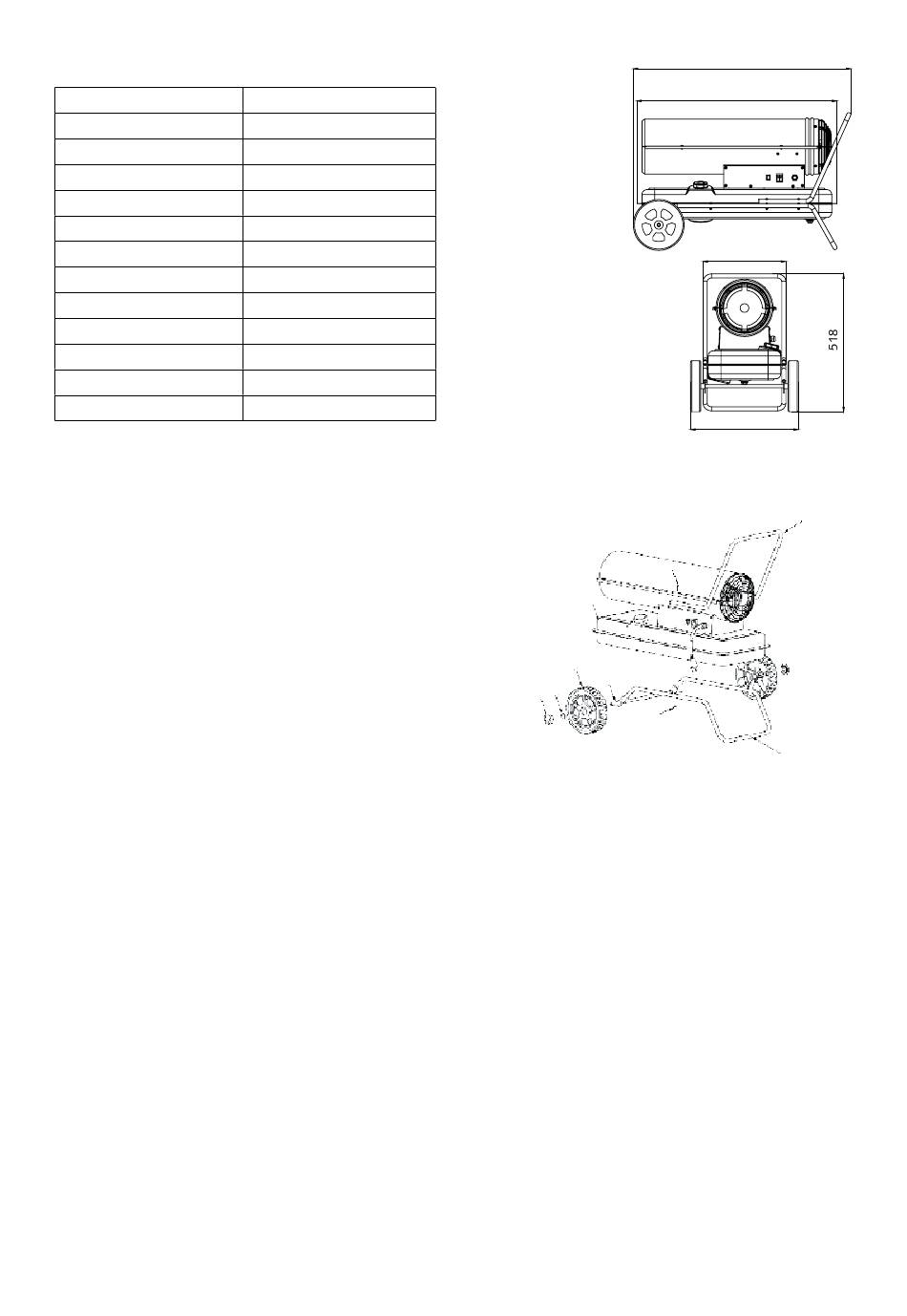

TECHNICAL DATA

Heat output
Air volume output
Fuel tank capacity
Fuel
Fuel consumption
Motor capacity
Air pressure
Sound level
Rated voltage
Power
Dimensions (LxWxH)
Net weight
Protection class
ASSEMBLING WHEELS AND TUBE FRAME
1. Insert the wheel axle to the corresponding hole of lower
tube frame, set bushing (G) at the two ends; slide the
wheel (F) over the wheel axle (H), put on wheel cap (E).
2. Put the heater body on the lower tube frame (B); make
sure the 3 holes of handle frame point towards the
corresponding 3 holes on the lower tube frame respec-
tively.
3. Insert screws (J) in the holes, place flat washers (D)
under the lower frame (B) and tighten the
lar screw (C).
4. Insert other screws in the holes respectively and use a
screw driver to tighten them.

OPERATION

Preparations
1. Never use high volatile fuel such as petrol etc.
2. Switch off the machine, pull out the plug, check that the flame has extinguished, and allow the machine to
cool before refilling with fuel.
3. Only use pure diesel without contaminants.
4. Make sure that the tank filter is installed before you start filling the fuel tank.
5. If you get fuel on the skin, wash immediately with soap and water.
6. Never touch the burner when it is, or has recently been, in operation and do not let the oil pump come in
contact with the burner, to prevent scalding or other injury.
HOW TO FILL THE TANK
When there is no fuel (diesel) in the tank:
1. Make sure the power plug is removed from the power source and the power switch is in OFF position "0".
Check that the flame has extinguished and wait until the machine has cooled.
2. Check that the tank is free from water and/or debris. Clean the tank if necessary.
3. Place the appliance on a stable and level ground. Remove the fuel cap, check that the filter is properly
installed and fill diesel in fuel tank. Do not overfill your heater!
4. Replace the filler cap and turn clockwise to tighten.
20kW
588 m³/h
24 l
Diesel
1.85 l/h
160W
0.3 bar
~50dB
230V~ 50Hz
0.78A
824x457x518 mm
21 kg
IPX0
hexangu-
DIMENSIONS
H
F
G
D E
824
740
294
457
(mm)
A
I
C
B
15
