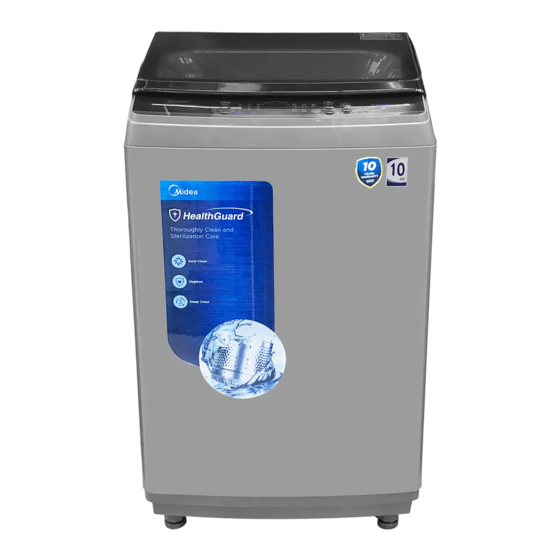

Washing Machine
Fully AUTOMATIC
Fully AUTOMATIC WASHING MACHINE
Read This Manual
Use all instructions and explanations on delete installation
before use. Follow the instructions carefully. Keep the operation
instructions handy for later use. If the product is sold or passed
on then ensure that the new owner always receives this manual.
OWNER'S MANUAL
MODEL:
MA200W80/G-MV
MA200W100D/S-MV
Advertisement
Table of Contents
Related Manuals for Midea MA200W80/G-MV
Summary of Contents for Midea MA200W80/G-MV
- Page 1 Washing Machine Fully AUTOMATIC WASHING MACHINE Fully AUTOMATIC OWNER’S MANUAL MODEL: MA200W80/G-MV MA200W100D/S-MV Read This Manual Use all instructions and explanations on delete installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the product is sold or passed...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety instructions ....................INSTALLATION Product description ....................Installation area ......................Unpacking the washing machine ............Installation of drain hose .................. Levelling the washing machine ..............Instructions for detergents and softeners........Selection of tap ......................Connection of inlet hose , tap and washing machine..OPERATIONS Preparation before washing................ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS For your safety, the information in this manual mus t be followed to minimize the risk of fir e or explosion, electric shock, or t o prevent property damage, personal injury or los s of life. •... - Page 4 SAFETY INSTRUCTIONS Model Washing Capacity Standard Water Pressure 8.0kg 0.03MPa~0.8MPa MA200W80/G-MV 10.0kg 0.03MPa~0.8MPa MA200W100D/S-MV Explanation of the s ymbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unles s it’s avoided.
- Page 5 SAFETY INSTRUCTIONS Warning! The electric shock! • This appliance is for indoor use only. • Do not put washing machine at humid place. • Hands shall not be insert ed into running spin-dry tub . • If the spin-dry tub does not s top within 15 seconds after opening the cover , please stop using the machine and have it repaired.
- Page 6 SAFETY INSTRUCTIONS Risk to children! • EN countries: the applianc e can be used by children aged from 8 years and above and persons with r educed physical, sensory or mental capabilities or lack of e xperience and knowledge if they have been given supervision or instruction concerning use of the applianc e in a safe way and understand the hazards involved.
- Page 7 SAFETY INSTRUCTIONS Caution Installing the product! • This washing machine is for indoor use only. • It isn't int ended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be ins talled in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 8 SAFETY INSTRUCTIONS • Please do not close the door with e xcessive forces. • It is forbidden to wash carpets. Operating the applianc e! • Before washing the clothes at first time, the product shall be operated in one round of the whole pr ocedures without the clothes inside .
-
Page 9: Installation Product Description
INSTALLATION Product description Top lid Softener, Detergent inlet Water inlet valve Frame Control panel Power case and plug Cabinet Handle Adjustable foot knob Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. -
Page 10: Installation Area
INSTALLATION Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... -
Page 11: Installation Of Drain Hose
INSTALLATION Installation of drain hose 1.Completely sleeve the drain hose over the sewer. 2.Fix and tight en it with a hoop.( As shown in the figure ) Note! • Note: The drain hose of the machine with upper drain system has already been assembled before leaving the factory. -
Page 12: Instructions For Detergents And
INSTALLATION Instructions for detergents and softeners Softener inlet Note! Each delivery volume Detergent inlet does not exceed 20ml Detergent inlet washing powder inlet 9 1 1... -
Page 13: Selection Of Tap
INSTALLATION Selection of tap Please select appropriate tap. Ordinary faucet Screw tap Special washing machine tap Connection of inlet hose, tap and washing machine 1:Connection between ordinary tap and inlet hose . Wall clamp nut 1.Loosen clamp nut to 2.Loosen four bolts 3.Set connecting base 4. -
Page 14: Operations
OPERATIONS Preparation before washing Caution! • Before washing, please make sure it’s installed properly. • Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Open tap Plug in Load the door and... -
Page 15: Washing Matters Needing Attention
OPERATIONS Washing matters needing attention • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 16: Control Pane
OPERATIONS Control panel Note! • The chart is for reference only, Please refer to real product as standard. On/Off Start/Pause Press the button to start or pause the washing Product is switched on or off. cycle. Program Option Use these key combinations to set soak time, Available according to the laundry type. - Page 17 OPERATIONS Option Only for washers having these function Water level Select water level according to clothing categories, degree of soiling and washing habits of customers. Soak/Wash /Rinse /Spin Soak time, Washing time, rinsing times, spinning time and other settings can be selectable. Function Press the button to regulate the Hygiene and Turbo.
-
Page 18: Personalized Setting Of Washing Program
OPERATIONS Personalized setting of washing program Customers can select washing program according to actual demand, and set water volume and appointment time Water Program Level Program Start Water Level Operations of washing process Wash only Program Option Option Choose the wash flash Set the time Rinse flash... - Page 19 OPERATIONS Soak+Wash Spin +Rinse+ Program Option Option Choose the wash flash Set the time Rinse flash Set the times Program Option Option Spin flash Set the time Soak flash Set the time Start Note: There is no soaking function for quick washing and Spin programs . Program Function Start...
-
Page 20: Washing Program Table
OPERATIONS Washing program table Program are available according to the laundry type. Only for washers having these function Program Standard fabric washing program, suitable to wash ramie cotton fabric. Normal Wash for once, rinsing for twice, the spin time is a little long. Quick Suitable to wash light stained clothes and clothes in summer The wash time is longer, the stream is stronger, so the washing... -
Page 21: Cleaning And Care
MAINTENANCE Cleaning and care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. -
Page 22: Trouble Shooting
MAINTENANCE Trouble shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Inspection Items Description If the power is off or the fuse is burned out. If the power supply voltage is too low. -
Page 23: Technical Information
MAINTENANCE Technical Information 0.03MPa~0.8MPa Standard Water Pressure Washing Dimension Rated Model Capacity Weight (W*D*Hmm) Power MA200W80/G-MV 8.0kg 36kg 550x565x915 450W MA200W100D/S-MV 10.0kg 39kg 580x596x965 390W 10 24 10 22... - Page 24 V1.0 16138000A39426...
