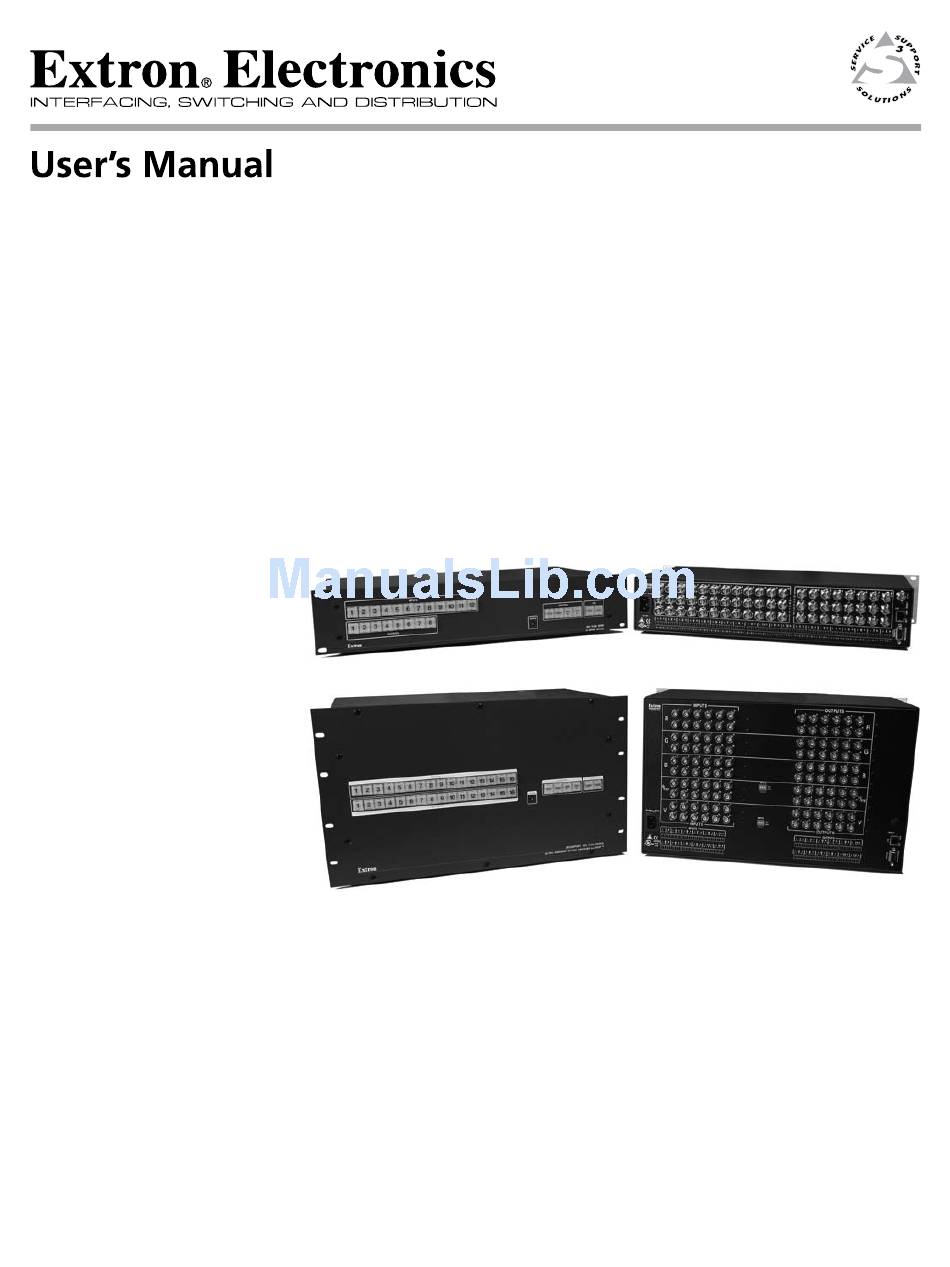

Page 1 CrossPoint 450 Plus Series CrossPoint Ultra Series MAV Plus Series Matrix Switchers 68-521-20 Rev. A 05 08...
Page 2 Precautions Safety Instructions • English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.
Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 5: Table Of Contents
Table of Contents Chapter One • Introduction About this Manual ... 1-2 About the Matrix Switchers CrossPoint Ultra switchers CrossPoint 450 Plus switchers MAV Plus switchers ... 1-6 Definitions ... 1-8 Features ... 1-8 Chapter Two • Installation Mounting the Switcher UL guidelines ...
Page 6 Table of Contents, cont’d Creating a configuration Example 1: Creating a set of video and audio ties ... 3-14 Example 2: Adding a tie to a set of video and audio ties ... 3-16 Example 3: Removing a tie from a set of video and audio ties ... 3-18 Viewing a configuration Example 4: Viewing video and audio, audio only, and video only ties ...
Page 7 Chapter Four • Programmer’s Guide Serial Ports ... 4-2 Rear panel Remote port Front panel Configuration port Ethernet (LAN) Port ... 4-4 Ethernet connection ... 4-4 Default IP addresses ... 4-5 Establishing a connection Connection Timeouts ... 4-5 Number of connections Verbose Mode ...
Page 8 Table of Contents, cont’d Chapter Five • Matrix Software Matrix Switchers Control Program Installing the software Software operation via Ethernet Ethernet protocol settings ... 5-3 Using the Matrix Switcher Control software IP Settings/Options window Matrix IP Address field ... 5-7 Extron Name/Descriptor field ...
Page 9 Chapter Six • HTML Operation Download the Startup Page Status Tab ... 6-3 System Status page ... 6-3 DSVP page (CrossPoint switchers) Configuration Tab ... 6-5 System Settings Page ... 6-5 IP Settings fields ... 6-6 Unit Name field ... 6-6 DHCP radio buttons ...
Page 10 Table of Contents, cont’d Appendix A • Ethernet Connection Ethernet Link ... A-2 Ethernet connection Default address ... A-2 Pinging to determine Extron IP address... A-3 Pinging to determine Web IP address ... A-3 Connecting as a Telnet client Telnet tips ... A-4 Open ...
Page 11: Chapter One • Introduction
CrossPoint / MAV Matrix Switchers Chapter One Introduction About this Manual About the CrossPoint / MAV Matrix Switchers Definitions Features...
Page 12: About The Matrix Switchers
• HVA for switching RGBHV video and two-channel stereo audio • HV for switching RGBHV video signals only MAV Plus series switchers offer multiple models of all matrix sizes, with one, two, or three (MAV Plus 1616 and smaller) video planes, to support different low resolution video formats (exceptions are noted in “MAV Plus switchers”...
Page 13 Class Room 101 Class Room 102 Class Room 103 Extron CrossPoint Ultra 128 HVA Matrix Switcher Extron DVS 304 Scaler RS-2 /B-Y RESE LINK /R-Y YC/V ,B-Y/ /R-Y,Y /VID Y,B-Y /R-Y, 100-2 50/60 Extron DVS 304 Scaler RS-2 /B-Y RESE LINK /R-Y YC/V...
Page 14 Introduction, cont’d Projector Monitor Extron MAV Plus 1616 HDA Matrix Switcher Video Camera Figure 1-2 — Typical MAV Plus matrix switcher application The Ethernet port or either serial port can be connected to a control system, a PC, or Extron’s MKP 2000 or MKP 3000 remote control panel. The matrix switchers are housed in rack-mountable, metal enclosures with 19"...
Page 15: Crosspoint Ultra Switchers
• 6U high enclosure CrossPoint Ultra 816, 168, and 1212, 1616 HV and HVA switchers  • 8U high enclosure CrossPoint 450 Plus 2412 and 2424 HV and HVA switchers  MAV Plus 2412, 2424, 3216, and 3232 SVA switchers ...
Page 16: Crosspoint 450 Plus Switchers
Introduction, cont’d The CrossPoint Ultra Series switchers have a minimum bandwidth of 525 MHz (-3 dB). All models can also switch RGBS, RGsB, RsGsBs, HDTV, compo- nent video, S-video, and composite video. CrossPoint 450 Plus switchers There are four CrossPoint 450 Plus series matrix sizes available, each in an HVA (RGBHV video and audio) and HV (RGBHV video only) model: •...
Page 17 If used in this way, the two video planes cannot be broken away; the input signals on the luma and chroma input BNCs must be routed to the same outputs. The MAV Plus Series switchers have a bandwidth of 150 MHz (-3 dB). CrossPoint / MAV Matrix Switchers • Introduction ...
Page 18: Definitions
Video — All switchers input and output video on BNC connectors. CrossPoint — Both switcher models input and output ultra-wideband RGBHV or RGBS video. They can also switch RGsB, RsGsBs, component/HDTV, S-video, or composite video. MAV Plus — These switchers input and output NTSC 3.58, NTSC 4.43, PAL, or SECAM video or HDTV video inputs.
Page 19 Digital Sync Validation Processing (DSVP™) (CrossPoint) — In critical environments or unmanned, remote locations, it may be vital to know that sources are active and switching. Extron’s DSVP confirms that input sources are active by scanning all sync inputs for active signals. DSVP provides instantaneous frequency feedback for composite sync or separate horizontal and vertical sync signals via the switcher’s serial ports or Ethernet port.
Page 20 Introduction, cont’d Operational flexibility — Operations such as input/output selection, setting of presets, and adjustment of audio levels can be performed on the front panel or via the Ethernet or serial link. The serial links allow remote control via a PC or control system.
Page 21 Includes two internal 100 VAC to 240 VAC, 50/60 Hz, switching power supplies, which provide worldwide power compatibility. The power supply circuitry is configured to automatically switch over from the primary supply to the hot redundant supply in the case of a failure.
Page 22 Introduction, cont’d 1-12 CrossPoint / MAV Matrix Switchers • Introduction...
Page 23: Chapter Two • Installation
CrossPoint / MAV Matrix Switchers Chapter Two Installation Mounting the Switcher Rear Panel Views Rear Panel Connections Front Panel Configuration Port...
Page 24: Ul Guidelines
Installation Mounting the Switcher The matrix switchers are housed in rack-mountable, metal enclosures with 19" rack ears. The amount of vertical rack space required for each switcher is as follows: • 2U high enclosure MAV Plus 84, 88, 124, and 128 HDA and HD ...
Page 25: Mounting Instructions
Mounting instructions Insert the switcher into the rack, aligning the holes in the mounting bracket with those in the rack (figure 2-1). Secure the switcher to the rack using the supplied bolts. Figure 2-1 — Installing the switcher in a rack CrossPoint / MAV Matrix Switchers •...
Page 26: Rear Panel Views
Installation, cont’d Rear Panel Views All connectors for all switchers are on the rear panel. Figure 2-2 through figure 2-11 show a representative sampling of all of the matrix switchers described in this manual. See “Rear Panel Connections”, on page 2-9, for connecting cables to the rear panel connectors.
Page 27: Crosspoint Ultra Switchers
CrossPoint Ultra switchers Figure 2-3 shows the CrossPoint Ultra 1616 HVA RGB video and stereo audio matrix switcher. N The CrossPoint Ultra 816 and 168 are housed in the same 6U enclosure, but have fewer output connectors to accommodate their smaller matrix sizes. INPUTS INPUTS INPUTS...
Page 28: Mav Plus Switchers
Installation, cont’d MAV Plus switchers Figure 2-5 shows the MAV Plus 3232 SVA S-video and stereo audio switcher. N The MAV Plus 2412, 2424, and 3216 are housed in the same 8U enclosure, but have fewer input and/or output connectors to accommodate their smaller matrix sizes.
Page 29 Figure 2-7 shows a MAV Plus 1616 HDA component/HDTV video and stereo audio switcher. N The rear panel of the MAV Plus 816 and 168 models have the same features as the MAV Plus 1616 series models (figure 2-7 and figure 2-8), but have fewer input and/or output connectors to accommodate their smaller matrix sizes.
Page 30 Installation, cont’d Figure 2-9 shows a MAV Plus 128 AV RCA composite video and stereo audio (with inputs and outputs on RCA connectors) matrix switcher. LISTED 1T23 ® I.T.E. Figure 2-9 — MAV Plus 128 AV RCA matrix switcher Figure 2-10 shows a MAV Plus 128 HDA component/HDTV video and stereo audio matrix switcher.
Page 31: Rear Panel Connections
Ensure that you connect the input on each video plane to the corresponding connector in the correct group (see figure 2-12). N Both CrossPoint models can also switch RGBS, RGsB, RsGsBs, component video, S-video, or composite video by using four, three, two, or one BNC(s). If switching a video format other than RGBHV, ensure that the same video planes (R, G, B, H/HV, and/or V) are used on the switcher output as on the input.
Page 32 Installation, cont’d CrossPoint 450 Plus 2412, 2424, 3216, 3232 Input 1 I N P U T S I N P U T S GREEN O U T P U T S O U T P U T S Output 1 Input or Output 1 CrossPoint Ultra...
Page 33: Video (Mav Plus Switchers)
Video (MAV Plus switchers) N Video input and output connections are made with female BNC connectors. Some video input and output devices do not have BNC video output connectors. For these cases, a suitable cable or connector adapter is necessary. The part number for the Extron RCA-to-BNC adapter is 10-229-01.
Page 34 Installation, cont’d MAV Plus 2412, 2424, 3216, 3232 SVA and SV S-video Figure 2-14 — MAV Plus S-video connections MAV Plus 2412, 2424, 3216, 3232 AV and V Composite video Figure 2-15 — MAV Plus video connections 2-12 CrossPoint / MAV Matrix Switchers • Installation MAV Plus 816, 168, 1212, 1616 SVA and SV S-video...
Page 35: Sync Termination Switches (Crosspoint)
816, 168, 1212, and 1616 Figure 2-16 — Sync termination switches Each switch provides the option of selecting either 510 ohms or 75 ohms. The 75 ohms position is required only for an input with non-TTL sync, greater than 5 V p-p. The normal position is 510 ohms.
Page 36: Audio Input And Output (Audio Models)
Installation, cont’d Audio input and output (audio models) By default, the audio ties follow the video ties. Audio breakaway, which can be activated via the front panel or under Ethernet or serial port control, allows you to select from any one of the audio input sources and route it separately from its corresponding video source.
Page 37: Rca Connector Model (Mav Plus 128 Av Rca)
Connections for balanced and unbalanced audio outputs — These 3.5 mm, 5-pole captive screw connectors output the selected unamplified, line level audio. Connect audio devices, such as an audio amplifier or powered speakers. See figure 2-19 to properly wire an output connector. Use the supplied tie-wrap to strap the audio cable to the extended tail of the connector.
Page 38: Rs-232/Rs-422
Installation, cont’d RS-232/RS-422 RS-232/RS-422 connector — Connect a host device, such as a computer, touch panel control, or RS-232 capable PDA to the switcher via this 9-pin D connector for serial RS-232/RS-422 control (figure 2-20). Figure 2-20 — RS-232/RS-422 connector See chapter 4, “Programmer’s Guide”, for definitions of the SIS commands (serial commands to control the switcher via this connector) and chapter 5, “Matrix Software”...
Page 39: Cabling And Rj-45 Connector Wiring
Cabling and RJ-45 connector wiring It is vital that your Ethernet cables be the correct cables, and that they be properly terminated with the correct pinout. Ethernet links use Category (CAT) 5e or CAT 6, unshielded twisted pair (UTP) or shielded twisted pair (STP) cables, terminated with RJ-45 connectors.
Page 40: Reset Button
Installation, cont’d Reset button Reset button — The Reset button initiates four levels of reset to the matrix switcher. Press and hold the button while the switcher is running or while you power up the switcher for different reset levels. See “Rear panel Operations”...
Page 41: Power
Figure 2-23 shows another configuration, in which the timing source passes through three video cameras and a video scan converter before connecting to the switcher. This type of video camera is capable of synchronizing with the external timing source for video editing applications. Extron MAV Plus AV 3232 Extron...
Page 42: Front Panel Configuration Port (Matrix Sizes Up To 1616 Only)
Installation, cont’d Front Panel Configuration Port (Matrix Sizes up to 1616 Only) ENTER PRESET CONFIG CROSSPOINT ULTRA-WIDEBAND MATRIX SWITCHER Figure 2-24 — Front panel configuration port Configuration port — This 2.5 mm mini stereo jack serves the same serial communications function as the rear panel Remote port, but it is easier to access than the rear port after the matrix switcher has been installed and cabled.
Page 43 N A front panel Configuration port connection and a rear panel Remote port connection can both be active at the same time. This port is RS-232 only, with its default protocols as follows: • 9600 baud • no parity • 1 stop bit •...
Page 44 Installation, cont’d 2-22 CrossPoint / MAV Matrix Switchers • Installation...
Page 45: Chapter Three • Operation
CrossPoint / MAV Matrix Switchers Chapter Three Operation Front Panel Controls and Indicators Front Panel Operations Rear Panel Operations Optimizing the Audio (Audio Models) Troubleshooting Configuration Worksheets...
Page 46 Operation N The operation of the CrossPoint 450 Plus, CrossPoint Ultra, and MAV Plus switchers is very similar. There are two exceptions: • • Front Panel Controls and Indicators The front panel controls (figure 3-1 through figure 3-3) are grouped into two sets. The input and output buttons are grouped on the left side of the control panel.
Page 47 CrossPoint / MAV Matrix Switchers • Operation 14 15 16 CONTROL 14 15 16 ENTER PRESET VIEW VIDEO AUDIO CONFIG MAV PLUS SERIES AV MATRIX SWITCHER IP LINK™ WITH I / O C O N T R O L VIEW ENTER PRESET RGBHV...
Page 48: Input And Output Buttons
Operation, cont’d Input and output buttons Primary functions Action: Indications: Secondary functions I/O Grouping Action 1: Input 1 and Output 1: Select I/O Group mode. Action 2/ indication: Presets Action/ indication: RGB Delay Indication: Input audio Action/ level indication: (inputs) Indication: (outputs) Output audio...
Page 49 Input buttons — The input buttons have one primary function (•) and seven secondary functions (❏): • Select and identify an input. (Input 1 only) With the Output 1 button, select I/O Group mode. See ❏ “I/O grouping” on page 3-24. Assign an input to the selected group in I/O Group mode and indicate its ❏...
Page 50: Control Buttons
Operation, cont’d Control buttons Primary functions Action: Save changes Indication: Blink: save needed ENTER Secondary functions I/O Grouping Action/ Select group 1. indication: Port Action 1: configuration Action 2/ Select 9600 baud. indication: Blink: selected Front panel Action: With Video and locks Audio, select Lock mode 2 and/or...
Page 51 Preset button — The Preset button has two primary functions (•) and three secondary functions (❏): • Activates Save Preset mode to save a configuration as a preset and Recall Preset mode to activate a previously-defined preset. • Blinks when Save Preset mode is active and lights steadily when Recall Preset mode is active.
Page 52: I/O Controls
Operation, cont’d Esc ( > ) button — The Esc ( secondary functions (❏): • Cancel operations or selections in progress and reset the front panel button indicators. N The Esc ( (CrossPoint switchers) or Video (MAV Plus switchers) button and Audio selection button, any presets, or any audio gain or attenuation or volume settings.
Page 53 You must specify video, audio, or both when you are creating or viewing a configuration. This is done with the RGBHV button (CrossPoint switchers) or Video button (MAV Plus switchers) ( RGBHV (CrossPoint) button or Video (MAV Plus) button — The RGBHV (CrossPoint) or Video (MAV Plus) button has one primary function (•) and five secondary functions (❏): •...
Page 54: Power Indicators (2412 And Larger Models Only)
Operation, cont’d Power indicators (2412 and larger models only) Primary and Redundant Power Supply LEDs — Green — Indicates that the associated power supply is operating within normal tolerances. Red — Indicates that the associated power supply is operating outside the normal tolerances or has failed.
Page 55: Front Panel Operations
Front Panel Operations The following paragraphs detail the power-up process and then provide sample procedures for the following actions: • Creating ties, sets of ties, and configurations • Changing a configuration • Viewing ties, sets of ties, and configurations • Assigning inputs and outputs to an I/O group •...
Page 56: Front Panel Security Lockouts
Operation, cont’d Front panel security lockouts In the procedural descriptions that follow, it is assumed that the switcher is in Lock mode 0 (fully unlocked). The following two Lock modes are also available: • Lock mode 1 — All changes are locked from the front panel (except for setting Lock mode 2).
Page 57: Creating A Configuration
Creating a configuration The current configuration can be changed using the front panel buttons. Change the current configuration as follows: Press the Esc button to clear any input button indicators, output button indicators, or control button indicators that may be lit. Select to configure video, audio, or both by pressing the RGBHV (CrossPoint switchers) or Video (MAV Plus switchers) button and/or Audio button.
Page 58: Example 1: Creating A Set Of Video And Audio Ties
Operation, cont’d Example 1: Creating a set of video and audio ties In the following example, input 5 is tied to outputs 3, 4, and 8. The steps show the front panel indications that result from your action. N This example assumes that there are no ties in the current configuration. Press and release the Esc button (figure 3-5).
Page 59 Press and release the output 3, output 4, and output 8 buttons (figure 3-8). Press and release the Output 3, Output 4, and Output 8 buttons. The buttons blink amber to indicate that the selected RGBHV or video and audio input will be tied to these outputs.
Page 60: Example 2: Adding A Tie To A Set Of Video And Audio Ties
Operation, cont’d Example 2: Adding a tie to a set of video and audio ties In the following example, a new video tie is added to the current configuration. The steps show the front panel indications that result from your action. N This example assumes that you have performed example 1.
Page 61 Press and release the output 1 button (figure 3-14). Press and release the Output 1 button. The button blinks green to indicate that only the selected RGBHV or video input will be tied to this output. 17 18 19 20 21 22 23 24 31 32 Figure 3-14 —...
Page 62: Example 3: Removing A Tie From A Set Of Video And Audio Ties
Operation, cont’d Example 3: Removing a tie from a set of video and audio ties In the following example, an existing audio tie is removed from the current configuration. The steps show the front panel indications that result from your action.
Page 63 Press and release the output 4 button (figure 3-20). Press and release the Output 4 button. The button blinks red to indicate the pending change: audio input will be untied. 17 18 19 20 21 22 23 24 31 32 Figure 3-20 —...
Page 64: Viewing A Configuration
Operation, cont’d Viewing a configuration The current configuration can be viewed using the front panel buttons. The View-only mode prevents inadvertent changes to the current configuration. View-only mode also provides a way to mute video and audio outputs (see “Muting and unmuting video and/or audio outputs”...
Page 65: Example 4: Viewing Video And Audio, Audio Only, And Video Only Ties
Example 4: Viewing video and audio, audio only, and video only ties In the following example, we view the video and audio, audio-only, and video-only ties in the current configuration. The steps show the front panel indications that result from your action. N This example assumes that you have performed example 1, example 2, and example 3.
Page 66 Operation, cont’d Press and release the input 5 button (figure 3-25). Press and release the Input 5 button. The button lights amber (matrix sizes up to 1616) or green (matrix sizes 2412 through 3232). 17 18 19 20 21 22 23 24 32 Green Amber 17 18 19 20 21 22 23 24 32...
Page 67 Press and release the RGBHV (CrossPoint switchers) or Video (MAV Plus switchers) button and the Audio button to toggle the Video button on green and the Audio button either unlit or providing background illumination (figure 3-27). Press the RGBHV/ I / O Video button to select it.
Page 68: I/O Grouping
Operation, cont’d I/O grouping I/O grouping is a matrix switcher feature that allows you to subdivide the front panel controls of the matrix into four smaller functional sub-switchers and limit tie creation using the front panel only. Inputs and outputs can be assigned to one of four groups or not assigned to any group.
Page 69 Press the Esc button to clear any input buttons, output buttons, or control buttons that may be lit. To enter I/O Group mode, press and hold the Input 1 and Output 1 buttons simultaneously until the input and output buttons light to display the ungrouped inputs and outputs.
Page 70: Example 5: Grouping Inputs And Outputs
Operation, cont’d Example 5: Grouping inputs and outputs In the following an example, several switcher inputs and outputs are assigned to groups. The steps show the front panel indications that result from your action. Press and release the Esc button (figure 3-30). Press the Esc button to clear all selections.
Page 71 Press and release the input 1 through 4 and output 1 through 4 buttons (figure 3-33). Press and release the Input 1 through Input 4 buttons. The selected buttons light green. 17 18 19 20 21 22 23 24 31 32 Press and release the Output 1 through Output 4 buttons.
Page 72: Setting Rgb Delay (Crosspoint Switchers)
Operation, cont’d Simultaneously press and release the RGBHV (CrossPoint switchers) or Video (MAV Plus switchers) button and Audio button (figure 3-36). The switcher exits I/O Group mode. N As an alternative, if you do not push any front panel buttons for approximately 30 seconds, the front panel times out and the switcher exits I/O Group mode.
Page 73: Example 6: Setting The Rgb Delay For An Output
Example 6: Setting the RGB delay for an output In the following example, the RGB delay is increased for output 17. The steps show the front panel indications that result from your action. Press and release the Esc button (figure 3-37). Press the Esc button to clear all selections.
Page 74 Operation, cont’d Press and release the Esc ( delay by a half second. Press and release the Esc ( whole second. Note the input button indication changes that occur each time the Esc ( Figure 3-40 show the result of pressing the Esc ( Press the Esc button to increase the RGB interval that is applied to switches to the selected output by...
Page 75: Using Presets
Using presets The current configuration (configuration 0) can be saved as a preset in any one of 32 preset memory addresses. Preset locations are assigned to the input buttons and (where necessary) output buttons. Up to 20 or 32 (depending on the number of input and output buttons) presets can be selected from the front panel to be either saved or retrieved.
Page 76: Example 7: Saving A Preset
Operation, cont’d Example 7: Saving a preset In the following example, the current configuration is saved as a preset. The steps show the front panel indications that result from your action. Press and release the Esc button (figure 3-43). Press the Esc button to clear all selections. C O N T R O L ENTER PRESET...
Page 77: Example 8: Recalling A Preset
Press and release the Enter button (figure 3-46). The current configuration is now stored in the selected memory location. Press the Enter button to save the preset. C O N T R O L VIEW ENTER PRESET The Enter and Preset buttons return to unlit or background illumination.
Page 78 Operation, cont’d Press and release the input or output button for the desired preset (figure 3-49). Press and release the Input 1 button. The button blinks red to indicate that this preset number is selected but not recalled. 17 18 19 20 31 32 Figure 3-49 —...
Page 79: Muting And Unmuting Video And/Or Audio Outputs
Muting and unmuting video and/or audio outputs Individual outputs can be muted or unmuted as follows: N Mutes are protected when front panel Lock mode 2 is selected. You can view the status of the output (muted or unmuted) in Lock mode 2 but you cannot change it from the front panel.
Page 80: Example 9: Muting And Unmuting An Audio/Rs-232 Output
Operation, cont’d Example 9: Muting and unmuting an audio/RS-232 output In the following example, several switcher outputs are muted and unmuted. The steps show the front panel indications that result from your action. Press and release the Esc button (figure 3-51). Press the Esc button to clear all selections.
Page 81 One at a time, press and hold the Output 3 button and then the Output 4 button (figure 3-53) for approximately 2 seconds until each button begins to blink. The output 3 and output 4 video and audio signals are muted. Mute outputs one at a time.
Page 82: Viewing And Adjusting The Input Audio Level (Audio Models)
Operation, cont’d Viewing and adjusting the input audio level (audio models) On models with audio, the audio level of each input can be displayed and adjusted through a range of -18 dB to +24 dB to ensure that there is no noticeable volume difference among sources (figure 3-56).
Page 83: Example 10: Viewing And Adjusting An Input Audio Level
Press and release the Audio button to exit the Audio mode. The Audio button stops blinking. Pressing the Enter or Preset button also exits Audio mode. Pressing the N • Preset button changes to Recall Preset mode. • There is one audio level setting per input. The audio level setting is shared by the left and right audio inputs.
Page 84 Operation, cont’d Input audio level adjustment displays CrossPoint 450 Plus / MAV Plus 2412, 2424, 3216, 3232 HVA 9 10 11 12 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 9 10 11 12 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 9 10 11 12 13 14 15 16...
Page 85 Input audio level adjustment displays CrossPoint Ultra / MAV Plus 84, 88, 124, 128 HVA = Unlit button = Blinking button = Slow blinking button = Fast blinking button Green indicates a positive (gain) level, red indicates a negative (attenuation) level CrossPoint / MAV Matrix Switchers •...
Page 86 Operation, cont’d Press and release the Input 5 button (figure 3-59). 17 18 19 20 21 22 23 24 31 32 The output buttons display the selected input’s audio level and polarity (gain or attenuation). • Each output button indicates 1 dB when lit. When the buttons are lit green, they indicate a gain (+) audio level.
Page 87 Press and release the View ( audio level by 1 dB. Press and release the View ( decrease the input audio level by 1 dB per button press. Note the output button indication changes that occur each time the View ( Figure 3-62 shows the result of pressing the View ( times.
Page 88: Viewing And Adjusting The Output Volume (Audio Models)
Operation, cont’d Press and release the Audio button (figure 3-65). The RGBHV or Video button lights green. Figure 3-65 — Deselect Audio mode Viewing and adjusting the output volume (audio models) On models with audio, the audio level of each local output can be displayed and adjusted through a range of 100% (no attenuation) to 0% (maximum [76 dB] attenuation).
Page 89: Reading The Displayed Volume
Reading the displayed volume N This section is a detailed look at reading the output volume display on the switcher’s front panel. If you do not need to read the exact value of the volume setting, skip this section. There are 65 steps of volume attenuation, with 1 dB per step (button push), except for 0-to-1, which is 13 dB.
Page 90 Operation, cont’d Audio volume adjustment settings Highest # input button lit 12-input 16-input 32-input attenuation switcher switcher switcher None None None Slow blink Fast blink Slow blink Fast blink Slow blink Fast blink Slow blink Fast blink Slow blink Fast blink Slow blink...
Page 91 Another way to view the volume level is to think in terms of the attenuation that is applied to the output. Attenuation reduction is indicated by the lit or blinking input buttons: when fewer input buttons are lit, attenuation is greater (and the volume is quieter).
Page 92: Example 11: Viewing And Adjusting An Output Volume Level
Operation, cont’d Example 11: Viewing and adjusting an output volume level In the following example, the audio output volume is viewed and adjusted. The steps show the front panel indications that result from your action. Audio output volume is displayed differently on different models. See the table on page 3-46.
Page 93 Figure 3-69 shows the same volume (41.5%) as in figure 3-68, but displayed on a 16-input-button switcher, such as an MAV Plus 1616 HDA. Blinking button –39 dB attenuation, 41.5% volume Lit button • The input LEDs display the selected output's audio volume level. •...
Page 94 Operation, cont’d Press and release the Esc ( by 1.5%. Press and release the Esc ( increase the volume by 1.5% per button press. Note the input button indication changes that occur each time the Esc ( released. N You can press and hold the Esc ( down by 3 dB per second to the high or low limit.
Page 95 Figure 3-73 shows the same volume (61%) as in figure 3-71, but displayed on a 12-input-button switcher, such as a MAV Plus 128 RCA. Fast Blinking Button -26 dB attenuation 61% volume INPUTS 1 2 3 4 5 6 7 8 9 10 11 12 Lit Buttons •...
Page 96: Setting The Front Panel Locks (Executive Modes)
Operation, cont’d Setting the front panel locks (Executive modes) The matrix switchers have three levels of front panel security lock that limit the operation of the switcher from the front panel. The three levels are: • Lock mode 0 — The front panel is completely unlocked. All front panel functions are available.
Page 97: Selecting Lock Mode 2 Or Toggling Between Mode 2 And Mode 1
Selecting Lock mode 2 or toggling between mode 2 and mode 1 N If the switcher is in Lock mode 0 or mode 1, this procedure selects mode 2. If the switcher is in Lock mode 2, this procedure selects mode 1. Toggle the lock on and off by pressing and holding the RGBHV (CrossPoint Ultra) or Video (MAV Plus) button and the Audio button for approximately 2 seconds (figure 3-76).
Page 98: Background Illumination
Operation, cont’d Background illumination The buttons on the front panel can be set to provide amber background illumination at all times or the background illumination can be turned off. To toggle the background illumination on or off, press and hold the Input 1 and Input 2 buttons simultaneously for approximately 2 seconds (figure 3-78).
Page 99: Rear Panel Operations
Release the Control buttons. N The serial port settings are protected when front panel Lock mode 2 is selected. You can view the settings in Lock mode 2 but you cannot change them from the front panel. See “Setting the front panel Locks (Executive modes)” on page 3-52.
Page 100 Operation, cont’d Mode Activation Hold down the recessed Reset button while applying power to the switcher. After a mode 1 reset is performed, update the switcher’s firmware to the latest version. Do not operate the switcher firmware version that results from the mode 1 reset.
Page 101: Performing Soft System Resets (Resets 3, 4, And 5)
Performing soft system resets (resets 3, 4, and 5) Perform a soft reset of the switcher as follows: Use an Extron Tweeker or other small screwdriver to press and hold the rear panel Reset button until the front panel Video and Audio buttons blink once (events reset), twice (system reset), or three times (absolute reset) (figure 3-82).
Page 102: Performing A Hard Reset
Operation, cont’d Performing a hard reset The hard reset function restores the switcher to the base firmware that it was shipped with. This reset also clears all ties and presets, clears all video and audio mutes, clears all I/O grouping, clears all RGB delay, and clears all audio settings. After a hard reset, events do not automatically start, but user settings and files are restored.
Page 103: Optimizing The Audio (Audio Models)
Power on the audio sources, the switcher, and the audio players. Switch among the inputs (see “Creating a configuration”, in this chapter), listening to the audio with a critical ear or measuring the output audio level with test equipment, such as a VU meter.
Page 104: Configuration Worksheets
Operation, cont’d Configuration Worksheets Rather than trying to remember the configuration for each preset, use worksheets to record this information. Make copies of the blank worksheet on page 3-63 (32-input button and -output button switchers) and page 3-65 (16-button switchers) and use one for each preset configuration The worksheets accommodate all of the CrossPoint and MAV Plus models.
Page 105: Worksheet Example 2: Daily Configuration
Worksheet example 2: Daily configuration Figure 3-85 continues from worksheet example 1 by showing the video and audio ties that make up the configuration of preset 1. Solid lines shows video ties and dashed lines show the audio ties. Camera Laptop Classroom Camera...
Page 106: Worksheet Example 3: Test Configuration
Operation, cont’d Worksheet example 3: Test configuration The A/V system in our fictional organization needs to be fine tuned on a regular basis. Figure 3-86 shows a typical test configuration, with an Extron video test generator (input 12) generating a test pattern to all monitors (outputs 1, 2, 3, 4, and 8, 9, 10, and 12).
Page 107 CrossPoint / MAV Matrix Switchers • Operation 3-63...
Page 108 Operation, cont’d 3-64 CrossPoint / MAV Matrix Switchers • Operation...
Page 109 CrossPoint / MAV Matrix Switchers • Operation 3-65...
Page 110 Operation, cont’d 3-66 CrossPoint / MAV Matrix Switchers • Operation...
Page 111: Serial Ports
CrossPoint / MAV Matrix Switchers Chapter Four Programmer’s Guide Serial Ports Ethernet (LAN) Port Host-to-Switcher Instructions Switcher-Initiated Messages Switcher Error Responses Using the Command/Response Tables Command/Response Table for SIS Commands Command Response Table for IP-specific SIS Commands Special Characters...
Page 112: Rear Panel Remote Port
Programmer’s Guide Serial Ports The switchers have two serial ports that can be connected to a host device such as a computer running the HyperTerminal utility, an RS-232 capable PDA, or a control system. These ports make serial control of the switcher possible. The serial ports are: •...
Page 113: Front Panel Configuration Port
Front panel Configuration port N This port is hardwired for RS-232 only. The optional 9-pin D to 2.5 mm mini jack TRS RS-232 cable, part #70-335-01 (figure 4-2), can be used for connection to the Configuration port. 9-pin D Connection Pin 2 Computer's RX line Pin 3...
Page 114: Ethernet (Lan) Port
Programmer’s Guide, cont’d Ethernet (LAN) Port The rear panel Ethernet connector on the switcher can be connected to an Ethernet LAN or WAN. Communication between the switcher and the controlling device is via Telnet (a TCP socket using port 23). The Telnet port can be changed, if necessary, via SIS.
Page 115: Default Ip Addresses
Default IP addresses To access the CrossPoint or MAV Plus switcher via the LAN port, you need the Extron IP address, and may need the subnet mask and the gateway address. If the IP address has been changed to an address comprised of words and characters, you can determine the actual numeric IP address using the ping (ICMP) utility (see appendix A, “Ethernet Connection”, for more details).
Page 116: Verbose Mode
Programmer’s Guide, cont’d Verbose Mode Telnet connections to a CrossPoint or MAV Plus switcher can be used to monitor for changes that occur on the switcher, such as front panel operations and SIS commands from other Telnet sockets or a serial port. For a Telnet session to receive change notices from the switcher, the Telnet session must be in verbose mode 1 or 3.
Page 117: Switcher Error Responses
Sprnn The switcher initiates the Spr message when a preset has been saved from the front panel. nn is the preset number. Rprnn The switcher initiates the Rpr message when a preset has been recalled from the front panel. nn is the preset number. Innn•Audxx The switcher initiates the Aud message when a front panel input audio level change has occurred.
Page 118: Using The Command/Response Tables
Programmer’s Guide, cont’d Using the Command/Response Tables The command/response tables begin on page 4-10. Lower-case letters are acceptable in the command field except where indicated for the gain and attenuation commands. The table below shows the hexadecimal equivalent of each ASCII character used in the command/response table.
Page 119: Command/Response Table For Sis Commands
Command/Response Table for SIS Commands Symbol definitions Symbols are used throughout the table to represent variables in the command/ response fields. Command and response examples are shown throughout the table. Input and output numbers in commands may be entered as either 1-digit, 2-digit, or 3-digit numbers. All input and output numbers are reported as 2-digit numbers in the response.
Page 120: Command/Response Table For Sis Commands
Programmer’s Guide, cont’d Command/response table for SIS commands Command ASCII command (host to switcher) Create ties = Input number = Output number • Commands can be entered back-to-back in a string, with no spaces. For example: 1*1!02*02&003*003%4*24$. • The quick multiple tie and tie input to all output commands activate all I/O switches simultaneously. •...
Page 121 Command/response table for SIS commands (continued) Command ASCII command (host to switcher) Video mute commands = Output number = Mute RGB/video mute RGB/video unmute View RGB/video mute Global RGB/video mute Global RGB/video unmute Audio input gain and attenuation = Input number = Audio gain = Numeric dB value X&...
Page 122 Programmer’s Guide, cont’d Command/response table for SIS commands (continued) Command ASCII command (host to switcher) Audio output volume = Output number = Audio attenuation N The table below defines the value of each audio volume step. dB of Output value attenuation volume 5.5%...
Page 123 Command/response table for SIS commands (continued) Command ASCII command (host to switcher) Audio mute commands = Output number = Mute Audio mute Audio unmute View audio mute Global audio mute Global audio unmute Save, recall, and directly write global and room presets = Global or room preset # = Room # (for room presets) = Input number (for tie)
Page 124 Programmer’s Guide, cont’d Command/response table for SIS commands (continued) Command ASCII command (host to switcher) Save, recall, and directly write global and room presets (continued) = Room # (for room presets) = Global or room preset # = Input number (for tie) = Output number EX1) , X# Write room outputs...
Page 125 Command/response table for SIS commands (continued) Command ASCII command (host to switcher) View ties, gain, volume, mutes, presets, and DSVP = Output number = Input number (for tie) = Numeric dB value = Volume adjustment range = Video/audio mute: = Global or room preset # View RGBHV output tie &...
Page 126 Programmer’s Guide, cont’d Command/response table for SIS commands (continued) Command ASCII command (host to switcher) View ties, gain, volume, mutes, presets, and DSVP (continued) = Global or room preset # = Output number = Input number (for tie) = Room # (for room presets) View audio global preset configuration Command description:...
Page 127 Command/response table for SIS commands (continued) Command ASCII command (host to switcher) Digital Sync Validation Processing (DSVP) (CrossPoint) = Global or room preset # = Sync frequency = Connection status List individual sync frequency Example: N The matrix switcher returns 000.00,000.00 if there is no connection or sync frequencies are not applicable. View connections RGB delay (CrossPoint) = Output number...
Page 128 Programmer’s Guide, cont’d Command/response table for SIS commands (continued) Command ASCII command (host to switcher) I/O Grouping (continued) = Group # (for I/O grouping) Read input grouping Example: MAV Plus 2424 Response = group: Read output grouping Names = Global or room preset # = Name = Room # (for room presets) = Input number...
Page 129 Command/response table for SIS commands (continued) Command ASCII command (host to switcher) Lock (executive) modes = Lock mode N See “Setting the front panel locks (Executive modes)” in chapter 3, “Operation”, for more information on the Lock modes. Lock all front panel functions Lock advanced front panel functions Unlock all front panel...
Page 130 Programmer’s Guide, cont’d Command/response table for SIS commands (continued) Command ASCII command (host to switcher) Information requests X1& = Inputs = Outputs = Part number = Firmware version number to second decimal place (x.xx) = Verbose firmware version-description-upload date/time = Voltage = Temperature = Fan speed = Power supply...
Page 131 Command/response table for SIS commands (continued) Command ASCII command (host to switcher) Information requests (continued) N The response to the View File Directory command differs, depending on whether the command is sent via an RS-232/RS-422 or Telnet connection or sent via a Web browser connection. View file directory RS-232/RS-422 port and Telnet...
Page 132: Command/Response Table For Ip-Specific Sis Commands
Programmer’s Guide, cont’d Command/Response Table for IP-specific SIS Commands Symbol definitions = Matrix name The following characters are invalid in the name: {space} ~ , @ = ` [ ] { } < > ‘ “ ; : | \ and ?. = Default name = Time and date (for set) = Time and date (for read)
Page 133 = Verbose mode If tagged responses is enabled (modes 2 and 3), all read commands return the constant string and the value as the set command does (for example, the read matrix name command = Flow control = Data pacing (in ms between bytes) = Time (in 10-ms increments) to wait for characters X5&...
Page 134: Command/Response Table For Ip-Specific Sis Commands
Programmer’s Guide, cont’d Command/response table for IP-specific SIS commands Command ASCII command (host to switcher) IP setup commands EX3) Set matrix name Read matrix name (location Reset matrix name to •CN factory default EX3@ Set time and date Read time and date EX3$ Set GMT offset Example:...
Page 135 Command/response table for IP-specific SIS commands (continued) Command ASCII command (host to switcher) IP setup commands (continued) EX4! , X4# , X4$ , X4$ ,..., X4$ Set e-mail events for recipient Example: 72,3,1,2,8,32,98,99,EM CrossPoint 450 Plus 3232 EX4! Read e-mail events for recipients Response description: Notify-what? inputs 1-32 (inputs above the matrix size are always zero) fans PS...
Page 136: Special Characters
Programmer’s Guide, cont’d Special Characters The HTML language reserves certain characters for specific functions. The switcher does not accept these characters as part of preset names, the switcher’s name, passwords, or locally created file names. The switcher rejects the following characters: {space (spaces are ok for names)} + ~ , @ = ‘...
Page 137: Matrix Switchers Control Program
CrossPoint / MAV Matrix Switchers Chapter Five Matrix Software Matrix Switchers Control Program Special Characters Button Label Generator Program...
Page 138: Installing The Software
Matrix Software Matrix Switchers Control Program The Windows with the switcher via the Ethernet LAN port, the rear panel Remote RS-232/RS-422 port, and the front panel Configuration (RS-232) port (matrix sizes up to 1616) to provide an easy way to set up ties and sets of ties. The program is compatible with Windows 2000, Windows XP, and later.
Page 139: Software Operation Via Ethernet
Follow the on-screen instructions. By default, the installation of the Matrix Switchers Control Program creates a C:\Program Files\Extron\ Matrix_ Switchers directory, and it places the following four icons into a group folder named “Extron Electronics\Matrix Switchers”: • MATRIX Switcher+ Control Program •...
Page 140: Using The Matrix Switcher Control Software
Matrix Software, cont’d Using the Matrix Switcher Control software Many items found in the Matrix Switchers Control Program are also accessible via front panel controls (see chapter 3, ”Operation”) and under SIS control (see chapter 4, “Programmer’s Guide”). The Matrix Switcher+ Help Program provides information on settings and on how to use the control program, itself.
Page 141 Examine the Matrix IP Address field in the IP Connection window. The field displays the last Matrix IP address entered. If the IP address is correct: Proceed to step 3b. If the address is not correct: Either click in the Matrix IP Address field and enter the IP address or click on the scroll down button ( ) and select from among the recently used addresses.
Page 142 Matrix Software, cont’d Figure 5-6 — Sample program window (complete) • To set up audio in Follow mode (audio and video have the same tie configuration), select the Follow box at the bottom of the window. To set up audio in breakaway mode (audio and video have different tie configurations), deselect the Follow box.
Page 143: Ip Settings/Options Window
IP Settings/Options window The IP Settings/Options window (figure 5-7) provides a location for viewing and, if connected via either serial port or if you are logged on via the LAN port as an administrator, editing settings unique to the Ethernet interface. See appendix A, “Ethernet Connection”, for basic information about IP addresses.
Page 144: Extron Name/Descriptor Field
Matrix Software, cont’d Edit this field as follows: Click in the Matrix IP address field. The graphic cursor becomes a text cursor. Edit the address as desired. Press the Tab key on the keyboard or click in another field to exit the Matrix IP Address field.
Page 145: Subnet Mask Field
Subnet Mask field The Subnet Mask field is used to determine whether the CrossPoint or MAV switcher is on the same subnet as the controlling PC or the mail server when you are subnetting. For more information, see “Subnetting — A Primer”, in Appendix A, “Ethernet Connection”.
Page 146: Sync Time To Pc Button
Matrix Software, cont’d Sync Time to PC button Clicking the Sync Time to PC button causes the computer you are operating to send its internal time to the switcher in a set time command. GMT (offset) field The GMT field displays the amount of time, in hours and minutes, that the local time varies from the GMT international time reference.
Page 147: User Password Field
User Password field The User Password field displays the password required to log on to the CrossPoint or MAV switcher via the LAN port as a user, without all of the administrator’s rights and privileges. Passwords are case sensitive and are limited to 12 upper-case and lower-case alphanumeric characters.
Page 148: E-Mail Addressee Fields
Matrix Software, cont’d E-mail Addressee fields The eight E-mail Addressee fields permit the administrator to identify the e-mail addresses of the personnel to whom the CrossPoint or MAV switcher e-mails notification of its failure and repair status. Figure 5-8 shows a typical e-mail from the switcher.
Page 149: Updating Firmware
Updating firmware The firmware upgrade utility provides a way to replace the firmware that is coded on the switcher’s control board without taking the switcher out of service. N The Firmware Loader must be installed on your computer to perform this operation.
Page 150 Matrix Software, cont’d Figure 5-10 — Downloading firmware upgrade files Click Next. The program extracts the firmware files and places them in a folder identified in the InstallShield Wizard window. N Note the folder to which the firmware file is saved. 5-14 CrossPoint / MAV Matrix Switchers •...
Page 151: Ethernet-Connected Firmware Upload
Click Finish to exit the program. Connect a Windows-based computer to either switcher serial port or the switcher LAN port. See chapter 2, “Installation”, for more details. Start the Matrix Switchers Control Program and connect to the matrix switcher. See “Using the Matrix Switcher Control software” in this chapter, steps 1 through 4, starting on page 5-4.
Page 152: Serial-Port-Connected Firmware Upload
Matrix Software, cont’d Serial-port-connected firmware upload Figure 5-12 — Firmware loading Click Browse. The select file window appears. Navigate to the folder where you saved the firmware upgrade file. Select the file and click Open. The Firmware Loader returns to the top. N Valid firmware files must have the file extension “.S19”.
Page 153 Figure 5-13 — Confirm window If necessary, change the port number in the device port field: • Rear panel RS-232/RS-422 port, enter 1. • Front panel Configuration port, enter 2. Click the OK button. The Firmware Loader reports, “This process could take several minutes.
Page 154: Uploading Html Files
Matrix Software, cont’d Uploading HTML files You can create customized HTML pages for the switcher to display. The HTML Files List window (figure 5-14) provides a way to view the contents of the switcher’s file system and to upload custom HTML pages to the switcher. Figure 5-14 —...
Page 155: Windows Buttons, Drop Boxes, And Trashcan
Windows buttons, drop boxes, and trashcan The buttons, drop boxes, and trash can on the right side of the program window perform the following functions: Power — Unavailable for CrossPoint and MAV switchers, because the switcher power cannot be controlled via software. Executive Mode —...
Page 156: Tools Menu
Matrix Software, cont’d Tools menu Assign device icons — Displays the complete set of input and output device icons. You can drag any of these icons to the input and output boxes. Edit device palette — Allows you to add your own custom device icon graphics.
Page 157: Audio-Input Configuration Selection
Hardware status — Provides an overall view of the status of the matrix switcher, including the primary and secondary power supply status and the individual voltages, the fan and temperature status, the Remote RS-232/RS-422 port configuration, and the installed and updated firmware status (figure 5-15). Figure 5-15 —...
Page 158: Preferences Menu
Matrix Software, cont’d Preferences menu Immediate changes — Causes configuration changes to take effect immediately. Hold/verify changes — Delays implementation of configuration changes until the Changes – Take button is pressed. Ties as lines — Displays ties as lines (figure 5-16). Figure 5-16 —...
Page 159: Master-Reset Selection
Icons in I/O boxes — Erases any numbers in the I/O boxes in the Control Program window (figure 5-6). You can place icons in the boxes. Numbers in I/O boxes — Erases any icons in the I/O boxes in the Control Program window and fills each box with the associated input or output number.
Page 160: Special Characters
Matrix Software, cont’d Special Characters The HTML language reserves certain characters for specific functions. The switcher will not accept these characters as part of preset names, the switcher’s name, passwords, or locally created file names. The switcher rejects the following characters: {space (spaces are ok for names)} + ~ , @ = ‘...
Page 161: Using The Button-Label Generator Software
Using the Button-Label Generator software To run the Button-Label Generator program, click Start > Programs > Extron Electronics > Button Label Generator > Button Label Generator. The Button-Label Generator window appears (figure 5-19). Figure 5-19 — Extron’s Button-Label Generator window In the Systems selection box, choose the Matrix Switchers 6464 option to match the button label size and quantities for your CrossPoint or MAV switcher.
Page 162 Matrix Software, cont’d 5-26 CrossPoint / MAV Matrix Switchers • Matrix Software...
Page 163: Download The Startup Page
CrossPoint / MAV Matrix Switchers Chapter Six HTML Operation Download the Startup Page Status Tab Configuration Tab File Management Tab Control Tab Special Characters...
Page 164 HTML Operation The switcher can be controlled and operated through its LAN port, connected via a LAN or WAN, using a web browser such as Microsoft The browser’s display of the switcher’s status or operation has the appearance of web pages. This chapter describes the factory-installed HTML pages, which are always available and cannot be erased or overwritten.
Page 165: Status Tab
Does the address include a specific file name, such as 10.13.156.10/file_name.html? If so, the switcher downloads that HTML page. Is there a file in the switcher’s memory that is named “index.html”? If so, the switcher downloads “index.html” as the default startup page. If neither of the above conditions is true, the switcher downloads the factory-installed default startup page, “nortxe_index.html”...
Page 166: Dsvp Page (Crosspoint Switchers)
HTML Operation, cont’d DSVP page (CrossPoint switchers) You can view a snapshot-in-time of the input frequencies of connected inputs on the Digital Sync Validation Processing (DSVP) page (figure 6-3). Click the DSVP link to the left of the Status page to download the DSVP page. The DSVP page automatically updates itself every 30 seconds to show the latest input frequencies changes or if an input has been disconnected.
Page 167: Configuration Tab
Configuration Tab System Settings Page The CrossPoint or MAV switcher downloads the System Settings page (figure 6-4) when you click the Configuration tab. The screen consists of fields in which you can view and edit IP administration and system settings. See appendix A, “Ethernet Connection”, for basic information about IP addresses and subnetting.
Page 168: Ip Settings Fields
HTML Operation, cont’d IP Settings fields The IP Settings fields provide a location for viewing and editing settings unique to the Ethernet interface. After editing any of the settings on this page, click the Submit button at the bottom of the page. Unit Name field The Unit Name field contains the name used as the “from”...
Page 169: Date/Time Settings Fields
Date/Time Settings fields The Date/Time Settings fields (figure 6-5) provide a location for viewing and setting the time functions. Figure 6-5 — Date/Time Settings fields Change the date and time settings as follows: Click the desired value’s drop box. The adjustable variables are month, day, year, hours, minutes, AM/PM, and (time) zone.
Page 170: Passwords Page
HTML Operation, cont’d Passwords page Access the Passwords page (figure 6-6) by clicking the Passwords link on the System Settings page. System Settings Refresh Email Settings Firmware Upgrade Figure 6-6 — Passwords page The fields on the Passwords page are for entering and verifying administrator and user passwords.
Page 171: Email Settings Page
Email Settings page Reach the Email Settings page (figure 6-7) by clicking the Email Settings link on the System Settings page. The Email Settings page has fields for setting up the switcher’s e-mail notification capabilities. For the e-mail settings and for each row of the e-mail notification settings, click the Edit button to make the fields available for editing.
Page 172: Email Address Fields
HTML Operation, cont’d Email address fields The eight Email address fields identify the e-mail addresses of the personnel to whom the CrossPoint or MAV switcher e-mails notification of its failure and repair status. Standard e-mail address conventions (nnnnn@xxx.com) apply. The check boxes and drop boxes associated with each address field permit the operator to specify specific criteria under which the switcher will e-mail recipients.
Page 173: File Management Tab
Click the Firmware Upgrade link. Click the Browse button. An open file window appears. Navigate to the folder where you saved the firmware upgrade file. Select the file. N Valid firmware files must have the file extension “.S19”. Any other file extension is not a firmware upgrade.
Page 174: Control Tab
HTML Operation, cont’d N The following characters are invalid in file names: {space} + ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?. Click the Browse button. Browse through your PC system and select the desired file(s). N If you want one of the pages that you create and upload to be the default startup page, name that file “index.html”.
Page 175: Creating Or Deleting A Tie
Creating or deleting a tie Make or break a tie as follows: Click the Video Only, Audio Only, or Video & Audio button to select video, audio, or both for switching (audio breakaway or audio follow). Each mouse click on a button toggles the other two buttons off. Move the mouse over the matrix of input and output selection buttons.
Page 176: Change The Input Gain And Attenuation (Audio Models)
HTML Operation, cont’d Change the input gain and attenuation (audio models) Users can set each input’s level of audio gain or attenuation (-18 dB to +24 dB) from the RGB and Audio Settings page. Audio levels can be adjusted so there are no noticeable volume differences between sources.
Page 177: Mute And Unmute One Or All Outputs
Mute and unmute one or all outputs Mute one or all outputs as follows: To select an individual output to mute or unmute, click the Output drop box. A drop down scroll box appears (figure 6-14). Figure 6-14 — Output selection drop box Click and drag the slider or click the scroll up button until the desired output is visible.
Page 178: Change The Rgb Delay (Crosspoint Switchers)
HTML Operation, cont’d Change the RGB delay (CrossPoint switchers) The RGB delay interval defines how long the screen is blanked when switching to a new input for the selected output. Change the RGB delay as follows: Click the Output drop box. A drop down scroll box appears (figure 6-16). Figure 6-16 —...
Page 179: Change The Output Volume Level (Audio Models)
Change the output volume level (audio models) Users can set each output’s volume level through a range of zero steps of attenuation (full attenuation, minimum volume) to 64 steps of attenuation (no attenuation, full volume) from the RGB and Audio Settings page. Change an output’s audio level setting as follows: Click the output drop box.
Page 180 HTML Operation, cont’d Audio volume adjustment settings Number dB of Output of steps attenuation volume 5.5% 8.5% 11.5% 14.5% 17.5% 20.5% 23.5% 26.5% 29.5% 32.5% 35.5% 6-18 CrossPoint / MAV Matrix Switchers • HTML Operation Number dB of Output Number of steps attenuation volume...
Page 181: Global Presets Page
Global Presets page You can save and recall global presets from the Global presets page (figure 6-20). Access the Global presets page by clicking the Global Presets link on the left of the Control page. Set and View Ties RGB & Audio Settings Refresh Figure 6-20 —...
Page 182: Recalling A Preset
HTML Operation, cont’d Recalling a preset To recall a global preset to be the current configuration, click the button associated with the desired preset. Special Characters The HTML language reserves certain characters for specific functions. The switcher does not accept these characters as part of preset names, the switcher’s name, passwords, or locally created file names.
Page 183: Appendix A • Ethernet Connection
CrossPoint / MAV Matrix Switchers A ppendix A Ethernet Connection Ethernet Link Subnetting — A Primer...
Page 184: Ethernet Connection
Ethernet Connection Ethernet Link The rear panel Ethernet connector on the CrossPoint or MAV switcher can be connected to an Ethernet LAN or WAN. This connection makes SIS control of the switcher possible using a computer connected to the same LAN. Ethernet connection The Ethernet cable can be terminated as a straight-through cable or a crossover cable and must be properly terminated for your application (figure A-1).
Page 185: Pinging To Determine Extron Ip Address
Pinging to determine Extron IP address The Microsoft ® Ping utility is available at the DOS prompt. Ping tests the Ethernet interface between the computer and the CrossPoint or MAV switcher. Ping can also be used to determine the actual numeric IP address from an alias and to determine the web address.
Page 186: Telnet Tips
Ethernet Connection, cont’d Microsoft (R) windows 2000 (TM) Version 5.0 (Build 2195) Welcome to Microsoft Telnet Client Telnet Client Build 5.00.99203.1 Escape Character is 'CTRL+]' Microsoft Telnet> Figure A-3 — Telnet screen Telnet tips It is not the intention of this manual to detail all of the operations and functionality of Telnet;...
Page 187: Local Echo
Local echo Once connected to the CrossPoint or MAV switcher, by default, Telnet does not display your keystrokes on the screen. SIS commands are typed in blindly and only the SIS responses are displayed on the screen. To command Telnet to show keystrokes, at the Telnet prompt, type set local_echo and then press [Enter] before you open the connection to the switcher.
Page 188: Subnetting - A Primer
Ethernet Connection, cont’d Subnetting — A Primer It is not the purpose of this manual to describe TCP/IP protocol in detail. However, some understanding of TCP/IP subnetting (a subnet is a subset of a network — a set of IP devices that have portions of their IP addresses in common) is necessary in order to understand the interaction of the CrossPoint or MAV switcher and the mail server gateway.
Page 189: Determining Whether Devices Are On The Same Subnet
Determining whether devices are on the same subnet To determine the subnet, the local device’s IP address is compared to the remote device’s IP address (figure A-6). Each address’s octets are compared or not compared, depending on the value in the related subnet mask octet. •...
Page 190 Ethernet Connection, cont’d CrossPoint / MAV Matrix Switchers • Ethernet Connection...
Page 191: Crosspoint 450 Plus Specifications
CrossPoint / MAV Matrix Switchers Appendix B Reference Information CrossPoint 450 Plus Specifications CrossPoint Ultra Specifications MAV Plus Specifications Part Numbers and Accessories Button Labels...
Page 192: Appendix B • Reference Information
Reference Information CrossPoint 450 Plus Specifications Video Routing 2412 Series ... 24 x 12 matrix 2424 Series ... 24 x 24 matrix 3216 Series ... 32 x 16 matrix 3232 Series ... 32 x 32 matrix Gain ... Unity Bandwidth ... 450 MHz (-3 dB), fully loaded 0 - 10 MHz ...
Page 193 Sync Input type ... RGBHV, RGBS, RGsB, RsGsBs Output type ... RGBHV, RGBS, RGsB, RsGsBs (follows input) Input level ... 0.5 V to 5.0 Vp-p, 4.0 Vp-p normal Output level ... AGC to TTL: 4.0 V to 5.0 Vp-p, unterminated Input impedance ...
Page 194 Reference Information, cont’d Control/remote — switcher Serial host control port ... 1 RS-232 or RS-422, rear panel 9-pin female D connector Baud rate and protocol ... 9600 (default), 19200, 38400, 115200 baud (adjustable); 8 data bits, 1 stop bit, no parity Serial control pin configurations RS-232 ...
Page 195: Crosspoint Ultra Specifications
CrossPoint Ultra Specifications Video Routing 84 Series ... 8 x 4 matrix 88 Series ... 8 x 8 matrix 816 Series ... 8 x 16 matrix 124 Series ... 12 x 4 matrix 128 Series ... 12 x 8 matrix 1212 Series ...
Page 196: Video Output
Reference Information, cont’d Video output Number/signal type ... 4, 8, 12, or 16 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video, S-video, composite video Connectors 84/124 Series ... 4 x 5 BNC female 88/128/168 Series ... 8 x 5 BNC female 1212 Series ...
Page 197 Audio input— audio models only Number/signal type ... 8, 12, or 16 stereo, balanced/unbalanced Connectors ... (8, 12, or 16) 3.5 mm captive screw connectors, 5 pole Impedance ... >10k ohm, balanced/unbalanced, DC coupled Nominal level ... +4 dBu (1.228 Vrms) Maximum level ...
Page 198 Reference Information, cont’d General Power 84/88/124/128 Series ... 35 watts (typical) 38 watts (loaded) 816/1212/168/1616 Series 45 watts (typical) 52 watts (loaded) Temperature/humidity ... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing Cooling ...
Page 199: Mav Plus Specifications
MAV Plus Specifications Video — video models Routing 88 Series ... 8 x 8 matrix 816 Series ... 8 x 16 matrix 128 Series ... 12 x 8 matrix 1212 Series ... 12 x 12 matrix 168 Series ... 16 x 8 matrix 1616 Series ...
Page 200 Reference Information, cont’d 3216/3232 Series composite video models 32 BNC female 3216/3232 Series S-video models 32 x 2 BNC female Nominal level ... 1 Vp-p for Y of component video and S-video, and for composite video 0.7 Vp-p for RGB and for R-Y and B-Y of component video 0.3 Vp-p for C of S-video Minimum/maximum levels ...
Page 201 Audio — audio models Routing 88 Series ... 8 x 8 stereo matrix 816 Series ... 8 x 16 stereo matrix 128 Series ... 12 x 8 stereo matrix 164 Series ... 16 x 4 stereo matrix 168 Series ... 16 x 8 stereo matrix 1616 Series ...
Page 202 Reference Information, cont’d Audio output — audio models Number/signal type MAV Plus 128 AV RCA ... 8 stereo, unbalanced All other models ... 4, 8, 12, 16, 24, or 32 stereo, balanced/unbalanced Connectors MAV Plus 128 AV RCA ... 8 pairs of RCA connectors All other models ...
Page 203 Enclosure dimensions (Depth excludes connectors and controls. Width excludes rack ears.) 88/128 Series (all) and 816/1212/164/168/1616 Composite Video Series and/or Stereo Audio Series 3.5" H x 17.0" W x 9.4" D (2U high, full rack wide) 8.9 cm H x 43.2 cm W x 23.9 cm D 816/1212/168/1616 S-video Series with and without audio 5.25"...
Page 204: Part Numbers And Accessories
Reference Information, cont’d Part Numbers and Accessories CrossPoint 450 Plus matrix switcher part numbers Matrix switcher part numbers CrossPoint 450 Plus 2412 HV CrossPoint 450 Plus 2412 HVA CrossPoint 450 Plus 2424 HV CrossPoint 450 Plus 2424 HVA CrossPoint 450 Plus 3216 HV CrossPoint 450 Plus 3216 HVA CrossPoint 450 Plus 3232 HV CrossPoint 450 Plus 3232 HVA...
Page 205: Mav Plus Matrix Switcher Part Numbers
MAV Plus matrix switcher part numbers MAV Plus matrix switcher part numbers MAV Plus 84 HD component/HDTV video MAV Plus 84 HDA component/HDTV video and audio MAV Plus 84 SV S-video MAV Plus 84 SVA S-video and audio MAV Plus 84 V composite video MAV Plus 84 AV composite video and audio MAV Plus 84 A audio MAV Plus 88 HD component/HDTV video...
Page 206 Reference Information, cont’d MAV Plus matrix switcher part numbers MAV Plus 164 A audio MAV Plus 168 HD component/HDTV video MAV Plus 168 HDA component/HDTV video and audio MAV Plus 168 SV S-video MAV Plus 168 SVA S-video and audio MAV Plus 168 V composite video MAV Plus 168 AV composite video and audio MAV Plus 168 A audio...
Page 207: Included Parts
Included parts These items are included in each order for a CrossPoint or MAV matrix switcher: Included parts Tweeker (small screwdriver) CrossPoint 450 Plus / CrossPoint Ultra / MAV Plus User’s Manual 5-pole captive screw audio connectors (qty. depends on matrix size) Extron Software Products CD (Matrix Switchers Control Program and Button-Label Generator)
Page 208: Cables
Reference Information, cont’d Accessory MKP 1000 remote keypad MKP 1000, black MKP 1000, white MKP 1000WT, water-tight, black MKP 1000WT, water-tight, white MCP 1000M (master) matrix control panel MCP 1000S (slave) matrix control panel RCA-BNC adapter SVHS-BNC adapter Cables When using signals with a scanning frequency of 15-125 kHz and running distances of 100 feet or more, use high resolution BNC cables to achieve maximum performance.
Page 209: Assorted Connectors
Plenum BNC-5 mini high resolution cable Plenum BNC-5 Mini HR bulk, 500' Plenum BNC-5 Mini HR bulk, 1000' N Bulk cable in lengths up to 5000’ (1524 meter) rolls is available with or without connectors. Assorted connectors Enhanced Skew-Free™ A/V cable BNC Mini HR crimp connectors, qty.
Page 210: Button Labels
Reference Information, cont’d Button Labels Page B-21 provides strips of blank button labels. If desired, copy them or cut them out, write button information in each button area as desired, and put them in the switcher’s input or output buttons’ windows. You can also create labels using the Button-Label Generator software (see chapter 5, “Matrix Software”).
Page 211 CrossPoint / MAV Matrix Switchers • Reference Information B-21...
Page 212 Reference Information, cont’d B-22 CrossPoint / MAV Matrix Switchers • Reference Information...
