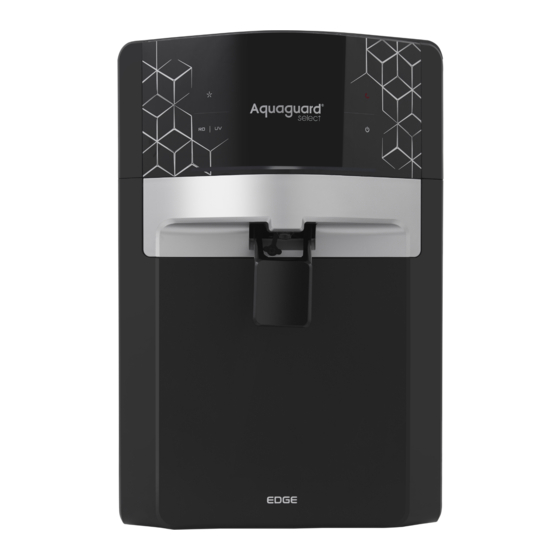

Eureka Forbes Aquaguard Select User Manual
  1. Manuals
  2. Brands
  3. Eureka Forbes Manuals
  4. Water System
  5. Aquaguard Select
  6. User manual

Eureka Forbes Aquaguard Select User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EDGE
with
Stainless Steel
UNLOCKS THE MINERALS
FOR BETTER ABSORPTION
RO | UV
EDGE
*IS 10500:2012 drinking water speci cation (Acceptable Limit)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aquaguard Select and is the answer not in the manual?

Questions and answers

Related Manuals for Eureka Forbes Aquaguard Select

Summary of Contents for Eureka Forbes Aquaguard Select

  • Page 1 EDGE with Stainless Steel UNLOCKS THE MINERALS FOR BETTER ABSORPTION RO | UV EDGE *IS 10500:2012 drinking water speci cation (Acceptable Limit)

  • Page 2: Table Of Contents

    CONTENTS The Power of Aquaguard Select EDGE with Stainless Steel................1 ® Aquaguard Select EDGE with Stainless Steel Gives You More................2 ® Installing Your Water Purifier..........................Input Water Quality Usage Limitations......................... 4 Here’s How your Aquaguard Select EDGE RO+UV+MTDS with Stainless Steel Works......... ®...

  • Page 3: The Power Of Aquaguard ® Select Edge With Stainless Steel

    THE POWER OF AQUAGUARD SELECT ® EDGE WITH STAINLESS STEEL Aquaguard Select EDGE with Stainless Steel removes all the harmful substances ® from water and retains the good minerals. But what's really different is it's 100% steel tank gives you fresh and healthy water always,and ensures that there is no re-contamination or re-growth of bacteria and viruses.

  • Page 4: Aquaguard ® Select Edge With Stainless Steel Gives You More

    STAINLESS AQUAGUARD SELECT EDGE WITH ® STEEL GIVES YOU MORE ACTIVE COPPER MAXX CARTRIDGE* Active Copper Maxx™ is a unique combination of preserving the naturally occurring vital minerals like Calcium, Magnesium, Copper and Zinc with antimicrobial Activated Carbon Granules. This slow-release technology enhances the taste of the water, by removing residual dissolved harmful gases like VOCs, and increases the level of minerals like Calcium, Magnesium, Copper and Zinc in water, at the same time balancing the pH of water, making it healthy.

  • Page 5: Installing Your Water Purifier

    Aquaguard Select Edge ® SS UV and not exceeding 3.0 kg/cm foe Aquaguard Select Edge SS RO+UV+MTDS. ® 5. After installing, run the purifier for 5-10 mins. 6. Make sure that the rejected water pipe (blue coloured pipe available in Aquaguard Select ®...

  • Page 6: Input Water Quality Usage Limitations

    INPUT WATER QUALITY USAGE LIMITATIONS Input Water Quality Usage Limitations: 1. If the input water iron content is more than 0.3 mg/litre; use of an iron remover** is recommended as a pre-treatment. 2. If the input water turbidity is more than 5 NTU or comprises colloidal particles, use of a special filter** is required as a pre-filter.
  • Page 7 FOR Aquaguard Select EDGE with Stainless Steel ® CONSUMABLE CARTRIDGES AVERAGE SERVICE LIFE HD - Filter 6,000 litres Chemi-Block DIY 6,000 litres HD RO Membrane Filter DIY 6,000 litres UV Lamp (11 Watts) 8,000** burning hours Active Copper Maxx Cartridge DIY 6,000 litres Biotron...

  • Page 8: Here's How Your Aquaguard ® Select Edge Ro+Uv+Mtds With Stainless Steel Works

    HERE’S HOW YOUR AQUAGUARD SELECT EDGE ® RO+UV+MTDS WITH STAINLESS STEEL WORKS Aquaguard Select EDGE RO+UV+MTDS - Stainless Steel ® ( WATER FLOW DIAGRAM ) ELECTRONIC LEVEL SENSOR DRAIN FLOW RESTRICTOR REGULAR WATER TANK WATER TAP FLOW RESTRICTOR TDS MODULATOR Membrane life enhancer is NOTE : THIS IS A SCHEMATIC ILLUSTRATION OF THE PRODUCT TO GIVE A VISUAL SCHEME OF WORKING OF PRODUCTS.

  • Page 9: Here's How Your Aquaguard ® Select Edge With Uv With Stainless Steel Works

    HERE’S HOW YOUR AQUAGUARD SELECT EDGE ® WITH UV WITH STAINLESS STEEL WORKS AQUAGUARD SELECT EDGE UV+SS+AC ( WATER FLOW DIAGRAM ) ELECTRONIC LEVEL SENSOR PURIFIED WATER TANK RAW WATER INLET DIVERTER VALVE FLOW RESTRICTOR NOTE : THIS IS A SCHEMATIC ILLUSTRATION OF THE PRODUCT TO GIVE A VISUAL SCHEME OF WORKING OF PRODUCTS.

  • Page 10: Tips For Safety And Maintenance Of Your Aquaguard ® Select Edge With Stainless Steel

    ® Read attentively and understand the purifier and its functions before use. Installation and service has to be conducted by authorised persons from Eureka Forbes Limited only. Install the purifier at a location with ample ventilation. Ensure that the purifier is installed in a dry place. Do not expose it to direct sunlight or heat sources.

  • Page 11: Important Suggestions

    IMPORTANT SUGGESTIONS DO’s • Turn OFF the main switch if you do not plan to use your Aquaguard ® Select for more than 3-4 hours. • Store water from your Aquaguard ® Select in clean containers. For hygienic reasons, it is preferable not to store water for more than 2 days.

  • Page 12: Aquaguard ® Select Edge Ro+Uv+Mtds With Stainless Steel Purification Process

    AQUAGUARD SELECT EDGE RO+UV+MTDS WITH ® STAINLESS STEEL PURIFICATION PROCESS FOR AQUAGUARD® SELECT EDGE RO+UV+MTDS WITH STAINLESS STEEL HD Filter Cartridge High Density Multiple Layer Polypropylene Removes turbidity and other fine suspended particles such as dust, dirt, mud and sand, giving you clear water. Chemi Block (with build Dust-free Bacteriostatic Activated Carton Reduces excess chlorine and organic impurities.

  • Page 13: Aquaguard ® Select Edge Uv With Stainless Steel Purification Process

    AQUAGUARD SELECT EDGE UV WITH STAINLESS ® STEEL PURIFICATION PROCESS FOR AQUAGUARD SELECT EDGE UV WITH STAINLESS STEEL ® HD Filter Cartridge High Density Multiple Layer Polypropylene Removes turbidity and other fine suspended particles such as dust, dirt, mud and sand, giving you clear water.

  • Page 14: Technical Specifications* Of Aquaguard ® Select Edge Ro+Uv+Mtds With Stainless Steel

    TECHNICAL SPECIFICATIONS* OF AQUAGUARD SELECT ® EDGE RO+UV+MTDS WITH STAINLESS STEEL Technical Parameter Specification *Technical Specifications are subject to change without prior notice. ® Model Aquaguard Select EDGE HD RO+UV+MTDS PRODUCT SPECIFICATION Note: The performance data presented in the table is applicable under standard laboratory conditions Actual performance may vary depending on the input water quality, water pressure and condition of filters.

  • Page 15: Technical Specifications* Of Aquaguard ® Select Edge With Uv With Stainless Steel

    TECHNICAL SPECIFICATIONS* OF AQUAGUARD SELECT ® EDGE WITH UV WITH STAINLESS STEEL. Technical Parameter Specification *Technical Specifications are subject to change without prior notice. Model Aquaguard Select EDGE SS UV+AC ® PRODUCT SPECIFICATION Note: The performance data presented in the table is applicable under standard laboratory conditions Actual performance may vary depending on the input water quality, water pressure and condition of filters.

  • Page 16: Filter Replacement Method

    FILTER REPLACEMENT METHODS DIY: STEPS TO REPLACE CARTRIDGE FILTER Turn o the power supply and Open the water dispenser tap and Open the front fascia. close the water supply before empty the water from regular water proceeding to change the cartridge. tank and Ayur water tank.
  • Page 17 Unclip the junction connector. Rotate Filter clockwise to Replace the new lter by rst eject. aligning its position to the top manifold using the arrow guides. Grip the cartridge rmly from Carefully match and re-clip the Pull the levers on either side of the bottom, apply an upward force colour-coded junction connectors.

  • Page 18: Know Your Aquaguard ® Select Edge Ro+Uv+Mtds With Stainless Steel Next-Gen Led Display

    KNOW YOUR AQUAGUARD SELECT EDGE RO+UV+MTDS ® WITH STAINLESS STEEL NEXT-GEN LED DISPLAY Process Icon Call Service RO / UV Icon Power Icon Indication Bar PURIFICATION PROCESS PROCESS RO/UV ICON CALL SERVICE POWER ICON INDICATION BAR All LEDs will glow for 5 seconds Power ON Puri cation Process Blinks for 6 secs.

  • Page 19: Know Your Aquaguard ® Select Edge Uv With Stainless Steel Next-Gen Led Display

    KNOW YOUR AQUAGUARD SELECT EDGE UV ® WITH STAINLESS STEEL NEXT-GEN LED DISPLAY. Process Icon Call Service Power Icon Indication Bar PURIFICATION PROCESS PROCESS CALL SERVICE POWER ON INDICATION BAR All LEDs will glow for 5 seconds Power ON Blue Solid Puri cation Process Blinks for 30 secs.

  • Page 20: Maintaining Aquaguard ® Select Edge With Stainless Steel

    2. Have you kept the purified water in the tank or too long? Dispense of water and clean the tank. 3. Is it time to change the filter? Call an authorized Eureka Forbes service technician. Less water has been 1. Is the tap water valve closed? Open the tap water valve.

  • Page 21: Cleaning And Disinfection Of Water Storagetanks

    & let it refill again. 10. Please ensure that this disinfection process is carried out by the authorised installation person/service technician during first installation and in every subsequent mandatory servicing of the product. *Available with Eureka Forbes Service Technician.

  • Page 22: Zero Pressure Pump

    ZERO PRESSURE PUMP Your Aquaguard Select is equipped with a unique pump which has both suction and boosting capabilities, and comes ® with specifically designed DRS (Dry Run Sensor). Now, this enables your Aquaguard Select to work in the following ®...

  • Page 23: Warranty Terms And Conditions

    WARRANTY TERMS AND CONDITIONS 1. The Products are warranted against manufacturing defects for a period of twelve (12) months from the date of original purchase. 2. The Customer will notify the Company in writing promptly of any defects noticed and give the Company or its authorized agent adequate opportunity to inspect test and remedy them for which the Customer will deposit the goods at its own expense, if so, required by the Company with the Company's Office/Service Centre along with the original invoice in the city where they are sold.
  • Page 24 For the purpose of this warranty, the following expressions shall have the following meanings respectively: 1. The 'Goods' shall mean the goods described in the Order Form. 2. The 'Customer' shall mean the original purchaser of goods from the company. 3. The 'Company' shall mean EUREKA FORBES LIMITED. ® ®...
  • Page 25 3. If during such servicing it is necessary for the company to replace or repair defective components or parts, the customer shall be required to pay for the same as per the company's prevailing price list. 4. Eureka Forbes limited reserves the right to offer annual maintenance contract/ensure availability of spares only up to 7 years from the date of invoice.
  • Page 26 Select ® disposing Aquaguard Select ® authorised is the new brand identity of . The brand names Dr. Aquaguard and Aquaguard ® Select along with their logos and Product name are original product from the house of Eureka Forbes Limited.
