Tyco EC-11 Series Manual

Series EC-11 and EC-14 Sprinklers,
11.2 K and 14.0 K Upright, and Pendent
Extended Coverage Light and Ordinary Hazard
General
Description

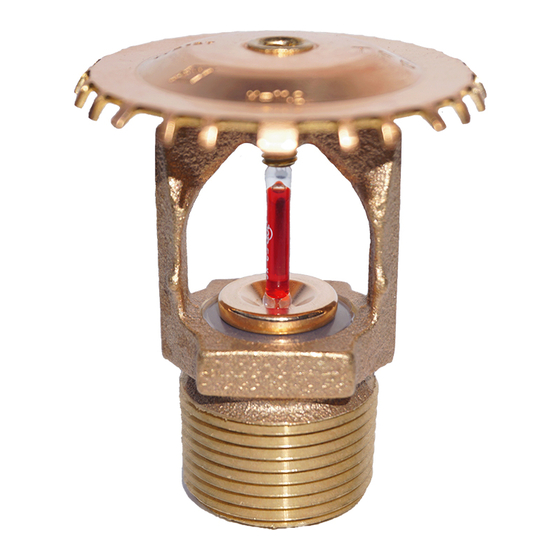

TYCO Series EC-11 and
Extended Coverage Upright
Pendent Sprinklers are decorative
glass-bulb sprinklers designed for use
in light or ordinary hazard occupancies.
They are intended for use in automatic
sprinkler systems designed in accor-
dance with standard installation rules
(for example, NFPA 13) for a maximum
coverage area of 400 ft 2 (37,2 m
compared to the maximum coverage
area of 130 ft (12,1 m ) for standard
2 2
coverage sprinklers used in ordinary
hazard occupancies or 225 ft
for standard coverage sprinklers used
in light hazard occupancies.
Series EC-11 and EC-14 Sprinklers
feature a UL and C-UL Listing that
permits their use with unobstructed
or non-combustible obstructed ceiling
construction as defined and permitted
by NFPA 13, as well as a specific appli-
cation listing for use under concrete
tees.
Series EC-11 and EC-14 Extended
Coverage Sprinklers have been fire
tested to compare their performance to
that of standard coverage spray sprin-
klers. These tests have shown that the
protection provided is equal to or more
effective than standard coverage spray
sprinklers.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling
Installation of sprinkler systems and
components. Improper handling and
installation can permanently damage
a sprinkler system or its components
and cause the sprinkler to fail to
operate in a fire situation or cause it
to operate prematurely.
Page 1 of 8
Corrosion-resistant coatings, where
applicable, help extend the life of
copper alloy sprinklers beyond that
which occurs when exposed to
corrosive atmospheres. Although corro-
EC-14
sion-resistant coated sprinklers passed
and
standard corrosion tests of the appli-
cable approval agencies, this testing
is not representative of all possible
corrosive atmospheres. Consequently,
it is recommended that the end user be
consulted with respect to the suitability
of these corrosion-resistant coatings
for any given corrosive environment.
2 ), as
The effects of ambient temperature,
concentration of chemicals, and gas/
chemical velocity should be consid-
ered, along with the corrosive nature of
2 (20,6 m 2 )
the chemical to which the sprinklers will
be exposed.
NOTICE
Series EC-11 and EC-14 Extended
Coverage Sprinklers described herein
must be installed and maintained in
compliance with this document, as well
as with the applicable standards of the
National Fire Protection Association, in
addition to the standards of any other
Authorities Having Jurisdiction. Failure
to do so may impair the performance of
these devices.
Owners are responsible for maintaining
their fire protection system and devices
in proper operating condition. The
installing contractor or sprinkler manu-
facturer should be contacted with any
questions.
and
SEPTEMBER 2011
Technical Services
+1-401-781-8220
www.tyco-fire.com
Model/Sprinkler
Identification
Numbers (SINs)
TY5137 - Upright, 11.2K
TY5237 - Pendent, 11.2K
TY6137 - Upright, 14.0K
TY6237 - Pendent,14.0K
TY5137 is a redesignation for C5137,
G1894, and S2510.
TY5237 is a redesignation for C5237,
G1893, and S2511.
TY6137 is a redesignation for C6137,
G1896, and S2610.
TY6237 is a redesignation for C6237,
G1895, and S2611.
800-381-9312
TFP220
