Hardware Installation C - iDig 2D Touch User Manual

Machine needs to be powered OFF
•
Before plugging in the cables, find suitable
locations to mount the LED Cradle and Control
Box Cradle
•
The LED Display should be put on the front
window so that is in your field of vision of the
working area outside.
•
If there is no window, you'll need to use the
optional C Clamp to mount on the bar.
•
The Control Box is usually mounted onto the
right hand side window and at a distance that
is comfortably reached by hand.
•
Allow clearance for the front window to be
opened or slid up into the roof.
•
Use window cleaner to clean both the glass
and the suction cup mounts to achieve good
adhesion.
•
Attach cables to the LED and Control Box
Cradles. Secure the cables with conduit, cable
ties, etc.
• DO NOT PLUG IN POWER
Sensor is installed.

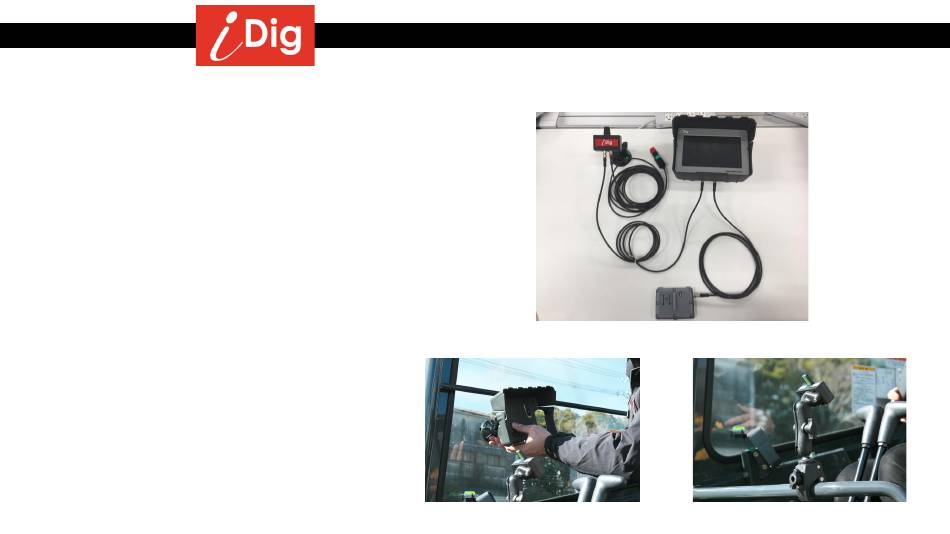

Step 1 – Installation of LED Display and Control Box
until AFTER the 2D
Hardware Installation
Complete Cabling setup
Control Box Setup
6
Optional C Clamp
