Delta 980T-SS-DST Series Installation Manual
  1. Manuals
  2. Brands
  3. Delta Manuals
  4. Plumbing Product
  5. 980T-SS-DST Series
  6. Installation manual

Delta 980T-SS-DST Series Installation Manual

Single lever pilar touch pull down kitchen faucets
Hide thumbs Also See for 980T-SS-DST Series:

Advertisement

Table of Contents

U P
ASME A112.18.1 / CSA B125.1
ICC / ANSI A117.1

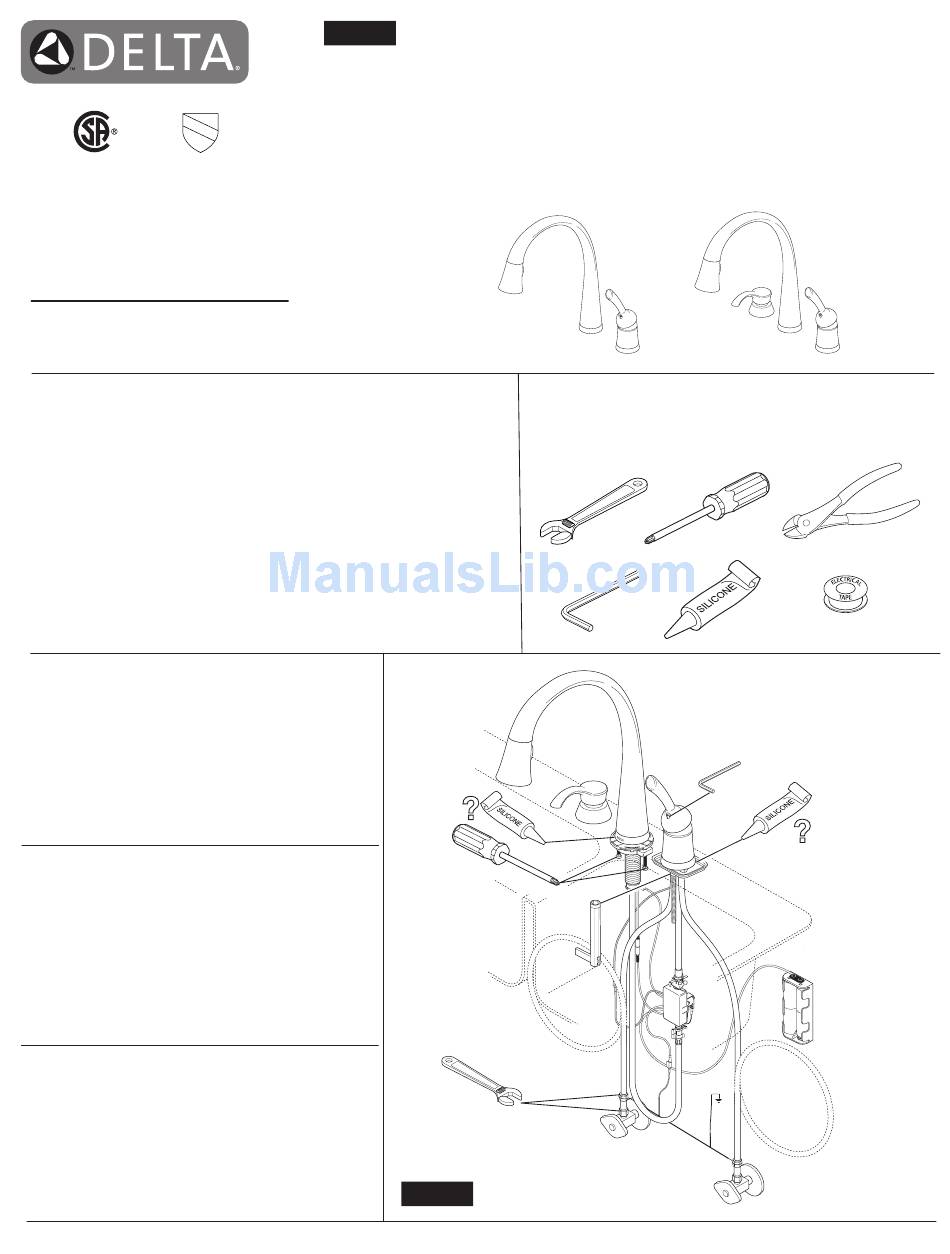

Models/Modelos/Modèles
980T-SS-DST & 980T-SSSD-DST
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
WARNING: THIS FAUCET IS NOT TO BE USED WITH PORTABLE
DISHWASHERS! / ADVERTENCIA: ¡SESTA LLAVE NO SE DEBE UTILIZAR
CON MAQUINAS LAVAPLATOS PORTATILES! / AVERTISSEMENT: ON NE
DOIT PAS BRANCHER UN LAVE-VAISSELE PORTATIF SUR CE ROBINET!
MEETS OR EXCEEDS — ASME A112.18.1 / CSA B125.1
ALCANZA O EXCEDE LAS SIGIENTES NORMAS —
ASME A112.18.1 / CSA B125.1
LE ROBINET EST CONFORME OU SUPèRIEUR AUX EXIGENCES DES
NORMES SUIVANTES: ASME A112.18.1 / CSA B125.1
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
60089
C
®
SINGLE LEVER PILAR™ TOUCH
PULL DOWN KITCHEN FAUCETS
LLAVES DE AGUA EXTRAIBLES PARA
COCINAS DE PALANCA PILAR™ DE
FUNCIÓN AL TACTO
ROBINET TACTILE PILAR
RÉTRACTABLE POUR ÉVIER DE CUISINE
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
60089
1
À BEC
MC
2/25/09
Rev. C
