Sealey SM94.V5 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
‰
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and
any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate
safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend
that a Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a
supply which is not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by
contacting your Sealey stockist.
You must also read and understand the following instructions concerning electrical safety.
The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a
qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Ensure that cables are always protected against short circuit and overload.
1.1.3. Regularly inspect power supply cables and plugs for wear or damage and check all connections to
ensure that none is loose.
1.1.4. Ensure that the voltage marked on the appliance matches the power supply to be used and that the
plug is fitted with the correct fuse - see plug diagram on right.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item
8
repaired or replaced by a qualified electrician. When a BS 1363/A UK 3 pin plug is damaged,
cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal 'E'.
b) Connect the BROWN live wire to the live terminal 'L'.
c) Connect the BLUE neutral wire to the neutral terminal 'N'.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualified electrician.
1.2. GENERAL SAFETY
WARNING! Disconnect the mortiser from the mains power before changing accessories, servicing or performing any
‰
maintenance. Locate the mortiser in a suitable working area. Fasten the mortiser to a strong flat working surface. Keep area
clean and tidy and free from unrelated materials and ensure there is adequate lighting.
Maintain the mortiser in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the mortiser clean for best and safest performance and check moving parts alignment regularly.
9
Keep mortiser tool bits clean and sharp and ensure bit is secured correctly in the mortiser chuck. If worn or damaged replace
9
immediately.
Remove adjusting keys and wrenches from the mortiser and its vicinity before turning it on.
9
Wear approved eye safety protection.
9
Handle loose chisels and drill bits with gloves or cloth as they are very sharp, but DO remove gloves and/or cloth before operating
9
the mortiser. Keep your hands and fingers away from the mortiser tool bit and chisel when operating.
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery, and contain long hair.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Secure work piece by resting against the back stop and top holding clamp.
9
Ensure there are no foreign objects in the workpiece i.e. nails or screws.
9
Use the depth stop for accuracy and to avoid drilling into the work table, and avoid unintentional starting.
9
DO NOT start the mortiser with the tool bit resting against the workpiece. Always bring the operating chisel to the workpiece.
8
DO NOT attempt to place a workpiece on the mortiser table whilst the cutting tool is working.
8
© Jack Sealey Limited

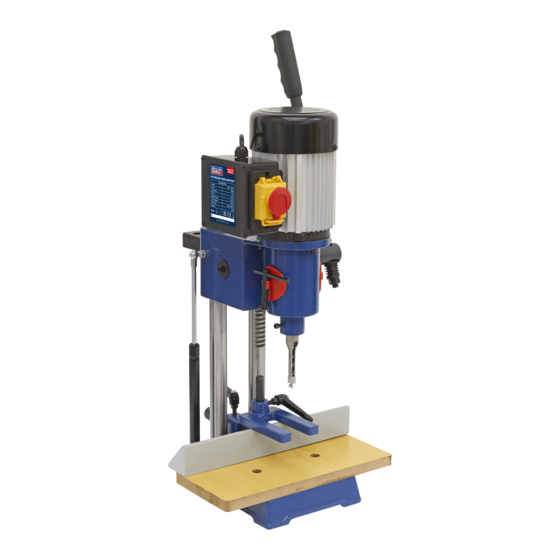

1/2" HOLLOW CHISEL MORTISER
MODEL NO:
Wear protective
Wear safety
gloves
footwear
Original Language Version
SM94.V5
Wear a mask
Recommended fuse rating
5 Amp
SM94.V5 Issue:1 19/10/21
