- Page 1 SSD6202 2x M.2 Port to PCIe 3.0 x8 NVMe RAID Controller Quick Installation Guide V1.01...
-
Page 2: System Requirements

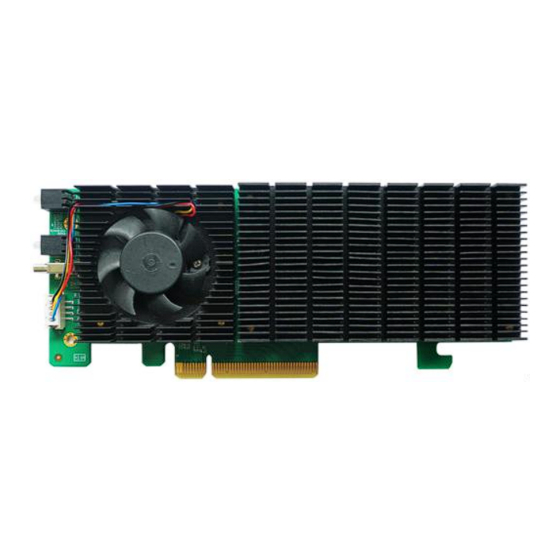

System with a free PCIe 4.0/3.0 x16 or PCIe 4.0/3.0 x8 slot Windows Linux VMware For more information, please visit the SSD6200 Series Product Page: https://highpoint-tech.com/USA_new/series-ssd6200-overview.html SSD6202 Kit Content SSD6202 Controller Card Low-Profile bracket Quick Installation Guide ... - Page 3 SSD6202 Hardware Front View Fan for NVMe chipset Heat sink for M.2 SSD’s Fan power connector PCIe 3.0 x8 Host Interface...
- Page 4 RAID Switch LED Support...
- Page 5 SSD6202 Hardware Installation Step 1. On the rear of the SSD6202, remove the four screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD6202. Step 2. These 2 screws are used to install the NVMe SSD’s.
- Page 6 Step 3. Please remove the screws on the right side of the SSD6202. Gently insert the SSD into the slot. Step 4. Refasten the screw to secure the SSD. Note: Make sure the SSD’s are carefully, but securely installed into each M.2 port.
- Page 7 Step 6. Align and install the heatsink; on the rear of the SSD6202, refasten the 4 screws that were removed in step 1. Note ： Make sure the aluminum cover is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SS6202.
- Page 8 Note: The SSD6202 can create RAID arrays via RAID Switch settings. (You can also create RAID arrays using the UEFI, CLI & WebGUI tools). RAID Switch RAID Switch: four options are available; when the system starts, the SSD6202 will automatically create the specified array using the hosted NVMe SSD’s.
- Page 9 PORT1 SSD LED RAID LED: when the SSD6202 has no RAID, the RAID LED is off. If there is a normal RAID in the SSD6202, the RAID LED is green. If the RAID is fail (RAID Status is Disable or Critical), the RAID LED is red.
-
Page 10: Customer Support
Software Download: https://highpoint-tech.com/USA_new/series-ssd6200-overview.html Customer Support If you encounter any problems while utilizing the SSD6202, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/main.php...
