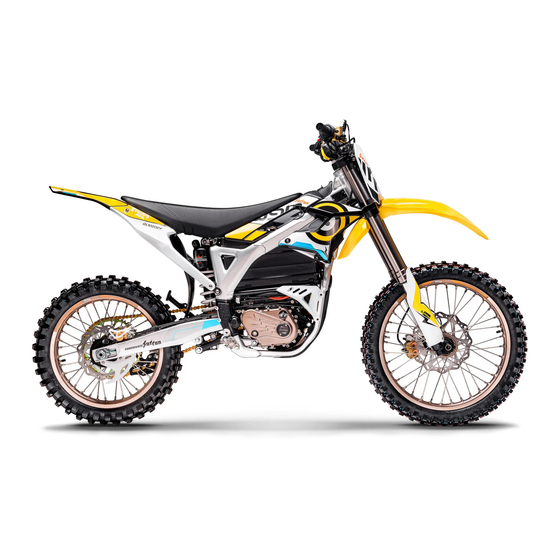

Cover Image
This manual will provide you a better understanding of your electric motorcycle.
Please take your time to read this manual carefully
and all safety labels before
riding.
Table of Contents
Introduction............................ 1.1
Important Notice................................ 1.1
Transporting.................................1.2
Safety Information...................... 2.1
Safe Riding Requirement................. 2.1
Important Information...............................2.2
Location of Important Labels.......................2.4
Component Locations........................3.1
Display and Indicator.....................4.1
Dashboard Overview.....................................4.1
Feature Setting 功能设置.........................5.1
Dashboard Setting.....................................5.1
System Feature Setting 系统功能设置................................................ .......... 5.3
Feature Introduction
功能介绍...................................................6.1
Handlebar Controls....................................... .......... 6.1
Riding mode Button................................................. 6.4
Parking Brake Operation............................................... ... 6.4
Battery Pack Disassembly.................................................6.5
Battery Pack Assembly...................................... 6.6
Starting and Operating..................................... 7.1
Check before riding................................ 7.1
Key switch/ Steering lock................................. 7.2
Riding................................................. 7.3
Parking.............................................. 7.3
Temperature indicator............................................. 7.4
ABS（Anti-lock braking system）...................................7.5
Front fork adjustment................................. 7.7
Rear shock adjustment................................................. 7.10
Advertisement
Table of Contents
Related Manuals for SUR-RON STORM BEE
Summary of Contents for SUR-RON STORM BEE
-
Page 1: Table Of Contents
Cover Image This manual will provide you a better understanding of your electric motorcycle. Please take your time to read this manual carefully and all safety labels before riding. Table of Contents Introduction......1.1 Important Notice........ 1.1 Transporting.........1.2 Safety Information...... 2.1 Safe Riding Requirement.... - Page 2 System warning message............ 11.3 General troubleshooting............11.6 Warranty and after-sales information......... 12.1 Limited Warranty conditions..........12.1 Sur-Ron Warranty period for sales motorcycles................12.1 Parts Covered by warranty ..............12.1 Warranty hours..........12.1 Limitations of the limited warranty............12.2...
-
Page 3: Introduction
Comparison Table of Export model parameters..... 13.12 Domestic Distributors..........13.13 Introduction Important Notice Congratulations and thank you for purchasing SURRON STORM BEE electric motorcycle. We sincerely welcome you to the community of SURRON electric motorcycle riders. This manual is designed to provide you with a better understanding of the operation, maintenance requirements and troubleshooting of your electric motorcycle. -
Page 4: Transporting
Off-road tire (21-inch diameter front and 18-inch diameter rear) Riding tips for maximum range Range varies in STORM BEE electric motorcycles similarly to how it varies in gas motorcycles. The range variety of STORM BEE electric motorcycles comes from the riding... -
Page 5: Safe Riding Requirement
The following are a few that we consider to be most important. • STORM BEE is a high performance electric motorcycle and should be treated with extreme caution. • Proper safety gear, including a regionally/nationally approved helmet, riding boots, eyewear, gloves, and protective clothing should be worn while riding to reduce the risk of potential injury. -
Page 6: Important Information
Be sure you understand the importance of checking all items thoroughly before riding. If you are the STORM BEE off-road version owner, please understand your motorcycle is designed and manufactured for off-road use only. The tires are not made for... -
Page 7: Location Of Important Labels
The battery pack will be damaged if it is stored for a long time under low power. CAUTION: Only charge the STORM BEE battery pack with the motorcycle’s original charger or the manufacture approved accessory charger. - Page 8 Controller Label A VIN label (A) The motorcycle chassis number information (B)
-
Page 9: Operation And Component Locations
Motor Serial Number (A) The motorcycle may have the following information for different sale region models: A. VIN label (Australia) – certification label B. VIN label (North American) – certification label C. VIN label (European Union) – certification label D. Tire and loading information label E. - Page 10 the greater field of view makes objects seem further away than they really are. Care must be used when judging the distance of objects seen in these mirrors. B. Rear Brake Lever For description and operation, see “Feature Introduction”, on page 6.1. C.
- Page 11 A. Headlight • For headlight operation, see“Feature Introduction”, on page 6.2. • For headlight replacement, see“Maintenance”, on page 10.12. • For headlight alignment, see “Maintenance”, on page 10.11. B. Front Turn Indicator • For turn indicator operation, see“Feature Introduction”, on page 6.2. •...
-
Page 12: Display And Indicator
Feature Introduction A. Battery pack For description and operation，see“Power Management”, on page 8.1. B. Controller For description and operation, see“Power System Management”, on page 9.1. C. Motor and Reduction gearbox For description and operation, see“Power System Management”, on page 9.1. Display and Indicator 3.8 Dashboard Overview... - Page 13 For description and operation, see“Feature Setting”, on page 5.2. D. Transmission ratio Display It displays the current transmission ratio of STORM BEE electric motorcycle. E. Riding mode This area displays the riding mode (1,2,3) corresponding to the Riding mode of ECO, RAIN and SPORT.
- Page 14 A. TURBO Mode Indicator This indicator shows the working state of turbo mode. The indicator will dissapear when turbo mode is not available. The indicator illuminates when turbo mode is available. If the indicator is flashing slowly, turbo mode is in use. If the indicator is flashing fast, turbo mode is about to end.
-
Page 15: Feature Setting 功能设置
check whether the gap between the wheel speed sensor and the code disk is in the range of 0.8 ~ 1.2mm, and whether the wheel speed sensor is abnormal F. High Beam Indicator When the headlight high beam is on, this indicator illuminates blue, and remains on until the high beam is turned off. - Page 16 The features and displays on the dashboard can be customized to your personal preferences by using the MODE and SEL buttons combined with the R\S button on the Handlebar Control A. Mode Buttom（ MODE） By momentarily pressing or holding the MODE button you can reset fields and toggle through the trip menus and display options.
-
Page 17: System Feature Setting 系统功能设置
operating mode and the speed is 0km/h. Unit Display – Speed Select English(MPH) or metric (km/h)： 1. Press and hold the MODE button with the dashboard off and turn the key switch ON whilst still holding the mode button for more than 2s with the dashboard in its normal operating. Then select English (MPH) or metric (km/h). - Page 18 Note: Display one of the English letters in field A (Different English letters are displayed according to different feature modes) Display one of the Numbers in field B (Different Numbers are displayed according to different feature modes) System Feature Mode Setting: MODE button and SEL button in dashboard: Press the two buttons at the same time to enter the system feature setting mode and the first feature (stay on) of the dashboard is displayed.
-
Page 19: Handlebar Controls
Actived in C1) ⑥Reserved feature (F0 F1 F2） Factory default at F0 (feature is disabled in F0, and strengthens in turn from F1 to F2) ⑦Exit System Feature Mode Setting (X) Warning: it is recommended to turn off the tilt protrction in off road environment, to avoid the loss of power due to the triggering of tilt protection when performancing some jump tricks. - Page 20 ④ Short press 3 times in a row: ASR is turned on, and locked in current state; switching between active and disable. If you short press 3 times again, ASR will be turned off. ⑴ ASR level setting key: also Switch setting button R\S, located in front of the right-hand handle switch, trigger switch.
-
Page 21: Riding Mode Button
Be sure to turn and other operations in accordance with the law. Unlike cars, turn indicators must always be manually cancelled on Sur-ron electric motorcycles. Press the switch and it will return to the off position (middle). H.ABS Switch For operations and instructions, see " Starting and Operating "... - Page 22 pack, thereby helping to improve energy efficiency and increase the range. A slight resistance is felt when KERS is activated. The KERS level can be changed in the System Feature Mode, see page 5.4 for details. Feature Introduction 3.18 Riding mode button The Riding mode buttons include sports mode ○A, rain mode ○B and ECO mode ○C.
-
Page 23: Parking Brake Operation
3.21 Parking brake operation Your Storm Bee electric motorcycle is equipped with a parking system. When activated, the parking system will prevent the electric motorcycle from rolling forward or backward. Parking system on Pull the rear brake lever, push the parking brake lever into the gap between the brake... - Page 24 Battery pack removal 1.Use a portable tool to remove the two mounting screws of the front support cover of the seat 2.Push the seat and the front support cover of the seat forward first according to the arrow showing on the diagram, and then lift the seat upwards along the arrow. 3.First remove the charging plug ○D and then remove the discharge plug ○E 4.Remove the front compression bracket ○C of the battery pack and the rear compression bracket ○B of the battery pack from the fixed lugs and rotate them to the corresponding...
-
Page 25: Battery Pack Disassembly
Battery pack installation 1.Put the battery pack in the battery compartment 2.Press the the front compression bracket ○C of the battery pack and the rear compression bracket ○B of the battery pack to the fixed lugs 3.plug the battery pack discharge plug ○E back in first, then plug the charging plug ○D next 4.Install the seat back in according to the arrow showing on the diagram, first put the the seat on the frame and push the seat backward along the arrow direction to fix the seat hook on the subframe. -
Page 26: Key Switch/ Steering Lock
Check whether the headlights, turn indicator lights and brake lights/tail lights are functioning properly Key Switch / Steering lock This is a three-position key switch located above the front fork and in front of the handlebar. The switch positions are as follows (the off-road version equipped a two-position switch): 1. - Page 27 1. Insert the key, press down and turn clockwise. OFF position This position is used to turn off the Storm Bee electric motorcycle, thereby disabe all the electrical system. ON position This position is used to operate the Stormbee electric motorcycle. The following visiable instruments will lights on when you turn the key switch ON: •...
-
Page 28: Temperature Indicator
4. After each ride, please check the power and charge the battery pack in time. Temperature indicator The air-cooled electric power system of the Storm Bee electric motorcycle has a simple and reliable structure, but high-power density, light weight design and easy maintenance advantage. -
Page 29: Abs（Anti-Lock Braking System
•Phase 2 If the temperature continues to rise, the orange system warning indicator ○A above the dashboard will stay on to inform you that the electric motorcycle is now enter a temperature protection strategy, and the power of the Storm Bee electric motorcycle will be reduced accordingly. - Page 30 When the ABS is in the diagnosis mode, the ABS warning light is on。 Warning! When your Storm Bee electric motorcycle exceeds 5km/h, if the ABS indicator light is still on, It indicates that the ABS system is malfunctioning, and the ABS may not work normally.
-
Page 31: Front Fork Adjustment
Starting and Operating Front fork adjustment Compression damping——FASTACE、KKE Use a flat-blade screwdriver to turn the screws ○A on the top of the left and right front fork to adjust the compression damping. The symbol "+" means hard (large compression damping), and the symbol "-"... -
Page 32: Rear Shock Adjustment
Caution: The appearance of front fork in different brands may be different, please refer to the actual product. Caution: The damping and spring preload should be adjusted reasonably according to the road conditions and the weight of the rider. Avoid adjusting the damping to the maximum limit value, otherwise the front fork may malfunction or even cause a crash. - Page 33 Note: The appearance of rear shock absorber in different brands may be different, please refer to the actual product. Rebound adjustment——FASTACE、KKE The rebound adjustment screw ○B is located at the bottom of the rear shock absorber. "+" printed on the adjustment screw means hard (slower rebound), "-" means soft (faster rebound) •...
- Page 34 Power management Battery pack The Storm Bee Motorcycle uses high-performance high rated lithium battery which can be used in the ambient temperature range of -20℃~50℃，the best working condition is when ambient temperature is between 10℃~30℃. Too low or too high ambient temperature will affect the battery pack performance and service life.
- Page 35 It is strictly forbidden to wash the battery pack with a high-pressure water pump, let alone immerse the battery pack in water. The wading of the whole motorcycle should not exceed the center of the wheel, otherwise it may cause water ingress in the battery pack, internal short circuit and permanent failure of the battery pack.
- Page 36 ·If the battery pack is on fire, please throw the battery pack into the water to prevent more damage 5.5 power system The Storm Bee Electric Motorcycle power system include controller, motor and a reduction gearbox. Warning: Motor is designed to be sealed and water resistant. The customer is not allowed to disassemble the motor without permission, otherwise may cause the position sensor malfunction or damage the corresponding seal which can lead to motor malfunction.
- Page 37 Warning: The power system of the Storm Bee Electric Motorcycle must be repaired or replaced by a professional technician authorized by the manufacturer. Users are not allowed to disassemble and modified the power system of the Storm Bee Electric Motorcycle without permission.
