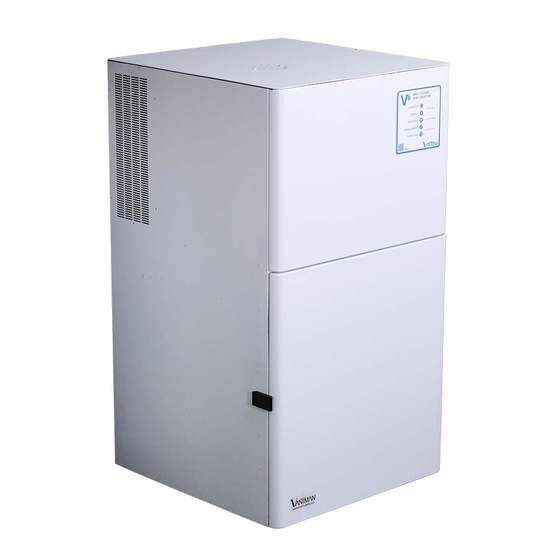

PACKING LIST
1 - V-Six SE Dust Collector
1 - Power Cord
1 or 3 - Port Caps (Dependant on Inlet Plate Model)
IMPORTANT SERVICE INFORMATION:
SAVE SHIPPING BOX AND FOAM FOR FUTURE
SERVICE. SHIPPING WITHOUT PROPER FOAM
MAY CAUSE DAMAGE TO UNIT
ASSEMBLY INSTRUCTIONS
1. Remove the Unit and other parts from the packaging and check against the packing list above.
2. Open the front door of the unit to access the filter compartment cover plate. Remove the four black
thumb screws and remove the cover plate. Locate the wing nut at the bottom of the cartridge filter and
check to make sure it has not come loose during shipping. Tighten if necessary.
3. The V-Six requires a dedicated 120 volt, 15 amp, 50/60 Hz. circuit. Plug the removable power cord into
the socket on the back of the unit. Plug the other end into a wall outlet that will support the electrical
needs, then flip the Main Disconnect Switch on the back of the unit into the ON position. Once the unit
is supplied power, confirm on the Control Panel (front of unit) that the red POWER ON/OFF indicator
light is on solid. If the indicator light does not come on after flipping the Main Disconnect Switch to the
ON position, check that the Power Cord is properly and securely plugged into the unit and the wall.
4. The Air Blast filter cleaning system requires compressed air to operate. Connect a 1/4 inch NPT male
connector air fitting to the brass female connector located on the back of the unit. DO NOT supply
more than 100 PSI to unit.
25799 Jefferson Ave.
Murrieta, CA 92562
1-800-VANIMAN (826-4626)
www.vaniman.com
sales@vaniman.com
V-SIX SE
120V
10281-02/22 PAGE 1
Advertisement
Table of Contents
Related Manuals for Vaniman V-SIX SE
Summary of Contents for Vaniman V-SIX SE
- Page 1 V-SIX SE 120V PACKING LIST 1 - V-Six SE Dust Collector 1 - Power Cord 1 or 3 - Port Caps (Dependant on Inlet Plate Model) IMPORTANT SERVICE INFORMATION: SAVE SHIPPING BOX AND FOAM FOR FUTURE SERVICE. SHIPPING WITHOUT PROPER FOAM...
