Sealey LED95230V Instruction Manual

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give
you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS
INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INvALIDATE THE WARRANTY.
PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL
 WARNING! Disconnect lamp from mains power before
performing any maintenance.
 DO NOT shine lamp directly into your, other person's
or animal's eyes.
 DO NOT allow children to use the lamp.
 Maintain the lamp in good condition.
 DO NOT use the lamp if the lamp if damaged.
 When not in use store the light in a safe, dry,
childproof location.
1.2. ELECTRICAL SAFETY FOR USE OF
TRANSFORMER. USE ONLY THE SUPPLIED
TRANSFORMER PLUG FOR CONNECTING LAMP TO
THE POWER SUPPLY.
 WARNING! It is the user's responsibility to read,
understand and comply with the following electrical
instructions:
You must ensure the risk of electric shock is minimised
by the installation of appropriate safety devices. An
rccB (residual current circuit Breaker) should be
incorporated in the main distribution board. We also
recommend that an rcD (residual current Device) is
used with all electrical products, particularly portable
equipment which is plugged into an electrical supply not
protected by an rccB.
You must also read and understand the following
instructions concerning electrical safety.
1.2.1. The Electricity At Work Act 1989 requires all
portable electrical appliances, if used on business
premises, to be tested by a qualified electrician, using a
Portable Appliance tester (PAt), at least once a year.
 WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all
possible conditions and situations that may occur. It must be understood that common sense and caution
are factors which must be applied by the operator.
2. INTRODUCTION

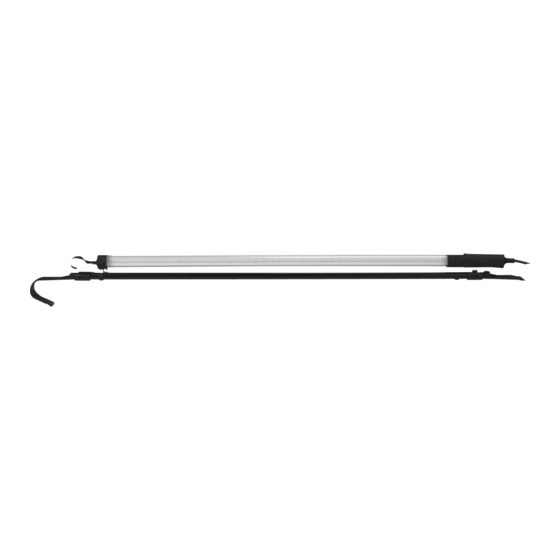

Easily adjusted telescopic bracket mounts under open bonnet. 96 LEDs give complete engine bay illumination.
Lamp unit can be unclipped from mounting bracket and used separately. supplied with hanging hook, 2.8mtr cable
and transformer plug.
Supply: . . . . . . . . . . . . . . . . . . 230V 50Hz 100mA.
Power: . . . . . . . . . . . . . . . . . . . 12W.
Lamp Type: . . . . . . . . . . . . . . . 96 LED.
Min/Max Bonnet Width: . . . . . 1200/2870mm.
InstructIon MAnuAL for:
UNDER BONNET 96 LED LAMP
MoDEL no :
1.2.2. The Health & Safety at Work Act 1974 makes
owners of electrical appliances responsible for the safe
condition of the appliance and the safety of the appliance
operator. If in any doubt about electrical safety,
contact a qualified electrician.
1.2.3. You must ensure that you:
 Inspect the transformer plug, cable and connector for
wear and damage to ensure items are safe before
connecting to the mains power supply. If worn or
damaged DO NOT use.
 Important: check that the voltage marked on the
transformer plug is the same as the power supply to
be used.
 uncoil the cable between transformer plug and lamp.
 DO NOT pull the transformer plug from the mains
socket by the lead.
 DO NOT use any other type of transformer with this
product.
 DO NOT try to take the transformer plug apart.
 DO NOT use the transformer plug to power any other
electrical item.
 DO NOT get the transformer plug wet, or use in
wet, damp conditions (for indoor use only).
 WARNING! NEvER substitute a standard 13amp
3 pin plug, or any other type of plug, for the
transformer plug.
this transformer plug reduces and rectifies the mains
voltage (230 volts Ac) to 12 volts DC.
Original Language Version
LED95230v
LED95230V Issue: 2 - 29/03/10
