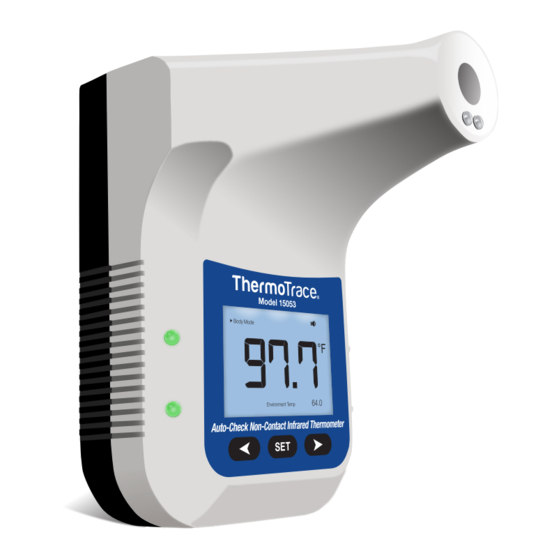

- Page 1 User Guide Model 15053 Auto-Check Non-Contact Infrared Forehead Thermometer K3 Pro Please read this manual before operating unit. Important safety information inside.
- Page 2 Please read the following information first: Before using the device, SCAN the QR Codes below to access the following: DeltaTrak User Manual: https://www.deltatrak.com/15053 Support and Technical Services: https://www.deltatrak.com/support/tech-support Warranty: https://www.deltatrak.com/support/warranty How Did We Do? (Customer Satisfaction Survey): https://www.deltatrak.com/survey Introduction Video: https://www.deltatrak.com/15053-v1...
-
Page 3: Table Of Contents
Table of Contents Configuration ......................1 Specifications .......................1 Display Descriptions ....................2 Status Descriptions ....................2 Operating Instructions ...................3 Software User Guide .....................5 Warnings ......................9 Configuration Stand Mounting Hole USB Power Supply and Transmission Interface Output Signal Interface On/Off Switch EXOUT Infrared Temperature Sensor Infrared Distance Sensor LCD Display Alarm Light... -
Page 4: Display Descriptions
Display Descriptions Modes: Body Temperature; Surface Temperature; Count Mode Device Status: System; USB Connection; Volume; Power Measurement Result: Temperature Reading Temperature Scale: Celsius; Fahrenheit Function or Memory: M - - indicates the current SAVED reading; F - - indicates the FUNCTION number History Temp (Saved Temperature Reading) or Environmental Temp (Ambient Temperature) Environmental Temperature Reading... -
Page 5: Operating Instructions
Temperature Out of Range Alerts (Body Mode): • Body Mode When the temperature is lower than 95°F (35°C), “LO” will ° appear on the LCD Display and the voice command, “Please 68.0 Environment Temp Environment Temp Fig. 5 re-test,” will sound. When the temperature is higher than 100.4°F (42°C), “HI”... - Page 6 4. Changing the Mode Body Mode Press the SET button twice. F2 will display on the screen. Press the left or right arrow to select the preferred MODE (BODY, SURFACE or COUNT). To save the setting, press the SET button until the HOME SCREEN is displayed. The Fig.
-
Page 7: Software User Guide
Fig. 18 15053 Software User Guide The software can only be used with the Windows operating system. Download/Installation Process • Copy and paste the link below into your browser. https://www.deltatrak.com/software/ThermoTrace/ThermoTrace-Auto-Check- IR-Thermometer-Software.zip • Open zip file. • Double click “ThermoTrace-Auto-Check-IR-Thermometer-Software”. •... - Page 8 • Click “Run anyway”. • Screen will display: “Do you want to allow this app to make changes to your device?” Enter Administrator Username and Password. • Once download is complete, locate software in designated folder and double click to open. TESTACY E V1.03 •...
- Page 9 • Excel Data View: Click “Save As” and select “CSV” format to export file to Excel. Software Introduction • The software name is TESTACY. This image shows a successful connection between the software and thermometer to capture the measurement data. If the connection is good the screen will show “Success”, otherwise it will show “Fail”.
- Page 10 97.5F • Either Celsius or Fahrenheit may be selected. Jul 6, 2020 Temp Statistics Temp. Format Quantity Test Time Test Value Environment CelsiusC TESTACY E V1.03 15:12:30 97.5F 74.3F Serial Port Operation 15:12:32 97.7F 74.3F FahrenheitF COM1 success COM: Disconnect Work Mode Surface Mode 97.5F...
-
Page 11: Warnings
Please use qualified and safety-certified batteries. Unqualified batteries may cause fire or explosion. Contact Tech Support at: Phone: 925-249-2250 Ext 5120 Toll Free: 800-390-0804 US & Canada Email: techsupport@deltatrak.com Warranty The ThermoTrace Auto-Check Pro Non-Contact Infrared Forehead Thermometer was designed for long term professional use and has a limited warranty period of 1 year from the date of purchase against defects in material and workmanship. - Page 12 DeltaTrak Corporate P.O. Box 398 Pleasanton CA 94566 (925) 249-2250 (800) 962-6776 www.deltatrak.com DTI Mexico International Guadalajara, Mexico +52-33-3188-3161 / 36712190 www.deltatrakmexico.com DTI South America SA Santiago, Chile +562 2758 2866 +569 7477 1061 www.deltatraksouthamerica.com...
