Dell EMC SD-WAN Edge 3800 advanced configuration
The following sections describe the optional advanced configurations that are supported and listed within the Activation Quick
Start Guide that is included with the SD-WAN Edge 3800 system.
Set up a static IP address
1. Connect the SD-WAN Edge 3800 system through Ethernet or Wi-Fi and obtain a DHCP IP address.
NOTE: In this example, GE1 is used.
2. Open a web browser and type
3. Click the Details button located below the image of the SD-WAN Edge 3800.
4. In the Edge Overview section of the screen, click the Connected button to view the connected interfaces.

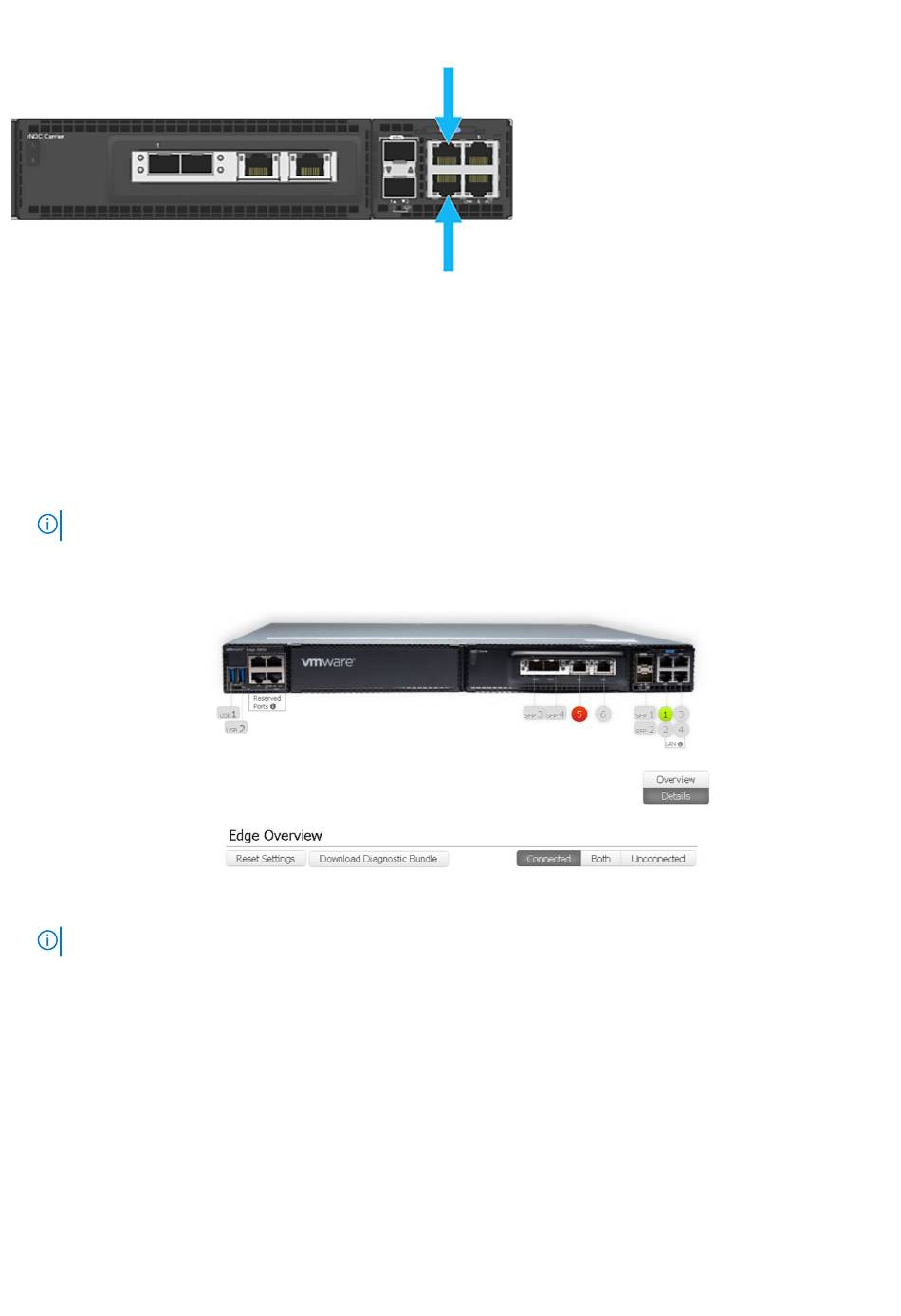

Figure 1. Connected interfaces
5. Click the name of the interface you want to set with a static IP address.
NOTE: In this example, the WAN interface is connected to GE5, shown in red.
6. Under Configuration > Addressing, select the Static radio button, then type the IP Address, Subnet Mask, and Gateways
in the appropriate text boxes.
4
http://192.168.2.1 in the address bar.
