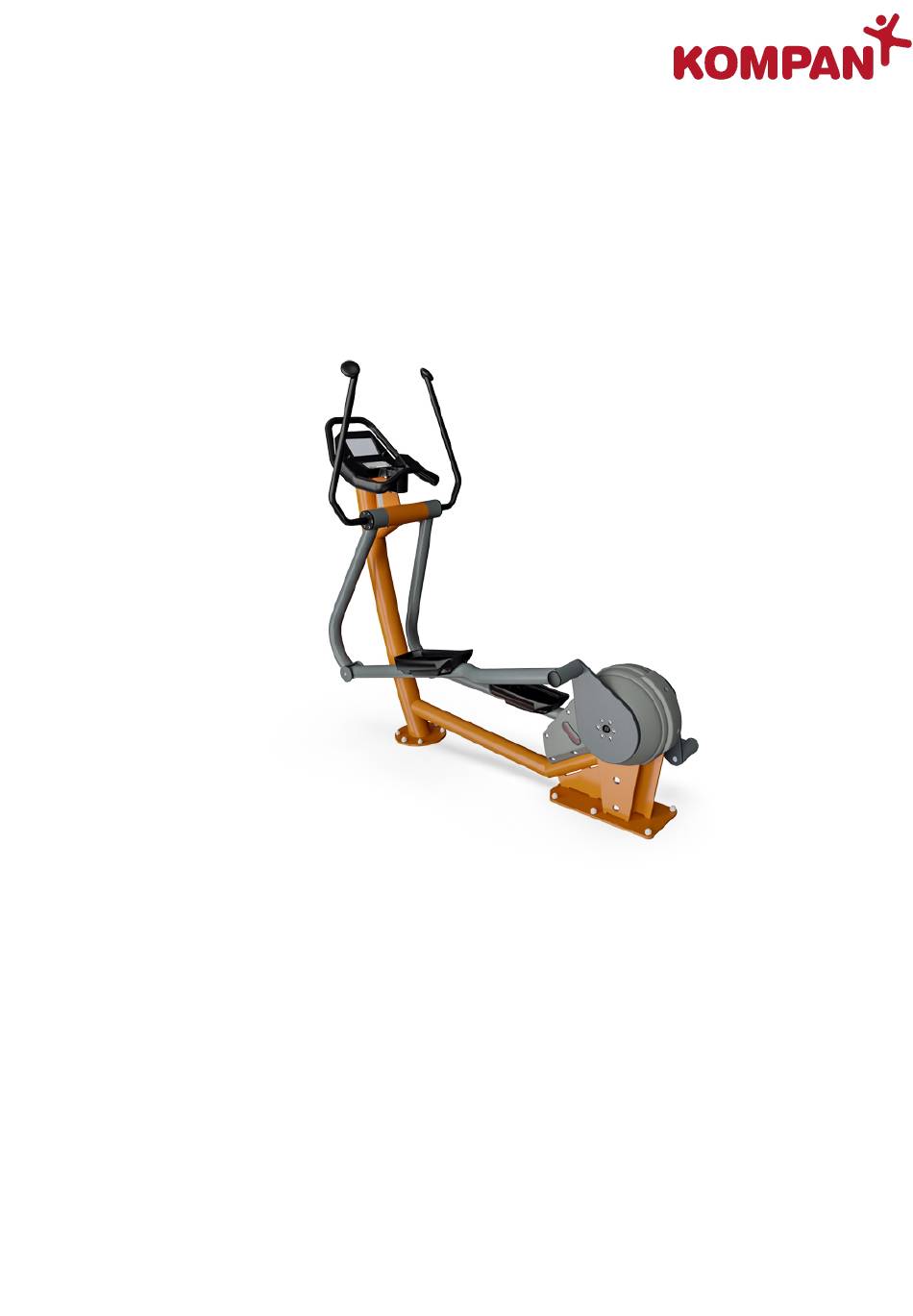

- Page 1 FAZ521XX-XXX www.KOMPAN.com Copyright © KOMPAN A/S 202001...
-
Page 2: Table Of Contents
Bluetooth connection of smartphone and use of app .................. 8 Technical Specifications for Cross Trainer ......................9 Resistance ..............................10 LCD touch display ............................10 User-maintenance instructions ........................10 EU Declaration of Conformity (DoC)........................ 11 Copyright©KOMPAN A/S 202001 2 / 11... -
Page 3: Installation Instructions
Installation instructions Find the installation instructions for the current cardio product on KOMPAN homepage: www.kompanmaster.com/kompanmaster Important safety instructions When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this exercise equipment... -
Page 4: Operating Instructions
Operating instructions Description of equipment 1. Handlebar with bottleholder 2. Display or instruction sign 3. Handels 4. Foot plates Copyright©KOMPAN A/S 202001 4 / 11... -
Page 5: Cross Trainer - Normal Mode
Cross Trainer – Normal mode 1. Stand on the foot plates 2. Grab the vertical handles 3. Start moving feet and hands in a diagonal motion Copyright©KOMPAN A/S 202001 5 / 11... -
Page 6: Cross Trainer - Sprint Mode
1. Stand on the foot plates 2. Grab the handlebar and place your elbows on the elbow rests 3. Move your forefeet to back part of the foot plates 4. Start moving feet back and forth Copyright©KOMPAN A/S 202001 6 / 11... -
Page 7: Description Of Display (Cross Trainer With Display)
7. Adjustable effort level scale Changing units on the display Units can be switched between km and miles by tapping the kcal/h indication in the middle of the screen (7) or at distance (2). Copyright©KOMPAN A/S 202001 7 / 11... -
Page 8: Adjusting Workload If The Cross Trainer Has A Dispaly
Or download the KOMPAN Cardio app and follow instructions on your phone. Bluetooth connection of smartphone and use of app 1. Download KOMPAN Cardio to your phone or tablet, then turn on Bluetooth, start pedaling, pair up with the KOMPAN bike and get going. -
Page 9: Technical Specifications For Cross Trainer
Technical Specifications for Cross Trainer Height: 1751 mm • Width: 823 mm • Length: 1789 mm • Access height: 350 mm • Stride length/Flywheel diameter: 500 mm • Ø A-weighted sound pressure level is below 70 dB • Copyright©KOMPAN A/S 202001 9 / 11... -
Page 10: Resistance
Color: 262K • Display brightness: 650 cd/m² • Vandalism proof protection glass rating: IK8 • Ingress protection class: IPX5 • User-maintenance instructions Find the general maintenance instructions for KOMPAN products on KOMPAN´s homepage: www.kompanmaster.com/kompanmaster Copyright©KOMPAN A/S 202001 10 / 11... -
Page 11: Eu Declaration Of Conformity (Doc)
EU Declaration of Conformity (DoC) Copyright©KOMPAN A/S 202001 11 / 11...
