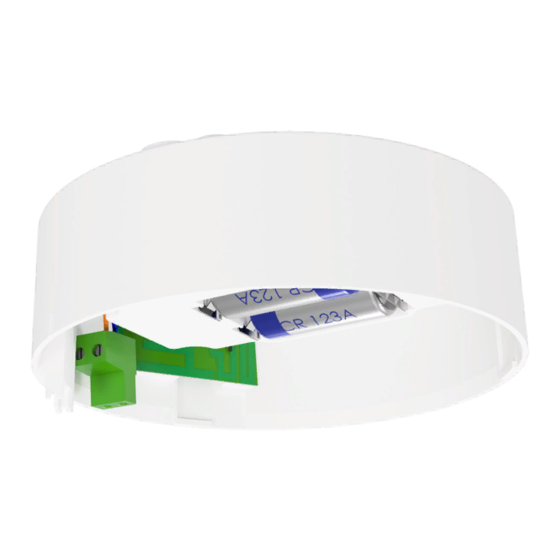

- Page 1 USER MANUAL Mobeye ® CM4410 fire alarm communicator Accessory for Ei Electronics fire detectors SW version 1.n Incl. CM4400...
-
Page 3: Table Of Contents
CONTENTS 1. General description 2. Standard behaviour Mobeye CM4410 with Mobeye SIM and Internet Portal Mobeye CM4410 with own SIM card 3. Getting started Insert the SIM card and the batteries Network connection and program mode 4. Programming when using the Mobeye SIM and portal... - Page 4 • Do not let it fall from height. • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. • Repair of the device may only be carried out by people, trained for Mobeye ® repair.
-
Page 5: General Description
In order to activate the device, a few steps are to be followed. First of all, you need to insert a SIM card. With the Mobeye SIM card, the CM- Guard uses the 4G LTE-M network. This network has a strong network coverage, deep penetrability in buildings and also works in remote areas. -
Page 6: Standard Behaviour
Mobeye Internet Portal, has the following behaviour as factory settings: - In case the Ei Electronics fire detector activates the input of the Mobeye CM4410, sends an alarm message to the Mobeye Internet Portal. The Portal forwards the alarm as push notification, call (spoken message), text message and/or e-mail to the ‘alarm contacts’. -
Page 7: Mobeye Cm4410 With Own Sim Card
The Mobeye fire alarm communicator CM4410, equipped with your own SIM card, has the following standard behavior as a factory setting: - In case the Ei Electronics fire detector activates the input of the Mobeye communicator (CM4410), the alarm module sends an alarm SMS text message and calls the phone numbers as programmed in by the user. -
Page 8: Getting Started
3. GETTING STARTED To get started with the Mobeye GSM fire alarm communicator CM4410, at least the following steps need to be taken in the following order: 1. Insert the SIM card and the batteries 2. Programming when using the Mobeye SIM/Portal a. -
Page 9: Network Connection And Program Mode
3.2 NETWORK CONNECTION AND PROGRAM MODE After placing the batteries the Mobeye CM4410 will search for the network. The LED flashes green and red. This process normally takes 10-30 seconds, in a new device this can take some minutes. When the network has been established the LED will first blink green rapidly and next stay green (or flashes 1 sec. -
Page 10: Programming When Using The Mobeye Sim And Portal
You will receive an e-mail to confirm the new account. After confirmation login on the portal. If you do not receive this e-mail, please check your spam box or ask Mobeye (info@mobeye.com). 4.2 REGISTER THE MOBEYE SIM CARD... -
Page 11: Configuration And Synchronisation
The device settings can be programmed in the Mobeye Internet Portal. In this way you prepare the settings, to be picked up by the device. Since the Mobeye device is leading in the communication between the portal and the device, the data synchronisation is done after: 1) any message to the portal (e.g. - Page 12 Device Settings The device settings can be changed via the Mobeye Internet Portal. To do this, click on the "edit" icon and type in the security code (factory setting is "1111"). See chapter 5 for the description per setting. After saving the new settings, they must be retrieved by the device (synchronized).
-
Page 13: Possible Settings
When using the Mobeye Internet Portal: The Mobeye GSM fire alarm communica- tor CM4410 can send regular test messages (keep alive) to the Mobeye Internet Portal, to ensure the proper functioning of the unit. The test message will also be sent if the unit is disarmed. -
Page 14: Call And/Or Sms (Own Sim Cards)
"0" (no test message). 5.3 CALL AND/OR SMS (OWN SIM CARDS) When using your own SIM card, by default the CM4410 will call and send SMS text messages. It is possible to suppress one of these. By turning off the CALL, the unit will only send SMS text messages. -
Page 15: Mount The Cm4410 And Perform A Test
6. MOUNT THE CM4410 AND PERFORM A TEST 6.1 MOUNT THE CM4410 HOUSING TO THE CEILING Mount the housing in which the module is fixed to the desired place to the ceiling, using the plugs and screws which can be found inside the Ei Electronics box. Please refer to the Ei Electronics manual for the ideal location and installation method. -
Page 16: Perform A Test
Now the communicator will establish network connection to send the notification to the contact persons. Note: make sure the cover is closed, so that the fire detector and the CM4410 are locked. -
Page 17: Programming When Using Own Sim Card
When using your own SIM card, all settings are programmed in by SMS text messages: 1. Make sure the CM4410 is in program mode (please refer to 7.1). 2. Send an SMS text message with the (security) code and the command. -
Page 18: Program At Least One Telephone Number
In chapter 7.3 all possible SMS commands are listed. 7.3 PROGRAM AT LEAST ONE TELEPHONE NUMBER The Mobeye CM4410 is able to send messages up to 5 telephone numbers. The first telephone number (TEL1) is mandatory. This number will receive, next to alarm message, also system messages such as battery low and keep-alive message. -
Page 19: List Of Sms Commands
1111 Set telephone number for TEL1: Empty alarm messages TEL5: Delete telephone number DEL1 DEL5 Identification text NAME: 20 characters Mobeye Interval ‘test SMS’ TEST: 0···30 (days) Time test message TESTTIME: hhmm Call on/off CALL: ON, OFF SMS on/off SMS:... -
Page 20: Sms Reports When Using Your Own Sim Card
Mobeye CM4410, from any telephone number. Before sending the request, make sure the unit is in the program mode (please refer to 7.1). Upon sending the command, the Mobeye CM4410 returns an SMS text message to the originator of the request. The commands are case insensitive. -
Page 21: Technical Messages
7.6 TECHNICAL MESSAGES In the event of technical issues the administrator receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power Power is available, batteries need to be supply OK replaced. No external power supply, No external power supply, batteries are able to batteries OK take over operation in low power mode. -
Page 22: Combination With Other Ei Detectors And A Wireless Network
CM4410 communication module. The other detectors in the network can be all connectable detectors from the 600 and 650 series. - If the CM4410 is used stand-alone, without linking to other fire detectors, this is also possible with the Ei650C and Ei650iC 8.2 SEVERAL DETECTORS IN A WIRELESS NETWORK... -
Page 23: System Reset And System Feedback
1. To delete the Mobeye CM4410 from the Mobeye Internet Portal If connected to the Mobeye Internet Portal, first delete the device from the Portal. The SIM card could be then reused for another Mobeye device, or the same device can be connected again. -
Page 24: Status Feedback
9.2 STATUS FEEDBACK LED pattern Status Required action Blinking green, 1 second Module not configured Configure at least one on / 1 second off telephone number. 1 green flash every 3 Module is switched on, No action required. seconds powered by batteries Green LED stays on Module is switched on, No action required. - Page 25 Publisher. Reprinting, even in summary, is prohibited. This user manual meets the technical requirements at the moment of printing. Changes in technology and equipment are reserved. © Copyright 2021 by Mobeye, version CM4410-EN210601...
