BLUM AVENTOS HF Manual
  1. Manuals
  2. Brands
  3. BLUM Manuals
  4. Lifting Systems
  5. AVENTOS HF
  6. Manual

BLUM AVENTOS HF Manual

Wood / wide aluminum hardware set
Hide thumbs Also See for AVENTOS HF:

Advertisement

Quick Links

Download this manual

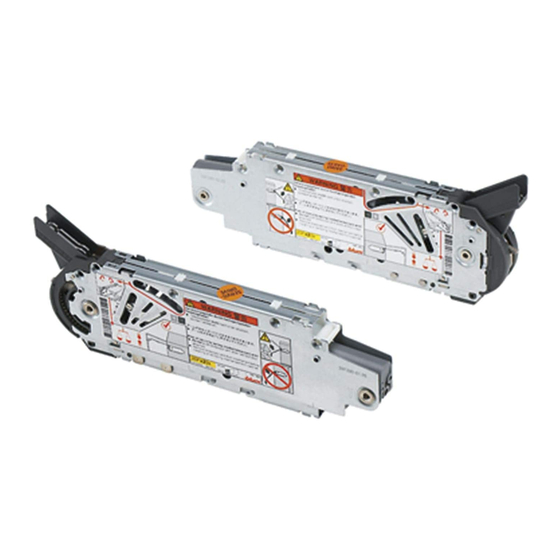

AVENTOS HF
Wood / wide aluminum hardware set
Package contents
A
Top door hinge
B
Mounting plate
Top door hinge
C
Mounting plate
D
Aluminum screws
H
Wood screws
I
Also required (sold separately)
Set includes:
2 x Lift mechanisms
2 x Cover plates (right and left)
2 x Cover caps
10 x #7x35mm (1-3/8") wood screws
Subject to technical modifications
without notice. © 2007
J
K
Lift mechanism set
Bottom door hinge
E
Telescopic arm
F
mounting plate
Telescopic arm
G
mounting plate
with bracket
A 2 each 70T5580 top door hinge
B 2 each 175H6000 top door mounting plate
C 2 each 32.4630 top door hinge
D 2 each 130.1130.02 (1-1/4") top door mnt. plate
E 2 each 78Z5530T bottom door hinge
B 2 each 175H6000 bottom door mounting plate
F 2 each 175H5100.05 Telescopic arm mtg. plate
G 2 each 175H5F00 Tele. arm plate with bracket
H 6 each 606.080 alum. screw for 175H5100.05
I
6 each 629.170 wood screw for 175H5100.05
J
18 each 7072A alum. screw for hinge & plate
K 22 each 606P wood screw for hinge & plate
Hardware set
Set includes:
2 x Telescopic arms

Part no.
78Z5530TA4
Telescopic arm set

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVENTOS HF and is the answer not in the manual?

Questions and answers

Related Manuals for BLUM AVENTOS HF

Summary of Contents for BLUM AVENTOS HF

  • Page 1 AVENTOS HF Wood / wide aluminum hardware set Package contents Top door hinge Bottom door hinge Telescopic arm Mounting plate mounting plate Telescopic arm Top door hinge mounting plate with bracket A 2 each 70T5580 top door hinge B 2 each 175H6000 top door mounting plate Mounting plate C 2 each 32.4630 top door hinge...
  • Page 2 TDH x .6 - 57 + TR 7 to 53 TR = Top reveal TDH = Top door ht. Use the AVENTOS template to prebore the 5mm locating pin holes for the AVENTOS HF lift mechanism. Part no. AVENTOS boring template 65.500 Subject to technical modifications...
  • Page 3 Attaching the lift mechanism Align the lift mechanism in the cabinet using the 5mm locator pins and attach the mechanism with the four mounting screws provided. 4 x wood screws #7 x 35mm (1-3/8“) Attach the telescopic arms WARNING: Risk of injury from spring loaded arm. Attach telescopic arms by clipping them on in the fully upright position.
  • Page 4 Assembly Small overlay top door hinge planning CLIP top hinges Overlay Overlay table 13* 14 B Bore distance * Bore at 3 then adjust . Part no. CLIP top hinge 70T5580 Mounting plate 75H6000 Large overlay top door hinge planning COMPACT hinges Overlay table 1-1/4”...
  • Page 5 Bottom door hinge planning Reveal table B Bore distance 12.7 Part no. CLIP top hinge 78Z5530T Mounting plate 75H6000 Attaching the telescopic arm mounting plates Top door height (TDH) TDH x .5 + 70 3 to 7 7 to 53 TDH x .5 + 47 NOTE: See page 6 for 5-panel door mounting specifications...
  • Page 6 Assembly Attaching the telescopic arm mounting plate with bracket for 5-panel doors Standard mounting plate works ü .5 more than 6 Standard mounting plate does not work .5 less than 6 ü Use mounting plate with bracket when .5 panel is < 6mm from screw Part no.
  • Page 7 Attach the top door Attach top door to the cabinet. Attach the bottom door Attach bottom door to the top door and attach the telescopic arms. Subject to technical modifications without notice. © 2007...
  • Page 8 Assembly Adjust tension of the mechanism Close and flush doors to cabinet. Open and close door to test closing force. Use a screw gun and the supplied #2x2 POZI driver bit to adjust the lift mechanism to the desired tension. Test door again and repeat until desired function is achieved.
  • Page 9 Adjust and lock telescopic arms Open door enough to lock levers 1. Close and flush doors to cabinet. While 2. Slightly open door and lock the pressing on the top door, pull the bottom telescopic arms into position using the door open one inch.
  • Page 10 Removal WARNING Risk of injury from spring-loaded arm Do not push lever arm down or leave in the down position Remove mechanism before installing or removing cabinet Remove covers Detaching the telescopic arms Warning: Risk of injury from spring-loaded telescopic arm! Maintain control of telescopic arm while releasing the CLIP mechanism.
  • Page 11 Removing the doors 1. Hold the bottom door while unclipping the bottom hinges. 2. Hold the top door while detaching the the CLIP top hinges or loosen them if top hinges. Simply unclip them if using using COMPACT. Removing the telescopic arms Using a screwdriver, depress the If transporting the cabinet to the jobsite, release tabs to remove telescopic arms.

  • Page 12: Other Information

    .438 .469 .531 13.5 .563 .594 .625 .656 .688 17.5 .719 .781 .813 20.5 Blum, Inc. .844 7733 Old Plank Rd. .875 Stanley, NC 864 toll free 800-438-6788 .906 local 704-87-345 fax 704-87-0799 .938 internet www.blum.com .969 24.5 www.dynamicspace.us 25.4...
