2.4

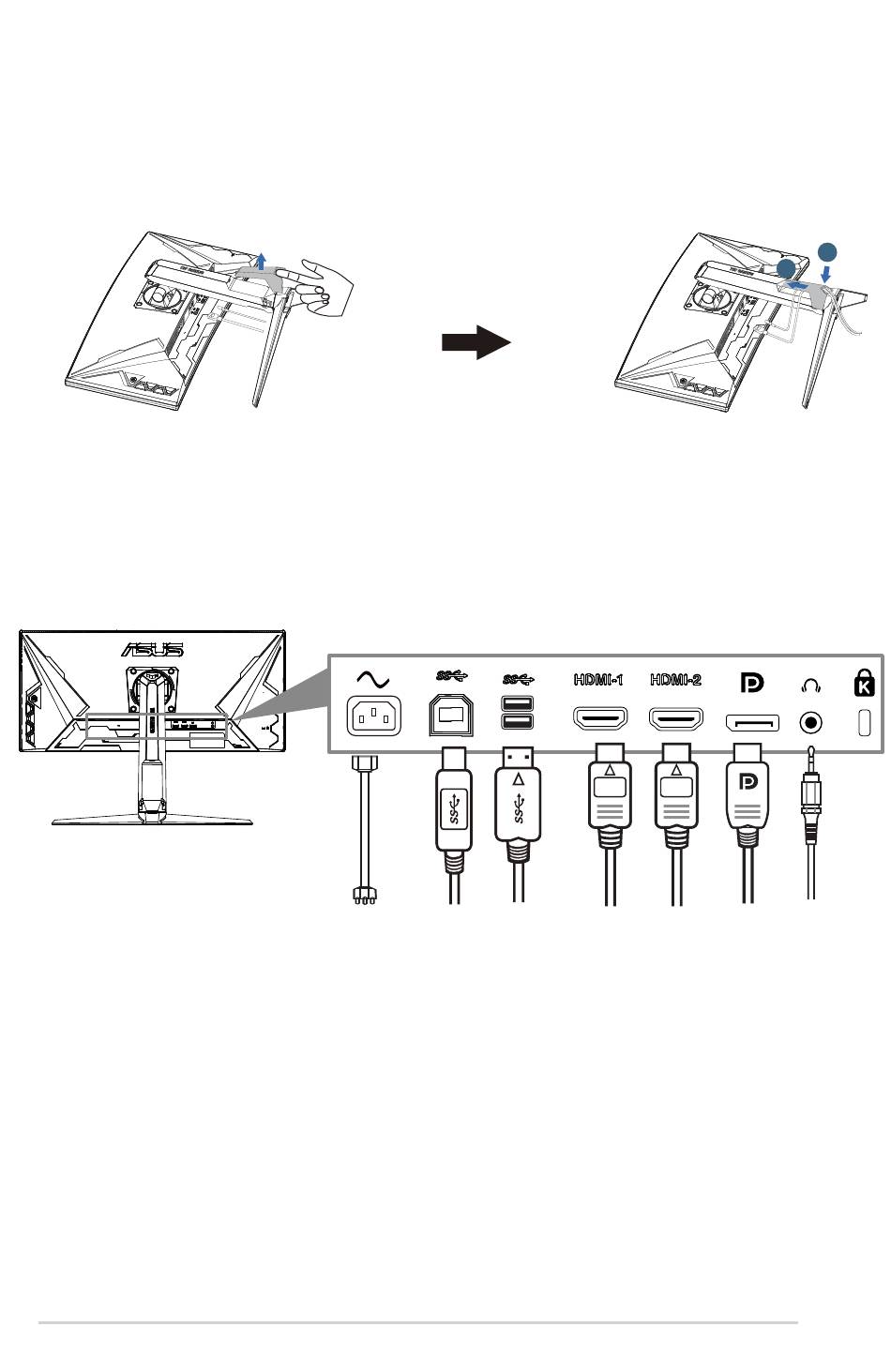

Cable management
You can organize the cables using the cable managment slot. Remove the cover
before putting the cables through the slot and attach the cover back on.
2.5
Connecting the cables
Connect the cables as the following instructions:
•
To connect the power cord:
Firmly plug one end of the power cord into the DC input interface on
a.
the monitor.
b.
Connect the other end of the power cable to the power socket.
•
To connect the DisplayPort/HDMI cable:
a.
Plug one end of the DisplayPort/HDMI cable to the monitor's
DisplayPort/HDMI port.
b.
Connect the other end of the DisplayPort/HDMI cable to your computer's
DisplayPort/HDMI port.
•
To use the earphone: connect the end with plug type to the monitor's
earphone jack when an HDMI or DisplayPort signal is fed.
2-4
2
1
Chapter 2: Setup
