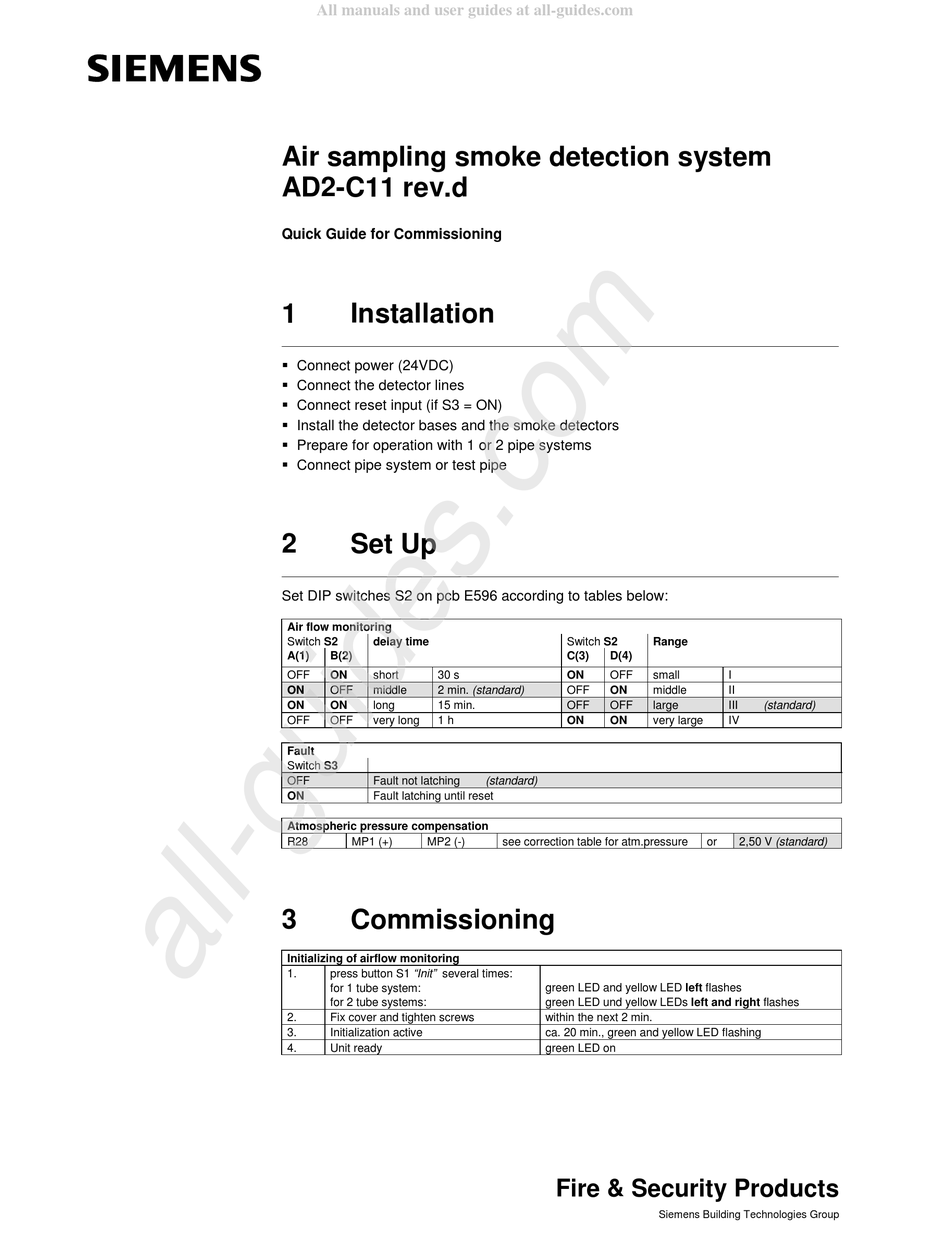

Siemens AD2-C11 Quick Manual For Commissioning

All manuals and user guides at all-guides.com
Air sampling smoke detection system
AD2-C11 rev.d
Quick Guide for Commissioning
1 Installation
§ Connect power (24VDC)
§ Connect the detector lines
§ Connect reset input (if S3 = ON)
§ Install the detector bases and the smoke detectors
§ Prepare for operation with 1 or 2 pipe systems
§ Connect pipe system or test pipe
2 Set Up
Set DIP switches S2 on pcb E596 according to tables below:
Air flow monitoring
Switch S2 delay time
A(1) B(2)
OFF ON short 30 s
ON
OFF middle 2 min. (standard)
ON ON long 15 min.
OFF OFF very long 1 h
Fault
Switch S3
OFF Fault not latching
ON Fault latching until reset
Atmospheric pressure compensation
R28 MP1 (+) MP2 (-)
3 Commissioning
Initializing of airflow monitoring
1. press button S1 "Init" several times:
for 1 tube system:
for 2 tube systems:
2. Fix cover and tighten screws
3. Initialization active
4. Unit ready
Switch S2 Range
C(3) D(4)
ON OFF small
ON
OFF middle
OFF OFF large
ON ON very large
(standard)
see correction table for atm.pressure
green LED and yellow LED left flashes
green LED und yellow LEDs left and right flashes
within the next 2 min.
ca. 20 min., green and yellow LED flashing
green LED on
