Pre-Assembly:
•
Please read all instructions carefully before starting assembly of the Ava Display Desk Table.
•
To avoid unintentionally discarding any small parts or hardware, keep all packing materials until the product is
completely assembled.
•
Use the parts and hardware lists to identify and separate each of the components included.
•
To protect the product from scratching, place the product components on a flat, clean floor with either the foam
or the cardboard carton
•
For your safety and ease, assembly by two adults is recommended.

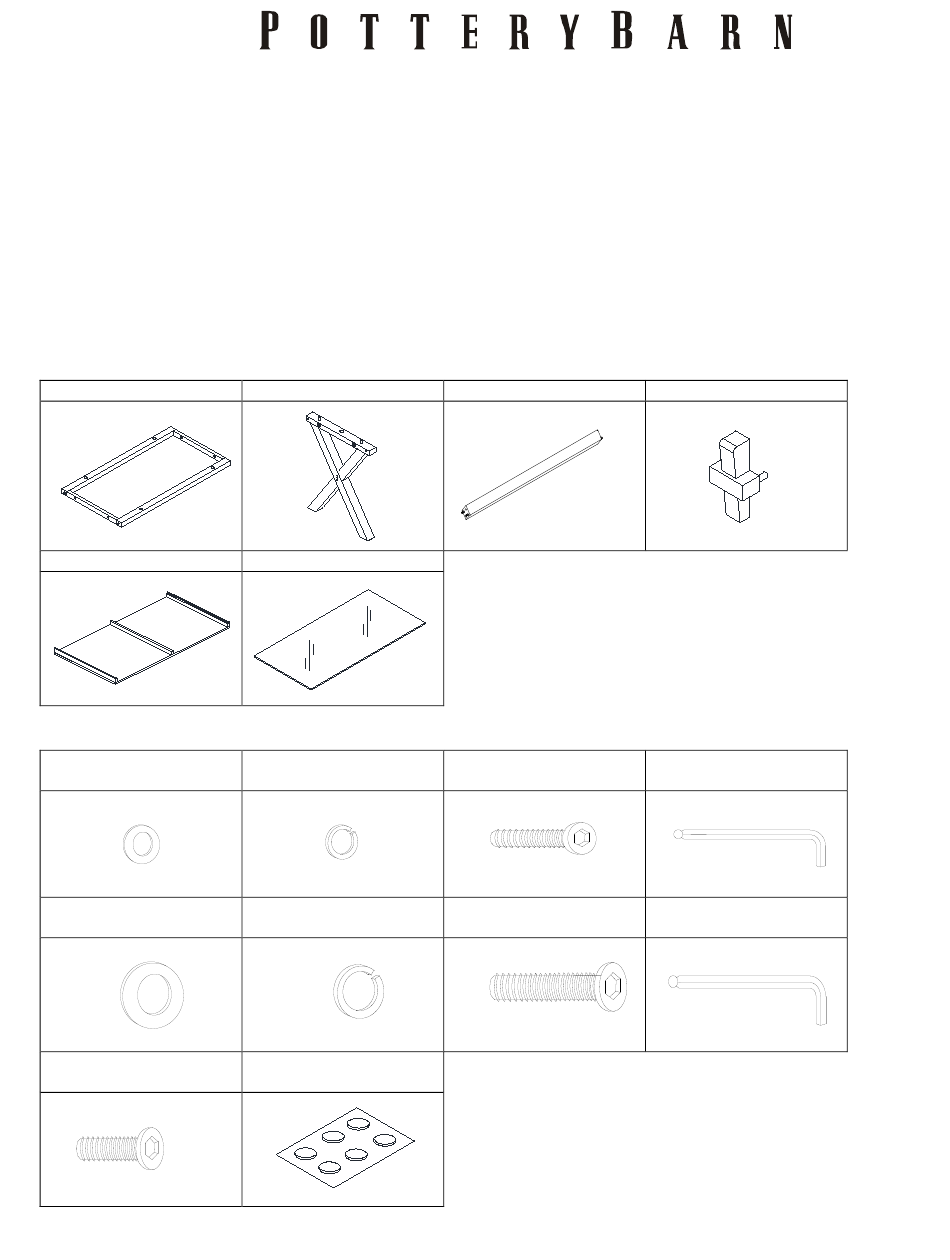

Parts Included:
A - Top Frame ( 1x )
E - Top Panel ( 1x )
Hardware Enclosed:
G-Flat Washer (4x)
K
-Flat Washer (10x)
O - Short Allen Bolt (6x)
(M8 x 32 mm)
090912
1/5
Ava Display Desk Table
Assembly Instructions
B - X-Base ( 2x )
F - Glass Top ( 1x )
H-Lock Washer (4x)
L
-Lock Washer (10x)
P - Plastic Shim ( 6x )
C - Stretcher ( 1x )
I- Short Allen Bolt (4x)
(M6 x 40 mm)
M - Long Allen Bolt (4x)
(M8 x 75 mm)
D - Wedge ( 2x )
J - Allen Key ( 1x )
(4mm)
N - Allen Key ( 1x )
(5mm)
Advertisement
Table of Contents
Related Manuals for Pottery Barn Ava
Summary of Contents for Pottery Barn Ava
- Page 1 Ava Display Desk Table Assembly Instructions Pre-Assembly: • Please read all instructions carefully before starting assembly of the Ava Display Desk Table. • To avoid unintentionally discarding any small parts or hardware, keep all packing materials until the product is completely assembled.
- Page 2 Assembly Instructions: Place the Top Frame (A) upside down on a carpet, or on the foam from the shipping box. Attach the X-Bases (B) to the Top Frame (A) by inserting the wood dowels (on the frame) into the pre-drilled holes on the X-Base. Insert the Short Allen Bolt (I) through the Small Lock Washer (G), Small Flat Washer (F), and through the pre- drilled holes on the frame.
- Page 3 Repeat Step 1 and Step 2 to assemble the X-Base (B), as shown in the illustration below. Turn the assembled table frame upright. Attach the Top Panel (E) to the table frame by inserting the pre-drilled holes on the underside of the Top Panel into the wood dowels on the X- Base. Insert the Short Allen Bolt (O) through the Large Lock Washer (L), Large Flat Washer (K), and through the pre- drilled holes on the Top Frame (A) and X- Base (B).
- Page 4 Attach the 2 Wedges (D) to the X-Base (B) by inserting the wood dowels (on the Wedge) into the pre-drilled holes on the X-Base. Adjust the levelers under the legs of the X- Base, if the desk frame and base do not sit level. 090912...
- Page 5 Remove the Plastic Shim (P) from the paper holder. Stick the plastic shim to the support rails on the Top Panel (E), as shown in the illustration below. Carefully fit the Glass Top (F) into the Top Panel (E). Properly adjust the position of Glass Top to ensure all edges are aligned before use.
