HDO6000B Rackmount Accessory
5. Secure the stiffener to the back of the rackmount brackets using the remaining
two M4x10 Torx screws.
CAUTION: This rackmount kit is designed to fit standard 19-inch rack cabinets
per EIA/ECA 310-E. It has been designed for heated air exhaust through vents
on the left and right sides of the instrument. Some rack cabinets might present unusual
obstacles that can block exhaust vents. If you observe such obstacles, please contact
Teledyne LeCroy technical staff for further guidance.
CAUTION: This rackmount is designed for racks/carts that may be moved over
smooth, indoor surfaces. Do not use this rackmount to install an oscilloscope
into a moving vehicle or for other outdoor applications. Do not destabilize the
oscilloscope in any way during operation.
Contact Us
For a complete list of Teledyne LeCroy offices by country, including our sales and
distribution partners, visit: teledynelecroy.com/support/contact
© 2021 Teledyne LeCroy, Inc. All rights reserved.
HDO6000 and Teledyne LeCroy are trademarks of Teledyne LeCroy, Inc. Other product or brand names are
trademarks or requested trademarks of their respective holders. Information in this publication supersedes all
earlier versions. Specifications are subject to change without notice.
Unless otherwise specified, all materials and processes are compliant with RoHS Directive 2011/65/EU in its
entirety, inclusive of any further amendments or modifications of said Directive. For the full list of current
certifications, see the EC Declaration of Conformity shipped with the product.
933292-00 Rev A
hdo6000b-rackmount-instructions.pdf
May, 2021
4
Do not block
cooling vents
on either side!

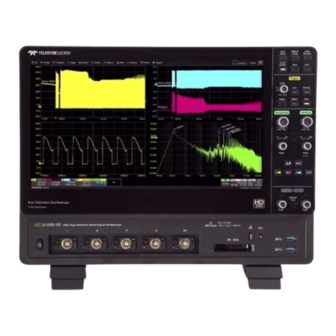

HDO6000B Rackmount Accessory
Thank you for purchasing a Teledyne LeCroy rackmount accessory. Please review these
instructions before installing the rackmount.
The rackmount kit is shipped with the following parts. Contact our Customer Service if
parts are missing.
Parts
Left bracket
Right bracket
Faceplate
Rack stiffener
M4x10 Torx screws
Note: The kit does not include the fasteners needed to attach the rackmount to your
rack. Consult your rack manufacturer regarding the appropriate type, size and number
of fasteners required to install the rackmount securely.
Tools
You will need Torx T10 and Torx T20 drivers.
Dimensions
The rackmount is designed to occupy 9U of a standard EIA 19-inch rack.
Instrument weight, uninstalled: 21 lbs [9.53 kg]; Rackmount weight, uninstalled: 2.8 lbs [1.27 kg]
Instrument height, installed: 15.71 in [399 mm]
933292-00 Rev A
QTY
1
1
1
1
10
1
