Meters UK SmartLink 45 Manual

SmartLink
Multi-Fuel Prepayment System
ELECTRICITY + GAS + WATER

WIRING

Wiring standards must conform to IEE regulations.
It is recommended to use shielded cable manufactured to BS4360 Class 5 or VDE0295 Class 5

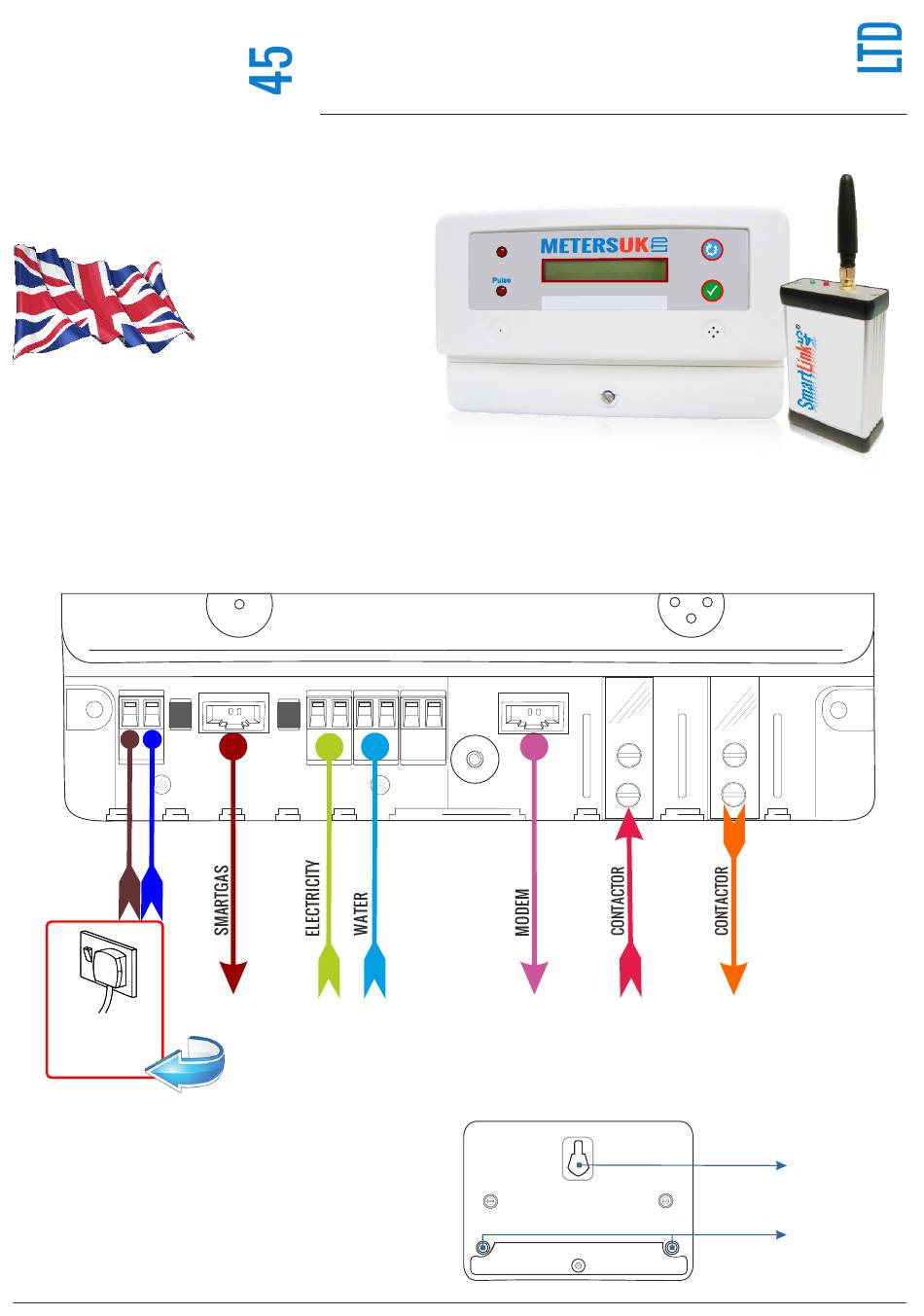

Wiring block list - Terminals are marked on the PCB
Remove Terminal Cover to expose wiring block
SURGE PROTECTION is recommended
Permanent Power Supply for each Smartlink45 required
POWER SUPPLY
230 or 24V
Permanent

MOUNTING

The SmartLink45 is designed for wall mounting, a screw
case hanging position is located at the top in the centre
of the case with two wall fixing positions located under the
terminal cover.
®
P U L S E C A B L E S I N
NB!!
METERSUK
s a l e s @ m e t e r s . c o . u k 0 1 5 2 4 5 5 5 9 2 9
Comm
Smart Meter
4000123456 789
100AMP SINGLE POLE
Wall Mounting
Wall Fixing Positions
