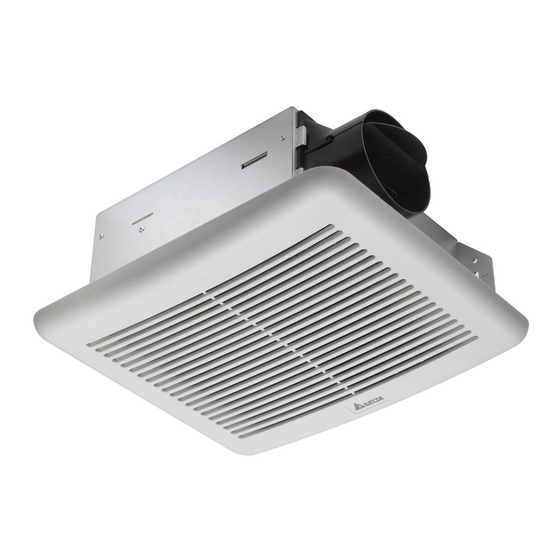

Delta breez slim SLM70 Installation And Operating Instructions

INSTALLATION AND OPERATING INSTRUCTIONS
CEILING/WALL VENTILATION FAN
READ AND SAVE THESE INSTRUCTIONS
GENERAL SAFETY INFORMATION
1. Make sure that the electric service supply voltage is
AC 120V, 60Hz.
2. Follow all local electrical and safety codes, as well as
the Nation Electrical Code (NEC) and the Occupation
Safety and Health Act (OSH Act).
3. Always disconnect the power source before working
on or near the ventilating fan, motor or junction box.
4. Protect the power cord from sharp edges, oil, grease,
hot surfaces, chemicals or other objects.
5. Do not kink the power cord.
6. Do not install the unit where ducts are con gured as
shown in Fig. A.
7. Provide suction parts with proper ventilation.
8. This unit is UL listed for use over a bathtub or shower
when installed in a GFCI protected branch circuit.
9. These ventilating fans are intended for residential
usage only.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact
the manufacturer.
2.
Before servicing or cleaning the unit, switch the
power o at the service panel and lock the service
disconnecting means to prevent the power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,
to the service panel.
3. Installation work and electrical wiring must be
done by quali ed person(s) in accordance with
all applicable codes and standards, including
re -rated construction.
4. Su cient air is needed for proper combustion and
exhausting of gases through the ue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer's
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating Refrigeration and Air Conditioning
Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into walls or ceiling s, do
not damage electrical wiring and other hidden
utilities.
Ducted ventilating fans must always be vented to
6.
the outdoors.
7.
If this unit is to be installed over a tub or shower, it
must be marked as appropriate for the application
and be connected to a GFCI (Ground Fault Circuit
Interrupter) -protected branch circuit.
8. Do not use this unit with any other solid-state
control device. Solid-state controls devices may
cause harmonic distortion, which can cause a
motor humming noise.
9.
NEVER place a switch where it can be reached
from a tub or shower.
Not to be installed in a ceiling thermally insulated
10.
to a value greater than R50. (This is required for
installation in Canada only).
Turning angle too large
Too many elbows
Body
Fig. A
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
2. Not for use in cooking areas. (Fig. B)
3. This product must be properly grounded
4. To reduce the risk of injury to persons, install the
fan at least 7 feet (2.1m) above the oor.
C ooking area
D o not install above or
inside this area
C ooking
Equipm ent
Fig. B
SUPPLIED ACCESSORIES
Part name Appearance
Grille
Fan
Housing
Duct
Screw
(M4x12)
MODELS SLM50 / SLM70
DIMENSIONS
Duct shrink
Elbow near the body
SPECIFICATIONS
Voltage
Model No.
SLM50
SLM70
Note: Design and speci cations subject to change
without notice.
OPERATION
Single Speed Model: SLM50
1.
Single speed control mode: Turn the power
switch to operate ON/OFF. The LED indicator will
be green.
Single Speed Model: SLM70
2.
Single speed control mode: Turn the power
switch to operate ON/OFF. The LED indicator will
be green.
floor
MAINTENANCE WARNING:
Disconnect the power source before working on the unit.
Routine maintenance must be done every year.
CAUTION:
Quantity
1. Never use gasoline, benzene, thinner or any other
such chemicals for cleaning the ventilating fan.
2. Do not allow water to enter the motor.
1
3. Do not soak resin parts in water over 60°C (140°F) .
CLEANING
1. Pull down the spring to remove the grille.
2. Wash and clean the grille. (Use non-abrasive
kitchen de tergent, wipe dry with a new cloth.)
1
3. Remove dust and dirt from the ventilating fan
using a vacuum cleaner.
4. Using a cloth dampened with kitchen detergent,
remove any dirt from ventilating fan. Wipe dry
with a new cloth.
1
5. Replace the grille.
1
3
Page 1.
Air Flow
Frequency Power Weight
@ 0.1SP
(V) (W) (lb.)
(Hz) (CFM)
120 60 6.5 50 3.65
Speed
120 60 13.2 70 3.65
Speed
Note
Single
Single
