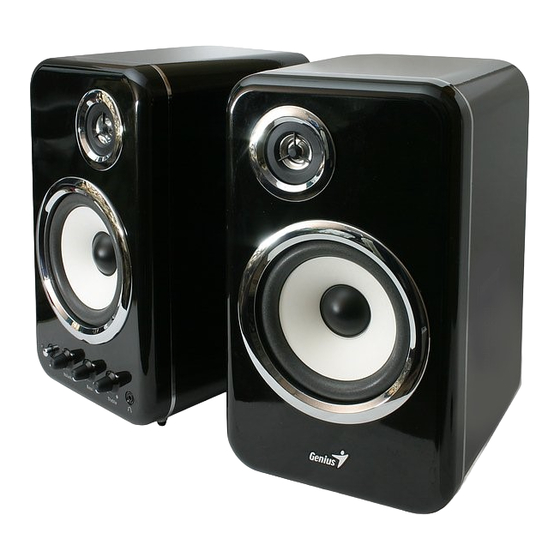

- Page 1 Service Guide SP-HF2.0 1250 SERVICE GUIDE SYSTEMS CORP. SP-HF2.0 1250 Version : 1.0 Version : 1.0 Page 1 of 15...
-
Page 2: Revision History
Service Guide SP-HF2.0 1250 Revision History Version Date Change 02/03/2005 Version : 1.0 Page 2 of 15... -
Page 3: Table Of Contents
Service Guide SP-HF2.0 1250 Table of Contents Revision History …………………………………………………………………….2 Table of Contents ……………………………………………………………………3 Getting Started ………………………………………………………………………4 Conventions Used in this Guide ……………………………………….4 Safety Precautions ……………………………………………………..4 Chapter 1. How to Handle Defective Returns……………………………………..5 1.1 Overview …………………………………………………………..5 1.2 Problems …………………………………………………………...6 1.2.1 One or more channels no sound ………………..…7 1.2.2 Power LED (indicator) no light………………..…8 1.2.3 Volume , Treble, Bass no function……..…………..8 Chapter 2. -
Page 4: Getting Started
Service Guide SP-HF2.0 1250 Getting Started Conventions Used in this Guide Pay Special Attention : Instructions that are important to remember and may prevent mistakes . Caution : Information that, if not followed, may result in damage to the product . Safety Precautions The following precautions should be observed in handling the speaker Described in this guide :... -
Page 5: Chapter 1. How To Handle Defective Returns
Service Guide SP-HF2.0 1250 Chapter 1. How to Handle Defective Returns 1.1 Overview Receiving Defective speakers form Customers Verifying problems Proceeding necessary tests Function NG Analyzing possible malfunction causes Deciding & proceeding the Function NG rectification methods Function OK Replace necessary defective parts Proceeding tests to Verify if the speaker is functioning normally... -
Page 6: Problems
Service Guide SP-HF2.0 1250 1.2 Problems Item Problem Description 1.2.1 One or more channels no sound 1.2.2 Power LED (indicator) no light 1.2.3 Volume , Treble , Bass no function Version : 1.0 Page 6 of 15... -
Page 7: One Or More Channels No Sound
Service Guide SP-HF2.0 1250 Attention Please follow the numbered sequence marked within parenthesis given in individual Flow chat, in that this is the best-recommended sequence to rectify the problems . 1.2.1 One or more channels no sound One or more channels no sound Problem Speaker cable Analyzer and... -
Page 8: Power Led (Indicator) No Light
Service Guide SP-HF2.0 1250 1.2.2 Power LED (indicator) no light Power LED (indicator) no light Problem Defective,D1-4, AC cord of transformer Analyzer and Power switch or LED ZD1,ZD2,R37,R3 disconnected or Identify the Causes 8,R47 defective Re-solder or replace defective component(s) Solutions 1.2.3 Volume , Treble , Bass no function Volume , Treble ,Bass no... -
Page 9: Chapter 2. Specifications
Service Guide SP-HF2.0 1250 Chapter 2. Specifications NO. Description Unit Specifications ≧ 20 Out Power at THD 10% 300 ± 70 Sensitivity Hz 20Hz~20KHz ± 10% Freq. Response (Ref:-3dB) dB ≧ 40 Separation dB ≧ 50 S/N ratio mV ≦ 10 Hum &... -
Page 10: Chapter 3. Block Diagram
Service Guide SP-HF2.0 1250 Chapter 3. Block Diagram Bass Host Speaker Power Control Volume Amplifier AUDIO IN Control Treble Satellite Speaker Control Filter AC IN Transformer Version : 1.0 Page 10 of 15... -
Page 11: Chapter 4. Exploded View
Service Guide SP-HF2.0 1250 Chapter 4. Exploded View Host Version : 1.0 Page 11 of 15... - Page 12 Service Guide SP-HF2.0 1250 Satellite Version : 1.0 Page 12 of 15...
-
Page 13: Chapter 5. Part List
Service Guide SP-HF2.0 1250 Chapter 5. Part List DESCRIPTION Qty UNIT Part No. 1 SP-HF 2.0 1250/Body/Satellite PC 7-101-01 2 Speaker Unit 1” 4ohm 10W PC 7-100-01 3 Speaker Unit 5 1/4” 4ohm 18W PC 7-100-02 4 TPR Isolation Cone, SP-HF2.0 500 PC 5-100-02 5 SP-HF 2.0 1250/Body/Host-120V-US 7-101-02... -
Page 14: Chapter 6. Schematic Diagram
Service Guide SP-HF2.0 1250 Chapter 6. Schematic Diagram Version : 1.0 Page 14 of 15... -
Page 15: Chapter 7. Important Notes
Service Guide SP-HF2.0 1250 Chapter 7. Important Notes 7.1 Packing Requirement for Sending the PCB Assembly by Post PCB assembly is a kind of sophisticated electronic circuit board. Well packing will be required when sending them by post. * Some sophisticated IC components are mounted on the PCB assembly, hence it is necessary to pack each PCB assembly with a separate static protecting bag, in order to avoid static electricity.
