7. Separate the Reserator and Water Block
When moving this product to another location, or replacing the coolant or the water block,
separate the Reserator and the water block from the silicone tubes as shown below.
7.1 Moving the Reserator or Changing the Coolant
Clamp
OUTSIDE
Silicone
Tube
①
③
Clamp
Flow Indicator
www.zalman.co.kr
All manuals and user guides at all-guides.com
Computer Case
Universal Fitting
Press Clip
②
④
PCI Slot Hole
Clamp
IN Compression
Fitting

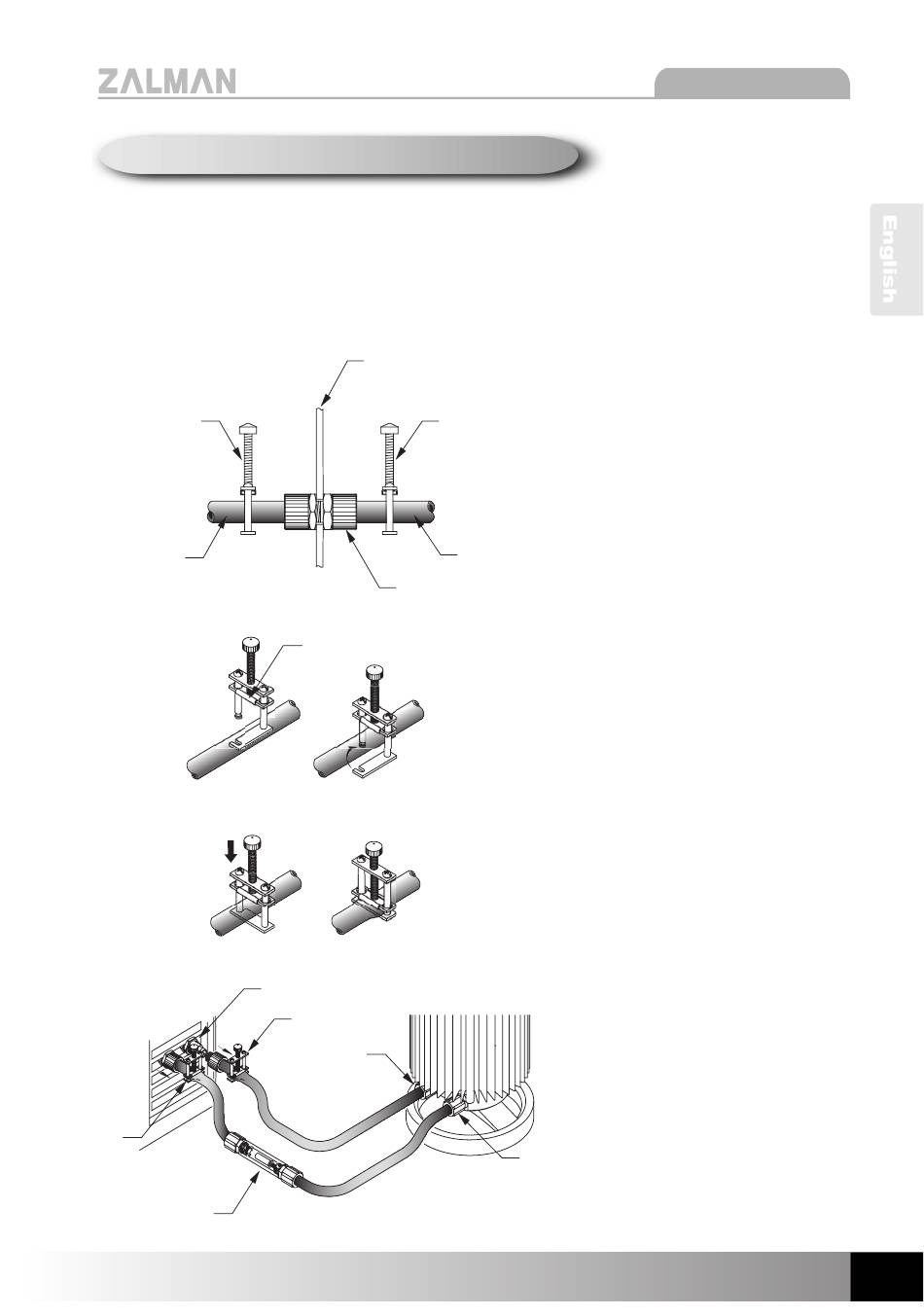

1) Turn off the PC's power.
Clamp
2) Using the tube clamps, as shown
in the diagram, insert the tubes in
INSIDE
to both sides of the Universal Fitting.
If the press clip isn't properly tightened,
Silicone
there may be leaks, so make sure
Tube
that the silicone tube is placed in
the middle of the clamp.
3) Turn clamp screw until it is tight.
4)Unscrew the Universal Fitting
Caps on the outside of the case
one by one. If you unscrew the
Fitting Socket Caps inside the
case, residual coolant may spill into
the case.
OUT Compression Fitting
