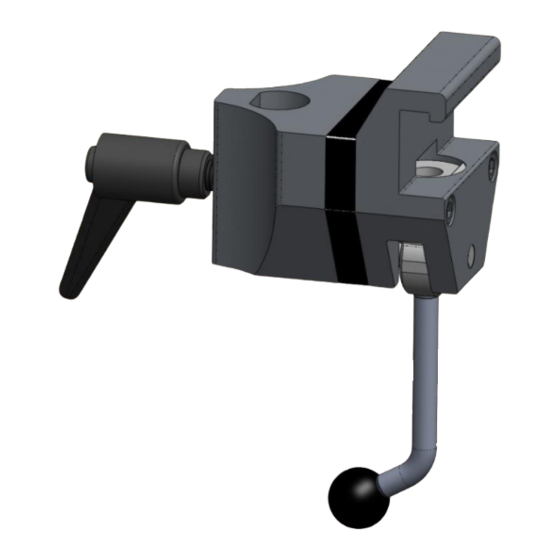

Clamp armboard 10019
Clamp armboard 10019 including versions
Version
10019
10019-S30
10019-UK
10019-US
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2021-04-14
Document number: M10019EN rev.01
1
Description
Clamp (EU 25x10 mm rail) with 10 mm spacer
Clamp (EU 25x10 mm rail) with 30 mm spacer
Clamp (UK 1¼ " x ¼ " rail) with 10 mm spacer
Clamp (US 1⅛ '' x ⅜ '' rail) with 10 mm spacer
Pole type
Ø20 mm
Ø18 mm
Advertisement
Table of Contents
Related Manuals for Reison Clamp armboard 10019
Summary of Contents for Reison Clamp armboard 10019
- Page 1 Clamp armboard 10019 Clamp armboard 10019 including versions Version Description Pole type 10019 Clamp (EU 25x10 mm rail) with 10 mm spacer Ø20 mm 10019-S30 Clamp (EU 25x10 mm rail) with 30 mm spacer 10019-UK Clamp (UK 1¼ ” x ¼ ” rail) with 10 mm spacer Ø18 mm...
- Page 2 Intended use Clamp intended to attach and position accessories, with a pole size Ø 16 mm or plane Ø 20 mm, to the accessory rail on operating and examination tables. The product is to be used by medical professionals within a medical facility. Safety regulation Maximum load: 10 kg inward load over the OR-table and 20 kg outward load away from the OR-table, according to EN 60601-1 and EN 60601-2.
- Page 3 User instruction Installation Usage...
- Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used. Wipe dry with soft cloth.
- Page 5 Spare parts Version: 10019 10019-S30 10019-UK 10019-US Description Pcs. Article no. Article no. Article no. Article no. House 10031 10031 10543 10547 Guide 10053 10053 10053 10053 Adjustable handle 6-593-65 6-593-65 6-593-65 6-593-65 Spacer 10526-A 10526-30 10526-A 10526-A Screw MC6S M6x45 FZ Shaft 10009 10009...
- Page 6 Technical specification Maximum workload 10 kg inward load over the OR-table and 20 kg outward load away from the OR-table, according to EN 60601-1 and EN 60601-2. Weight 0,65 kg Material clamp Aluminum Dimension Version UDI-DI (H x W x L) 10019 07350111830281 155 x 65 x 145...
- Page 7 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
