Appendix D (Continued)
Part Number: 5000423 & 2000930/2000830

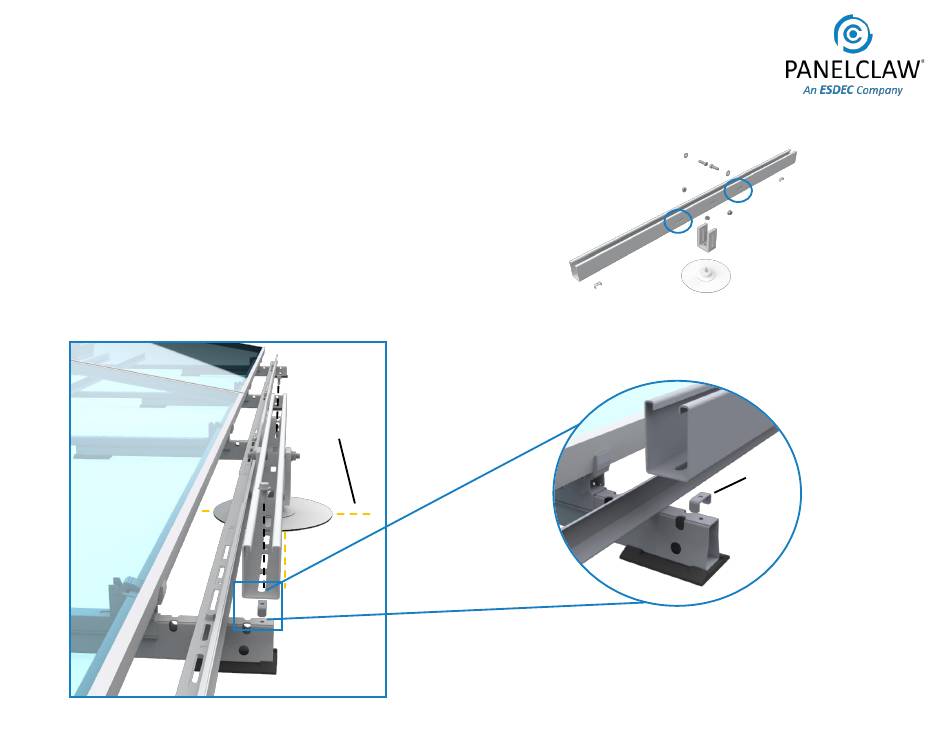

Step 2. Center Strut assembly between Bases at
required install location. With a felt marker or
other means Mark location of Roof Attachment in
center slot of U-bracket.
per manufacturer instructions.
Note: Image shows roof markings at low edge of
module, process is the same for all MA installation
locations.
9910045 RevG April 2021
Install Roof Attachment
Roof markings
Tip: Use off-center slots on the
MA Strut if roof obstructions
prevent the use of center slot.
ALERT: See Sheet Title: Ballast Layout –XX in
the Racking Construction Set for installation
locations of Mechanical Attachments on
each individual project.
Torque Clip is fitted over the pilot
holes on the Base. MA Strut is then
aligned with the Torque Clip and Pilot
hole before being secured by an M6
Bolt.
Torque Clip
