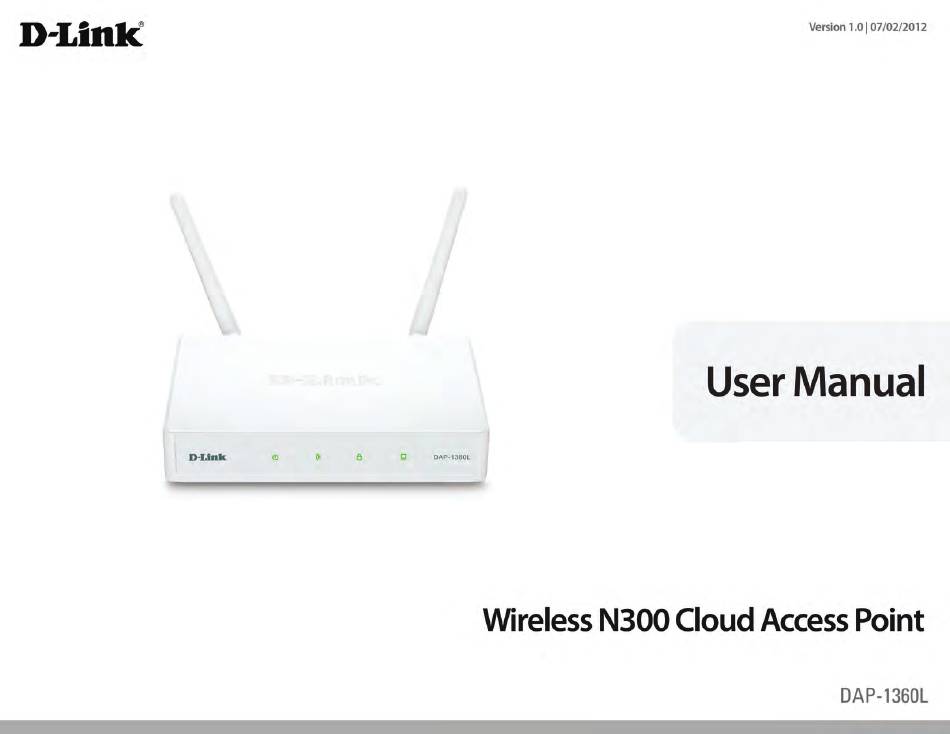

D-Link DAP-1360L User Manual

N300 cloud
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for D-Link DAP-1360L

Summary of Contents for D-Link DAP-1360L

  • Page 2: Table Of Contents

    Wireless Setup Wizard ...............22 Advanced Network (WISP modes only) ......56 Access Point Mode .............23 Maintenance ................57 Range Extender Mode ............26 Admin ..................57 Wireless Client Mode ............30 System ..................58 Manual Configuration ...............34 Language Pack ..............59 Wireless Settings ..............34 D-Link DAP-1360L User Manual...
  • Page 3 What is WPA? ................71 Configure WPA/WPA2 Personal ..........72 Configure WPA/WPA2 Enterprise ..........73 Connect.to.a.Wireless.Network........74 Using Windows XP ..............74 ® Configure WPA-PSK ..............75 Using Windows Vista ...............77 ® Configure WPA-PSK ..............79 Using Windows 7 ...............80 ® Configure WPS ..............83 D-Link DAP-1360L User Manual...

  • Page 4: Package Contents

    Ethernet Cable Two Detachable Antennas Power Adapter CD-ROM with Manual Note:.Using a power supply with a different voltage rating than the one included with the DAP-1360L will cause damage and void the warranty for this product. D-Link DAP-1360L User Manual...

  • Page 5: System Requirements

    • Mozilla Firefox 3.0 and higher • Google™ Chrome 2.0 and higher • Apple Safari 3.0 and higher Windows .Users: Make sure you have the latest version of Java installed. ® Visit www.java.com to download the latest version. D-Link DAP-1360L User Manual...

  • Page 6: Introduction

    The DAP-1360L is also backwards compatible with 802.11b/g. It can be flexibly configured to operate in 7 different modes Access.Point, Wireless.Client, Bridge, Bridge.with.AP, Range.Extender, WISP.Client.Router or WISP. Repeater. With its Setup Wizard, the DAP-1360L ensures that you will be up and running on a wireless network in just a matter of minutes.
  • Page 7 ULTIMATE.PERFORMANCE The D-Link Wireless N300 Cloud Access Point (DAP-1360L) is an 802.11n compliant device that delivers real world performance of up to 13X faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless network to share photos, files, music, video, printers, and network storage throughout your home.

  • Page 8: Features

    This easy setup method allows you to form a secured wireless link between the DAP-1360L and another WPS enabled device. A PC is no longer needed to log into the Web-based interface.

  • Page 9: Hardware Overview

    Receptor for the supplied power adapter. Hold the reset button for at least 5 seconds to reset the device back to the factory default Reset.Button settings. All the LEDs will turn on for 2 second and then begin the reboot process. D-Link DAP-1360L User Manual...

  • Page 10: Leds

    Wireless.LED device reboot or if the wireless radio is disabled. Security.LED A solid green light indicates that wireless security (WEP, WPA, WPA2) is enabled. LAN.LED A solid green light indicates the LAN port connection is OK. D-Link DAP-1360L User Manual...

  • Page 11: Wps Led/Button

    Section 1 - Product Overview Hardware Overview WPS LED/Button A solid light indicates a successful WPS connection. A blinking light indicates the WPS.LED/Button device is trying to establish a connection. D-Link DAP-1360L User Manual...

  • Page 12: Installation

    Operation Modes Depending on how you want to use your DAP-1360L will determine which mode you use. This section will help you figure out which setting works with your setup. • Access Point mode - page 13 •...

  • Page 13: Access Point Mode

    Access Point Mode In the Access Point mode, the DAP-1360L acts as a central connection point for any computer (client) that has a 802.11n or backward-compatible 802.11g wireless network interface and is within range of the AP. Clients must use the same SSID (wireless network name) and channel as the AP in order to connect.

  • Page 14: Wireless Client Mode

    Ethernet switch, then connect your devices to this switch. Example: Connect a gaming console using an ethernet cable to the DAP-1360L. The unit is set to Wireless Client mode which will wirelessly connect to a wireless router on your network.

  • Page 15: Range Extender Mode

    Range Extender Mode In Range Extender Mode, the DAP-1360L increases the range of your wireless network by extending the wireless coverage of another AP or wireless router. The APs and wireless router (if used) must be within range of each other. Make sure that all clients, APs, and the wireless router all use the same SSID (wireless network name), channel, and security settings.

  • Page 16: Bridge Mode

    LANs. In the Bridge mode, both DAP-1360L units do not act as APs. Note: The Bridge mode is not specified in the Wi-Fi or IEEE standards. This mode will only work using two DAP-1360L units. Communication with other APs (even other D-Link APs) is not guaranteed.

  • Page 17: Bridge With Ap Mode

    Bridge with AP Mode The Bridge with AP mode is the same as the Bridge mode, but in this case, the DAP-1360L also acts as an AP. Clients with wireless interfaces can wirelessly connect to the DAP-1360L and then connect to the other LAN that the DAP-1360L bridges to.

  • Page 18: Wisp Client Router Mode

    In the WISP Client Router mode, the DAP-1360L wirelessly connects to a WISP (Wireless Internet Service Provider) AP. In this mode, the DAP-1360L also acts as a router for wired clients on your LAN and provides NAT (Network Address Translation) and a DHCP server to generate IP addresses for wired clients only.

  • Page 19: Wisp Repeater Mode

    If you are a WISP subscriber and want to use your WISP account in your house, but the signals from the outdoor WISP AP are not strong enough to reach all of the areas in the house, use the DAP-1360L to can extend the signals from the outdoor WISP AP and provide access to wireless clients in your house.

  • Page 20: Wireless Installation Considerations

    1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum. Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

  • Page 21: Configuration

    Section 3 - Configuration Configuration This section will show you how to configure your new D-Link wireless access point using the web-based configuration utility. Web-based Configuration Utility If you wish to change the default settings or optimize the performance of the DAP-1360L, you may use the web- based configuration utility.

  • Page 22: Wireless Setup Wizard

    Section 3 - Configuration Wireless Setup Wizard Click Launch.Wireless.Setup.Wizard to configure your access point. If you want to enter your settings without running the wizard, skip to page 34. Click Next to continue. D-Link DAP-1360L User Manual...

  • Page 23: Access Point Mode

    Section 3 - Configuration Access Point Mode This Wizard is designed to assist you in configuring your DAP-1360L as an access point. Select Access.Point from the drop-down menu. Then, click Next to continue. Select WPS as the configuration method only if your wireless device supports Wi-Fi Protected Setup (WPS).
  • Page 24 Click Save to save your network settings. In order for your network settings to take effect AP will reboot automatically. When the device has finished rebooting the main screen will display. D-Link DAP-1360L User Manual...
  • Page 25 Enter your network key. This key must be entered on your wireless clients. Click Next to continue. The following screen will show you your network key to enter on your wireless clients. Click Save to finish the Setup Wizard. D-Link DAP-1360L User Manual...

  • Page 26: Range Extender Mode

    Section 3 - Configuration Range Extender Mode This Wizard is designed to assist you in configuring your DAP-1360L as a Range Extender. Select Range.Extender from the drop-down menu. Select WPS as the configuration method only if your wireless device supports Wi-Fi Protected Setup (WPS).
  • Page 27 Find your router or access point from the list, click the radio button in the right column, and click Connect. If click Key.in.SSID, enter the network name (SSID) of the network you want to connect to. D-Link DAP-1360L User Manual...
  • Page 28 (64 or 128-bit), and enter the wireless security password. Click Next to complete the Setup Wizard. If you select WPA or WPA2, enter the wireless security password. Click Next to complete the Setup Wizard. D-Link DAP-1360L User Manual...
  • Page 29 Section 3 - Configuration If you select Auto, enter the wireless security password. Click Next to complete the Setup Wizard. The Wireless Setup Wizard is complete. Click Finish to reboot the device. D-Link DAP-1360L User Manual...

  • Page 30: Wireless Client Mode

    Section 3 - Configuration Wireless Client Mode This Wizard is designed to assist you in configuring your DAP-1360L as a wireless client. Select Wireless.Client from the drop-down menu. Select WPS as the configuration method only if your wireless device supports Wi-Fi Protected Setup (WPS).
  • Page 31 Click Next to continue. Find your access point from the list, click the radio button in the right column, and click Connect. If click Key.in.SSID, enter the network name (SSID) of the network you want to connect to. D-Link DAP-1360L User Manual...
  • Page 32 (64 or 128-bit), and enter the wireless security password. Click Next to complete the Setup Wizard. If you select WPA or WPA2, enter the wireless security password. Click Next to complete the Setup Wizard. D-Link DAP-1360L User Manual...
  • Page 33 Section 3 - Configuration If you select Auto, enter the wireless security password. Click Next to complete the Setup Wizard. The Wireless Setup Wizard is complete. Click Finish to reboot the device. D-Link DAP-1360L User Manual...

  • Page 34: Manual Configuration

    Section 3 - Configuration Manual Configuration Wireless Settings You may manually configure your DAP-1360L instead of running the setup wizard. • Access Point mode - page 35 • Range Extender Mode - page 37 • Wireless Client mode - page 38 •...

  • Page 35: Access Point Mode

    Mixed.802.11n,.802.11g.and.802.11b - Select if you are using a mix of 802.11n, 11g, and 11b wireless clients. Wireless Indicates the channel setting for the DAP-1360L. The Channel can be changed to fit the channel setting for an existing wireless Channel: network or to customize the wireless network. If you enable Auto Channel Scan, this option will be grayed out.
  • Page 36 Visibility Status: Check the box if you do not want the SSID of your wireless network to be broadcasted by the DAP-1360L. If checked, the SSID of the DAP-1360L will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DAP-1360L in order to connect to it.

  • Page 37: Range Extender Mode

    Visibility Status: Check the box if you do not want the SSID to be broadcast by the DAP-1360L. This prevents the SSID from being seen by site survey utilities, so any wireless clients will have to be pre-configured with the SSID of the DAP-1360L in order to connect to it.

  • Page 38: Wireless Client Mode

    Visibility Status: Check the box if you do not want the SSID to be broadcast by the DAP-1360L. This prevents the SSID from being seen by site survey utilities, so any wireless clients will have to be pre-configured with the SSID of the DAP-1360L in order to connect to it.

  • Page 39: Bridge Mode

    WEP settings. Select WPA-PSK or WPA2-PSK to secure your network using a password and dynamic key changes (No RADIUS server required). Note: The Bridge mode is not completely specified in the Wi-Fi or IEEE standards. This mode can work with other DAP-1360L units. Communication with other APs (even other D-Link APs) is not guaranteed.

  • Page 40: Bridge With Ap Mode

    (No RADIUS server required). Note: The Bridge with AP mode is not completely specified in the Wi-Fi or IEEE standards. This mode can work with other DAP-1360L units. Communication with other APs (even other D-Link APs) is not guaranteed.

  • Page 41: Wisp Client Router/Wisp Repeater Modes

    Visibility Status: Check the box if you do not want the SSID to be broadcast by the DAP-1360L. This prevents the SSID from being seen by site survey utilities, so any wireless clients will have to be pre-configured with the SSID of the DAP-1360L in order to connect to it.

  • Page 42: Wan Settings

    Clone MAC Address: The default MAC address is set to the Ethernet MAC address your DAP-1360L. You can click the Clone Your PC’s MAC Address button to replace the AP’s MAC address with the MAC address of the PC that you used to register with your ISP. It is not recommended that you change the default MAC address unless required by your ISP.

  • Page 43: Static Ip

    The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC’s MAC Address button to replace the AP’s MAC address with the MAC address of your Ethernet card. It is not recommended that you change the default MAC address unless required by your ISP. D-Link DAP-1360L User Manual...

  • Page 44: Pppoe

    Select PPPoE (Point-to-Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through the DAP-1360L. Username: Enter your PPPoE user name.

  • Page 45: Pptp

    Transmission Unit) for optimal performance with your specific ISP. The default MTU size is 1400. Attain Select this option if you want the DAP-1360L DNS Automarically: get DNS server IP address automatically. Set DNS Automatically: Select this option if you want to manually enter the DNS Server IP address(es).

  • Page 46: Lan Settings

    This section will allow you to change the local network settings of the access point and to configure the DHCP settings. Device Name: Enter the Device Name of the AP. It is recommended to change the Device Name if there is more than one D-Link device within the subnet. LAN Connection Use the drop-down menu to select Dynamic IP Type: (DHCP) to automatically obtain an IP address on the LAN/private network.

  • Page 47: Static Ip

    AP into your web browser to access the instead of IP address for configuration. If you are using the device name to connect, ensure that your PC and your DAP-1360L are on the same network. LAN Connection Select Static IP from the drop-down menu.

  • Page 48: Advanced

    WLAN Partition: This feature enables client isolation. If enabling, all clients will not be able to view or access each other’s information or within the network. HT 20/40 Check to enable or disable this feature. Coexistance: D-Link DAP-1360L User Manual...

  • Page 49: Mac Address Filter

    This parameter allows you to manually add a MAC filtering Filtering rule. Click the Add button to add the new MAC filtering rule Rule: to the MAC Filtering Rules list at the bottom of this screen. D-Link DAP-1360L User Manual...

  • Page 50: Wi-Fi Protected Setup

    Create a random number that is a valid PIN. This PIN: becomes the router’s PIN. You can then copy this PIN to the user interface of the registrar. Add Wireless Press the button to start with the wizard to setup Station: the WPS. D-Link DAP-1360L User Manual...

  • Page 51: User Limits

    Enable User Check the Enable. User. Limit box to enable this Limit: feature. User Limit: Enter the maximum number of clients, between 1 and 32. Save Click Save.Settings to save and activate the new Settings: changes. D-Link DAP-1360L User Manual...

  • Page 52: Port Forwarding (Wisp Modes Only)

    Port Forwarding (WISP modes only) This function is available if your DAP-1360L is in the WISP Client Router or WISP Range Extender Mode. This feature allows you to open a single port or a range of ports. Click Save.Settings and the port forwarding rule will be put into the Port Forwarding List.

  • Page 53: Port Filter (Wisp Modes Only)

    Port Filter (WISP modes only) This function is available if your DAP-1360L is in the WISP Client Router or WISP Range Extender Mode. This feature is used to secure or restrict your local network. It will deny the ports that you enter from the local network to the Internet. Click Save.

  • Page 54: Dmz (Wisp Modes Only)

    DMZ (WISP modes only) This function is available only if the DAP-1360L is in the WISP Client Router or WISP Range Extender Mode. This feature allows you to set up a DMZ (Demilitarized Zone) host. If you have a client PC that cannot run Internet applications properly from behind the DAP-1360L, then you can set the client up for unrestricted Internet access.

  • Page 55: Parental Control (Wisp Modes Only)

    Parental Control (WISP modes only) This function is available only if the DAP-1360L is in the WISP Client Router or WISP Range Extender Mode. This feature allows you to create a list of websites that you want to deny users access.

  • Page 56: Advanced Network (Wisp Modes Only)

    Advanced Network (WISP modes only) This function is available if the DAP-1360L is in WISP Client Router or WISP Range Extender Mode. This feature allows you to change the LAN settings. Please be aware that any changes to the factory default settings may affect the behavior of your network.

  • Page 57: Maintenance

    Name. The administrator can make changes to the settings. Confirm Enter the same password that you entered in the Password: previous textbox in order to confirm its accuracy. Enable Check to enable this feature. Graphical Authentication: D-Link DAP-1360L User Manual...

  • Page 58: System

    If you want to save the current access point configuration settings, use the Save button above. Note: Restoring the factory default settings will not reset the Wi-Fi Protected Status to Not Configured. Reboot the Click to reboot the access point. Device: D-Link DAP-1360L User Manual...

  • Page 59: Language Pack

    You can upgrade the firmware of the access point here. Make sure the firmware you want to use is on the local hard drive of the computer. Click on Browse to locate the firmware file to be used for the update. Please check the D-Link support website for firmware updates at http://support.dlink.com.

  • Page 60: Watchdog

    The Watchdog feature pings a specified IP address. If the IP address stops responding to pings, your AP will be rebooted. You can also select an option to have the DAP-1360L send an e-mail alert if the specified IP address stops responding to pings.

  • Page 61: Time

    To manually input the time, enter the values in these fields for the Year, Month, Day, Hour, Minute, and Second and then click Save.Settings. You can also click the.Copy.Your.Computer’s.Time.Settings button at the bottom of the screen. D-Link DAP-1360L User Manual...

  • Page 62: System Check

    Internet. Enter the host name or IP/IPv6 address that you wish to Ping, and click Ping. Ping Result: The results of your ping attempts will be displayed here. D-Link DAP-1360L User Manual...

  • Page 63: Schedules

    Enter a start and end time for your schedule. Schedule Rules The list of schedules will be listed here. Click the List: Edit icon to make changes or click the Delete icon to remove the schedule. D-Link DAP-1360L User Manual...

  • Page 64: Status

    Section 3 - Configuration Status Device Info This page displays the current information for the DAP-1360L. It will display the LAN and wireless LAN information. General: Displays the access point’s time and firmware version. LAN: Displays the MAC address and the private (local) IP settings for the access point.

  • Page 65: Logs

    Section 3 - Configuration Logs The DAP-1360L keeps a running log of events and activities occurring on the AP. If the AP is rebooted, the logs are automatically cleared. You can save the log files under Log Setting. Log Options: There are several types of logs that can be viewed: System.

  • Page 66: Statistics

    Statistics The DAP-1360L keeps statistics of the traffic that passes through it. You can view the amount of packets that pass through the LAN and wireless portions of the network. The traffic counter will reset if the access point is rebooted.

  • Page 67: Wireless

    The wireless section allows you to view the wireless clients that are connected to your wireless access point. Connection Time: Displays the amount of time the wireless client has been connected to the access point. MAC Address: The Ethernet ID (MAC address) of the wireless client. D-Link DAP-1360L User Manual...

  • Page 68: Ipv6

    Section 3 - Configuration IPv6 This page displays all your IPv6 Internet and network connection information. D-Link DAP-1360L User Manual...

  • Page 69: Help

    Section 3 - Configuration Help D-Link DAP-1360L User Manual...

  • Page 70: Wireless.security

    Section 4 - Security Wireless Security This section will show you the different levels of security you can use to protect your data from intruders. The DAP-1360L offers the following types of security: • WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key) •...

  • Page 71: What Is Wpa

    WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network. D-Link DAP-1360L User Manual...

  • Page 72: Configure Wpa/Wpa2 Personal

    6. Click Save.Settings at the top of the window to save your settings. If you are configuring the access point with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the access point. D-Link DAP-1360L User Manual...

  • Page 73: Configure Wpa/Wpa2 Enterprise

    5. Next to RADIUS Server, enter the IP Address of your RADIUS server. 6. Next to Port, enter the port you are using with your RADIUS server. 1812 is the default port. 7. Next to Shared Secret, enter the security key. 8. Click Save.Settings to save your settings. D-Link DAP-1360L User Manual...

  • Page 74: Connect.to.a.wireless.network

    Click on a network (displayed using the SSID) and click the Connect button. If you get a good signal, but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking. Basics section in this manual for more information. D-Link DAP-1360L User Manual...

  • Page 75: Configure Wpa-Psk

    1. Open the Windows XP Wireless Utility by right-clicking ® on the wireless computer icon in your system tray (lower-right corner of screen). Select.View.Available.Wireless. Networks.. 2. Highlight the wireless network (SSID) you would like to connect to and click.Connect. D-Link DAP-1360L User Manual...
  • Page 76 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless access point. D-Link DAP-1360L User Manual...

  • Page 77: Using Windows Vista

    From the Start menu, go to Control Panel, and then click on Network.and.Sharing.Center. The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) under Select a network to connect to and then click the.Connect.button. D-Link DAP-1360L User Manual...
  • Page 78 The utility will display the following window to indicate a connection is being made. The final window indicates the establishment of a successful connection. The next two pages display the windows used to connect to either a WEP or a WPA-PSK wireless network. D-Link DAP-1360L User Manual...

  • Page 79: Configure Wpa-Psk

    Click on a network (displayed using the SSID) using WPA-PSK under Select a network to connect to and then click the Connect button. Enter the appropriate security key or passphrase in the field provided and then click the.Connect.button. D-Link DAP-1360L User Manual...

  • Page 80: Using Windows ® 7

    If you are joining an existing network, you will need to know the security key or passphrase being used. 1. Click on the wireless icon in your system tray (lower-right corner). Wireless Icon 2. The utility will display any available wireless networks in your area. D-Link DAP-1360L User Manual...
  • Page 81 If you get a good signal but cannot access the Internet, check your TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. 4. The following window appears while your computer tries to connect to the router. D-Link DAP-1360L User Manual...
  • Page 82 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. D-Link DAP-1360L User Manual...

  • Page 83: Configure Wps

    Section 5 - Connecting to a Wireless Network Configure WPS The WPS feature of the DAP-1360L can be configured using Windows 7. Carry out the following steps to use Windows 7 to ® ® configure the WPS feature of the DAP-1360L: 1.
  • Page 84 Section 5 - Connecting to a Wireless Network 3. Double-click the DAP-1360L. 4. Input the WPS PIN number (displayed in the WPS window on the Router’s LCD screen or in the Setup.> Wireless.Setup menu in the Router’s Web UI) and click Next.
  • Page 85 Section 5 - Connecting to a Wireless Network 5. Type a name to identify the network. 6. To configure advanced settings, click the icon. Click Next to continue. D-Link DAP-1360L User Manual...
  • Page 86 7. The following window appears while the Router is being configured. Wait for the configuration to complete. 8. The following window informs you that WPS on the DAP-1360L has been setup successfully. Make a note of the security key as you may need to provide this security key if adding an older wireless device to the network in the future.

  • Page 87: Troubleshooting

    1..Why.can’t.I.access.the.web-based.configuration.utility? When entering the IP address of the D-Link access point (192.168.0.50 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.
  • Page 88 • Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link access point in the address bar. This should open the login page for your the web management.
  • Page 89 95, 98, and Me users type in command (Windows ® ® (or click OK). • Once the window opens, you’ll need to do a special ping. Use the following syntax: ping [url] [-f ] [-l] [MTU value] Example: ping.yahoo.com.-f.-l.1472. D-Link DAP-1360L User Manual...
  • Page 90 • To change the MTU enter the number in the MTU field and click.Save.Settings to save your settings. • Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten. D-Link DAP-1360L User Manual...

  • Page 91: Wireless.basics

    D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.

  • Page 92: What Is Wireless

    D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network. How.does.wireless.work?.
  • Page 93 Who.uses.wireless?. Wireless technology has become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it. Home • Gives everyone at home broadband access •...

  • Page 94: Tips

    The wireless connection in public places is usually called “hotspots”. Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers.

  • Page 95: Wireless Modes

    An Infrastructure network contains an Access Point or wireless bridge. All the wireless devices, or clients, will connect to the wireless bridge or access point. An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate. D-Link DAP-1360L User Manual...

  • Page 96: Networking.basics

    This will display the IP address, subnet mask, and the default gateway of your adapter. If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some firewall software programs may block a DHCP request on newly installed adapters. D-Link DAP-1360L User Manual...

  • Page 97: Statically Assign An Ip Address

    Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from your ISP. Step.5 Click OK twice to save your settings. D-Link DAP-1360L User Manual...

  • Page 98: Technical.specifications

    Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. Range varies depending on country’s regulation. D-Link DAP-1360L User Manual...

  • Page 99: Contacting.technical.support

    • Hardware Revision (located on the label on the bottom of the access point (e.g. rev B1)) • Serial Number (s/n number located on the label on the bottom of the access point). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.

  • Page 100: Warranty

    Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
  • Page 101 D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s...
  • Page 102 • The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm the same, along with proof of purchase of the product (such as a copy of the dated purchase invoice for the product) if the product is not registered.
  • Page 103 Purolator Canada or any common carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in Canada, otherwise we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are prepaid by the customer.
  • Page 104 FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT.
  • Page 105 This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. D-Link DAP-1360L User Manual...
  • Page 106 (ou inférieur) approuvé pourl’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectriqueà l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire àl’établissement d’une communication satisfaisante. D-Link DAP-1360L User Manual...
  • Page 107 énumérés ci-dessous et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur. D-Link DAP-1360L User Manual...
