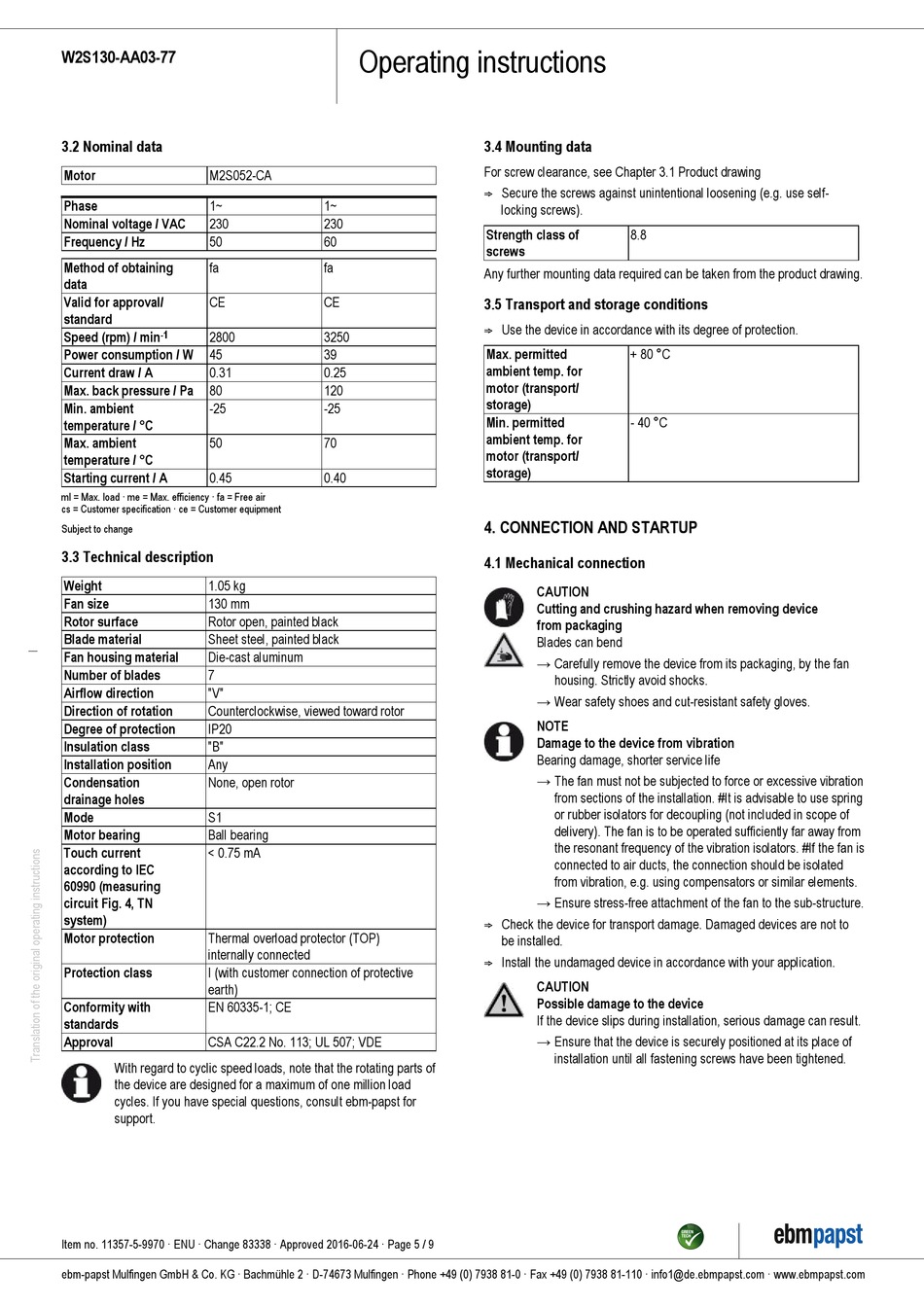

W2S130-AA03-77

3.2 Nominal data

Motor M2S052-CA
Phase 1~
Nominal voltage / VAC 230
Frequency / Hz 50
Method of obtaining
fa
data
Valid for approval/ CE
standard
-1
Speed (rpm) / min 2800
Power consumption / W 45
Current draw / A
0.31
Max. back pressure / Pa 80
Min. ambient -25
temperature / °C
Max. ambient 50
temperature / °C
Starting current / A 0.45
ml = Max. load · me = Max. efficiency · fa = Free air
cs = Customer specification · ce = Customer equipment
Subject to change

3.3 Technical description

Weight
1.05 kg
Fan size 130 mm
Rotor surface Rotor open, painted black
Blade material Sheet steel, painted black
Fan housing material Die-cast aluminum
Number of blades
7
Airflow direction "V"
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP20
Insulation class "B"
Installation position
Any
Condensation None, open rotor
drainage holes
Mode
S1
Motor bearing Ball bearing
Touch current < 0.75 mA
according to IEC
60990 (measuring
circuit Fig. 4, TN
system)
Motor protection Thermal overload protector (TOP)
internally connected
Protection class I (with customer connection of protective
earth)
Conformity with EN 60335-1; CE
standards
Approval
CSA C22.2 No. 113; UL 507; VDE
With regard to cyclic speed loads, note that the rotating parts of
the device are designed for a maximum of one million load
cycles. If you have special questions, consult ebm-papst for
support.
Item no. 11357-5-9970 · ENU · Change 83338 · Approved 2016-06-24 · Page 5 / 9
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
Operating instructions

3.4 Mounting data

For screw clearance, see Chapter 3.1 Product drawing
; Secure the screws against unintentional loosening (e.g. use self-
1~
230
Strength class of
60
screws
fa
Any further mounting data required can be taken from the product drawing.
CE

3.5 Transport and storage conditions

; Use the device in accordance with its degree of protection.
3250
39 Max. permitted
ambient temp. for
0.25
motor (transport/
120
storage)
-25
Min. permitted
ambient temp. for
70
motor (transport/
storage)
0.40

4. CONNECTION AND STARTUP

4.1 Mechanical connection

; Check the device for transport damage. Damaged devices are not to
; Install the undamaged device in accordance with your application.
locking screws).
8.8
+ 80 °C
- 40 °C
CAUTION
Cutting and crushing hazard when removing device
from packaging
Blades can bend
→ Carefully remove the device from its packaging, by the fan
housing. Strictly avoid shocks.
→ Wear safety shoes and cut-resistant safety gloves.
NOTE
Damage to the device from vibration
Bearing damage, shorter service life
→ The fan must not be subjected to force or excessive vibration
from sections of the installation. #It is advisable to use spring
or rubber isolators for decoupling (not included in scope of
delivery). The fan is to be operated sufficiently far away from
the resonant frequency of the vibration isolators. #If the fan is
connected to air ducts, the connection should be isolated
from vibration, e.g. using compensators or similar elements.
→ Ensure stress-free attachment of the fan to the sub-structure.
be installed.
CAUTION
Possible damage to the device
If the device slips during installation, serious damage can result.
→ Ensure that the device is securely positioned at its place of
installation until all fastening screws have been tightened.
