Summary of Contents for ALLEN & HEATH Xone 4D

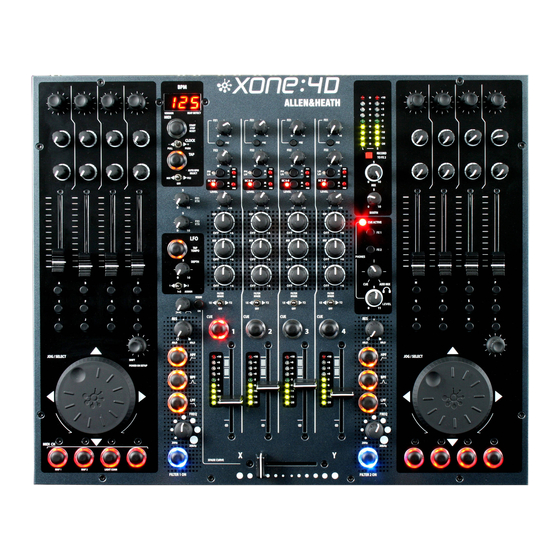

- Page 1 ALLEN&HEATH SERVICE MANUAL Xone:4D Service manual Copyright © 2009 Allen & Heath Limited. All rights reserved Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com ALLEN&HEATH Xone:4D service manual AP7337_2 Page - 1 - of 14...
- Page 2 Limited One Year Warranty This product is warranted to be free from defects in materials or workmanship for period of one year from the date of purchase by the original owner. To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide before operating.
-
Page 3: Table Of Contents
CONTENTS DEVELOPMENT CHANGES SERVICING PRECAUTIONS AND GENERAL NOTES PARTS IDENTIFICATION • How to order parts • Exterior parts • Interior parts SPECIFICATION ALLEN&HEATH Xone:4D service manual AP7337_2 Page - 3 - of 14... -
Page 4: Development Changes
DEVELOPMENT CHANGES NOTE: These changes have been implemented at the factory as part of our ongoing development policy. They are not critical to the basic function of the unit. It is for the owner / service engineer to decide to update a unit with development changes. ALLEN&HEATH Xone:4D service manual AP7337_2... -
Page 5: Servicing Precautions And General Notes
Servicing Precautions – General Notes Service personnel: Service work should be carried out by technically qualified service personnel only. Mains power is dangerous and can kill. Do not attempt to work on a linear or switched mode power supply if you are not suitably qualified to do so. Do not attempt to repair surface mount circuit assemblies unless you are suitably qualified and have the necessary facilities to do so. - Page 6 Testing the unit: Before operating the equipment, read and adhere to the Important Safety Instructions printed in the user guide. Test that the service work has been successfully carried out. Shipping the unit: Use adequate packing such as the original packaging or purpose designed flight case if you need to ship the unit.
-
Page 7: Parts Identification
PARTS IDENTIFICATION How to order parts Parts must be ordered from our distributor in your territory. A list of international distributors can be viewed http://www.allen-heath.com/UK/distributors.asp UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK service centres can be viewed at http://www.allen-heath.com/UK/service_centres.asp EXTERIOR PART... - Page 8 display AA6757 Rec to FX2 AJ3438 AI8007 Knob AJ7304 Booth AI8007 FX RTN AI8007 Knob AJ7304 Knob AJ7304 FX1, FX2 Round black button AJ4251 LFO Depth AI8003 Knob AJ7304 Cue / Add mix AI8007 Knob AJ7304 Xfade ON button AJ6904 Level AI8007 Knob...
- Page 9 FX1 & 2 AI8007 Pre black button Knob AJ7304 AJ5388 PH,LN,SC Round black FX, CH, button Pre button AJ4251 AJ7286 Level AI8006 Knob AJ7304 HF, MF, LF AI8007 Knob AJ7305 Up fader 003-860 Knob AJ5320 X- fader 003-579 Knob AJ5320 ALLEN&HEATH Xone:4D service manual AP7337_2...
- Page 10 Phono shorting plug Game port AC switch AL4396 AL6351 Al3338 SPDIF RCA phono Foot switch AL0566 AC inlet AC button AL4977 AL0328 Al3458 AJ2887 Ground Pillar AL8106 MIDI AL3962 Fuse holder Mix out XLR RCA phono AL3178 Feet AK0102 Al2411 AL3753 Optical AL6096...
-
Page 11: Interior Parts
INTERIOR PARTS Note: When fitting replacement PCB check phono/line jumper positions. MIDI i/p pitch MIDI i/p pitch BPM display 003-635 003-635 7 seg LED Stereo i/p 003-859 003-695 MIDI i/p MIDI i/p control control 003-636 003-636 MIDI Slave 003-523 MIDI fader 003-532 Analog slaveSlave... - Page 12 Connectors Gameport 003-527 003-531 Mains PSU 003-233 USB2 003-856 Headphones 003-530 ALLEN&HEATH Xone:4D service manual AP7337_2 Page - 12 - of 14...
- Page 13 HARNESSES: AL5904- HEADPHONE MASTER AL5904- BPM 7 SEGMENT DISPLAY USB CONTROL AL5904- ANALOGUE SLAVE POWER SUPPLY AL5904- JOGWHEEL (L) MIDI SLAVE (L) AL5904- JOGWHEEL (R) MIDI SLAVE (R) AL4606- CONNECTOR MASTER AL4607-MIDI SLAVE (L) USB CONTROL AL6592- MIDI CONTROL (R) USB CONTROL AL7338- ANALOGUE SLAVE USB CONTROL...
-
Page 14: Specification
SPECIFICATION Operating levels Main outputs +4dBu XLR Monitor 0dBu RCA FX sends -2dBu RCA Maximum output level +26dBu Mic Sensitivity -45 to -15dBu RIAA input sensitivity 7-100mV 47K/330pF Frequency response Line in to Mix out 20 Hz to 30KHz +0/-2dB Distortion at 1kHz Line in at +0Vu out <0.02% Main Mix noise 22Hz—...
