Set The Screed, Flight Screw And End Gates - LeeBoy 1000G Operation, Service And Parts Manual

Operation
Set the Screed, Flight Screw and Set the Screed, Flight Screw and
End Gates End Gates
The augers distribute asphalt from the hopper in front
of the screed. The screed "floats" on the asphalt as it
passes under the screed plate, leveling the asphalt to
maintain thickness. The end gates contain the asphalt
material at the outer edge of the screed. Use the screed
extensions when paving widths exceeding eight (8) feet.
(Figure 4-46) When adjusted correctly, pressure on
the rear edge of the extended screed is the same as the
rear edge of the main screed, resulting in a smooth mat
the length of the screed.
1

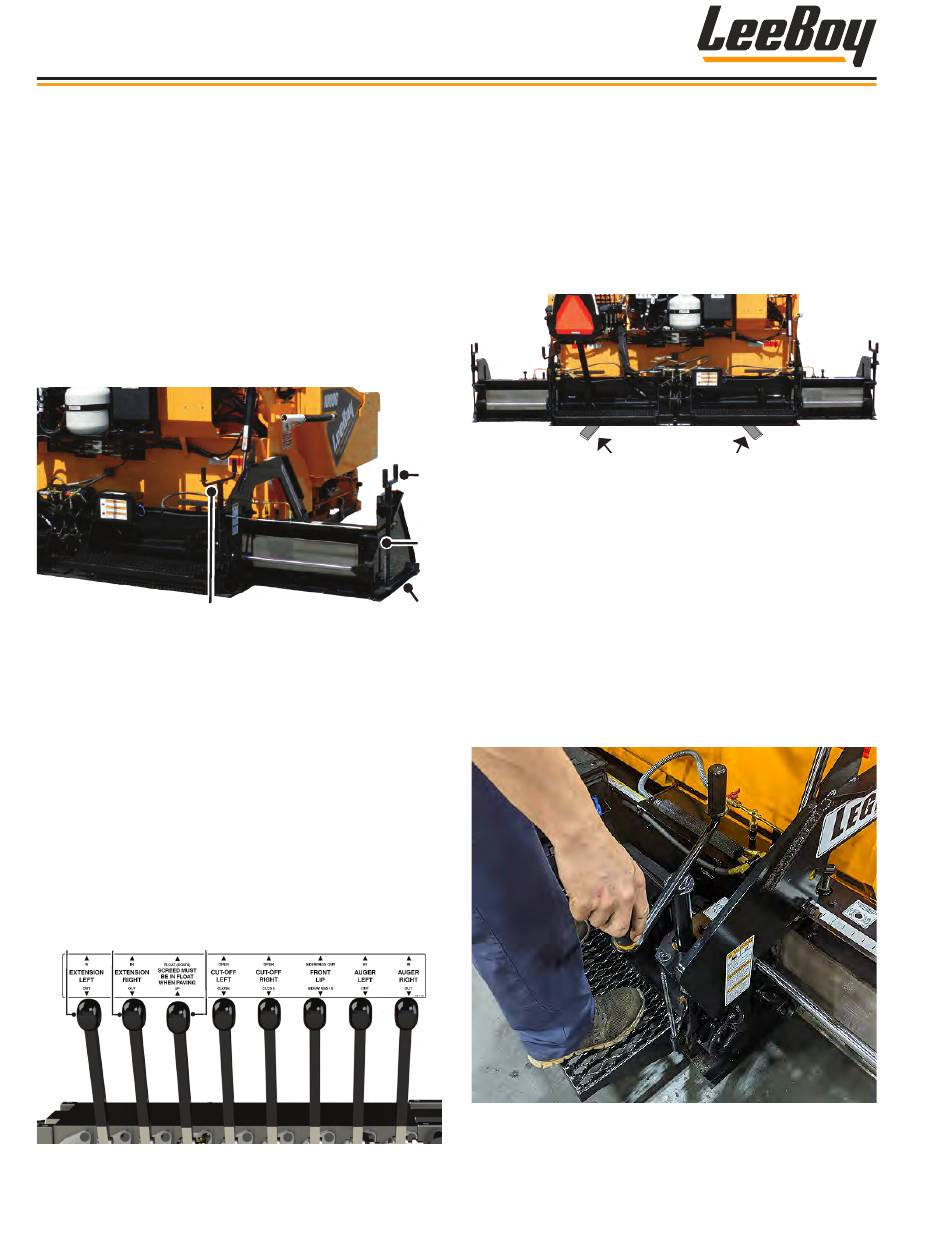

Figure 4-46. Screed Extension Components
1 - Flight Screw
2 - End Gate Depth Screw
3 - End Gate Tilt Screw
4 - End Gate
Extend or retract the screed extension using the
extension levers on the hydraulic controls. (Figure
4-47)
NOTE: The right screed extension can also be
operated from the right side of the paver.
(Page 3-9)
Left and Right
Float Lever
Extension Levers
Figure 4-47. Screed Extensions and Float Levers
4-24
Adjust the screed extension while paving using the
following procedures:
1. Move paver to the starting position for paving.
2. Extend the screed to the desired width.
3. To set the depth, you can place a small starter block
under the screed while you make adjustments.
(Figure 4-48)
2
Figure 4-48. Starter Blocks Location
4. Level the screed using the flight screw. (Figure
4-49)
3
5. Push the screed float lever forward to the FLOAT
position. (Figure 4-47)
6. Turn the flight screw one turn (clockwise) to get
4
started, then turn either direction to adjust the angle
of the screed and mat thickness (thicker or thinner)
as needed while paving.
• While paving, check the mat thickness regularly
and make minor screed adjustments using the flight
screw as needed.
Figure 4-49. Flight Screw Adjustment
