INSTRUCTION MANUAL

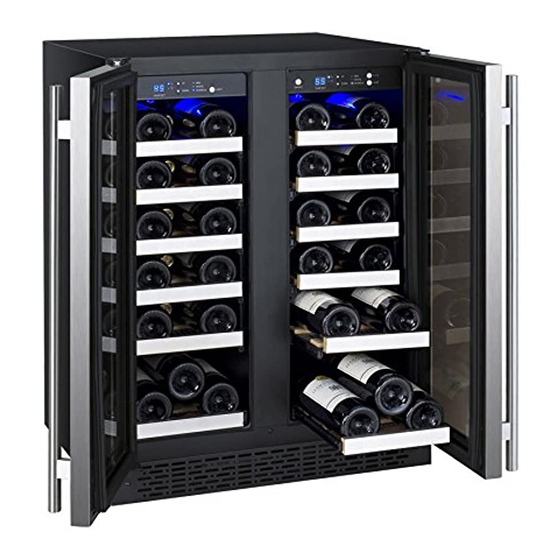

FLEXCOUNT II TRU-VINO BUILT-IN WINE COOLER
MODEL：VSWR36-2
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Allavino has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice
ALLAVINO
8520 Miralani Dr., San Diego, CA 92126
www.allavino.com
1
1-888-980-4809
Advertisement
Table of Contents
Related Manuals for Allavino FlexCount II Tru-Vino VSWR36-2
Summary of Contents for Allavino FlexCount II Tru-Vino VSWR36-2
- Page 1 FLEXCOUNT II TRU-VINO BUILT-IN WINE COOLER MODEL：VSWR36-2 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Allavino has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice ALLAVINO 8520 Miralani Dr., San Diego, CA 92126...
-
Page 2: Table Of Contents
Diagram and Description ..........................Safety Tips ..........................Installation Instructions ..........................Handle Installation ..........................Operation Instructions ..........................Setting Temperature ..........................Racking Configuration ..........................Care and Maintenance ..........................Troubleshooting ..........................Technical Specifications ..........................11-12 Energy Guide ..........................Warranty Information ..........................www.allavino.com 1-888-980-4809... -
Page 3: Diagram And Description
Diagram and Description 1. Control Panel 2. Sliding Shelves 3. Front Ventilation Base 4. Door Hinge 5. Adjustable Feet 6. Door Handle www.allavino.com 1-888-980-4809... -
Page 4: Safety Tips
California Proposition 65 Warning: This product contains a chemical or chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Failure to heed these safety warnings may result in extensive product damage, serious personal injury, or death. www.allavino.com 1-888-980-4809... -
Page 5: Installation Instructions
Step 1: Remove the box containing the handle and screws from the wine cellar. Step 2: Pull out a bit of the rubber gasket from the back side of the holes. Step 3: Insert the screws through the holes and connect with the handle. www.allavino.com 1-888-980-4809... -
Page 6: Operation Instructions
Your Allavino Wine Cellar includes an operating panel on the front of each zone. The operating panel includes several features to operate and control the temperature of the wine refrigerator, including:... -
Page 7: Racking Configuration
The Allavino Wine Cellar has 12 shelves that can hold up to 3 bottles each for a maximum bottle capacity of 36 bottles. Unlike most undercounter wine refrigerators, the maximum capacity can be reached with many different bottle sizes and is only affected when adding in larger Pinot or Champagne bottles. - Page 8 5-1/2" to 8-1/4". They are too big to fit on the upper shelves, but you can still store 2 pinot bottles on each of the bottom shelves without having to remove any racks or significantly reducing your bottle capacity. www.allavino.com 1-888-980-4809...
-
Page 9: Care And Maintenance
• Turn the adjustable leg up to the base to avoid damage. • Be sure the appliance stays secure in the upright position during transportation. • Protect the outside of the appliance with a blanket or similar item. www.allavino.com 1-888-980-4809... -
Page 10: Troubleshooting
The wine cellar is not on a level surface. The door will not close properly The wine cellar is not on a level surface. The gasket is dirty. The shelves are out of position. www.allavino.com 1-888-980-4809... -
Page 11: Technical Specifications
Up to 36 Bottles Dimensions 32 1/2" H x 23 1/2" W x 23" D (25" w/ handle) Weight 141 lbs. Voltage / Frequency 115v / 60 Hz Running Amps 1.0 A Operating Temperature 40°F - 65°F Maximum Ambient Temperature 90°F www.allavino.com 1-888-980-4809... - Page 12 1-888-980-4809...
-
Page 13: Energy Guide
1-888-980-4809... -
Page 14: Warranty Information
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY: For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual.
