Sealey SA11 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
p WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
p WARNING! Disconnect the hammer from the air supply before changing accessories, servicing or performing any maintenance.
3 Keep the hammer clean and maintain it in good condition (use an authorised service agent).
3 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
3 Keep the work area clean and uncluttered. Ensure that there is adequate lighting.
3 Ensure chisels are correctly rated for the job. DO NOT use damaged or suspect chisels.
p WARNING! Wear approved safety eye or face protection, ear defenders and, if dust is generated, respiratory protection.
3 Keep hands and body clear of the work when operating the hammer.
3 Maintain correct balance and footing. Ensure that the floor is not slippery and wear non-slip shoes.
3 Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain
and/or tie back long hair.
3 Keep children and unauthorised persons away from the work area.
3 Check moving parts alignment on a regular basis.
3 Secure unstable workpiece with a clamp, vice or other adequate holding device.
3 Avoid unintentional starting.
p WARNING! Ensure that the correct air pressure is maintained and not exceeded.
3 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use
and ensure that all connections are secure.
7 DO NOT use the hammer for a task it is not designed to perform.
7 DO NOT operate the hammer if any parts are damaged or missing as this may cause failure and/or personal injury.
p WARNING! DO NOT chisel into any materials containing asbestos.
7 DO NOT switch the hammer on whilst the chisel is in contact with the workpiece.
7 DO NOT carry the by the hose, or yank the hose from the air supply.
7 DO NOT hold the workpiece by hand. Use clamps or a vice (not included) to secure the workpiece. Available from your Sealey dealer.
7 DO NOT allow untrained persons to operate the hammer.
7 DO NOT operate the hammer when you are tired or under the influence of alcohol, drugs or intoxicating medication.
7 DO NOT use hammer where there is flammable liquid, solid or gas such as paint solvent, including waste wiping or cleaning rags etc.
7 DO NOT leave the hammer operating unattended.
7 DO NOT carry the hammer with your finger on the trigger.
7 DO NOT direct air from the air hose at yourself or others.
3 When work is complete ensure that the air supply is turned off.
3 When not in use disconnect from the air supply and store in a safe, dry, childproof area.
2. AIR SUPPLY
The recommended hook-up is shown in fig. 1.
2.1. Ensure the trigger is in the "off" position before connecting to the air supply.
2.2. You will require an air pressure of 90psi and an available air flow of 4cfm to operate the unit.
2.3. p WARNING! Ensure the air supply does not exceed 120psi while operating the hammer. Too high an air pressure and/or unclean air
will shorten the product life due to excessive wear and may be dangerous, causing damage and/or personal injury.
2.4. Drain the air tank daily. Water in the air line will damage the hammer.
2.5. Clean the air inlet filter screen weekly.
2.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should
be 10mm I.D. and fittings must have the same inside dimensions.
2.7. Keep hose away from heat, oil and sharp edges.
Check hoses for wear, and make certain that
all connections are secure.
fig. 1
INSTRUCTIONS FOR:

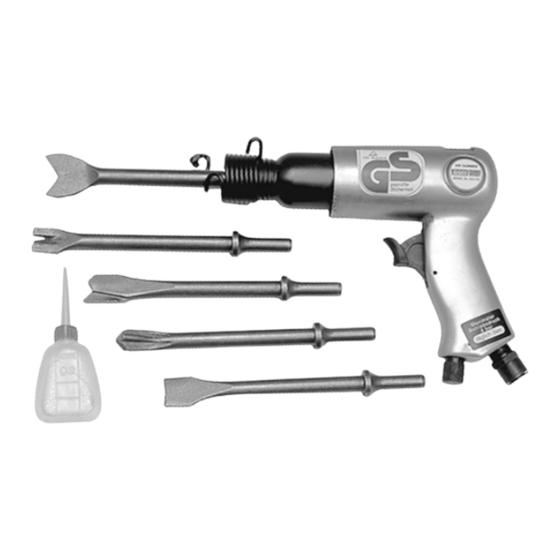

LONG STROKE AIR HAMMER
SA11/S
Model:
SA11/S - 1 - 091101
