REPLACING PARTS

All parts must be replaced by authorised techni-
cians only!
To replace the following parts, first remove the control
knobs, slide out the fat tray and remove the control pa-
nel (after unscrewing its fixing screws).

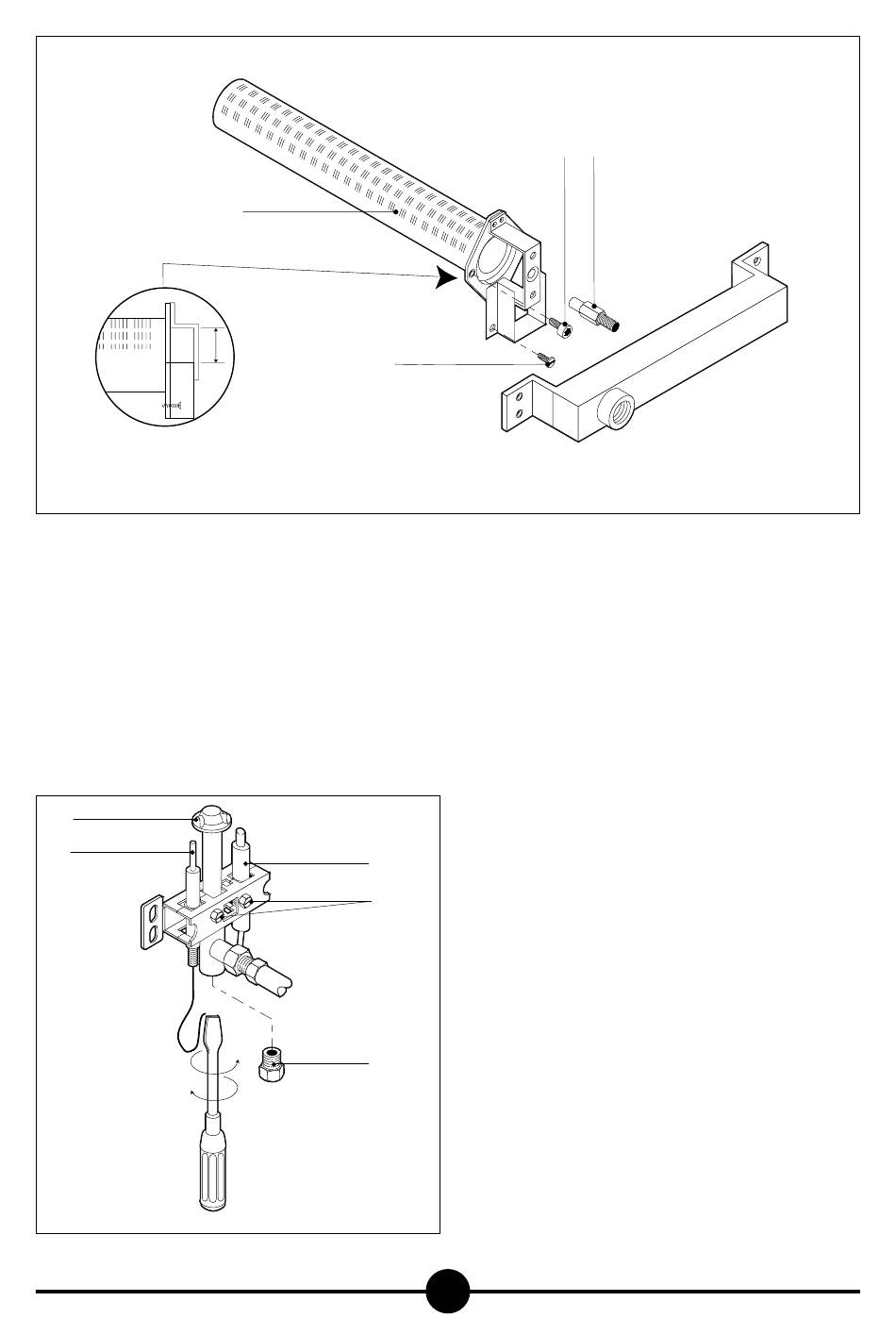

Ignition plug (Fig. 2)
The ignition plug (37) is removed by loosening screws
(36). Disconnect the ignition lead, loosen the lock nut
and insert a new plug.
2
34
37
013 - 03 - Gas pasta cooker
31
A
39
38
36
35
32 30
Gas tap (Fig. 3)
Loosen the gas piping and thermocouple hoses, then
loosen the screws fixing the gas supply to the gas ramp
and insert a new tap.
Thermocouple (Figs. 2 & 3)
Loosen the screws fixing the thermocouple (38) to the
gas (6) tap and the pilot burner (34); insert the new
part.
After replacing the parts, fit the control panel and its
parts back in the right order.
WARNING
Every time a replacement involving gas input parts
is made, recheck all functions and test for leakage.
