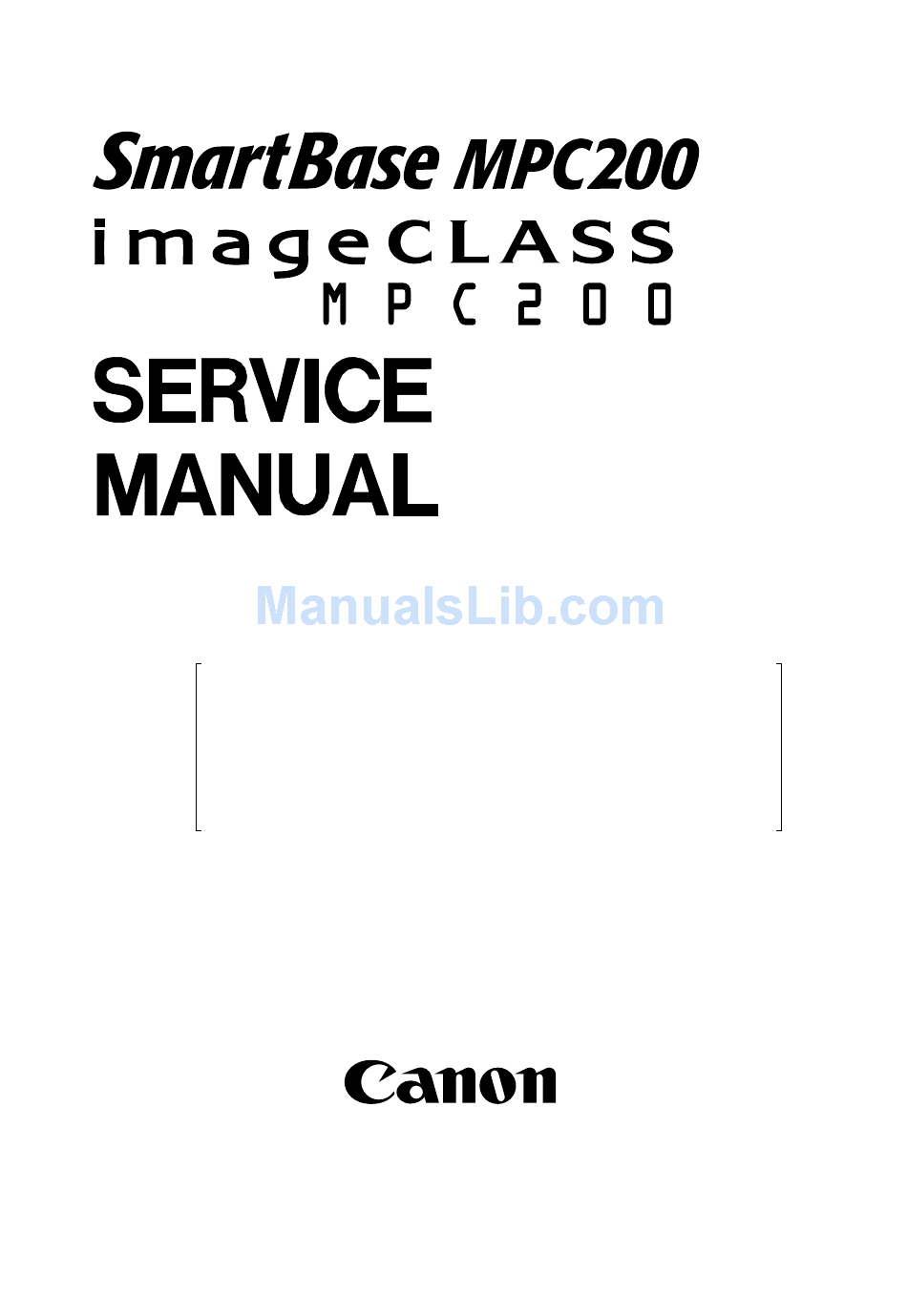

Canon SmartBase MPC200 Service Manual

Canon all in one printer
Hide thumbs Also See for SmartBase MPC200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Basic Manual
REVISION 0
SEPT. 2002
COPYRIGHT © 2002 CANON INC.
Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com
SmartBase MPC200
SmartBase MPC200
SmartBase MPC200
imageCLASS MPC200
imageCLASS MPC200
HY8-10AV-000
CANON SmartBase MPC200/imageCLASS MPC200
H12-2603 230V EC
H12-2604 230V UK
H12-2605 230V ENG/GER/FRN
H12-2608 230V AUS
H12-2609 230V AE
SEPT. 2002

Advertisement

Table of Contents
loading

Related Manuals for Canon SmartBase MPC200

Summary of Contents for Canon SmartBase MPC200

  • Page 1 SmartBase MPC200 SmartBase MPC200 SmartBase MPC200 imageCLASS MPC200 imageCLASS MPC200 SEPT. 2002 COPYRIGHT © 2002 CANON INC. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com H12-2603 230V EC H12-2604 230V UK H12-2605 230V ENG/GER/FRN H12-2608 230V AUS H12-2609 230V AE...
  • Page 2 This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may not be copied, reproduced or translated into another language, in whole or in part, without the written consent of Canon Inc. Copyright © 2002 by Canon Inc.
  • Page 3 I. MEANING OF MARKS The marks used in this manual have the following meanings. Mark Meaning States a precaution to be taken to prevent danger to personnel, damage to the product, or damage to electronic components by discharge of static electricity. for example. States a precaution to be taken to prevent damage to electronic components by electrostatic discharge.
  • Page 4 II. ABOUT THIS MANUAL This manual is divided into five parts, and contains information required for servicing the product. Each of the above parts is further divided into the following four chapters: Chapter 1: General Description This part explains product specifications and the how to service the unit safely. It is very important, so please read it.
  • Page 5 III. REVISION HISTORY REVISION CONTENT Original Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...

  • Page 6: Table Of Contents

    IV. TABLE OF CONTENTS Chapter 1: General Description Page 1 - 1 1. FEATURES 1 - 1 1.1 Overview 1 - 2 2. SPECIFICATIONS 1 - 2 2.1 General Specification 1 - 2 2.2 Scanner Specification 1 - 4 2.3 Printer Specification 1 - 6 2.4 Copy Specification 1 - 7...
  • Page 7 3 - 3 1.3 Product-Inherent Cautions 3 - 3 1.4 Action in the Event of Abnormality (All Clear) 3 - 4 1.5 Transporting the machine 3 - 5 2. DISASSEMBLY/ASSEMBLY 3 - 5 2.1 Disassembly Work-Flow 3 - 6 2.2 Disassembly Procedure Chapter 4: Maintenance and Service 4 - 1 1.
  • Page 8 4 -29 6.1.1 Nozzle check pattern 4 -30 6.2 Service Test Functions 4 -30 6.2.1 Test mode overview 4 -31 6.2.2 Test mode flowchart 4 -32 6.2.3 D-RAM tests 4 -32 6.2.4 CS tests 4 -33 6.2.5 Faculty tests 4 -37 7.

  • Page 9: General Description

    Chapter 1 General Description Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...

  • Page 10: Features

    1. FEATURES 1.1 Overview Picture Quality Color Printer High quality printing can be accomplished with the Canon Bubble Jet (BJ) method using the maximum 2400dpi 1200dpi resolution. Various kinds of media can be printed with the high speed of a maximum 14 pages per minute.

  • Page 11: Specifications

    SmartBase MPC200/imageCLASS MPC200 Chapter 1: General Description 2. SPECIFICATIONS 2.1 General Specification Type Body color Power source Power consumption Usage environment. Operating noise Dimensions (W D H) Weight 2.2 Scanner Specification Type Effective scanning width Scanning method Scanning resolution Scanning speed Mode B&W Text...
  • Page 12 Scanning range Sheet dimensions (W L) Thickness Max. 0.16 inch/4.0 mm Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 8.5" 11.7" (216 mm 297 mm) 0.79" (20 mm) Max. 0.16 inch/4.0 mm Max. 0.18 inch/4.5mm Letter Legal Max.

  • Page 13: Printer Specification

    BCI-24Black/BCI-24Color F47- 3481 / F47- 3491 Counts the deposited dots to find out the level of ink remaining inside the tank. Black Approx. 14 pages/minute (Canon standard pattern) Color Approx. 10 page/minute(Canon standard pattern) 2400 dpi 1200 dpi Approx. 50 sheets (when using the recommended paper)
  • Page 14 W x L = COM #10:9.48 x 4.17 inch/241 x 106 mm DL:8.66 x 4.33 inch/220 x 110 mm Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Feed dirction a = 3.0 mm b = 5.0 mm c = 3.4 mm (A4, 4"x6", A5, B5 )

  • Page 15: Copy Specification

    SmartBase MPC200/imageCLASS MPC200 Chapter 1: General Description a=0.25 inch/6.3 mm(LTR) 0.13 inch/3.4 mm(A4) b=0.25 inch/6.4 mm(LTR) 0.13 inch/3.4 mm(A4) c=0.12 inch/3.0 mm d=1.10 inch/28.0 mm e=0.20 inch/5.0 mm 2.4 Copy Specification Color copy Multiple copy Copy mode Copy resolution Copy magnification ratio...

  • Page 16: Photo Print Specification

    Interface Compatible memory cards Printing mode Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 1: General Description Card slot Compact flash, Smart media, Memory stick, SD memory card, Multimedia card, Flash ATA card PCMCIA Type II...

  • Page 17: Function

    SmartBase MPC200/imageCLASS MPC200 Chapter 1: General Description 2.6 Function Memory backup Backup contents Backup IC Backup device Battery life Service report System data list System dump list Display Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com User data, Service data 256 kbit SRAM for control Lithium battery 3.0V DC/220 mAh...

  • Page 18: Overview

    4 [Eject] button 5 Card slo t 6 Indicator light 7 Paper output tra y Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 8 Tray extension 9 Operation panel 10 Platen glass 11 Inner cover 12 Printhead holder...

  • Page 19: Operation Panel

    SmartBase MPC200/imageCLASS MPC200 Chapter 1: General Description 3.2 Operation Panel Operation panel of the machine 1 [ON/OFF] key Turns the machine on and off (keep pressed for a brief interval). Before turning on the machine, make sure the document cover is closed.

  • Page 20: Consumables

    SmartBase MPC200/imageCLASS MPC200 Chapter 1: General Description 3.3 Consumables 3.3.1 Ink cartridge • For optimum printing results and to avoid printing problems, Canon recommends that you only use the Canon Ink Tanks described in this guide. NOTE Ink tanks (Black, colour)

  • Page 21: Print Media

    Paper thickness lever position: Right Use for: Printing from your computer • You may be able to load other envelope sizes, but Canon cannot guarantee consistent performance on these. • Do not use the following types of envelopes since they may cause problems –Envelopes with windows, holes, perforations, cutouts, double flaps, pressure seals, and...
  • Page 22 • Do not use the loading support sheet included with this print media. • Remove the sheets from the paper output tray before the count reaches 20. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 or 20 lb.) or maximum stack height of 10 mm ( × 8 in.)
  • Page 23 SmartBase MPC200/imageCLASS MPC200 Chapter 1: General Description Matte Photo Paper MP-101 A matte, thick paper that produces vivid colour output and is waterproof. Ideal for many uses such as paper crafts, calendars, and photographs with a matte finish. You can also use this paper for borderless printing.
  • Page 24 Used to produce iron-on transfers. Size: A4, Letter Quantity: 1 sheet Paper thickness lever position: Right Use for: Printing from your computer/copying Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 × 11 in.), Letter in.) 1-15 Chapter 1: General Description...

  • Page 25: General Print Media Guidelines

    –Be aware that some types of clear plastic folders and albums may cause the edges of the paper to turn yellow. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com or 17 lb.) or 28 lb. , except for Canon 1-16...

  • Page 26: Chapter 2: Technical Reference

    Chapter 2 Technical Reference Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...

  • Page 27: Component Layout

    SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference 1. COMPONENT LAYOUT 1.1 Parts Layout The parts layout of this machine consists of the scanning assembly, printing assembly and printer. Contact sensor drive belt Carriage motor Pick up roller Contact sensor drive motor...
  • Page 28 SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference The electrical parts are laid out as follows. • SCNT board ... Operation panel control, Document scaning contlol, • Power supply unit ... supplies power to the units and assemblies • OPCNT board ... detects keyboard operation and displays machine •...
  • Page 29 Detects the state of inner. pick up sensor: Detect the state of pick up roller Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference Paper edge sensor: Detects the state of paper feeding and delivery.

  • Page 30: Scanner Mechanism

    SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference 2. SCANNER MECHANISM The scanner section scans documents that are to be copied. Figure 2-4 Document Feed Section Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 31 600dpi and outputs Red, Green and Blue analog image data. 5. White sheet This white sheet is used as a whiteness reference when pre-scanning documents. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference...

  • Page 32: Printer Section

    SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference 3. PRINTER SECTION 3.1 Overview of the Printer's Mechanical Parts The printer's mechanical parts consist of the BJ cartridge, carriage, purge section, and paper feed section. Each part is explained below. Paper Feed Section Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...

  • Page 33: Purge Section

    After printing, paper is ejected onto the discharge tray by the eject rollers. After the sheet of paper leaves the paper feed rollers, the eject rollers take over to eject the paper. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference...

  • Page 34: Paper Feed Components

    SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference 3.2 Paper Feed Section 3.2.1 Paper feed components The auto sheet feeder separates recording paper by rotating the separation roller in the opposite direction of pickup. Compared with other auto sheet feeders, it shows better separation performance.

  • Page 35: Paper Transport Section

    The delivery block consists of an eject roller and spurs. As soon as printing ends, the paper moved by the work of the paper feed roller and the pinch roller is discharged using the rotation of the eject roller and the spurs. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference...

  • Page 36: Ink Residual Quantity Detection

    SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference 3.3 Ink residual quantity detection The machine is not equipped with a sensor used to detect the level of ink remaining in its tank. The absence of such a sensor is made up for by counting the dots in a deposit. When these dots reach a...

  • Page 37: Purge Section

    Cleaning is performed at the times below to ensure that the head produces high-quality printing. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference 2-11...

  • Page 38: Purge Section Components

    SmartBase MPC200/imageCLASS MPC200 Chapter 2: Technical Reference 3.4.2 Purge section components Cleaner a) Purge driving motor The purge motor drives the wiper, carriage lock, and pump. It is a constant-voltage motor operating with a 1-2 phase drive. b) Wiper The wiper consists of a wiper and wiper cleaner.

  • Page 39: Ink Suction Amount In The Cleaning Mode

    60 to 336 hours intervals. When checking the functions of the purge unit, measure the suction amount for a manual suction. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Suction Precondition* Amount (g) Bk+Cl 0.12+0.135...

  • Page 40: Chapter 3: Assembly And Disassembly

    Chapter 3 Assembly and Disassembly Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...

  • Page 41: Attention To Be Paid During Assembly/ Disassembly

    SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly 1. ATTENTION TO BE PAID DURING ASSEMBLY/ DISASSEMBLY 1.1 Safety Cautions Electrical shock In order to prevent any risk of electrical shock, always be sure to check that the power cord and modular jack have been removed.

  • Page 42: General Cautions

    SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly 1.2 General Cautions Damage due to electrostatic discharge This machine contains contact sensors and printed circuit boards that use ROMs, RAMs, custom chips and other electronic components that are vulnerable to damage by electrostatic discharge.

  • Page 43: Product-Inherent Cautions

    While waiting to return to the ready state after executing “All clear”, please do not press the Stop button. Doing so may cause a malfunction afterwards. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Copy Scan...
  • Page 44 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly 1.5 Transporting the machine If you must transport the machine as when returning it after repair work, be sure to perform the following work: (a) Mount the BJ cartridge (printer head) to the carriage.

  • Page 45: Disassembly Work-Flow

    Numbers in parentheses indicate the disassembly number. Main unit Flatbed ass'y Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Side cover/Operation panel PC-CARD unit...
  • Page 46 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly 2.2 Disassembly Procedure Disassembly 1. Flat bed ass’y (1) Lift the pressure plate to remove. (2) Remove the 9 screws (a), and detach the flat bed ass’y (3) Disconnect 2 cable (b).
  • Page 47 (3) Remove the 2 screws (c), and detach the operation panel. Operation panel Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Figure 3-4 Disassembly 2...
  • Page 48 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Disassembly 3. SPCNT board (1) Perform disassembly 1 to detach the flat bed assembly. (2) Disconnect all cables from the SPCNT board. (3) Remove the 4 screws (a), and detach the SPCNT board.
  • Page 49 (5) After executing 'All Clear', enter the data you have previously printed out as Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 The image data stored in image memory will be lost when the power is turned off.
  • Page 50 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Disassembly 5. Middle cover ass’y 1) Perform disassembly 4. (2) Remove 3 screws (a), and detach the PC-CARD holder. (3) Remove the 4 screws (b), and detach the SPCNT holder. (4) Remove the 4 screws (c), and detach the middle cover.
  • Page 51 (3) Remove the screw (c), and detach the power cord cover. (4) Remove the 2 screws (d), and detach the power supply unit. ink absorber Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Power supply cover...
  • Page 52 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Replacement of waste ink absorbers The waste ink absorbers are designed to sop up any excess ink ejected during the cleaning operation or during ink squirting for maintenance, in order to maintain the NOTE good printing quality of the BJ cartridge.
  • Page 53 When replacing the contact sensor, the CS LED light-on duration needs to be adjusted. Refer to Chapter 4, 3.1 CS LED Lights-on Duration Adjustment, for details. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Contact sensor Spacer...
  • Page 54 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Disassembly 9. Contact sensor drive motor (1) Perform disassembly 8, and detach the contact sensor. (2) Loosen the screw (a), and push the pulley toward the inside to detach the contact sensor drive belt from the gear.
  • Page 55 (2) Remove the screw (b), and detach the cable guide. (3) Remove the 3 screws (c), and detach the ASF unit. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Cable guide ASF unit Figure 3-10 Disassembly 10 and Disassembly 11...
  • Page 56 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Disassembly 12. Carriage unit (1) Perform disassembly 10, and detach the sensor board. (2) Remove the left and right shaft clips. (3) Remove the carriage shaft. (4) Push the pulley to detach the carriage belt.
  • Page 57 If the film is folded and a white line is created or if a slit is scratched, replace the encoder film. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Figure 3-12 Encoder Film...
  • Page 58 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Disassembly 13. Purge unit (1) Perform disassembly 12, and detach the carriage unit. (2) Remove the 2 screws (a), and detach the purge unit. Purge unit Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 59 Grease may soil the blade as a result. You must not allow any grease or oily substance to adhere to the blade. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Blade...
  • Page 60 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Disassembly 14. Paper feed motor (1) Perform disassembly 11, and detach the ASF unit. (2) Remove the 2 screws (a), and detach the paper feed motor. Disassembly 15. Carriage motor (1) Perform disassembly 12, and detach the carriage unit.
  • Page 61 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Disassembly 16. Platen unit (1) Perform disassembly 12, and detach the carriage unit. (2) Remove the 4 springs (a), and detach the pressure roller unit. (3) Remove the platen unit. Pressure roller unit...
  • Page 62 SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly Disassembly 17. Paper feed roller (1) Perform disassembly 16, and detach the platen unit. (2) Remove the bushing (a), and detach the paper feed roller. Paper feed roller Figure 3-23 Disassembly 17 3-22 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 63 For a discussion of adjusting the period during which the CS LED remains ON, refer to the descriptions under 3.1 in Chapter 4. REFERENCE Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 3: Assembly and Disassembly 3-23...
  • Page 64 Chapter 4 Maintenance and Service Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 65 For the cleaning procedure, see this Chapter 2. HOW TO CLEAN PARTS . Level User Service Technician Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Consumable When INK tank When ink in the ink tank being used has run out.

  • Page 66: Periodic Inspection

    SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 1.3 Periodic Inspection None 1.4 Periodic Replacement Parts None 1.5 Adjustment Items The following adjustments must be made on this fax. For the adjustment procedure, see this Chapter 3. ADJUSTMENT. Item CS LED lights-on duration...
  • Page 67 1.7 Special Tools Tool Grease (FLOIL 946P) Grease (EMD-110) Grease (PG-641) Grease (IF-20) Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Removing/inserting screws Removing/inserting screws Removing/inserting screws Removing plastic tabs Removing coil spring...
  • Page 68 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 2. HOW TO CLEAN PARTS 2.1 Main Unit Outer Covers Wipe with a dry, soft cloth. 2.2 Document Glass Open the pressure plate, and wipe with a dry soft cloth. 2.3 Printer Platen Open the inner cover, and wipe with a cloth moistened with a little water.
  • Page 69 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Document glass Platen Figure 4-1 Cleaning Location Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...

  • Page 70: Cs Led Lights-On Duration Adjustment

    SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 3. ADJUSTMENT 3.1 CS LED Lights-on Duration Adjustment a) Overview This adjustment is used to eliminate uneven scanning which can result from variations in light intensity between individual LED’s. Performing the adjustment will therefore have an effect on scanned and copied images.
  • Page 71 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 3.2 When Adjustment of the Print Head Position is Required a) Overview When replacing the print heads, the point of ink ejection may be off, preventing clean characters, depending on the state in which BJ cartridge is installed. In order to eliminate this drift, it is necessary to adjust the head position after attaching the BJ cartridge.
  • Page 72 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Display 7.MAINTENANCE by Menu pressing menu button. Display ALIGN PRINT HEAD by pressing button. HORIZ. PATTERN PRINTING... For the printed A pattern, use button to select the Value of the mostuniform pattern.

  • Page 73: Troubleshooting Index

    The half-tone image contains black dots. The color or brightness of the scanned image is not normal. • Memory card error • The card is not recognized. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service...
  • Page 74 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 4.2 Errors Shown on the Display 4.2.1 User error message Look for the applicable error message and execute the appropriate countermeasures. "BLACK INK LOW" Cause: The ink level in the black ink tank is low.
  • Page 75 NOTE error message is displayed. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Carriage movement prevented by one of the following. Damaged shaft. Parts deformed. (Carriage or guide frame) Insufficient grease.
  • Page 76 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service "CHECK PAPER SIZE" Cause: The size of the paper in the multi-purpose tray and that specified in the paper size setting are different. Solution: Load the correct paper size of change the paper size setting. Then press the Resume button.
  • Page 77 Cause: Solution: (2) Replace the cartridge. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 The printhead is hot. Wait until the message disappears. The waste ink tank is nearly full. If the message “Check Printer” has appeared, replace the ink absorbent by referring to the instructions under ##343 (cause and action under d) of 4.2.2...
  • Page 78 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 4.2.2 Error codes a) Service error code output If bit4 of service data #1 SSSW SW01 is set to ‘1’, an appropriate service error code will be indicated as follows in response to an error.
  • Page 79 Ink absorber for ink detection has become full ##345 BJ cartridge head cleaning error ##346 Inside temperature error ##352 Printer control EEPROM head information error Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 4-15...
  • Page 80 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service d) New error codes and recovery methods Those error codes that have been added starting with the product and those error codes for which remedies unique to the product are offered are shown together with causes and remedies, where applicable.
  • Page 81 (2) Check the connection between the Operation panel unit and SPCNT board (JPANEL1). (3) Replace the Operation panel unit. (4) Replace the SPCNT board. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 4-17...

  • Page 82: Printing Problems

    SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 4.3.2 Printing problems • Faulty printing • The paper is not fed properly. The Paper feed motor does not run. (1) Check the connection from the paper feed motor to the sensor board (J104).
  • Page 83 (5) Check the connection of the carriage ribbon cable and the SPCNT board. (JHEAD0, JHEAD1) (6) Replace the carriage unit. (7) Replace the SPCNT board. (8) Replace the purge unit. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Missing dots Unstable printing Splashed dots Figure 4-6 Defective Pattern (Sample) 4-19 Chapter 4: Maintenance &...
  • Page 84 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 4.3.3 Scanning problems • Faulty scanning Contact sensor drive motor does not run. (1) Check the connection of the contact sensor drive motor and SPCNT board(JRMTR1) (2) Replace the contact sensor drive motor.
  • Page 85 Cover sensor fails to operate properly. (1) Check whether the actuator of cover sensor is in correct position. (2) Replace the SPCNT board. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 4-21...

  • Page 86: Hardware Switches

    SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 5. SERVICE SWITCHES 5.1 Hardware Switches There is no service hardware switch on the Circuit board. 5.2 Service Data Setting Service data can be checked and changed with items on display menus. The default values of the SSSW/ parameters available in this fax machine are shown in this Chapter, 5.2.3 Service data setting in this...
  • Page 87 #3 NUMERIC Param. (4)Data registration Press the Stop/Reset buttom to return to standby. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Standbay(Copy mode) Press the menu button. Press the Copier, Scanner, Copier, and Copier buttons in sequence.

  • Page 88: Service Data Setting

    SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 5.2.3 Service data setting Service data #1 SSSW SW01 ( Service soft switch setting ) Scan SW50 Photo print #2 MENU (Menu switch setting) #3 NUMERIC Param. (Numeric parameter setting) #4 NCU...
  • Page 89 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 1. SSSW Not used 01: 18 Not used 2.
  • Page 90 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service #8 CLEAR (Data initialization mode settings) WLD-XX-XX #9 ROM (ROM management) TEST MODE If USER SW is selected from #8 CLEAR, the memory management of the user data is not cleared. If TEL or SERVICE SW is selected, the memory management of the user data is cleared.
  • Page 91 Copy function ##300 series service error code Not used Not used User setting restriction Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 SW01 Figure 4-11 Bit Switch Display Indicates that the setting is "1". Output Output...

  • Page 92: New Sssws/Parameters Added To This Model

    SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 5.2.5 New SSSWs/parameters added to this model #7 PRINTER (printer function settings) 2. NUMERIC PARAM. Function Trailing edge margin [Parameter 05] Sets the print image trailing edge margin. 5. INK ABS CAPA This switch allows the waste ink capacity stored in the SPCNT board to be checked or entered.
  • Page 93 Menu button until 7. Maintenance is indicated; then, select Printer Nozzle Check using the < / > button, and press the OK button. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Figure 4-13 Nozzle Check Pattern Print 4-29...
  • Page 94 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 6.2 Service Test Functions The fax functions for testing individual operations, such as below. See this chapter 5.2.2 Service data registration/setting method for details of entering the test mode. To leave the test mode, press the Stop/Reset button, and then ON/OFF button.
  • Page 95 [6] FACULTY TEST * [7] DATA SET * [8] PRINTER TEST Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service '*' indicates that these are not used in the field. [1] ADJ LEDTIME...
  • Page 96 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 6.2.3 D-RAM tests Pressing the < /> button from the test mode menu selects the D-RAM tests. D-RAM Test 1 writes data to the entire D-RAM region and reads it out to check that operations are correct. D-RAM Test 2 just reads data at high speed.
  • Page 97 NOTE Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Overview Test whether the sensors are operating correctly.
  • Page 98 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 6-3: SENSOR - 6 - 3 - 1 + Select the "6-3-1", and press the set button. DS of DES of DOC A4 DS: Document sensor on/of: document/no document DOC: Document wide sensor (DS, DES, and DOC these sensors are not in this machine) Select the "6-3-3", and press the set button.
  • Page 99 In this test, you press the button corresponding to the displayed character to put it out. The table giving the correspondence between the characters and the buttons is below. Character Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Operation button Character ON/OFF button...
  • Page 100 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service 6-7: PANEL 6-7: PANEL LED TEST WCNPM-S+RL Press the Stop/Reset button to end the test. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Press the Start button H pattern display Press the Start button...
  • Page 101 2. System dump list 3. System data list & System dump list Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Operations In the service mode, and select SERVICE REPORTS using the </>...
  • Page 102 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service a-1) System data list This list shows service data #1~#5, #7, #9 setting statuses. The following is a sample list. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Figure 4-18 System Data List (1/7)
  • Page 103 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Figure 4-19 System Data List (2/7) 4-39 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 104 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Figure 4-20 System Data List (3/7) 4-40 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 105 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Figure 4-21 System Data List (4/7) 4-41 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 106 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Figure 4-22 System Data List (5/7) 4-42 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 107 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Figure 4-23 System Data List (6/7) 4-43 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 108 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Figure 4-24 System Data List (7/7) 4-44...
  • Page 109 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service a-2) System dump list This list shows the past communications statuses and error communications history. The following is a sample list. Figure 4-25 System Dump List 4-45 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 110 SmartBase MPC200/imageCLASS MPC200 Chapter 4: Maintenance & Service CLEAR DATE RX/TX A4/B4/A3/LTR/LGL 33600 bps~2400 bps STD/FINE/SUPER/ULTRA MH/MR/MMR/JBIG/JPEG G3/ECM PRINT/READ [Display example] PRINT = 30*/100** READ = 30*/100** * Indicates the value input with Service Data #8 CLEAR, COUNTER. ** Indicates the value counted since shipment from the factory.

  • Page 111: Wiring Diagram

    Power supply unit Carriage unit Purge sensor Carriage motor J105 1--4 Purge motor Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 1--5 SPCNT board 1--5 JCARD1 Flat cable 4--1 JRMTR1 JHEAD0 1-----------27 JHEAD1 1-----------27...
  • Page 112 Chapter 5 Appendix Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 113 RAM. During installation, we recommend that you per- form the all clear operation after the power on. Refer to NOTE: “ALL clear” when nothing works on Page 3-3 . Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 Chapter 5: Appendix...
  • Page 114 SmartBase MPC200/imageCLASS MPC200 Chapter 5: Appendix 2. USER DATA FLOW 2.1 User Data Flow (by Operation Panel) 2.1.1 Copy menu settings Press the copy buttom, and press the menu buttom 1.ENLARGE/REDUCE 2.PAPER SELECT 3.DENSITY 4.IMAGE QUALTY Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com PRESET RAITO 400% MAX.
  • Page 115 5.SPECIAL COPY Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 2 ON 1 SIZE BORDERLESS COPY TYPE IMAGE REPEAT...
  • Page 116 SmartBase MPC200/imageCLASS MPC200 Chapter 5: Appendix 6.INK VOLUME 7.MAINTENANCE 8.USER DATA Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com NOZZLE CHECK HEAD CLEANING HEAD REFRESHING ALIGN PRINT HEAD ROLLER CLEANING LOW INK WARNING INK COUNT RESET QUIET MODE SMALL...
  • Page 117 2.1.2 Scan menu setting Press the scan buttom, and press the menu buttom 1.INK VOLUME 2.MAINTENANCE 3.USER DATA Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 NOZZLE CHECK HARD CLEANING HEAD REFRESHING ALIGN PRINT HEAD ROLLER CLEANING...
  • Page 118 SmartBase MPC200/imageCLASS MPC200 Chapter 5: Appendix 2.1.3 Phot print menu settings Press the Phot Print buttom, and press the menu buttom 1.PHOTO PRINT MODE Figure 5-5 Photo print Menu Settings (1/3) Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 119 2.VIVID PHOT PRINT 3.PHOTO PRINT DATE Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com SmartBase MPC200/imageCLASS MPC200 FIRST FILE FRAME RANGE LAST FILE SELECT PAPER SIZE SELECT PAPER TYPE BORDERLESS PRINT DPOF SELECT PAPER SIZE SERECT PAPER TYPE BORDERLESS PRINT...
  • Page 120 SmartBase MPC200/imageCLASS MPC200 Chapter 5: Appendix 4.INK VOLUME 5.MAINTENANCE 6.USER DATA Figure 5-7 Photo print Menu Settings (3/3) Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com NOZZLE CHECK HEAD CLEANING HEAD REFRESHING ALIGN PRINT HEAD ROLLER CLEANING LOW INK WARNING...
  • Page 121 Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
  • Page 122 0902 IP CANON INC. Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com Download Free Service Manual And Resetter Printer at http://printer1.blogspot.com...
