Package Contents
1. Display unit with tabletop stand
2. Power adapter
3. Instruction Manual
This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be
operational.
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

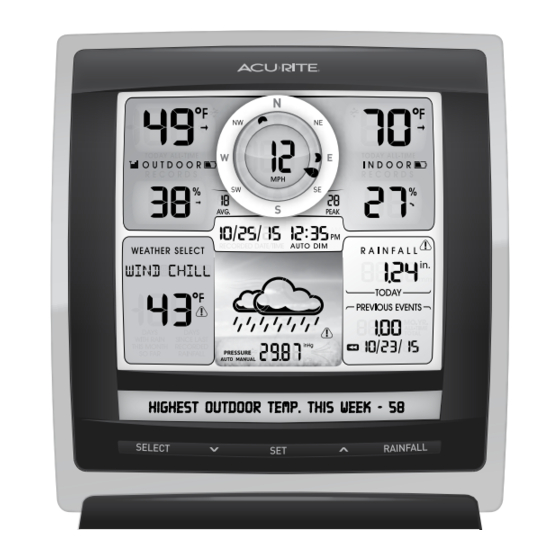

Display for 5-in-1 Weather Sensor
Contact Customer Support at
Instruction Manual
model 06016RM
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
►
Register a Product
Advertisement
Table of Contents
Related Manuals for ACU-RITE 06016RM
Summary of Contents for ACU-RITE 06016RM
- Page 1 Instruction Manual Display for 5-in-1 Weather Sensor model 06016RM Package Contents 1. Display unit with tabletop stand 2. Power adapter 3. Instruction Manual This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be operational. IMPORTANT PRODUCT MUST BE REGISTERED...
- Page 2 Features & Benefits Display Unit...
- Page 3 1. Previous 2 Wind Directions 20. SELECT Button Press to change the WEATHER 2. Current Wind Speed SELECT category data being 3. Current Wind Direction displayed. 4. Current Indoor Temperature 21. Weather Ticker Arrow icon indicates direction 22. Heat Index/ Wind Chill Alert temperature is trending.
- Page 4 BACK OF DISPLAY UNIT 1. Integrated Hang Hole for easy wall mounting. 2. Backlight Button Dimmer control while using power adapter. Activates momentary 6. A-B-C Switch backlight while on battery power. ID code that must match 5-in-1 3. Plug-in for Power Adapter sensor’s A-B-C switch to ensure units synchronize.
-
Page 5: Display Unit Setup
Display Unit Setup AcuRite recommends high quality alkaline batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended. Set the A-B-C Switch Plug Power Adapter into Electrical Outlet The A-B-C switch is located inside the battery compartment. It can be set to A, B or C. -
Page 6: Set The Time, Date & Units
Set the Time, Date & Units Press the “ SE T ” button, located on the front of the display unit, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “... -
Page 7: Weather Forecast
OPERATION Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and the sensor are critical to the accuracy and performance of this product. Display Unit Placement Place the display unit in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. -
Page 8: Barometric Pressure
Barometric Pressure Subtle variations in barometric pressure greatly affect the weather. This weather center displays the current pressure with an arrow icon to indicate the direction the pressure is trending (FALLING, STEADY, or RISING). Rainfall Tracking This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is recorded for today, over all-time, by year, by month, and by rainfall event. - Page 9 Weather Ticker ™ The Weather Ticker automatically flashes your real-time weather information and alerts as text in the lower part of the display unit screen. The possible WEATHER TICKER messages are as follows: HEAT INDEX-XX WINDCHILL-XX DEW POINT-XX IT FEELS LIKE XX OUTSIDE 7 DAY HIGH TEMP. XX- MM/DD 7 DAY LOW TEMP.
-
Page 10: Troubleshooting
Troubleshooting Problem Possible Solution • Make sure both the display unit and 5-in-1 sensor are placed away from any heat sources or vents (see page 7). Inaccurate • Make sure both units are positioned away from moisture sources (see page 7). temperature or humidity •... -
Page 11: Care And Maintenance
Care & Maintenance Display Unit Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. Calibration The indoor / outdoor temperature and humidity readings, and barometric pressure can be calibrated on the display unit to improve accuracy. - Page 12 4. A few seconds after each bucket tip, the display unit displays rainfall in approximately 0.01” or more increments. 5. The cup of water should take more than 20 minutes to empty; a quicker period will result in inaccurate calibration. Try to simulate a normal steady rainfall. When cup is empty of water, display unit should register 1.06”...
-
Page 13: Specifications
Specifications TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC Indoor: 32ºF to 122ºF; 0ºC to 50ºC HUMIDITY RANGE Outdoor: 1% to 99% Indoor: 1% to 99% WIND SPEED 0 to 99 mph; 0 to 159 kph WIND DIRECTION 16 points INDICATORS RAINFALL 0 to 393 in;... -
Page 14: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 info@chaney-inst.com AcuRite 24/7 support at www. .com Installation Videos Register your Product... - Page 16 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 06016RM INST 072915 Visit www.AcuRite.com/patents for details.
- Page 17 Instruction Manual 5-in-1 PRO+ Weather Sensor model 06014 Package Contents 1. 5-in-1 PRO+ Weather Sensor 2. Mounting Hardware 3. Sensor Mounting Bracket 4. Instruction Manual IMPORTANT PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE PRODUCT REGISTRATION Register online to receive 1 year warranty protection www.AcuRite.com Questions? Contact Customer Support at...
-
Page 18: Features And Benefits
Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9. - Page 19 SETUP 5-in-1 Sensor Setup Set the A-B-C Switch The 5-in-1 sensor requires lithium Locate the A-B-C switch inside the batteries in low temperature battery compartment. Set the A-B-C conditions. Cold temperatures can switch to A, B or C. You must select cause alkaline batteries to function the same letter choice for both the improperly.
-
Page 20: View Video
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. 5-in-1 Sensor Placement The 5-in-1 sensor is designed to remain outdoors all year long. Choose an open location with no obstructions above or around the sensor for the most accurate measurements. - Page 21 5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4”...
- Page 22 Calibrate the Rain Gauge The rain gauge on the 5-in-1 sensor can be calibrated to improve accuracy. Items Needed: 5-in-1 sensor, companion unit, plastic cup, pin, screw driver 1. First, ensure 5-in-1 sensor is perfectly level using built-in bubble level. 2.
-
Page 23: Limited 1-Year Warranty
FCC Information This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: 1- This device may NOT cause harmful interference, and 2- This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 24 Weather Temperature Weather Kitchen Clocks Stations & Humidity Alert Radio Thermometers & Timers It’s More than Accurate, it’s AcuRite offers an extensive assortment of precision instruments, designed to provide you with information you can depend on to Plan your day with confidence ™ www.AcuRite.com ©Chaney Instrument Co.
