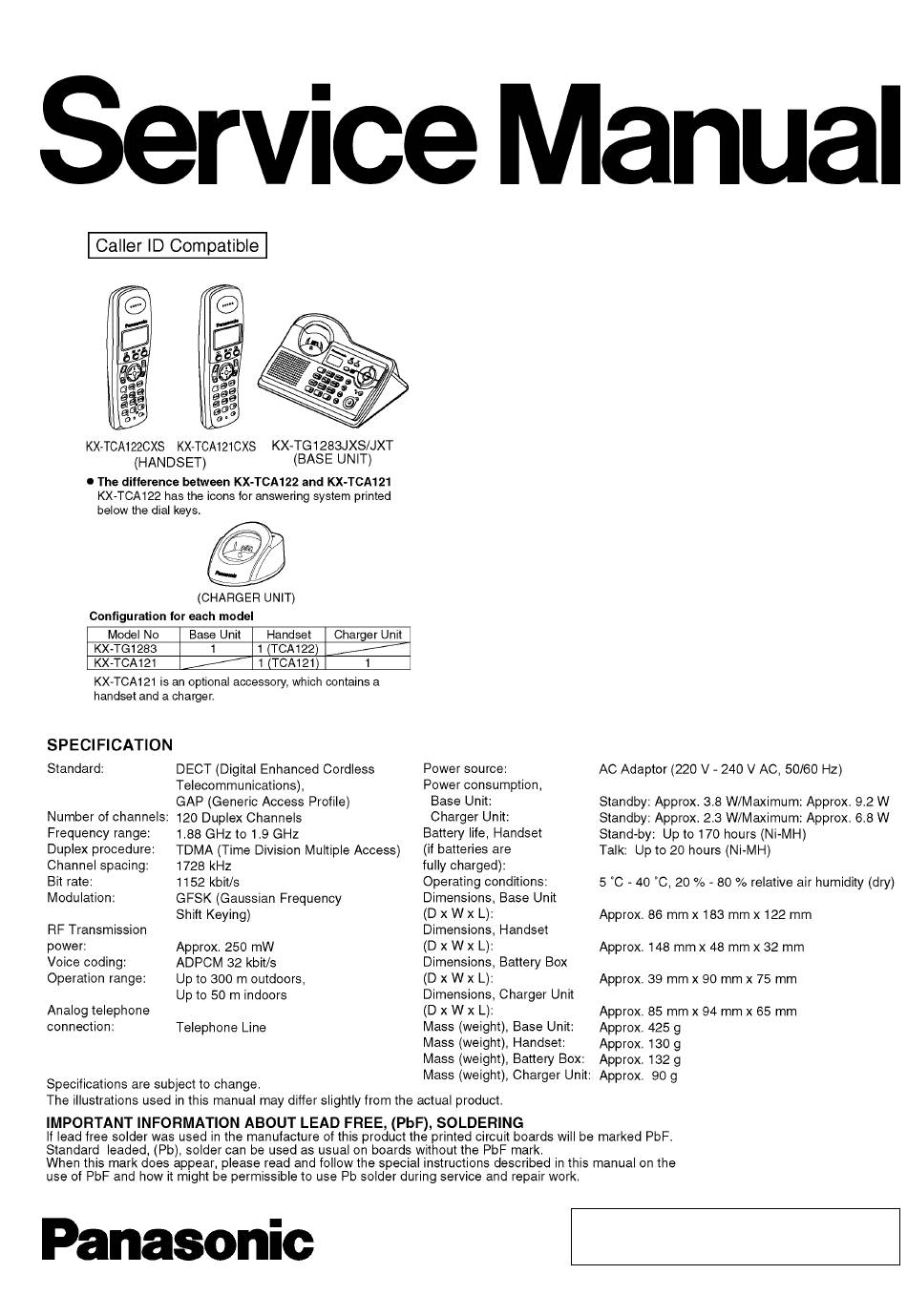

Panasonic KX-TG1283JXS Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Telephone Equipment
KX-TG1283JXS
KX-TG1283JXT
KX-TCA122CXS
KX-TCA122CXT
KX-TCA121CXS
KX-TCA121CXT
Digital Cordless Answering System
Silver Version
Titanium Black Version
(for Middle East)
