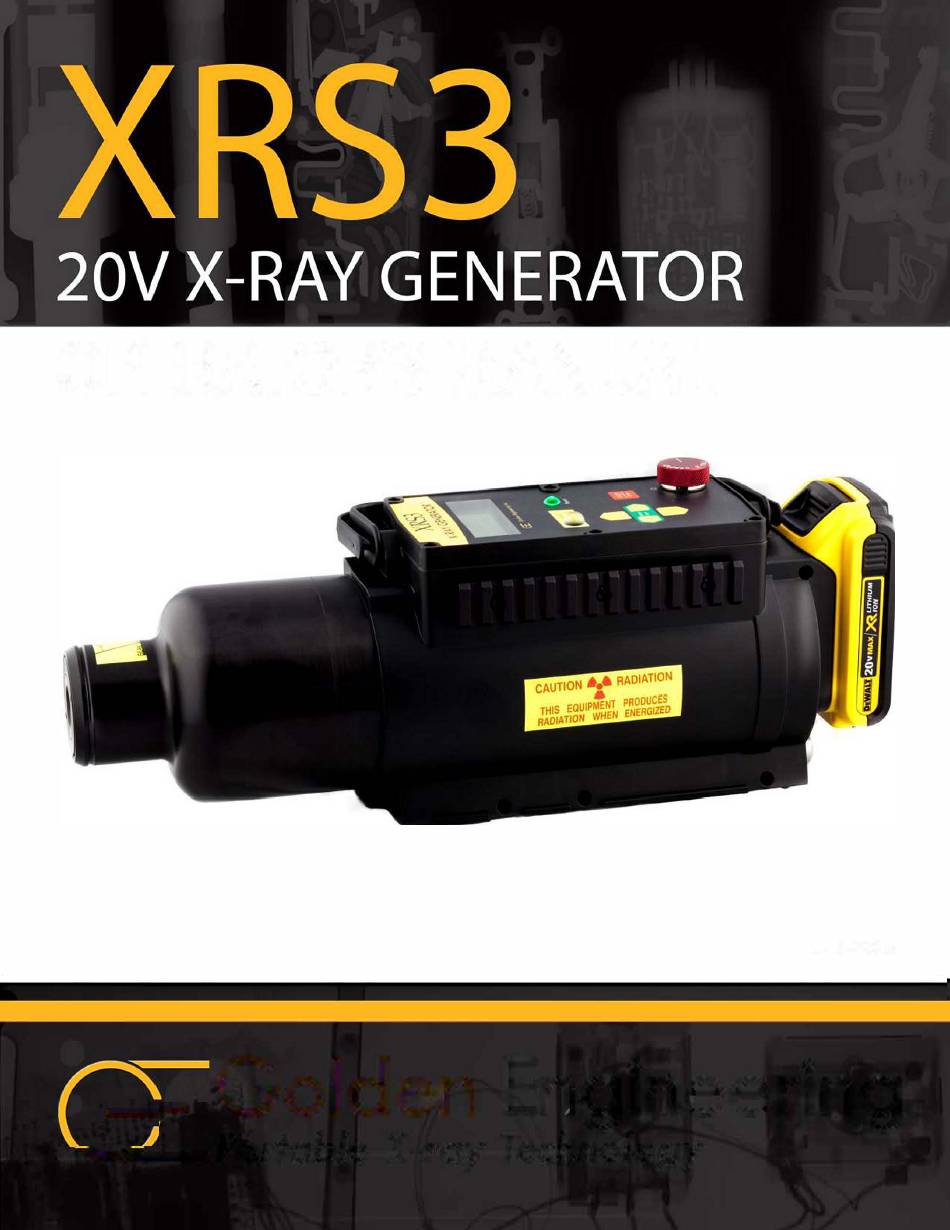

- Page 1 OPERATOR'S MANUAL MARCH 2018 Golden Engineering X-ray �-Portable Technology...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE 1.0 INTRODUCTION 2.0 WARNINGS DUTY CYCLE STORAGE 3.0 PHYSICAL DESCRIPTION HIGH VOLTAGE PULSER/TUBEHEAD BASE BATTERY PACK BATTERY CHARGER 3.5 CONTROL MODULE CABLE CONNECTOR DIAGRAM 4.0 DESCRIPTION OF OPERATION BLOCK DIAGRAM 5.0 OPERATING INSTRUCTIONS OPERATING PRECAUTIONS EXCLUSION ZONE PULSE SETTINGS 6.0 NAVIGATING THE MENU 7.0 MAINTENANCE... -
Page 3: Introduction
WARNINGS and OPERATING INSTRUCTIONS sections of the manual before operating the device. The XRS3 is a small, lightweight X-ray generator that operates on its own removable battery pack. The XRS3 is a pulsed X-ray device that produces X-ray pulses of very short duration (25 nanoseconds). It produces a relatively low dose rate comparable to a 0.25 ma constant potential machine. -
Page 4: Physical Description
X-ray beam to 40 degrees. Special order collimators up to 85 degrees are available. BASE. The base of the XRS3 contains an identi cation label and a ¼-20 brass insert compatible with standard camera tripods. The base also accommodates a quick release external tripod mount. -
Page 5: Control Module
RED X-RAY PULSING LIGHT: Blinks after time delay button or remote cable button is pressed to warn that the XRS3 is going to pulse. The light stays on continuously while the XRS3 is pulsing. This is a failsafe warning light. If the light does not work the X-ray unit will not pulse. -
Page 6: Cable Connector Diagram
XRS3 REAR VIEW/CABLE CONNECTOR CABLE CONNECTOR: Lemo “K” series ve pin connector located on the back of the control module beneath the battery receives the remote cable or imaging system cable. PIN # DESCRIPTION +5 VOLTS 100 ma MAXIMUM REMOTE SWITCH... -
Page 7: Description Of Operation
4.0 DESCRIPTION OF OPERATION The block diagram below illustrates how the XRS3 functions. The following sequence of events takes place each time the XRS3 is red: 1. User initiates operation of the machine. 2. The control section sends a signal to the converter section to begin oscillating. -
Page 8: Operating Instructions
5.0 OPERATING INSTRUCTIONS The following are basic operation instructions to take an X-ray image using the XRS3. Certain applications may require modi cations to these basic procedures. -
Page 9: Operating Precautions
*XRS3 should be positioned directly in front of the object to be X-rayed and the imager placed directly behind the object to be X-rayed. Imager should be placed as close to the object as possible. Distance between XRS3 and imager is usually 24 to 72 inches (30 to 180 cm). During operation XR200 should be stabilized on a at surface, a tripod, or a custom xture suitable for holding the 11 pound (5 Kg) XRS3. -
Page 10: Navigating The Menu
If the radiograph is too light the lm is overexposed. Underexposure can be corrected by increasing the number of pulses and/or decreasing the distance between the imaging medium and the XRS3. Overexposure can be corrected by reducing the number of pulses and/or increasing the distance between the imaging medium and XRS3. - Page 11 >HOME MENU PRESETS PULSES: _ _ _ _ DELAY: _ _ _ _ HOME >MENU PRESETS SET PULSE LIFE PC SET DELAY RESET PC TRAINS SETTINGS HOME - MENU PRESETS SET PULSE COUNT >SET PULSE LIFE PC _ _ _ PULSES SET DELAY RESET PC TRAINS...
-
Page 12: Maintenance
TUBE REPLACEMENT: If you have a tube replacement kit refer to instructional disk included with the kit. If you do not have a kit the unit must be sent back to Golden Engineering or an Authorized Distributor for tube replacement. -
Page 13: Instructions For Service
9.0 INSTRUCTIONS FOR SERVICE INSTRUCTIONS TO REMOVE THE BOARDS AND THE HEAD. 1. Use T10 Torx driver to remove 6 screws holing control module in place. 2. Remove the control module. 3. Remove cable connecting the boards. 4. Control Module Removed Remove keyswitch connector Remove processor board. -
Page 14: Battery Disposal
10.0 WARRANTY Golden Engineering, Inc. warrants XRS3 X-ray unit made and sold by it or its authorized representatives to be free of defects in materials and workmanship for a period of twelve (12) months from the date of shipment to the end user. -
Page 15: Specifications
Airborne Noise Emissions 80 dB at 10 cm Maximum duty cycle 200 pulses every 4 minutes (3000 pulses per hour) Warm-up None required 12.0 SPARE PARTS AND ACCESSORIES FOR THE XRS3 IITEM PART NUMBER Thumbwheel Key 2002000 Flat key 5951020 DeWalt®...
Need help?
Do you have a question about the XRS3 and is the answer not in the manual?
Questions and answers

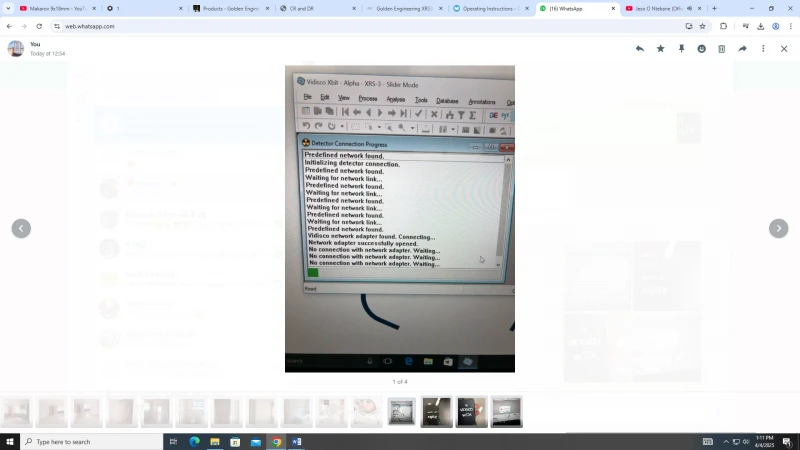

Good day Need help on my X-ray XRS3 Giving an error unable to connect to imager Error Code 47
