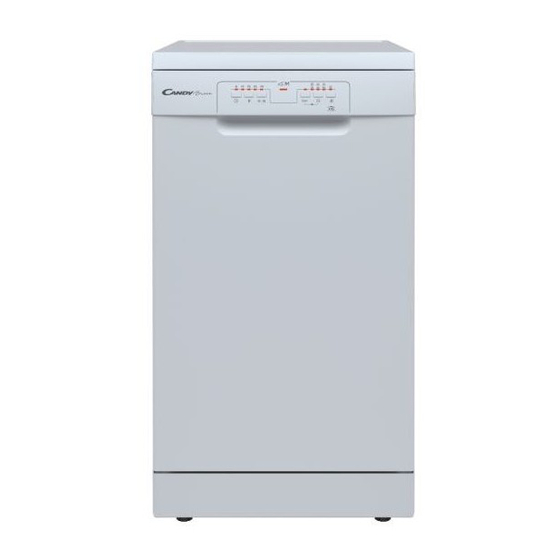

Candy CDPH 2L1049W User Manual
  1. Manuals
  2. Brands
  3. Candy Manuals
  4. Dishwasher
  5. CDPH 2L1049W
  6. User manual

Candy CDPH 2L1049W User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
Dishwasher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPH 2L1049W and is the answer not in the manual?

Questions and answers

Related Manuals for Candy CDPH 2L1049W

Summary of Contents for Candy CDPH 2L1049W

  • Page 1 User Manual Dishwasher...

  • Page 2: Table Of Contents

    Thank you for purchasing a Candy product Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

  • Page 3: Safety And Warnings

    Safety and warnings Your dishwasher has been carefully designed to operate safely during normal dishwashing procedures. Please keep the following instructions in mind when you are using your dishwasher. WARNING Electrical shock hazard Before installing the dishwasher, remove the house fuse or open the circuit breaker. This appliance must be earthed.
  • Page 4 safety and warnings ● Use only detergents or rinse aid recommended for use in a domestic dishwasher and keep them out of reach of children. ● Check that the detergent dispenser is empty after the completion of each wash program. ●...
  • Page 5 safety and warnings ● Keep the area around/underneath your appliance free from the accumulation of combustible materials, such as lint, paper, rags and chemicals. Operational safety instructions ● Open the door very carefully if the dishwasher is in operation. There is a risk of being sprayed with hot water.

  • Page 6: Installation Instructions

    Installation instructions Parts supplied Drain hose Inlet hose (1) Installation and Salt funnel(1) support (1) User Instructions Prior to installation Unpacking and handling ● Check packaging and dishwasher for signs of transport damage. If the dishwasher is in any way damaged, do not install it. Contact the dealer the dishwasher was purchased from.
  • Page 7 Installation instructions Product dimensions...
  • Page 8 Installation instructions Overall height of product with top panel in place 846 - 866** with top panel removed* 816 - 836** l l a l l a Depth of open door 1185 (measured from front of kickstrip) Inside height of cavity with top panel in place 850 - 870** with top panel removed*...
  • Page 9 Installation instructions Cavity preparation Preparing the product and cabinetry The top panel may be removed to suit underbench cavity height. See the illustrations below. Unscrew the top panel at the rear either side Slide backward (2) 20-30mm, then lift off (3)
  • Page 10 Installation instructions IMPORTANT! To prevent possible steam damage to the cabinetry, ensure that any bare wood surrounding the dishwasher is sealed with an oil-based paint or moisture-proof polyurethane. IMPORTANT! The power outlet must be located cabinet adjacent to the dishwasher cavity.
  • Page 11 Installation instructions Plumbing and drainage options. Determine which is more suitable Dishwasher and Ø 38 mm Standpipe If space is limited for fixing, push hose through drain hose support to required height 38mm step 4 min. radius 200 mm...
  • Page 12 Installation instructions Dishwasher using drain hose joiner onto sink trap/waste tee Installer to provide drain hose joiner to suit If space is limited min. 15mm waste tee for fixing, push hose through drain hose support to required height step 4 min.
  • Page 13 Installation instructions Connect inlet hose to cold water min. 10mm 3/4” BSP connector Ensure the supplied rubber No leaks! washer is fitted inside the coupling. Tighten coupling with spanner. Plumbing -- Water inlet connection IMPORTANT! The appliance should be connected to the water main using the new water ●...
  • Page 14 Installation instructions Plug product in Electrical connection The dishwasher must not be connected to the electrical supply while installation is ● being carried out. Ensure all domestic wiring is properly earthed. Check the rating label (located on the left-hand side of the dishwasher’s stainless ●...
  • Page 15 Installation instructions Final checklist To be completed by the installer Check all parts are installed. ● Ensure that all panels and parts thereof are secure and final electrical tests have ● been conducted in accordance with local electrical regulations. Check that the dishwasher is level. If necessary, adjust the levelling feet slightly. ●...

  • Page 16: Product Description

    Product Description Rating label Upper basket Detergent dispenser Upper spray arm Rinse aid dispenser Lower spray arm Salt container Cutlery basket Lower basket Filters...

  • Page 17: Overview Of Programmes

    Overview of programmes On some models without Digital 1. ON / OFF button 7. Rinse Aid indicator PROGRAMME SELECT button PROGRAMME indicator Lack Salt and Rinse Aid reset button Additional function indicator Additional function button START DELAY/Status Indicators START DELAY button Salt Aid indicator Child Lock START / RESET button...
  • Page 18 Overview of programmes On some models with Digital 1. ON / OFF button 7. Time & Info Display PROGRAMME SELECT button Speed Up function Indicator START DELAY button Multi-tab function Indicator Additional function button Add dish Indicator/1/2 function Indicator Child Lock Lack Salt and Rinse Aid reset button START / RESET button Exp ：...
  • Page 19 Overview of programmes Programmes Programmes Type of food residue Type of load 50°C 298min Universal 60°C 115min Intensive 70°C 130min Prewash 45°C 20min Zoom 45°C 32min Models with Digit also have the following programs: Special 45°C 72min Glass 45°C 98min AUTO WASH 45-70°C 148min...

  • Page 20: Water Softening System

    Water softening system To ensure good washing results,the dishwasher requires soft water.Hard water can be detrimental to the performance of your dishwasher. Over time,glassware washed in hard water will become opaque and dishes will become spotted or covered in a white film.
  • Page 21 Water softening system Using special salt As soon as the low salt indicator is lit on the control panel ,salt should be topped up.Always refill with special salt immediately before switching on the appliance.This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.

  • Page 22: Using Rinse Aid

    Using rinse aid We highly recommend using liquid rinse aid regularly to get the best drying results.Rinse aid gives a streak-free, sparkling clean look to glass and chinaware. In addition, it prevents metal from tarnishing. When to refill the rinse aid dispenser When rinse aid level becomes low,the digtial will scrolling display ADD RINSE AID to remind you to refill the dispenser.

  • Page 23: Utensils

    Utensils IMPORTANT! Never put highly absorbent materials, such as sponges and towels in your dishwasher.Do not put dishes or cutlery that have been soiled by tobacco ash, wax, lubricating grease or paint in your dishwasher. Cutlery and silverware All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused by some foods.

  • Page 24: Loading Utensils

    Loading utensils If the tableware or cookware rack is burnt, scorched,sticky, and other food which is very difficult to removed, it is advisable to soak it for a period of time before washing it or pre-dispose it with a dish cloth or else it will be hard to clean.Remove any large food particles before placing dishes in the dishwasher.
  • Page 25 Loading utensils To adjust the upper rack: IMPORTANT! Before you adjust its height,make sure the basket is empty. Remove: Replace: End Cap Rollers Rail Rail Rollers 1.Fully extend the upper rack and rotate open the two plastic end caps on the front of the rails.
  • Page 26 Loading utensils Cutlery basket Mix spoons with other cutlery ► to prevent them to bond together. Use the grid element in order ► to separate the cutlery. Place Cutlery with ► handles down better washing results. If long items may block the ►...

  • Page 27: Adding Detergent

    Adding detergent IMPORTANT! Only use detergents recommended for automatic dishwashers. Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children and infirm persons away from the dishwasher when it is open. Check that the detergent dispenser is empty after completion of each wash programme.

  • Page 28: Before First Use

    Before first Use How to Adjust User Preference Settings for LED Models During the selection of programmes, press and hold for about 5 seconds to enter the user preference settings. User preference settings include Water Softener setting,Buzzer setting,Rinse Aid setting and Memo Mode setting. 1.The appliance is switched on.
  • Page 29 Before first Use How to Adjust User Preference Settings for DIGIT Models During the selection of programmes, press and hold the program selection key for 5S to enter the user setting mode.User setting mode includes Language setting, Water Softener setting, Buzzer setting,Rinse Aid setting and Memo Mode setting. 1.The appliance is switched on.

  • Page 30: Daily Use

    Daily Use Start a Programme 1. Open the door and Press the ON/OFF button to turn the dishwasher on. *The display will show the wash programme time 2.Press to select the program you want on the dishwasher control panel. 3. Press to start the programme and close the door.
  • Page 31 Daily Use Cancel a Delayed Start When the current reservation time is displayed for 24h,or other time. Press the reservation button again to cancel the reservation. Cancel Start Delay / Programme 1. Press the for about 3 second. The start delay is cancelled. The programme is aborted.

  • Page 32: Care And Cleaning

    Care and cleaning Over time, food residue or limescale deposits may accumulate inside your dishwasher.These may reduce efficiency, and food residue may produce a bad odour. Inspect and clean your dishwasher regularly. IMPORTANT ! Before any cleaning or maintenance, always disconnect the dishwasher from the ●...
  • Page 33 Care and cleaning To remove the drain filter, turn the filter anti-clockwise to release, then lift out. ● Once the drain filter has been removed you can lift the filter plate out. ● Rinse them thoroughly under running water and then replace. ●...
  • Page 34 Care and cleaning Cleaning the centre spray arm To remove the centre spray arm, carefully unscrew its locking nut. ● Rinse the spray arm thoroughly under running water, then refit. ● IMPORTANT ! Make sure you twist the locking nut on the centre spray arm firmly back on the water supply tube.Check that the centre spray arm is firmly locked in place and rotates freely.

  • Page 35: Troubleshooting

    Troubleshooting Many occuring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. CAUTION Before maintenance, deactivate the appliance and disconnect the mains plug from ●...
  • Page 36 Troubleshooting Error codes on the display Problem Possible cause Possible solution Open the water tap. Note: Whenever Error is Water tap is closed. s o l v e d s w i t c h o f f t h e appliance and restart the programm.
  • Page 37 Troubleshooting Washing Results are not satisfactory Problem Possible cause Possible solution Filters are clogged. Clean the filters. Make sure that the filters F i l t e r s a r e n o t c o r r e c t l y are correctly assembled and assembled and installed.
  • Page 38 Troubleshooting Problem Possible cause Possible solution Increase the released quantity Rinse aid dosage is too low. Dry water drop of rinse aid. stains on glasses Q u a l i t y o f r i n s e a i d o r Cleaning product too old;...

  • Page 39: Technical Data

    Technical Data Candy Suppliers name or trade mark Supplier´s model identifier CDPH 1L952W CDPH 1L952X CDPH 1L949W CDPH 1L949X Rated capacity in standard -place settings Energy efficiency class 1) Annual energy consumption (AEc) in kWh/year 2) Energy consumption (Et) of the 0.74...
  • Page 40 Technical Data Candy Suppliers name or trade mark Supplier´s model identifier CDPH 2L949W CDPH 2L949X CDPH 2L1049W CDPH 2L1047X Rated capacity in standard -place settings Energy efficiency class 1) Annual energy consumption (AEc) in kWh/year 2) Energy consumption (Et) of the 0.69...
  • Page 41 Technical Data Candy Suppliers name or trade mark Supplier´s model identifier CDPH 2D947W CDPH 2D947X Rated capacity in standard -place settings Energy efficiency class 1) Annual energy consumption (AEc) in kWh/year 2) Energy consumption (Et) of the 0.69 0.69 standard cleaning cycle in kWh...
