PRO225LM Hardware Manual
Lifting Instructions
This section applies only to stages equipped with lifting features. The lifting features should come attached
to the system and contain (QTY 4) eye bolts and (QTY 4) standoffs (see
threaded into the standoffs and the standoffs are threaded into the stage base. These must be removed for
the stage to operate. Retain the lifting hardware for future use.
If the stage must be lifted in the future, reattach the shipping brackets and the lifting hardware. If the stage is
part of a multi-axis system, attach the lifting features to the lower axis.
Eyebolt [QTY. 4]
Standoff [QTY. 4]

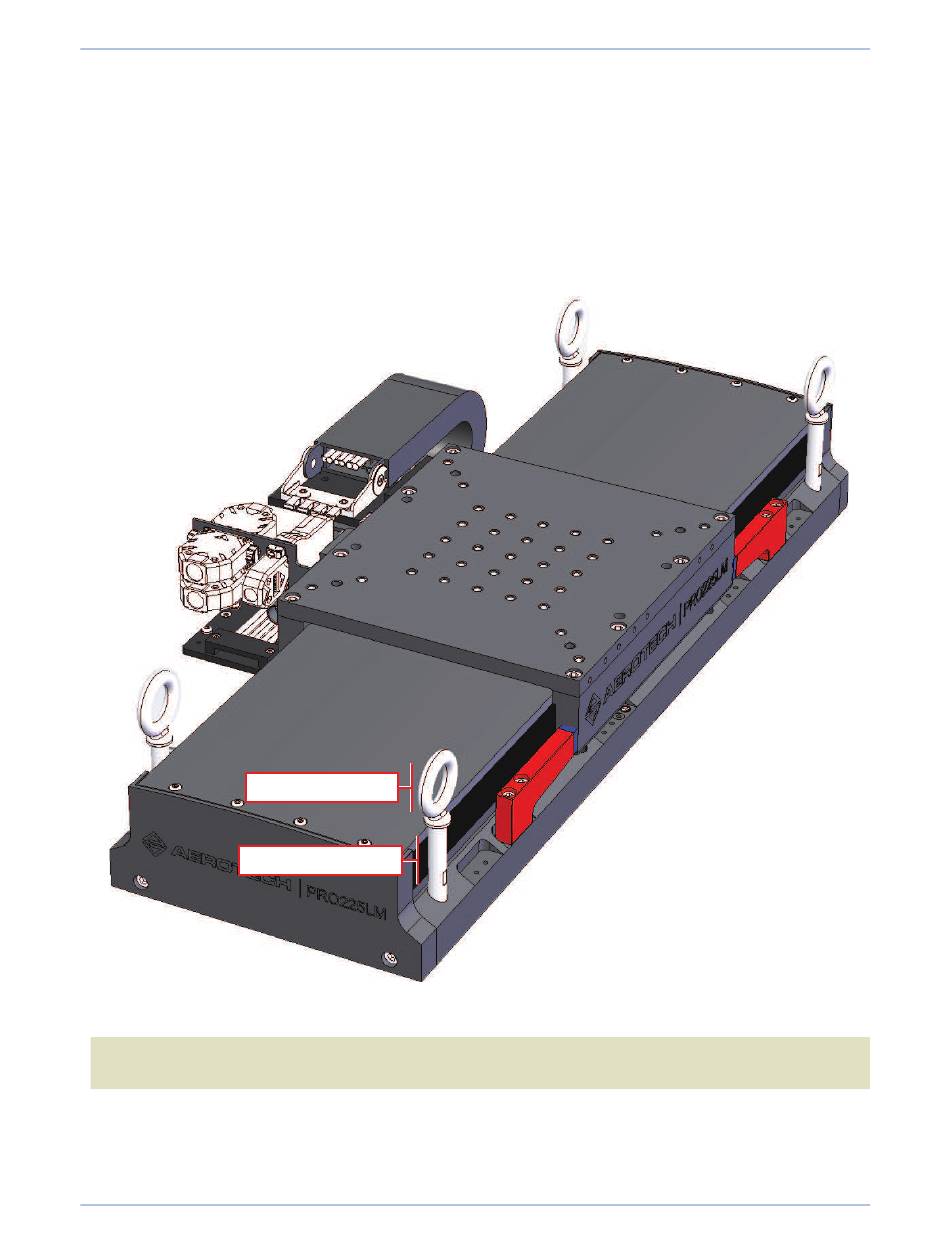

Figure 2-2:
N O T E : After removing the lifting features or shipping brackets, retain them for future use. Do not
transport or ship the PRO225LM without the lifting features or shipping brackets attached.
www.aerotech.com
Mechanical Specifications and Installation
PRO225LM Series Stage with Lifting Features
Chapter 2
Figure 2-2). The eyebolts are
19
