Fortinet FortiGate FortiGate-5020 Quick Start Manual

FortiGate-5020

QuickStart Guide

© Copyright 2004 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks or registered trademarks of their
respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
19 November 2004
For technical support please visit http://www.fortinet.com.
1

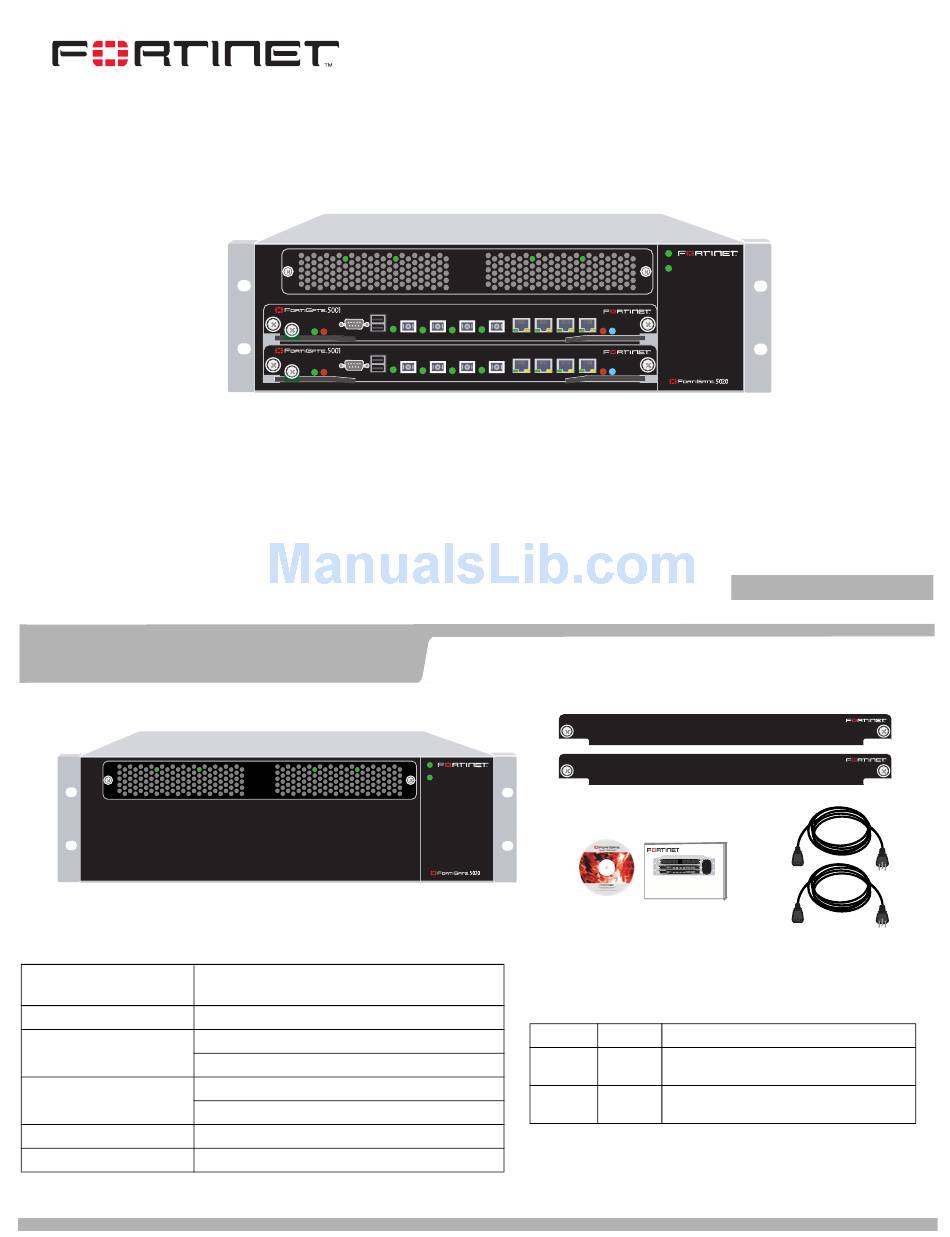

Checking the package contents
FortiGate-5020 Chassis
Dimensions 5.25 x 17 x 15.5 in. (13.3 x 43.2 x 39.4 cm)
(H x W x D)
Weight 35.5 lb. (16.1 kg)
Operating environment Temperature: -13 to 158 °F (-25 to 70°C)
Relative humidity: 5 to 95% (Non-condensing)
Storage environment Temperature: -20 to 80°C
Relative humidity: 5 to 95% (Non-condensing)
Power dissipation Maximum: 800 watts
Power supplies 2x redundant 100-240 VAC in, 48 VDC out
USB
1
CONSOLE
PWR ACC
USB
1
CONSOLE
PWR ACC
(Front View)
PSU A
PSU B
2 3 4 5 6 7 8
STA IPM
2 3 4 5 6 7 8
STA IPM
Check that the package contents are complete.
Documentation
(CD and QuickStart Guide)
LED State
PSU A Green
PSU B Green
PSU A
PSU B
01-28005-0043-20041119
Blank Faceplates (2)
FortiGate-5000
PSU A
PSU B
USB
CONSOLE 1 2 3 4 5 6 7 8
PWR ACC STA IPM
CONSOLE USB 1 2 3 4 5 6 7 8
PWR ACC STA IPM
QuickStart Guide
Copyright 2003 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Power
Cables (2)
Description
Power supply A is on and functioning
correctly.
Power supply B is on and functioning
correctly.
