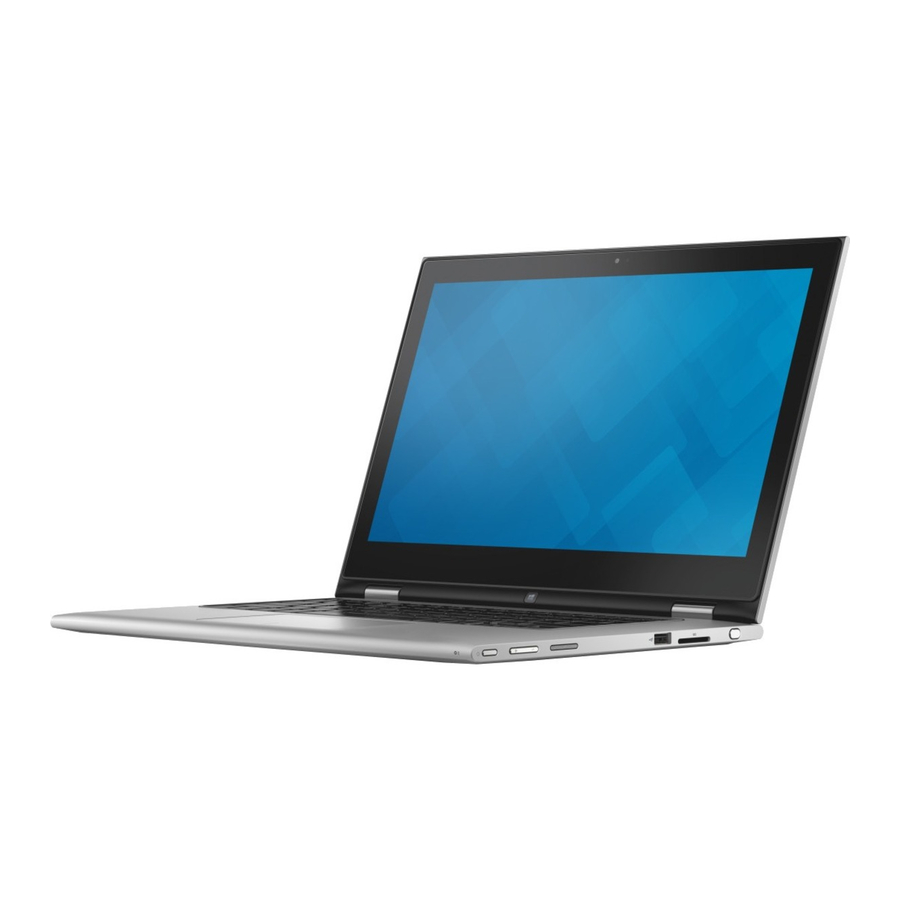

- Page 1 Inspiron 13 7000 Series 2-in-1 Setup and Specifications Computer Model: Inspiron 13-7368 Regulatory Model: P69G Regulatory Type: P69G001...
- Page 2 © 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
-
Page 3: Table Of Contents
Contents Set up your computer..............5 Views....................8 ........................8 Front ........................8 Left ........................9 Right ........................10 Base .......................11 Display ....................... 12 Modes ....................12 Notebook ......................12 Tablet ......................12 Stand ......................13 Tent... - Page 4 ................... 16 Media-card reader ......................16 Keyboard ......................17 Camera ......................17 Touch pad ....................17 Power adapter ......................18 Battery ......................18 Display ...................19 Computer environment Keyboard shortcuts..............20 Getting help and contacting Dell........... 22 ..................22 Self-help resources ....................22 Contacting Dell...
-
Page 5: Set Up Your Computer
Set up your computer Connect the power adapter and press the power button. - Page 6 Follow the instructions on the screen to finish Windows setup: a) Enable security and Dell updates. b) Connect to a wireless network. c) Sign-in to your Microsoft account or create a new account.
- Page 7 Explore Dell resources on your desktop. Register your computer Dell Help & Support SupportAssist — Check and update your computer...
-
Page 8: Views
Views Front Power and battery-status light/hard-drive activity light Indicates the battery-charge status or the hard-drive activity. NOTE: Press Fn+H to toggle this light between power and battery- status light and hard-drive activity light. Hard-drive activity light Turns on when the computer reads from or writes to the hard drive. Power and battery-status light Indicates the power and battery-charge status. -
Page 9: Right
Connect a power adapter to provide power to your computer and charge the battery. USB Type-C port Connect peripherals such as external storage devices, printers, external displays, and so on. Provides data transfer speeds up to 5 Gbps. Supports Power Delivery that allows two-way power supply between devices. -
Page 10: Base
Press and hold for 4 seconds to force shut-down the computer. NOTE: You can customize the power-button behavior in Power Options. For more information, see Me and My Dell at www.dell.com/support/manuals. Volume-control buttons Press to increase or decrease the volume. -
Page 11: Display
Right-click area Press to right-click. Display Left microphone Provides digital sound input for audio recording, voice calls, and so on. Infrared emitter Emits infrared light, which allows the infrared camera to sense depth and track motion. Infrared camera Allows you to video chat, capture photos, and record videos. Depth- sensing feature of the camera enhances security when paired with Windows Hello. -
Page 12: Modes
The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information. Modes Notebook Tablet Stand... -
Page 13: Tent
Tent... -
Page 14: Specifications
Specifications Dimensions and weight Height 18.70 mm (0.74 in) Width 322.40 mm (12.69 in) Depth 224 mm (8.82 in) Weight (maximum) 1.65 kg (3.64 lb) NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. System information Computer model Inspiron 13-7368... -
Page 15: Ports And Connectors
Ports and connectors External: • One USB Type-C port • One USB 2.0 port • One USB 3.0 port with PowerShare Audio/Video • One HDMI port • One headset (headphone and microphone combo) port Internal: M.2 Card One M.2 slot for SSD card Communications Wireless •... -
Page 16: Audio
Audio Controller Realtek ALC3253 with Waves MaxxAudio Pro Speakers Speaker Output • Average – 2 W • Peak – 2.5 W Microphone Digital-array microphones in camera assembly Volume controls Media-control shortcut keys and volume-control buttons Storage Interface SATA 6 Gbps Solid-state drive One M.2 drive Media-card reader... -
Page 17: Camera
NOTE: You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program. Keyboard shortcuts Camera Resolution • Still image: 0.92 megapixel • Video: 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Touch pad... -
Page 18: Battery
Battery Type 3-cell “smart” lithium-ion (43/56 WHr) Weight (maximum) 0.2 kg (0.44 lb) Voltage 11.40 VDC Operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Life span (approximate) 300 discharge/charge cycles Temperature range: 0°C to 35°C (32°F to 95°F) Operating Temperature range: –40°C to 65°C (–40°F to 149°F) -
Page 19: Computer Environment
Computer environment Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Operating Storage Temperature range 0°C to 35°C (32°F to –40°C to 65°C (–40°F 95°F) to 149°F) Relative humidity 10% to 90% (non- 0% to 95% (non- (maximum) condensing) condensing) Vibration (maximum) 0.66 GRMS 1.30 GRMS †... -
Page 20: Keyboard Shortcuts
Keyboard shortcuts Keys Description Mute audio Decrease volume Increase volume Play previous track/chapter Play/Pause Play next track/chapter Switch to external display Search Toggle keyboard backlight Decrease brightness Increase brightness Turn off/on wireless Pause/Break Sleep Toggle scroll lock Toggle between power and battery- status light/hard-drive activity light... - Page 21 Keys Description System request Open application menu Toggle Fn-key lock Home Page down Page up...
-
Page 22: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Information about Dell products and www.dell.com services Dell Help & Support app Get started app Accessing help in Windows 10 In Windows search, type Help and Support, and press Enter. - Page 23 NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
