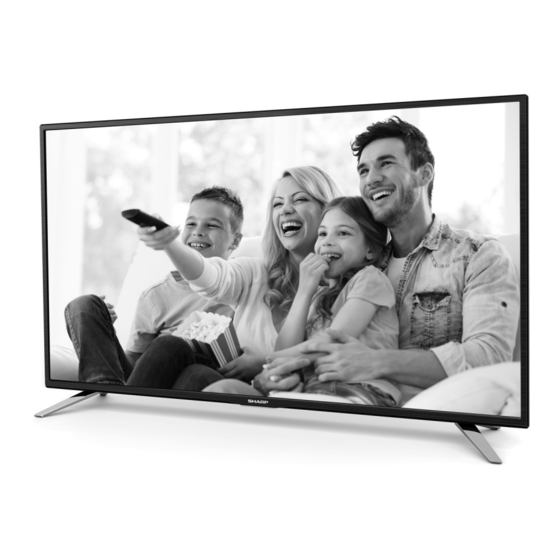

- Page 1 LED TV with Freeview HD, Saorview & USB PVR User Guide Model No LC-32CHE5111K LC-40CFE5111K LC-32DHE5111K LC-43CFE5111K LC-32CHE5111KW LC-49CFE5001K LC-32DHE5111KW LC-50CFE5101K LC-32CFE5111KW LC-50CFE5111K LC-32CFE5111K...
- Page 2 WARNING: Never place a television set on an Important safety instruction unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Use cabinets or stands recommended by the manufacturer of the television set.
- Page 3 2. Do not display the fi xed image for extended periods Important safety instruction of time. 3. Turn the power off when not in use. Examples of images that are more likely to cause “screen burn” are as follows (this is not an exhaustive list): •...
- Page 4 Services LTD. © DTV Services Ltd. SAORVIEW SAORVIEW is a registered trademark owned by RTÉ. CE Statement: Hereby, Universal Media Corporation l.t.d. declares that this LED TV is in compliance with the essential requirements and other relevant provisions of Dirrective 1999/5/EC. http://www.sharp.eu/av/documnts-of-conformity...
-
Page 5: Table Of Contents
CONTENTS Manufacturers guarantee information ........3 Important safety instructions . -
Page 6: What Is Included In The Box
Quick start guide 1 x Mini composite / AV cable 1 x TV (For LC-32CHE5111K, LC-40CFE5111K, LC-43CFE5111K, LC-49CFE5001K, C-50CFE5111K & LC-50CFE5101K models only) 1 x Mini component / YPbPr cable 1 x RF cable 1 x Stand installation pack... -
Page 7: Attaching/Detaching The Stand
Attaching/detaching the stand ATTACHING THE STAND Attaching the stand/feet To complete the stand/feet installation you will require a cross head screw driver. Screws that are included. (fi g.1) Place the TV set on a fl at and TV panel must be facing downwards. clean surface with the panel facing downwards to avoid damage, then fi... -
Page 8: Securing The Tv To A Wall/Wall Mounting
Securing the TV to a wall/wall mounting SECURING THE TV TO A WALL Securing the TV to a wall with anti-tip straps For maximum security in the home, when using a TV with its stand, anti-tip straps should be fi tted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. -
Page 9: Remote Control
Remote control REMOTE CONTROL For models with integrated DVD players. For models with PVR Function. For models with USB Playback. For models with 3D functions. STANDBY - Switch on TV when in standby or vice versa. MUTE - Mute the sound or vice versa. NUMBER BUTTONS - 0–9 to select a TV channel directly. -
Page 10: Tv Buttons And Input Source Menu
TV Buttons and Input Source Menu TV BUTTONS AND INPUT SOURCE MENU This information is for models This information is for models without built in DVD players with built in DVD players Volume up and menu right Stop/Eject Disc Volume down and menu left Play/Pause Disc Programme/channel up and menu up Volume up and menu right... -
Page 11: Connections
Connections CONNECTIONS The following input/outputs for the following models only: LC-32CFE5111K, LC-32CFE5111KW, LC-32DHE5111K and LC-32DHE5111KW Digital Audio V G A /P C (A udio in) Y Pb Pr V G A /P C IN E A R P HO NE V IDE O Output Earphones... - Page 12 Connections CONNECTIONS The following input/outputs for the following models only: LC-49CFE5001K and LC-50CFE5101K. Digital Audio V G A /P C (A udio in) Output V G A /P C IN LAN* Network connection Earphones Earphone input Digital audio Digital optical audio output HDMI 3 HDMI input HDMI 1...
- Page 13 Connections CONNECTIONS The following input/outputs for the following models only: LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K and LC-50CFE5111K. Digital Audio V G A /P C IN Output LAN* Network connection HDMI 3 HDMI input HDMI 1 HDMI input USB x 2 USB port...
- Page 14 L (white) L (white) R (red) R (red) Video Video (yellow) (yellow) Connection option for models only LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K, LC-49CFE5001K, LC-50CFE5111K and LC-50CFE5101K models only. L (white) R (red) Mini Video AV in (yellow) Connecting to a device with SCART output (using SCART to AV cable)
- Page 15 PB (blue) Mini PR (red) YPbPr L (white) L (white) R (red) R (red) Connection option for models only LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K, LC-49CFE5001K, LC-50CFE5111K and LC-50CFE5101K models only. Y (green) PB (blue) Mini PR (red) YPbPr L (white) R (red)
- Page 16 Connections CONNECTIONS Connecting to a device with VGA/PC output (Laptop or Desktop Computer) TV source should be set to VGA/PC VGA/PC VGA/PC VGA/PC Audio (audio Connecting to an external audio device (Amplifi ers, Surround Sound, Sound Bars etc) When connecting via the TV’s 3.5mm earphone output, this will disable the TV speakers. OPTION 1 for 3.5mm EARPHONE Output 3.5mm 3.5mm...
-
Page 17: Tv Menu Operation
TV Menu Operation PICTURE MENU To access this menu, press [MENU] button on the remote control. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. Picture Mode - Choose from the following presets: Dynamic... - Page 18 TV Menu Operation PICTURE MENU To access this menu, press [MENU] button on the remote control. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast.
-
Page 19: Sound Menu
TV Menu Operation SOUND MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 20: Channel Menu
TV Menu Operation CHANNEL MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 21: Lock Menu
TV Menu Operation LOCK MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 22: Time Menu
TV Menu Operation TIME MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 23: Network Configuration
Network Confi guration NETWORK CONFIGURATION To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 24: Settings Menu
TV Menu Operation SETTINGS MENU Language - Allows you to change the language of the menu. Audio Language - Select your preferred primary audio language. Audio Language 2 - Select your preferred secondary audio language. Subtitle Language - Select your preferred primary subtitle language. Subtitle Language 2 - Select your preferred secondary subtitle language. - Page 25 7 Day TV Guide and Channel List 7 DAY TV GUIDE TV Guide is available in Saorview/Freeview TV mode. It provides information about forthcoming programmes (where supported by the Saorview/Freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders. 1) Press [TV GUIDE] on the remote control, the following 7 Day TV Guide will appear.
-
Page 26: Day Tv Guide And Channel List Dvd Setup
DVD Setup DVD SETUP (Applies to models with built in DVD player) To enter this menu please ensure the TV source mode is set to the DVD source & press [DVD SETUP] If you wish to make changes to any of the default settings, use the scroll buttons. - Page 27 USB Record - Freeview/Saorview USB RECORD - FREEVIEW/SAORVIEW MODE Built into this television is a USB record facility. This function is available in Freeview/Saorview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefi ts of this are as follows: •...
- Page 28 USB Mode/Media Player USB MODE/MEDIA PLAYER USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the below menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on fi...
-
Page 29: Frequently Asked Questions
General Information FREQUENTLY ASKED QUESTIONS General I would like to have louder 1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available sound by connecting additional separately) to connect to an amplifi er/surround sound system. Please note this speakers. - Page 30 General Information FREQUENTLY ASKED QUESTIONS USB Mode I have inserted a USB Memory Ensure the USB Memory Key is formatted to type FAT32. Key, but the TV does not recognise it. USB Mode Using a USB portable hard drive If you wish to use a portable hard drive larger than 32GB, please note that it must be larger than 32GB.
-
Page 31: Technical Specifi Cations
General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-32DHE5111K, LC-32CHE5111K, LC-32DHE5111KW LC-32CHE5111KW (Models with built-in DVD player) Energy effi ciency class Visible screen size (diagonal) 81 cm / 32 inches On-mode average power consumption 31.0 W Annual energy consumption *1... - Page 32 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-32CFE5111K, LC-32CFE5111KW Energy effi ciency class Visible screen size (diagonal) 81 cm / 32 inches On-mode average power consumption 31.0 W Annual energy consumption *1 45 kWh Standby power consumption *2 <0.50 W...
- Page 33 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-40CFE5111K Energy effi ciency class Visible screen size (diagonal) 100 cm / 40 inches On-mode average power consumption 45.0 W Annual energy consumption *1 66 kWh Standby power consumption *2 <0.50 W...
- Page 34 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-43CFE5111K Energy effi ciency class Visible screen size (diagonal) 109 cm / 43 inches On-mode average power consumption 41.0 W Annual energy consumption *1 60 kWh Standby power consumption *2 <0.50 W...
- Page 35 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-49CFE5001K Energy effi ciency class Visible screen size (diagonal) 123 cm / 49 inches On-mode average power consumption 67.0 W Annual energy consumption *1 98 kWh Standby power consumption *2 <0.50 W...
- Page 36 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-50CFE5101K Energy effi ciency class Visible screen size (diagonal) 127 cm / 50 inches On-mode average power consumption 58.0 W Annual energy consumption *1 85 kWh Standby power consumption *2 <0.50 W...
- Page 37 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-50CFE5111K Energy effi ciency class Visible screen size (diagonal) 127 cm / 50 inches On-mode average power consumption 58.0 W Annual energy consumption *1 85 kWh Standby power consumption *2 <0.50 W...
- Page 38 General Information TECHNICAL SPECIFICATION Compatible fi les in USB Mode Video Decoder Media File Ext. Remark Video Audio .mpg/.mpeg MPEG-1, MPEG-2 /.dat .ts/.trp/.tp/. MPEG-2, H.264,VC1,AVS m2ts .vob MPEG-2 1920×1080 Max Solution: .mp4 MPEG-4, Xvid, H.264 MP3, WMA,AAC, 40 Mbps Max Data Rate: .rm/.rmvb Rm codec LPCM,DTS(DMP)，...
- Page 39 UMC Poland sp. z o.o. Ostaszewo 57B, 87-148 Łysomice, Poland Assembled in Europe www.sharp.eu SHA/MAN/0084...
