AMF Boss 400-286-003 Installation, Operation, Service, And Parts Manual

Bowler terminal consoles
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

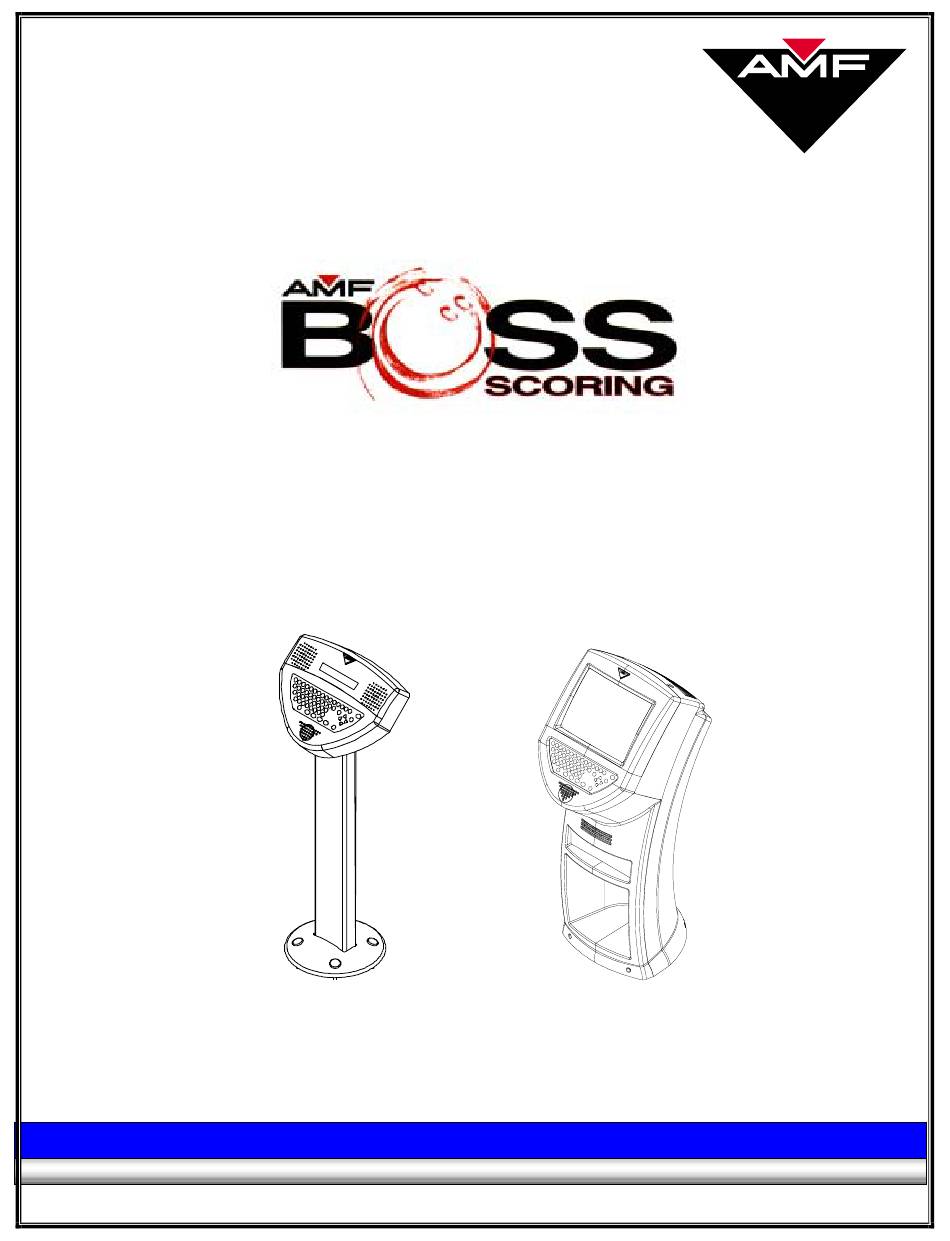

Installation, Operation, Service,
Revised: 11/01/01
AMF Bowling Products, Inc., • Tech Support • (International) 804 730-4343 • (Domestic) 1-800-843-0682 • (Fax) 804-730-4390
Copyright © 2001, AMF Bowling Products, Inc., 8100 AMF Drive, Mechanicsville, Virginia 23111
Bowler Terminal Consoles
and Parts Manual
Standard
Lower
Monitor
P/N: 400-286-003 Rev New

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Boss 400-286-003 and is the answer not in the manual?

Questions and answers

Summary of Contents for AMF Boss 400-286-003

  • Page 1 Parts Manual Lower Standard Monitor Revised: 11/01/01 P/N: 400-286-003 Rev New AMF Bowling Products, Inc., • Tech Support • (International) 804 730-4343 • (Domestic) 1-800-843-0682 • (Fax) 804-730-4390 Copyright © 2001, AMF Bowling Products, Inc., 8100 AMF Drive, Mechanicsville, Virginia 23111...
  • Page 3 Inc. cannot be held responsible for any claims resulting from these errors. DOCUMENT UPDATES AMF Bowling, Inc. reserves the right to revise and/or update this manual at any time without obligation to notify any person or entity of such revision. The document number, revision level, and date below indicate the edition of this manual.

  • Page 5: Table Of Contents

    Table of Contents ONTENTS How To Use This Manual ..................1 Introduction ......................1 Packing Lists and Tools ..................2 Installation ......................3 ..........3 Standard Bowler Terminal Console Installation ) ......4 Standard Bowler Terminal Console (With Intercom Upgrade ......
  • Page 6 Table of Contents Drawings & Parts Lists ..................23 ......... 24 286-002-080 — Standard Bowler Terminal Assembly ..............26 286-002-038 — Keyboard Assembly ................. 27 286-002-016 — Cable Assembly ........28 286-002-025 — Lower Monitor Bowler Terminal Assembly ............... 30 286-002-040 —...

  • Page 7: How To Use This Manual

    Before you begin the installation, check your shipment against the packing list on the next page to ensure that all parts have been included. Report missing items to AMF at 1.800.843.0682 between the hours of 8:00 a.m. and 5:00 p.m. Eastern Time. After 5:00 p.m., you can leave a message on the voice mail system.

  • Page 8: Packing Lists And Tools

    Introduction ACKING ISTS OOLS Now that you have received your new bowler terminal consoles, the first thing that you should do is to verify that you have received all of the correct parts. Refer to the appropriate list below. If installing the Model 614-286-230 standard bowler terminal, you should receive the following parts: Part Number Description...

  • Page 9: Installation

    Installation TANDARD OWLER ERMINAL ONSOLE NSTALLATION The installation for standard bowler terminal is easy and simple to perform. Figure 1 shows one way to position the bowler terminal in relation to the ball return. Install the bowler terminal according to the following procedure: Figure 1.

  • Page 10: Standard Bowler Terminal Console (With Intercom Upgrade )

    Installation Route and attach J1 and J2 cables from the floor outlets to the bowler terminal board located in the bowler terminal console. Ensure that the bowler terminal is mounted flush to the floor underneath. Insert and tighten four 8mm x 75 mm hex head screw bolts (709-013-059) to base of bowler terminal.

  • Page 11: Figure 2. Removing Icon Keyboard From Keyboard Plate

    Installation Figure 2. Removing Icon Keyboard From Keyboard Plate Figure 3. Attaching and Soldering Wires 3. Remove the icon keyboard (286-001-089) from the keyboard plate (286-002-037). BOSS Scoring Bowler Terminal Consoles Installation, Operation, Service, and Parts Manual 400-286-003 Rev. New...
  • Page 12 Installation 4. Solder 2.5 feet (76.20 cm) of #18 AWG stranded black wire (010-100-100) to 2 ¼ - inch intercom/BT speaker (770-047-175) marked by the negative (-) sign. 5. Solder 5 feet (152 cm) of #18 AWG stranded white wire (010-100-109) to 2 ¼ -inch intercom/BT speaker (770-047-175) marked by the positive (+) sign.

  • Page 13: Standard Bowler Terminal Console (With Lcd Display Upgrade)

    Installation LCD D TANDARD OWLER ERMINAL ONSOLE WITH ISPLAY PGRADE This section describes the procedures necessary to upgrade the standard bowler terminal when the LCD Display feature has been purchased. You will be installing the LCD-to-BT board cable assembly, a speaker, a LCD mount bracket and a LCD display in this procedure.
  • Page 14 Installation 3. Install LCD mounting bracket (286-002-057) to the LCD display using four #4-4 pan head phillips sems (817-921-032). 4. Attach and secure the 4-inch round speaker (770-064-240) to the front cover (286- 002-052) of the bowler terminal using four #6-32 x ¼ phillips pan head sems (818- 227-042).

  • Page 15: Lower Monitor Bowler Terminal Console Installation

    Installation OWER ONITOR OWLER ERMINAL ONSOLE NSTALLATION The installation for the lower monitor bowler terminal is more difficult to perform. Figure 5 displays one way to position the bowler terminal in relation to the ball return. Install the bowler terminal according to the following procedure: Figure 5.

  • Page 16: Switch Configuration Settings

    Installation 5. Position and align the lower monitor bowler terminal so that the rear edge of the bowler terminal pedestal is facing the lanes and the bowler terminal is placed over the cable conduit approximately 9.75 inches (24.76 cm) from the ball return. 6.

  • Page 17: Figure 6. Sample Copy Of The Switch Configuration Label

    Figure 6. Sample Copy Of The Switch Configuration Label Look on the bowler terminal PCB and notice the switch settings. Figure 7 depicts the switches that are located on the board. Pinspotter Type 0…………AMF 8230, 8270, 8290 1…………AMF 8290 XL Bowling Format 2…………Brunswick A, A-2, Jetback 0…Ten Pin...

  • Page 18: Setup And Testing

    Installation ETUP AND ESTING After completing the installation, perform the following steps to ensure proper operation. 1. Turn on BOSS Front Desk System so that to check software operation. 2. Turn on power at the main circuit breaker, turn on the associated pinspotters, and verify that the bowler terminals operate properly.

  • Page 19: Operation

    Operation PERATION The operation of the bowler terminal consoles is very simple. There are two bowler terminal console models: the standard bowler terminal and the lower monitor bowler terminal. When a key is depressed on the keyboard, the printed circuit board detects/transmits the signal and data to the BOSS Scoring system through the communication cables.
  • Page 20 Operation There is a space provided at the bottom of the lower monitor bowler terminal that can be used for storage of personal items while bowling. Another feature that has been added for easy access is the electronic plate and 14-inch monitor. If you ever need to remove or replace these items the tasks has been made easier.

  • Page 21: Service

    Service ERVICE The standard bowler terminal and the lower monitor bowler terminal require very little maintenance. There are several wear items described below that should be monitored periodically and replaced as necessary. TANDARD OWLER ERMINAL ONSOLE The standard bowler terminal has several major components that may require replacement during its life expectancy.

  • Page 22: Bowler Terminal Printed Circuit Board (Pcb) Replacement

    Service 3. Disconnect ground wire (286-002041) attached to the keyboard plate (286-002-037). 4. Disconnect and remove the ribbon cable. 5. Remove the icon keyboard (286-001-089) from the bowler terminal front cover. 6. Replace the new icon keyboard (286-001-089) into the bowler terminal front cover. 7.

  • Page 23: Figure 9. Printed Circuit Board Removal

    Service 2. Open the front cover on bowler terminal and remove four #4-40 hex nuts (843-121- 002) and faston tabs (760-022-262) from the keyboard plate (286-002-037). Figure 9. Printed Circuit Board Removal 3. Install LCD mounting bracket (286-002-057) to the LCD display using four #4-4 pan head phillips sems (817-921-032).

  • Page 24: Lower Monitor Bowler Terminal Console

    Service OWER ONITOR OWLER ERMINAL ONSOLE The lower monitor bowler terminal has several components that may break or become worn from usage. These parts must be replaced as soon as possible to keep the unit functioning properly. Keyboard Assembly Replacement 1.

  • Page 25: Ac Control Box Assembly Replacement

    Service 5. Remove the four #4-40 hex nuts (843-121-002) and faston tabs (760-022-262) from keyboard plate (286-002-037). 6. Remove the 4-inch round speaker (770-064-240) to the front bezel (286-002-028) of the bowler terminal using four #6-32 x ¼ phillips pan head sems (818-227-042). 7.

  • Page 26: Monitor Assembly Replacement

    Service 1. Verify that the power to the unit is turned OFF at the main circuit breaker. 2. Remove the four #10-24x3/4 phillips head sems screws (818-239-122) from the bowler terminal back cover (286-002-026) and pull the back cover off slowly. Be very careful not to extend the cables that are attached.

  • Page 27: Figure 10. Monitor Assembly Replacement

    Service Figure 10. Monitor Assembly Replacement 3. Remove the two #10-24x3/4 phillips head sems screws (818-239-122) from the bowler terminal front cover assembly (286-002-040) and pull the front cover away from the bowler terminal pedestal (286-002-030). 4. Remove the four #8-32x1/2 phillips head sems screws (818-233-082) from the front cover (286-002-027).
  • Page 28 Service 13. Replace the bowler terminal back cover (286-002-026). 14. Replace the four #10-24x3/4 phillips head sems screws (818-239-122) from the bowler terminal back cover (286-002-026). 15. Turn the power on the bowler terminal and verify that the bowler terminal is working correctly.

  • Page 29: Drawings & Parts Lists

    Standard Bowler Terminal Standard Bowler Terminal Standard Bowler Terminal Standard Bowler Terminal & & & & Lower Monitor Bowler Lower Monitor Bowler Lower Monitor Bowler Lower Monitor Bowler Terminal Consoles Terminal Consoles Terminal Consoles Terminal Consoles Drawings & Parts Lists...
