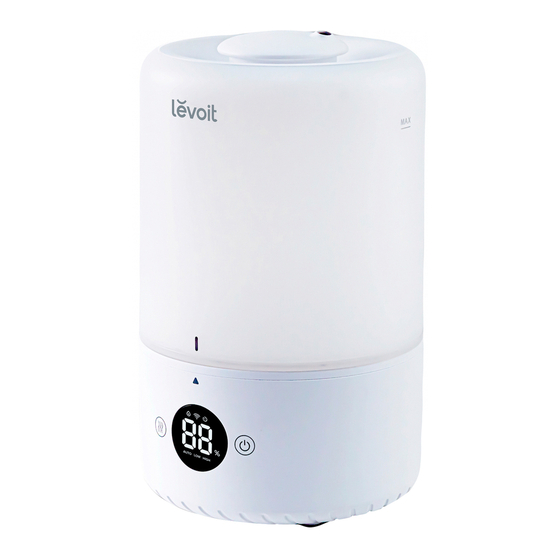

- Page 1 U SE R MANUAL Dual 200S Smart Top-Fill Humidifier Model: Dual 200S Questions or Concerns? Please contact us Mon–Fri, 9:00 am–5:00 pm PST/PDT at support@levoit.com or at (888) 726-8520.
-
Page 2: Table Of Contents
Table of Contents Package Contents Package Contents 1 × Smart Top-Fill Humidifier Specifications 1 × Cleaning Brush Safety Information 1 × User Manual Getting to Know Your Smart Humidifier 1 × Quick Start Guide Controls & Display Getting Started VeSync App Setup Specifications Using Your Smart Humidifier Care &... -
Page 3: Safety Information
READ AND SAVE THESE INSTRUCTIONS SAFETY INFORMATION To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines. General Safety Only use the humidifier as Do not use other items as • • described in this manual. replacement parts for this product. - Page 4 SAFETY INFORMATION (CONT.) Caution: Risk of Leaks and Electric Shock Do not add supplemental water treatment liquids into the water tank or base chamber. This will damage the humidifier and cause leaks. Power & Cord Ensure that the plug fits properly •...
-
Page 5: Getting To Know Your Smart Humidifier
GE TT IN G TO KNOW YO U R SMA RT HU M ID IF I E R Nozzle Display Float Brackets Water Tank Cover Cleaning Brush Transducer Water Filter Housing Power Adapter Secondary Float Water Filter Max Water Line (Tank) Humidity Sensor Mist Tube Water Outlet Valve... - Page 6 Getting To Know Your Smart Humidifier (cont.) Mist Level Button Timer Indicator Power Button Note: The timer must be No Water Indicator Humidity Level set in the VeSync app. Wi-Fi® Indicator Mist Level Indicator...
-
Page 7: Controls & Display
C O N T R O L S & D I S P L AY Note: You can also control these functions using the VeSync app, as well as additional functions (see page 13). Power Button Wi-Fi Indicator • Press to turn the humidifier Turns on, off, or blinks to •... -
Page 8: Getting Started
G E T T I N G S TA R T E D • Remove all packaging. Check to make sure that the float is securely in place. [Figure 1.3] Take the water tank off of the base and remove all tape, including any tape on the float. - Page 9 Filling & Refilling Note: Make sure the water tank is clean Note: before filling. We recommend using purified or distilled • water to fill the tank. Do not • fill past the tank’s max water line. Remove the water tank cover by holding the nozzle and pulling upward.
- Page 10 Filling & Refilling (cont.) Replace the water tank cover. Optionally, add 10–15 drops of essential oil into the base chamber for aromatherapy. [Figure 1.11] Note: Make sure the nozzle on the water tank cover is placed over the mist tube, or the humidifier may not work correctly.
-
Page 11: Vesync App Setup
V E S Y N C A P P S E T U P Note: Due to ongoing updates and improvements, the VeSync app may be slightly different than shown in the manual. In case of any differences, follow the in-app instructions. To download the VeSync app, scan the QR code or search “VeSync”... -
Page 12: Using Your Smart Humidifier
U S I N G YO U R S M A R T H U M I D I F I E R Note: Using the VeSync app allows you to control your smart humidifier remotely and access additional functions and features (see page 13). Plug in the humidifier. - Page 13 Auto Mode VeSync App Functions Auto Mode uses the humidifier’s sensor to The VeSync app allows you to access automatically adjust the mist level (or turn it additional smart functions, including those off) to maintain a comfortable and healthy listed below. level of humidity.
- Page 14 Important Tips Your humidifier must have the correct level of water in the base chamber to work properly. If there is too much water in the base chamber, the humidifier cannot create mist. Never pour water directly into the • base chamber.
-
Page 15: Care & Maintenance
C A R E & M A I N T E N A N C E Note: Note: When pouring out water, hold down the float to ensure that it does • All maintenance should be done on a water- not fall out of the base chamber. - Page 16 Cleaning (cont.) To descale the humidifier: Replace the tank cover and swish the vinegar around the tank. Remove the water filter from the [Figure 4.7] tank. [Figure 4.5] Fill the tank with 3 US cups / 710 mL of distilled white vinegar.
- Page 17 Cleaning (cont.) Remove the tank, remove the tank Remove the float from the base cover, and pour out any vinegar. chamber by pulling up one [Figure 4.9] end of the float [Figure 4.11] and pulling the shaft out from the float brackets.
- Page 18 Cleaning (cont.) Reassembling Use a soft cloth and the included Flip the water tank over and place cleaning brush to remove scale the noise silencer back into the tank. from all parts. [Figure 4.14] [Figure 4.16] Figure 4.16 Figure 4.14 Place the water filter assembly back into the tank and rotate it clockwise to secure it in place.
- Page 19 Reassembling (cont.) Storing Place the float back into the base chamber: Follow the cleaning instructions (see page 15) and allow all parts to dry completely before Make sure the correct side of the storing. Store in a cool, dry location. float is facing up.
-
Page 20: Troubleshooting
T R O U B L E S H O OT I N G Problem Possible Solution Plug in the humidifier and turn it on. Add purified or distilled water to the water tank. Humidifier doesn’t turn on, or turns off unexpectedly. Check to see if the humidifier is in Auto Mode. - Page 21 TROUBLESHOOTING (CONT.) Problem Possible Solution Make sure the water tank is properly in place (see Getting Started, page 8). Set mist level to a lower setting. Humidifier makes a loud or Empty the base chamber. Refill the water tank (not the base chamber) unusual noise.
-
Page 22: Vesync App Troubleshooting
V E S Y N C A P P T R O U B L E S H O OT I N G Why isn’t my humidifier connecting to the The VeSync app is displaying an incorrect VeSync app? humidity percentage while the humidifier is turned on. - Page 23 F E D E R A L C O M M U N I C AT I O N C O M M I S S I O N I N T E R F E R E N C E S TAT E M E N T This device complies with Part 15 of the FCC Rules.
-
Page 24: Warranty Information
Customer Support via support@levoit.com. DO NOT dispose There is no other express warranty. This warranty of your product before contacting us. Once does not apply:... -
Page 25: Customer Support
Customer Support Team. Distributed by Arovast Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806 Email: support@levoit.com Toll-Free: (888) 726-8520 Support Hours Mon–Fri, 9:00 am–5:00 pm PST/PDT *Please have your order invoice and order ID ready before contacting Customer Support. - Page 26 Notes...
- Page 27 Notes...
- Page 28 /L EVO I TLI FESTYLE /L EVO I T /L EVO I T /L EVO I T L EVOI T.CO M JJ060821CW-M1_0521Dual200S...
Need help?
Do you have a question about the Dual 200S and is the answer not in the manual?
Questions and answers
Can I control & set up, Manually, the Levoit Dual 200S Smart Humidifier! (I don't have a smart phone!)
Yes, you can manually control and set up the Levoit Dual 200S Smart Humidifier without a smartphone. The humidifier has physical controls and a display that allow you to operate it without using the VeSync app.
This answer is automatically generated
Is there a way to get a replacement water filter housing and filter for my Dual 200s humidifier? There was none in the box when purchased new.
To obtain a replacement water filter housing and filter for the Levoit Dual 200S humidifier, you can contact Levoit Customer Support. The manual provides the support contact details:
- Email: support@levoit.com
- Phone: (888) 726-8520 (Available Mon–Fri, 9:00 am–5:00 pm PST/PDT)
Additionally, compatible replacement filters for the Dual 200S are available for purchase from retailers.
This answer is automatically generated
Hello, I had recently purchased Levoit 200s humidifier. It came with the Filter assembly but there was no filter in it. Should I buy a filter? If so, when is it advisable to replace this filter? I have read the instructions, and it does not say anything about this. Thank you.
