82V LITHIUM-ION RECHARGEABLE

BATTERY&CHARGER

Read all safety rules and instructions carefully before operating this tool.

82VDC 144Wh Rechargeable

Li-ion Battery

BSB2AH82 (1760426)

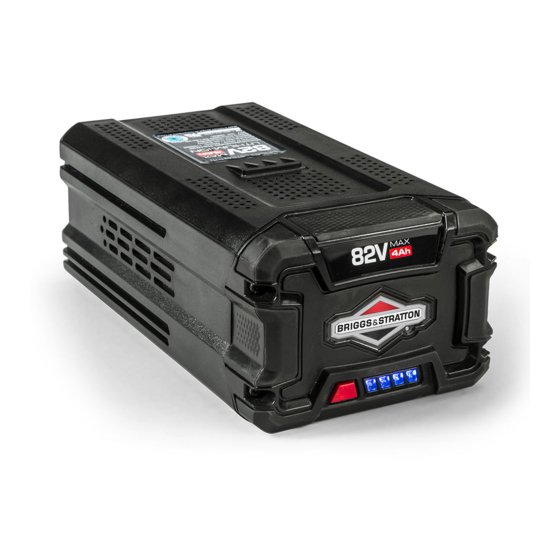

82VDC 288Wh Rechargeable

Li-ion Battery

BSB4AH82 (1760427)

Owner's Manual

82V Lithium-ion Battery

Charger

BSRC82 (1760428)

Table of Contents

Need help?

Do you have a question about the BSB2AH82 and is the answer not in the manual?

Questions and answers

Summary of Contents for Briggs & Stratton BSB2AH82

Page 1 82V LITHIUM-ION RECHARGEABLE BATTERY&CHARGER 82VDC 144Wh Rechargeable Li-ion Battery BSB2AH82 (1760426) 82V Lithium-ion Battery Charger BSRC82 (1760428) 82VDC 288Wh Rechargeable Li-ion Battery BSB4AH82 (1760427) Owner’s Manual Read all safety rules and instructions carefully before operating this tool.
Page 2: Table Of Contents
CONTENTS Important Notes ........................3 Product Specifications ......................4 Important Safety Instructions ....................5 Know Your Battery & Charger ....................8 Operation ..........................9 Maintenance & Care ......................1 2 Troubleshooting ......................... 1 3 Limited Warranty ........................ 1 4 NOTE: WARRANTY DETAILS ARE NOT WRITTEN WITHIN THIS OPERATOR’S MANUAL. REFER TO OTHER DOCUMENTS SUPPLIED WITH THIS MACHINE FOR WARRANTY DETAILS.
Page 3: Important Notes
IMPORTANT NOTES DETAILS Thank you for purchasing your Briggs & Stratton product. Briggs & Stratton prides itself in the quality and performance of all its products. This instruction manual will aid in the safe operation and maintenance of your product. Please read the following warnings to ensure safety and the long life of your product.
Page 4: Product Specifications
PRODUCT SPECIFICATIONS BATTERY COMPONENTS SPECIFICATIONS Battery 82V Rechargeable Lithium-ion Battery Model BSB2AH82 Battery Volts 72V (82V MAX) Battery Amp Hours Battery Watt Hours 144Wh Battery Weight 1.4Kg (3.09lbs) Charge Time 100% 30 minutes (use BSRC82 Charger) Battery 82V Rechargeable Lithium-ion Battery...
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First Aid Each battery cell contains chemical materials that are stored in a hermetically sealed container designed to withstand temperatures and pressures encountered during normal use. As a result, during normal use, there is no physical danger of ignition or explosion and chemical danger of hazardous materials’...
Page 6 IMPORTANT SAFETY INSTRUCTIONS • Do not allow metal items or material such as steel wool, aluminium foil, or other foreign particles into the battery or charger cavity or to come in contact with the terminals. • Unplug the charger before cleaning and when not in use. •...
Page 7 IMPORTANT SAFETY INSTRUCTIONS SAFE STORAGE AND RECYCLING Used batteries are potentially hazardous, so they need to be stored and handled carefully. They need to be kept out of reach of children. Some of the materials inside batteries are toxic, so you need to be careful of damaged or leaking batteries.
Page 8: Know Your Battery & Charger
KNOW YOUR BATTERY & CHARGER The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before using this product, familiarize yourself with all operating features and safety rules. BATTERY Cooling Air Port Indicator Button...
Page 9: Operation
OPERATION CHECKING BATTERY CAPACITY Press the battery capacity indicator (BCI) button. The lights will illuminate according to the batteries capacity level. See chart below: BATTERY CAPACITY LED INDICATORS INDICATOR (BCI) BUTTON Lights Capacity 4 Lights The battery is above 80% capacity 3 Lights The battery is between 80% and 60% capacity 2 Lights...
Page 10 OPERATION CHARGING PROCEDURE NOTE: The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time. 1.
Page 11 OPERATION CHARGER MOUNTING 1. This charger can be installed hanging on a wall using two #8 screws (not included). 2. Locate the placement for the charger to be wall mounted. 3. If fastening to wood studs use 2 wood screws (not included). 4.
Page 12: Maintenance & Care
MAINTENANCE & CARE W A R N I N G Do not use solvents, strong detergents, certain aromatic oils such as pine and lemon when cleaning plastic parts. Many plastics are susceptible to damage from various types of chemicals and may be damaged by their use. When servicing use only identical Victa replacement parts. Use of any other parts can create a hazard or cause product damage.
Page 13: Troubleshooting
TROUBLESHOOTING BATTERY PROBLEM CAUSE SOLUTION The battery pack charge is The battery pack has Fully recharge the battery pack reduced after more than one automatically performed self- before use. month of non-use. maintenance to extend its life. CHARGER PROBLEM CAUSE SOLUTION Charger doesn't work.
Page 14: Limited Warranty
LIMITED WARRANTY Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser.
Page 15 Briggs & Stratton Power Products Group, LLC P.O. Box 702 Milwaukee, WI 53201 388011994AU Rev: 00 (08-12-16)
