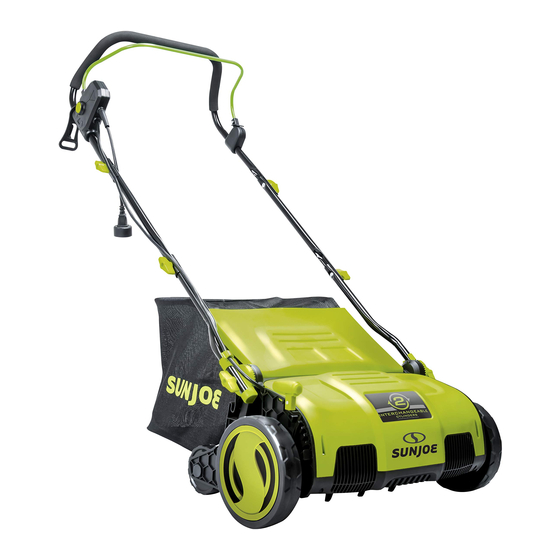

- Page 1 ELECTRIC LAWN SCARIFIER + DETHATCHER 15-INCH | 13-AMP OPERATOR’S MANUAL Model AJ805E-RM A Division of Snow Joe , LLC ® Form No. SJ-AJ805E-RM-880E-M-V1 © 2021 by Snow Joe , LLC SAVE THESE INSTRUCTIONS ® All rights reserved. Original instructions.
-
Page 2: General Safety
OPERATOR’S MANUAL Model AJ805E-RM A Division of Snow Joe , LLC ® Form No. SJ-AJ805E-RM-880E-M-V1 IMPORTANT! 7. Wear personal protective equipment – When using this tool, wear safety glasses with side shields or goggles to Safety Instructions provide necessary eye protection. Wear ear defenders to prevent hearing damage. -
Page 3: Electric Safety
Sun Joe SJTW-A 14-gauge 50-foot extension cord ® DOUBLE-INSULATED: GROUNDING NOT with lighted end (Model PJEXT50-B). Visit sunjoe.com REQUIRED. WHEN SERVICING, USE ONLY to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563). IDENTICAL REPLACEMENT PARTS. - Page 4 Table 1. Method of Securing Extension Cord • Never operate the scarifier + dethatcher in wet grass. Always be sure of your footing; walk, never run, with the machine. Cord set Appliance cord • Do not put hands or feet near or under rotating parts. •...
-
Page 5: Slope Operation
– before clearing blockages or unclogging the discharge • Use correct application tools for the product and ensure they are in good condition. opening; – before checking, cleaning or working on the machine; • Keep tight grip on the handles/grip surface. •... -
Page 6: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, SAFETY ALERT –... - Page 7 Know Your Electric Scarifier + Dethatcher Read the owner’s manual and safety instructions carefully before operating the scarifier + dethatcher. Compare the illustration below to the dethatcher in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference and reread it prior to each dethatching session.
-
Page 8: Technical Data
Technical Data NOTE: Do not discard the shipping carton and packaging material until you are ready to use the electric scarifier Rated Voltage ............. 120 V ~ 60 Hz + dethatcher. The packaging is made of recyclable materials. Properly dispose of these materials in Motor ................ - Page 9 4. Connect the upper handle frame to the middle handle bars using the remaining knobs and bolts. Tighten the knob on Fig. 2 each side to ensure a secure fit (Fig. 5). Lower handle Knob Fig. 5 bars Bolts Upper handle frame Upper handle...
-
Page 10: Operation
Operation Attach the thatch collection bag to the lawn scarifier + dethatcher before operation. 1. Lift the ejector flap, and hang the thatch collection bag to Cutting Depth Adjustment the mounting hooks (Fig. 7). WARNING! The unit must be switched off and disconnected from the power supply before adjusting the tine settings. -
Page 11: Overload Protection
Overload Protection Fig. 9 The overload protection will be activated in the following circumstances: 1. A build up of scarified material around the cutting device. Extension cord 2. If the material scarified is larger than the motor capacity. restraint holder 3. -
Page 12: Service + Storage
• Work in slight overlapping rows. The most effective pattern • Keep all nuts, bolts and screws tight to be sure the for scarifying/raking lawns is straight lines along one of the product is in a safe working condition. sides. This will keep the rows even and ensures that all the •... -
Page 13: After Use
Hex nut Bearing seat Fig. 12 Dethatcher cylinder with spring metal tines Socket Scarifying cylinder with Fig. 14 blades WARNING! Make sure the cutting device (dethatcher cylinder) is inserted properly. Make sure the semi-circle on the bearing seat of the cylinder goes downward into the unit. If the semi-circle is face up, it has been inserted incorrectly (Fig. -
Page 14: Service And Support
6. Secure the product to prevent it from slipping or falling over. Service and Support If your AJ805E-RM electric scarifier + dethatcher requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model and Serial Numbers When contacting the company, reordering parts or arranging... -
Page 15: Troubleshooting
Troubleshooting WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself! Suspected malfunctions, disturbances or damages are often due to causes that the user can fix themselves. Follow the below troubleshooting guidelines when checking the unit. - Page 16 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
- Page 17 NOTES...
- Page 18 NOTES...
- Page 19 SNOW JOE + SUN JOE REFURBISHED GOODS WARRANTY ® ® Snow Joe + Sun Joe may from time to time change the design of ® ® GENERAL CONDITIONS: its products. Nothing contained in this warranty shall be construed Snow Joe + Sun Joe operating under Snow Joe , LLC warrants...
