Ados GTR 210 Operating Manual

Gas transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

®

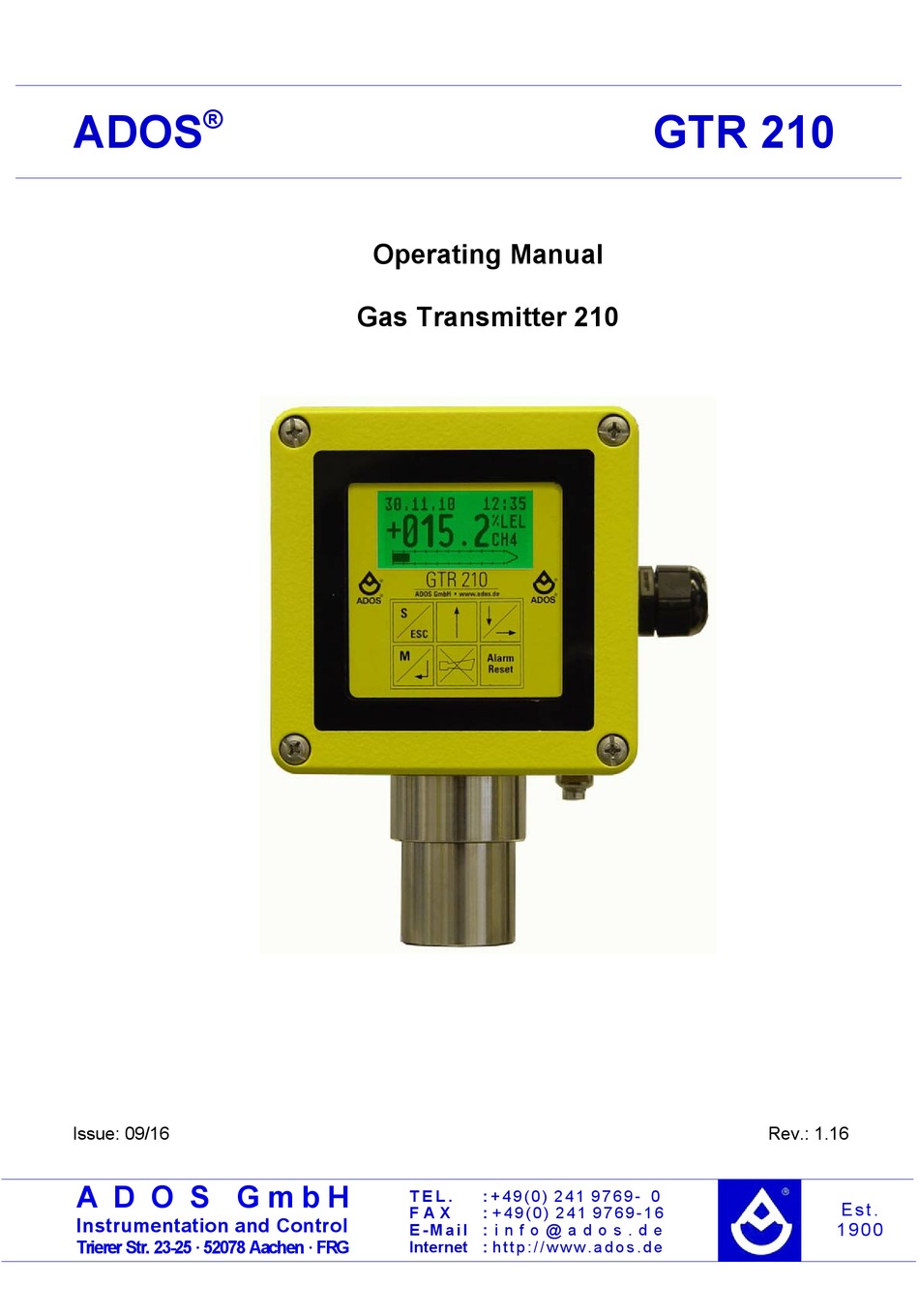

ADOS
Issue: 09/16
A D O S G m b H
Instrumentation and Control
Trierer Str. 23-25 @ 52078 Aachen @ FRG
Operating Manual
Gas Transmitter 210
T E L .
: + 4 9 ( 0 ) 2 4 1 9 7 6 9 - 0
F A X
: + 4 9 ( 0 ) 2 4 1 9 7 6 9 - 1 6
E - M a i l : i n f o @ a d o s . d e
Internet : h t t p : / / w w w . a d o s . d e
GTR 210
Rev.: 1.16
E s t .
1 9 0 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTR 210 and is the answer not in the manual?

Questions and answers

Related Manuals for Ados GTR 210

Summary of Contents for Ados GTR 210

  • Page 1 ® ADOS GTR 210 Operating Manual Gas Transmitter 210 Issue: 09/16 Rev.: 1.16 A D O S G m b H T E L . : + 4 9 ( 0 ) 2 4 1 9 7 6 9 - 0 E s t .

  • Page 2: Table Of Contents

    Electrical connection GTR 210 Standard and EX GTR 210 ....5 4.1.2 Electrical connection GTR 210 Comfort ......6 4.1.3 Installation of the Flow Adapter .
  • Page 3 ADOS GmbH GTR 210 Rev 1.16 Page II 6.2.1 Menu Item System Information ........24 6.2.2...
  • Page 4 ADOS GmbH GTR 210 Rev 1.16 Page III 7.1.5 Conversion of the test gas concentration using a substitute gas ..40 Check of the Output Signals ......... . 43 Trouble-shooting .

  • Page 5: Introduction

    Three versions of the transmitter are available: GTR 210 Standard: The GTR 210 Standard is the basic model of the GTR 210 family. It provides as User interface a LCD graphic display, a touchpad with six keys and one current output.

  • Page 6: Conformity

    GTR 210 Rev 1.16 Page 2 Conformity The gas transmitter GTR 210 incorporates a universal gas measuring head which is manufactured both as standard and in an explosion-protected version. The safe measuring function for inflammable gases and the software were tested by Dekra-Exam-GmbH.

  • Page 7: Med Option

    In the Comfort version of the GTR 210, alarm and fault relays are additionally installed on the lower housing. Thus the Comfort version can be used as a real "standalone" gas measuring device, without...

  • Page 8: Installation & Operational Startup

    Installation & Operational Startup Installation The gas transmitter GTR 210 is designed for stationary gas monitoring. The installation should be implemented at a location which is clean, sheltered from the weather and as vibration-free as possible. The installation must be such that the sensor is accessible for maintenance work.

  • Page 9: Electrical Connection Gtr 210 Standard And Ex Gtr 210

    ADOS GmbH GTR 210 Rev 1.16 Page 5 4.1.1 Electrical connection GTR 210 Standard and EX GTR 210: 4..20mA Terminal Module assembly Connection Power supply 24V DC Output signal mA 4...20 Ground Equipotential bonding fuse F400: Littlefuse 02616.200 (200mA F) fuse F401: Littlefuse 02616.200...

  • Page 10: Electrical Connection Gtr 210 Comfort

    ADOS GmbH GTR 210 Rev 1.16 Page 6 4.1.2 Electrical connection GTR 210 Comfort fuse F2: replace only with type: Littlefuse HF451 375mA fuse F1: replace only with type: SIBA 179200 1,6T Terminal Module assembly Connection Power supply 230V AC, 50Hz...

  • Page 11: Installation Of The Flow Adapter

    ADOS GmbH GTR 210 Rev 1.16 Page 7 4.1.3 Installation of the Flow Adapter In some applications, it is not possible to measure gas directly on site. In such cases, the gas can be extracted and fed into the gas transmitter via a pump at an appropriate location.
  • Page 12 ADOS GmbH GTR 210 Rev 1.16 Page 8 The following configuration should always be chosen for extracting the gas: EX‐area flow‐meter‐ pump needle‐valve rotar‐pipe GTR210 extraction deflagration‐ switch probe arrestor Connection scheme:  monitoring flow via   fault‐relais  GTR210 fault relais (GTR210‐Comfort only) Connection scheme for  monitoring flow via  current output GTR210 current output The flow monitor must be connected as illustrated. In the event of a fault in the flow rate, it interrupts the current output signal of the GTR210.

  • Page 13: Electrical Connection Gtr 210 Comfort With Controlbox

    ADOS GmbH GTR 210 Rev 1.16 Page 9 4.1.4 Electrical connection GTR 210 Comfort with Controlbox: Fuse F2: replace only with  Littlefuse HF451 375mA  Fuse F1: replace only with  SIBA type 179200 1,6T  connection GTR210 controlbox Terminal Module assembly Connection Power supply 230 V AC 50Hz 230 V AC 50Hz Output current mA 4...20 Digital Input...
  • Page 14 ADOS GmbH GTR 210 Rev 1.16 Page 10 The external warning unit incorporates both optical and acoustic warning signals. The warning signals are controlled by the GTR 210: Green LED - Display Power supply Yellow LED - Display Fault Red LED...

  • Page 15: Notes On Safe Use Of The Gas Transmitter

    The connection of the GTR 210 may be implemented in voltage-free status only. • In case of explosion-protected implementation of the GTR 210, a cable gland with an EC design type test certificate and the identification: II 2G Ex e II must be used. The cable gland connection is included in the scope of delivery.

  • Page 16: Commissioning

    The adjustment should checked regularly (e.g. daily) until no further significant deviations are detected. • The supply voltage at the connecting terminals of the GTR 210 must not be less than 18 V and not higher than 26 V •...

  • Page 17: Operation

    Operation Device Display The GTR 210 incorporates a graphics display. The upper line of the display indicates the status of the gas transmitter, where faults and alarms are output. If no alarms or faults are present, the current date is displayed. The measured value is indicated below the status line. The measured value is displayed with sign, name of the target gas and the physical unit.

  • Page 18: Keyboard

    ADOS GmbH GTR 210 Rev 1.16 Page 14 Measuring range overflow events are displayed with three arrows pointing upward: ALARM:L1 L2 L3 Status indicator: Alarm 1, Alarm 2, Alarm 3 %LEL Unit of the measurement gas: %LEL Name of the measurement gas: CH4 Bar graph: >100%...

  • Page 19: Alarms

    Alarms In the user menu of the GTR 210, three limit values can be set, each of which triggers an alarm. The first alarm is a pre-alarm, the limit value of which is always lower than that of the main alarm (except for the measurement of oxygen).

  • Page 20: Trend Graph

    Page 16 Trend Graph The GTR 210 comes with 4 different trend graphs that are shown when pushing the arrow keys more than two seconds in the measuring mode. You can switch between the display of the different trend graphs by repeating the activation of the arrow keys.

  • Page 21: Output Signals

    GTR 210 Rev 1.16 Page 17 Output Signals The GTR 210 transmits the measured gas concentration to the evaluation unit via an analogue 4...20 mA current interface. The measuring range of the gas transmitter is transmitted straight proportionally to the current output.

  • Page 22: Systemstart

    On the current output, 2 mA is output (maintenance mode). This is to allow the sensor cell to warm-up and avoid any fault alarm during this time. After the run-in time, the GTR 210 automatically accesses the measurement mode. Maintenance mode (15 seconds remain) MAINTE.

  • Page 23: Exception-State: Sensor-Overload

    Page 19 Exception-state: sensor-overload When using a pellistor-sensor (VQ sensor), the GTR 210 can be in an exception-state. Due to the physical measurement principle, the signal from the pellistor-sensor falls with concentrations exceeding the lower explosion limit. In order to prevent the gas transmitter from indicating a smaller concentration at this time, the exception condition "VQ overload"...

  • Page 24: Exception-States

    ADOS GmbH GTR 210 Rev 1.16 Page 20 Exception-states The GTR 210 gas transmitter has the following exception-states: • warm-up, • calibration, • parameterization (maintenance), • and fault. The measurement of the gas concentration and therefore the output of alarms are interrupted during a exception-state.

  • Page 25: Parameterization Of The Gas Transmitter

    15 minutes. The parameters of the GTR 210 are adjusted by way of a menu. In order to access the menu, the ESC key must be pressed for 4 seconds, then released. In order to protect the measuring device from unauthorized user access, a request is made for the input of a valid code 210.

  • Page 26: -Mainmenu

    ADOS GmbH GTR 210 Rev 1.16 Page 22 Main Menu The main menu consists of the sub-menu System, Sensor, Alarms, Calibration and the menu items Relay, Time/Date and Language. The menu structure is illustrated below: -mainmenu- -system- system sensor system-info...

  • Page 27: Menu Item Relay

    Menu Item Relay This menu item is available in the comfort version of the GTR 210 only. This item is used to specify whether the alarm relays are to be activated as normally closed or normally open contacts. The fault relay is not configurable and is always operated as a normally closed for safety reasons, so that wire breaks and a failure of the power supply can also be detected.

  • Page 28: Sub-Menu System

    ADOS GmbH GTR 210 Rev 1.16 Page 24 Sub-menu System The sub-menu "System" provides information on the system, and makes test routines available to the user in a further sub-menu. The following illustration shows the menu structure: -system- -system-info- system-info...

  • Page 29: Relays

    6.2.2.3 Reset-Acknowledgement Using this function in the Comfort version of the GTR 210, the digital input can be tested. If the terminals DIG IN+ and DIG-IN- are connected together, then "confirmation:1" must be displayed. If the terminals are not connected together, then "confirmation:0" must be displayed.

  • Page 30: Watchdog

    Watchdog The Watchdog is an important part of the equipment. It restarts the device within 1.6 s if the software fails. The function of the Watchdog is correct when the GTR 210 restarts within 5 seconds after calling this function.

  • Page 31: Show Alarms

    6.2.3 Show Alarms All alarm changes are logged by the GTR 210. For each event that changes the alarm status, the states of the alarm relays, the measured gas concentration and the time, are saved. Activation of the maintenance mode is also logged. The status of the alarms is displayed with "0" or "1". Self-locking alarms are additionally identified with "reset man.?"...

  • Page 32: Show Parameters

    ADOS GmbH GTR 210 Rev 1.16 Page 28 6.2.5 Show Parameters Analog to the faults, access to the device parameters is saved. Event number: 007 Access: USER -show param.- Time of the event 05.04.2011 8:20 hours No.:007 USER 05.04.2011 08:20:20...

  • Page 33: Limit Values

    ADOS GmbH GTR 210 Rev 1.16 Page 29 This menu item is used for adjusting the parameters of the limit values of the alarms, their monitoring direction and the hysteresis. First the monitoring direction for each limit can be selected. This is displayed together with a ">" and a "<"...

  • Page 34: Confirmation

    ADOS GmbH GTR 210 Rev 1.16 Page 30 6.3.2 Confirmation This menu item is used for adjusting the parameters of the alarm self-locking facility. If the alarm is set to "automatic", the alarm is automatically confirmed if the gas concentration falls below the limit value.

  • Page 35: Sub-Menu Calibration

    ADOS GmbH GTR 210 Rev 1.16 Page 31 Sub-menu Calibration In the sub-menu Calibration, the gas sensor and also the output current are calibrated. -calibration- -zeropoint- zeropoint spanpoint parameter 1 ....

  • Page 36: Current 4 Ma

    ADOS GmbH GTR 210 Rev 1.16 Page 32 6.4.3 Current 4 mA This menu item and the following item, are used for calibrating the output currents. The output current is already calibrated ex-works. A post-calibration is generally not necessary. The calibration is independent of the load impedance connected.

  • Page 37: Current 20 Ma

    ADOS GmbH GTR 210 Rev 1.16 Page 33 6.4.4 Current 20 mA In this menu item, the output current is calibrated. The output current is already calibrated ex-works. A post-calibration is generally not necessary. The calibration is independent of the load impedance connected. It must only be ensured that the load impedance is not greater than 400 ohms.

  • Page 38: List Of All Parameters And Their Valid Adjustment Ranges

    2000 - 6000 works calibration current 20mA 15000 - 25000 works calibration The default settings of the GTR 210 TOX O (measurement of oxygen) deviate as follows: limit value 1 (Lt.1) 90% URV > Lt.1 > Lt.2 19% Vol% O limit value 2 (Lt.2)

  • Page 39: Maintenance Operations

    For safety-technical reasons, the sensing head should be checked once each year by a specialist. The maintenance work can be subdivided into transmitter tests of ADOS GTR 210 and testing the evaluation electronics. A check of the calibration, with zero gas and calibration gas, must be carried out on all existing sensors, since the gas sensors age with time and can lose sensitivity.

  • Page 40: Calibration

    ADOS GmbH GTR 210 Rev 1.16 Page 36 Calibration Read carefully, before any calibration: The measuring device must have been in operation for at least two hours before the calibration of the gas sensor! A suitable calibration gas adapter must be used for feeding the test gas. The calibration gas adapter must not produce any pressure on the measurement cell.

  • Page 41: Check Of Calibration Of The Zero Point

    ADOS GmbH GTR 210 Rev 1.16 Page 37 The following table contains information on the conversion of some calibration gas contents from Vol% to %LEL. Conversion factors for other gases are available on request. measuring gas chem. symbol conversion Methane...

  • Page 42: Calibration Of The Zero Point

    The user must wait until the indicated time has elapsed and the measured value for the zero gas has stabilized. After the time has elapsed, the GTR 210 waits for a user confirmation to check the new value and to accept it, as appropriate. Confirmation with the “ENTER key” should be made only when the user has checked that the measured value has in fact stabilized, i.e.

  • Page 43: Calibration Of The End Value

    The user must wait until the indicated time has elapsed and the measured value for the test gas has stabilized. After the time has elapsed, the GTR 210 waits for a user confirmation to check the new value and to accept it, as appropriate. Confirmation with the “ENTER key” should be made only when the user has checked that the measured value has in fact stabilized, i.e.

  • Page 44: Conversion Of The Test Gas Concentration Using A Substitute Gas

    In these cases, the calibration gas concentration must first be checked. If the test gas is not the cause, a new sensor cell must be fitted by the service of the ADOS company. 7.1.5 Conversion of the test gas concentration using a substitute gas With gases, the calibration can only performed with the measuring gas.
  • Page 45 ADOS GmbH GTR 210 Rev 1.16 Page 41 The following table only applies to the pellistor sensor: lower explosion limit response-factor Acetone 2.5 Vol% 0,66 Ammonia 15.0 Vol% 1.14 Ethanol 3.1 Vol% 0.66 Ethyl Acetate 2.0 Vol% 0.52 Ethylene 2.4 Vol% 0.91...
  • Page 46 ADOS GmbH GTR 210 Rev 1.16 Page 42 The following example illustrates the procedure for calibration with a substitute gas: The measuring range of the gas transmitter is set to 0-100% LEL ethanol ex-works. The calibration should be performed with a substitute gas of 1.0 vol% propane.

  • Page 47: Check Of The Output Signals

    ADOS GmbH GTR 210 Rev 1.16 Page 43 Check of the Output Signals The output signals should be checked annually. This check can be carried out in the “System => Hardware Test” sub-system (see chapter 6.2.2 Hardware Test Sub-Menu). The correct function of the •...

  • Page 48: Trouble-Shooting

    ADOS GmbH GTR 210 Rev 1.16 Page 44 Trouble-shooting Error Possible Cause Remedy Transmitter does not display Power supply has failed Check voltage supply / fuses anything for evaluation unit and replace if necessary Fuses defective Check fuses F400, F401 in the sensor upper-part.
  • Page 49 ADOS GmbH GTR 210 Rev 1.16 Page 45 Error messages: electromagnetic interferences Identify / remove source of interference in the vicinity of - I2C-Bus EEPROM the installation side; - EEPROM Separate power supply for gas - I2C-Bus RTC warning system...

  • Page 50: Dimensions

    ADOS GmbH GTR 210 Rev 1.16 Page 46 Dimensions Dimensiones: GTR 210 with flow adapter (882-6266/b)
  • Page 51 ADOS GmbH GTR 210 Rev 1.16 Page 47 Dimensiones: GTR 210 mit flow adapter (882-6266/b)
  • Page 52 ADOS GmbH GTR 210 Rev 1.16 Page 48 Drilling Measurements B134c...

  • Page 53: Technical Safety Characteristics

    ADOS GmbH GTR 210 Rev 1.16 Page 49 Technical Safety Characteristics The safety-related characteristic data is required to build up safety chains with a certain safety integrity level (SIL). The gas measuring device is just one part of the safety chain.
  • Page 54 ADOS GmbH GTR 210 Rev 1.16 Page 50 Reliability data for function 1 catalytic bead sensor Failure-rates: - failure-rate total 10843 FIT - failure-rate safe λ 8928 FIT - failure-rate dangerous undetected λ 1675 FIT - failure-rate dangerous detected λ...
  • Page 55 ADOS GmbH GTR 210 Rev 1.16 Page 51 Reliability data for function 1 infrared sensor Failure-rates: 1118 FIT - failure-rate total λ 441 FIT - failure-rate safe λ 262 FIT - failure-rate dangerous undetected λ 415 FIT - failure-rate dangerous detected...
  • Page 56 ADOS GmbH GTR 210 Rev 1.16 Page 52 Reliability data for function 1 electro chemical sensor H2S Failure-rates: - failure-rate total 8843 FIT - failure-rate safe λ 3128 FIT - failure-rate dangerous undetected λ 5475 FIT - failure-rate dangerous detected λ...

  • Page 57: Technical Data

    ADOS GmbH GTR 210 Rev 1.16 Page 53 Technical Data 11.1 Technical Data of the Gas Transmitter Standard GTR 210 Supply voltage 24 V DC -25% +10% Power consumption max. Outputs Output current 1x 4...20 mA, max. 23 mA Maximum load impedance: 400 ohms...
  • Page 58 ADOS GmbH GTR 210 Rev 1.16 Page 54 GTR 210 Comfort Supply voltage 230 V AC 50 Hz ±10% Power consumption max. 10VA Outputs Output current 1x 4...20 mA, max. 23 mA Maximum load impedance: 400 ohms 3x floating change-over contacts for alarms...
  • Page 59 ADOS GmbH GTR 210 Rev 1.16 Page 55 GTR 210 EX Supply voltage 24 V DC -25% +10% Power consumption max. Outputs Output current 1x 4...20 mA, max. 23 mA Maximum load impedance: 400 ohms Operating conditions: Operating temperature IP54: -25°C ...

  • Page 60: Technical Data Sensors

    ADOS GmbH GTR 210 Rev 1.16 Page 56 11.2 Technical Data Sensors Type Meas. method semiconductor pellistor thermal conductivity Measurement ppm-ranges to 100 % ppm-range to 100 % from 0 - 5 Vol% range to 0 -100 Vol% Percentage error ±5%...
  • Page 61 ADOS GmbH GTR 210 Rev 1.16 Page 57 Type Meas. method electro- chemical infrared photo-Ionisation reaction Measurement ppm-ranges 0-100 % LEL CH 0-200 ppm to range to 100 % LEL 0-2000 ppm 0-100 Vol% CH 0-1,2,3,4,5 Vol% CO Percentage error ±3%...

  • Page 62: Measuring Ranges With Ec-Type Examination With Regard To The Measuring Function For Explosion Protection

    ADOS GmbH GTR 210 Rev 1.16 Page 58 11.3 Measuring ranges with ec-type examination with regard to the measuring function for explosion protection Dekra EXAM GmbH performed a BVS 12 ATEX G001 X EC-type examination for the following gases and measuring ranges.
  • Page 63 ADOS GmbH GTR 210 Rev 1.16 Page 59 Sensor type Catalytic combustion sensor (pellistor) Alternative IP66 certified measuring ranges: 0 - 100 %LEL of n-Alkanes, n = 1...6 Methane...n-Nonane (See below for precise list) Setting-time t 0 - 100 %LEL methane <...

  • Page 64: Accessories And Spare Parts

    ADOS GmbH GTR 210 Rev 1.16 Page 60 11.4 Accessories and spare parts Calibration Adapter GTR 210 AL on demand Flow Adapter stainless steel on demand Manual GTR210 on demand Pellistor-sensor on demand Semiconductor-Sensor on demand Thermal-conductivity-sensor on demand Infrared sensor...
